51518 - UCR/UCS(MALAYSIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

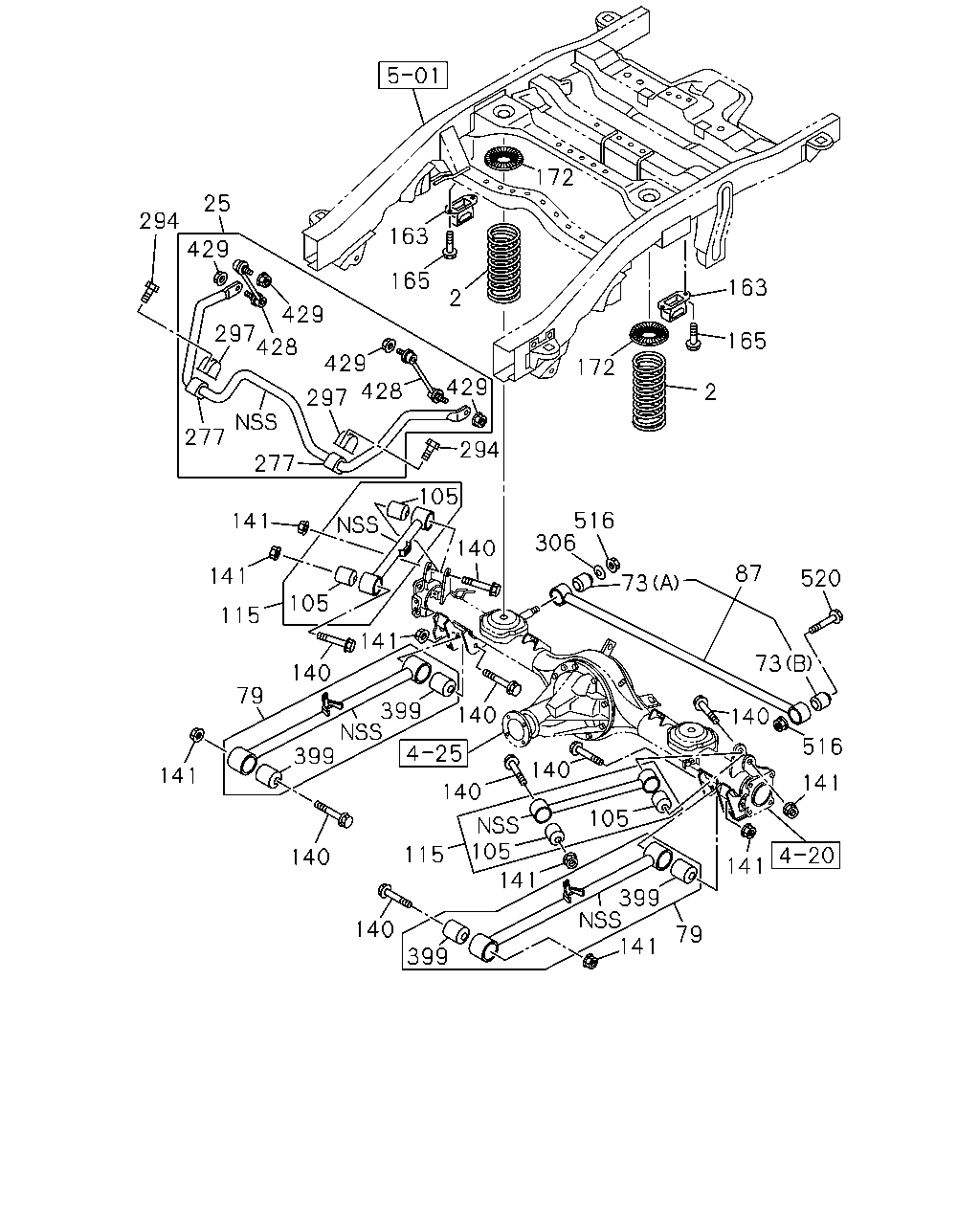

4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#145207) — 22 parça
Tümü
A - UCB5VC
B - UCS5VC
172
163
165
2
172
2
165
163
429
428
429
297
428
429
297
429
25
294
277
277
294
105
140
516
306
141
141
115
105
141
140
79
141
140
115
399
399
140
140
105
141
399
140
399
79
141
105
141
141
516
140
73
520
87
73
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
SPRING; COIL,RR SUSP
8-97947-799-2
02
1
1407-
●
●
25
BAR ASM; STAB,RR SUSP
8-97947-792-0
01
1
1407-
●
●
73
BUSHING; LATERAL ROD,RR SUSP
(A)
8-97947-785-1
01
1
1407-
●
●
73
BUSHING; LATERAL ROD,RR SUSP
(B)
8-97947-786-0
01
1
1407-
●
●
79
LINK; TRAILING,RR SUSP
8-97947-369-0
02
1
1407-
●
●
87
LINK; LATERAL,RR SUSP
8-97947-365-2
01
1
1407-
●
●
105
BUSHING; UPR LINK
8-97947-787-0
04
1
1407-
●
●
115
LINK; UPR,W/BUSHING
8-97947-367-1
02
1
1407-
●
●
140
BOLT; CONT ARM TO BODY
8-97947-834-0
08
1
1407-
●
●
141
NUT; CONT ARM TO BODY
8-98217-474-0
08
1
1407-
●
●
163
RUBBER; HELPER,RR SPR
8-97947-790-0
02
1
1407-
●
●
165
BOLT; HELPER RUBBER
M10X25 FLANGE
0-28661-025-0
04
1
1407-
●
●
172
INSULATOR; RR SPR UPR
8-97947-789-0
02
1
1407-
●
●
277
BUSHING; STAB,RR UPR
8-97247-083-0
02
1
1407-
●
●
294
BOLT; STAB BAR TO RR AXLE
M8X20 FLANGE
0-28650-820-0
04
1
1407-
●
●
297
CAP; STAB BAR
8-97947-948-0
02
1
1407-
●
●
306
WASHER; ROD
8-97947-826-0
01
1
1407-
●
●
399
BUSHING; TRAILING ROD
8-97947-788-0
04
1
1407-
●
●
428
LINK; RR STABILIZER
8-97947-794-0
02
1
1407-
●
●
429
NUT; LINK
M12 LOCK NUT FLANGE
0-91380-012-0
04
1
1407-
●
●
516
NUT; ROD
8-98217-474-0
02
1
1407-
●
●
520
BOLT; ROD
0-29261-490-0
01
1
1407-
●
●
