◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#145204) — 9 parça

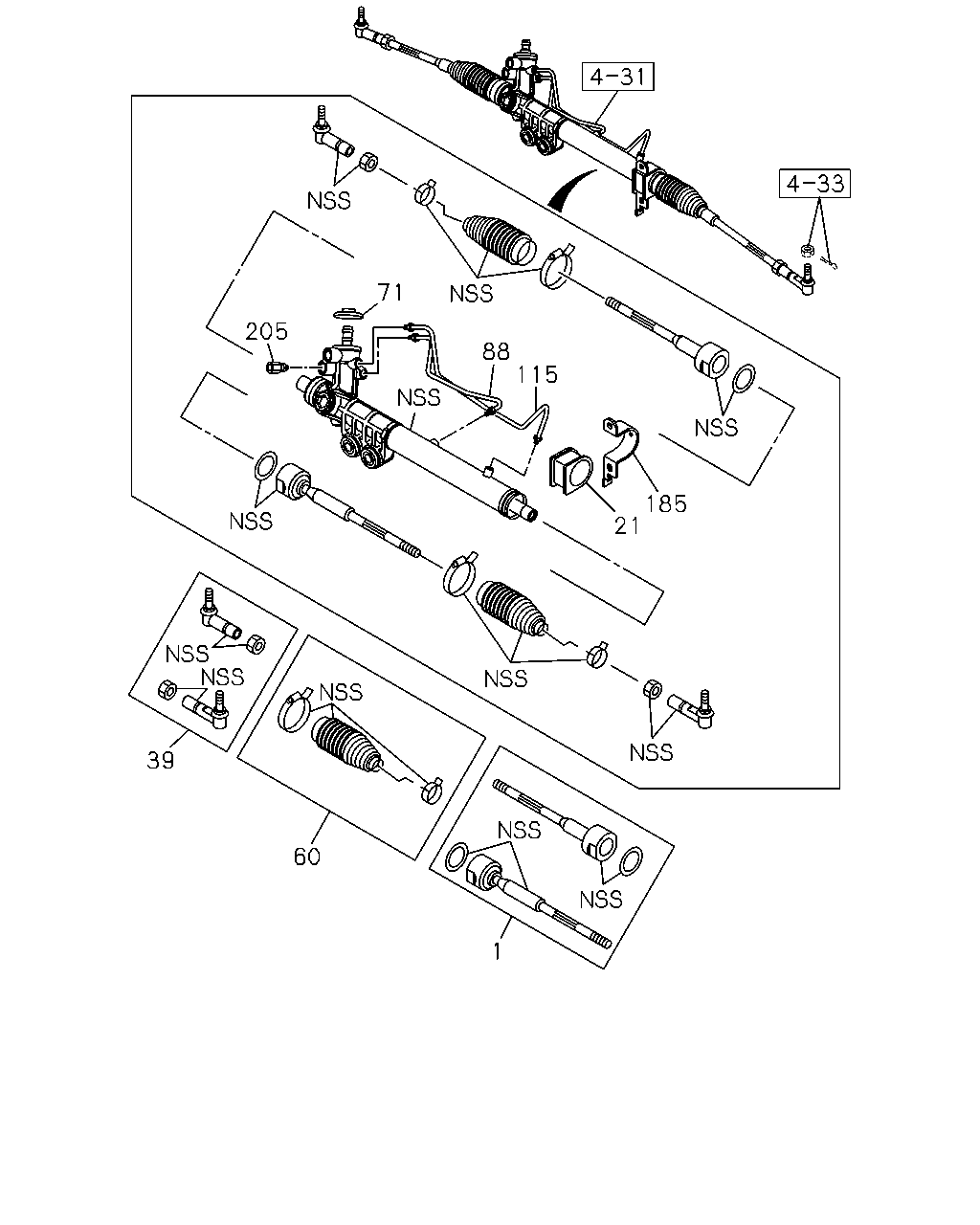

çizim 433350
115 185 21 88 71 205 39 60 1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-98231-299-0 		8-98164-967-0 01 1 -
21 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-98231-299-0 		8-97945-426-0 01 1 -
39 ROD END ASM; OUTER
ASM PART: A = 8-98231-299-0 		8-98056-551-0 01 1 -
60 BOOT KIT; STRG HSG
ASM PART: A = 8-98231-299-0 		8-97945-423-0 02 1 -
71 COVER; DUST,STRG UNIT
ASM PART: A = 8-98231-299-0 		8-98164-972-0 01 1 -
88 PIPE; HSG TO VLV
ASM PART: A = 8-98231-299-0 		8-98164-970-0 01 1 -
115 PIPE; HSG TO VLV
ASM PART: A = 8-98231-299-0 		8-98164-969-0 01 1 -
185 BRACKET; P/S
ASM PART: A = 8-98231-299-0 		8-98164-968-0 01 1 -
205 VALVE ASM; CHECK
ASM PART: A = 8-98231-299-0 		8-98231-309-0 01 1 -
