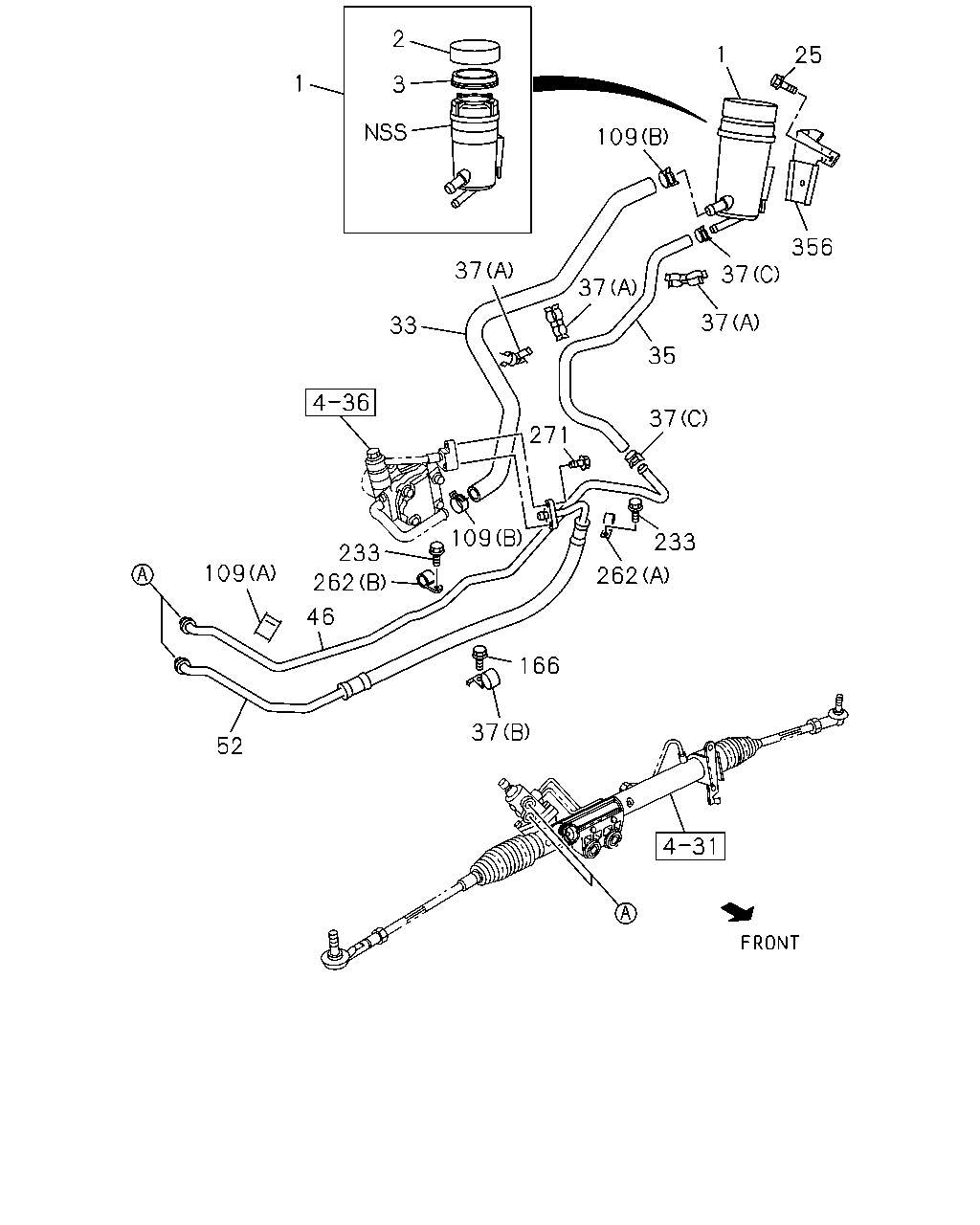

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#145202) — 19 parça

1 2 3 1 25 109 356 37 37 35 37 37 33 37 271 233 109 46 262 166 37 52 262 233 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97234-350-0	01	1	1407-	●	●
2	CAP; OIL TANK,P/S	8-97349-476-0	01	1	1407-	●	●
3	GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1407-	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE	0-28650-616-0	02	1	1407-	●	●
33	HOSE; RUBBER,POWER STRG	8-97946-138-2	01	1	1407-	●	●
35	HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1407-	●	●
37	CLIP; HOSE,P/S (A) ID=17.5 & 21	8-97177-580-0	03	1	1407-	●	●
37	CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1407-	●	●
37	CLIP; HOSE,P/S (B) ID=21.5	8-98242-629-0	01	1	1407-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-98228-468-1	01	1	1407-	●	●
52	HOSE; FLEX,P/S CONT VLV	8-98231-296-1	01	1	1407-	●	●
109	CLIP; RUBBER HOSE (A) ID=10X2 H=22	8-94252-455-2	01	1	1407-	●	●
109	CLIP; RUBBER HOSE (B) ID=20.8	8-97944-127-0	02	1	1407-	●	●
166	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1407-	●	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE	0-28650-616-0	02	1	1407-	●	●
262	CLIP; P/S PIPE (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1407-	●	●
262	CLIP; P/S PIPE (B) ID=11 L=20	0-95235-032-0	01	1	1407-	●	●
271	BOLT; P/S OIL PIPE FIX M6X16 FLANGE	0-28650-616-0	02	1	1407-	●	●
356	BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1407-	●	●
