4-31 — STEERING COLUMN AND SHAFT (#145200) — 67 parça

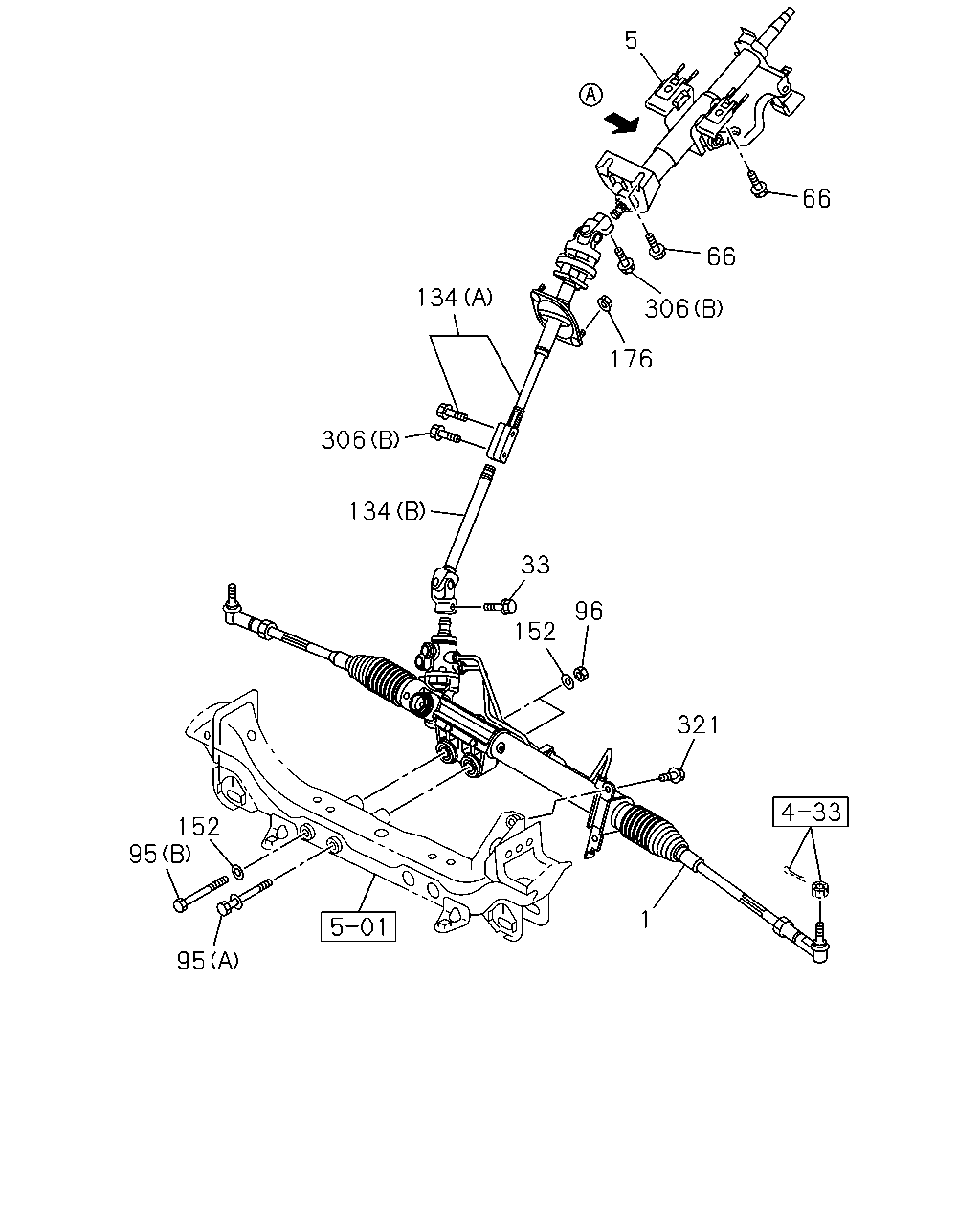

134 176 306 66 66 5 306 134 33 96 152 32 1 152 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98231-299-0	01	1	1407-	●	●
5	COLUMN; STRG PASSIVE ENTRY AND START SYSTEM<AP3>	8-98226-628-1	01	1	1407-1408	●
5	COLUMN; STRG PASSIVE ENTRY AND START SYSTEM<AP3> TILT STEERING<N33>	8-98226-628-1	01	1	1407-1408		●
5	COLUMN; STRG EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98273-325-0	01	1	1407-1408	●
5	COLUMN; STRG TILT STEERING<N33> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98273-325-0	01	1	1407-1408		●
5	COLUMN; STRG	8-98273-325-0	01	1	1409-	●
5	COLUMN; STRG TILT STEERING<N33>	8-98273-325-0	01	1	1409-		●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-98273-326-0	01	1	1407-		●
33	BOLT; STRG SHAFT TO UNIT M8X35 FLANGE	8-97249-320-0	01	1	1407-	●	●
66	BOLT; STRG COLUMN M8X25 FLANGE	0-28650-825-0	04	1	1407-	●	●
95	BOLT; STRG UNIT (B) M16X186.5	8-97947-503-0	01	1	1407-	●	●
95	BOLT; STRG UNIT (A) M16X186.5 W/PL WASHER	8-98162-884-1	01	1	1407-	●	●
96	NUT; STRG UNIT M16	0-91110-516-0	02	1	1407-	●	●
103	SWITCH; IGNITION A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98132-719-0	01	1	1407-1408	●
103	SWITCH; IGNITION EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98132-719-0	01	1	1407-1408		●
103	SWITCH; IGNITION A/T 5 SPEED-AISIN(MA1)	8-98132-719-0	01	1	1409-	●
103	SWITCH; IGNITION	8-98132-719-0	01	1	1409-		●
134	SHAFT; STRG,2ND (A)	8-97946-127-1	01	1	1407-	●	●
134	SHAFT; STRG,2ND (B)	8-97946-136-0	01	1	1407-	●	●
152	WASHER; LK,STRG UNIT ID=17	8-97947-501-0	03	1	1407-1504	●	●
152	WASHER; LK,STRG UNIT ID=17	8-98296-670-0	03	1	1505-	●	●
176	NUT; STRG M6 FLANGE	0-91180-106-0	02	1	1407-	●	●
306	BOLT; STRG SHAFT A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> (A) M8X18.5 TWISTED OFF	8-97945-749-0	01	1	1407-1408	●
306	BOLT; STRG SHAFT PASSIVE ENTRY AND START SYSTEM<AP3> (A) M8X18.5 TWISTED OFF	8-97945-749-0	01	1	1407-1408		●
306	BOLT; STRG SHAFT A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1407-1408	●
306	BOLT; STRG SHAFT EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1407-1408		●
306	BOLT; STRG SHAFT A/T 5 SPEED-AISIN(MA1) (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1409-	●
306	BOLT; STRG SHAFT (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1409-		●
306	BOLT; STRG SHAFT (B) M8X35 FLANGE	8-97249-320-0	02	1	1407-	●	●
321	BOLT; BRKT,STRG M12X30 FLANGE	0-28661-230-0	02	1	1407-	●	●

306 102 140 236 108 105 5 306 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	COLUMN; STRG PASSIVE ENTRY AND START SYSTEM<AP3>	8-98226-628-1	01	1	1407-1408	●
5	COLUMN; STRG PASSIVE ENTRY AND START SYSTEM<AP3> TILT STEERING<N33>	8-98226-628-1	01	1	1407-1408		●
5	COLUMN; STRG EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98273-325-0	01	1	1407-1408	●
5	COLUMN; STRG TILT STEERING<N33> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98273-325-0	01	1	1407-1408		●
5	COLUMN; STRG	8-98273-325-0	01	1	1409-	●
5	COLUMN; STRG TILT STEERING<N33>	8-98273-325-0	01	1	1409-		●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-98273-326-0	01	1	1407-		●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> (B)	8-98226-269-0	01	1	1407-1408	●
102	LOCK ASM; STRG PASSIVE ENTRY AND START SYSTEM<AP3> (B)	8-98226-269-0	01	1	1407-1408		●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)	8-98076-120-0	01	1	1407-1408	●	●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN(MA1) (A)	8-98076-120-0	01	1	1409-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H(MWQ) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)	8-98076-117-0	01	1	1407-1408		●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H(MWQ) (A)	8-98076-117-0	01	1	1409-		●
103	SWITCH; IGNITION A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98132-719-0	01	1	1407-1408	●
103	SWITCH; IGNITION EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98132-719-0	01	1	1407-1408		●
103	SWITCH; IGNITION A/T 5 SPEED-AISIN(MA1)	8-98132-719-0	01	1	1409-	●
103	SWITCH; IGNITION	8-98132-719-0	01	1	1409-		●
105	SCREW; IGN SW A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98192-449-0	02	1	1407-1408	●
105	SCREW; IGN SW EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98192-449-0	02	1	1407-1408		●
105	SCREW; IGN SW A/T 5 SPEED-AISIN(MA1)	8-98192-449-0	02	1	1409-	●
105	SCREW; IGN SW	8-98192-449-0	02	1	1409-		●
140	BRACKET; STRG COWL A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98134-652-0	01	1	1407-1408	●
140	BRACKET; STRG COWL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98134-652-0	01	1	1407-1408		●
140	BRACKET; STRG COWL A/T 5 SPEED-AISIN(MA1)	8-98134-652-0	01	1	1409-	●
140	BRACKET; STRG COWL	8-98134-652-0	01	1	1409-		●
236	SWITCH; DOOR WARNING,STRG LOCK A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98132-720-0	01	1	1407-1408	●
236	SWITCH; DOOR WARNING,STRG LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98132-720-0	01	1	1407-1408		●
236	SWITCH; DOOR WARNING,STRG LOCK A/T 5 SPEED-AISIN(MA1)	8-98132-720-0	01	1	1409-	●
236	SWITCH; DOOR WARNING,STRG LOCK	8-98132-720-0	01	1	1409-		●
306	BOLT; STRG SHAFT A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> (A) M8X18.5 TWISTED OFF	8-97945-749-0	01	1	1407-1408	●
306	BOLT; STRG SHAFT PASSIVE ENTRY AND START SYSTEM<AP3> (A) M8X18.5 TWISTED OFF	8-97945-749-0	01	1	1407-1408		●
306	BOLT; STRG SHAFT A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1407-1408	●
306	BOLT; STRG SHAFT EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1407-1408		●
306	BOLT; STRG SHAFT A/T 5 SPEED-AISIN(MA1) (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1409-	●
306	BOLT; STRG SHAFT (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1409-		●
306	BOLT; STRG SHAFT (B) M8X35 FLANGE	8-97249-320-0	02	1	1407-	●	●
321	BOLT; BRKT,STRG M12X30 FLANGE	0-28661-230-0	02	1	1407-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
