◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#145199) — 38 parça

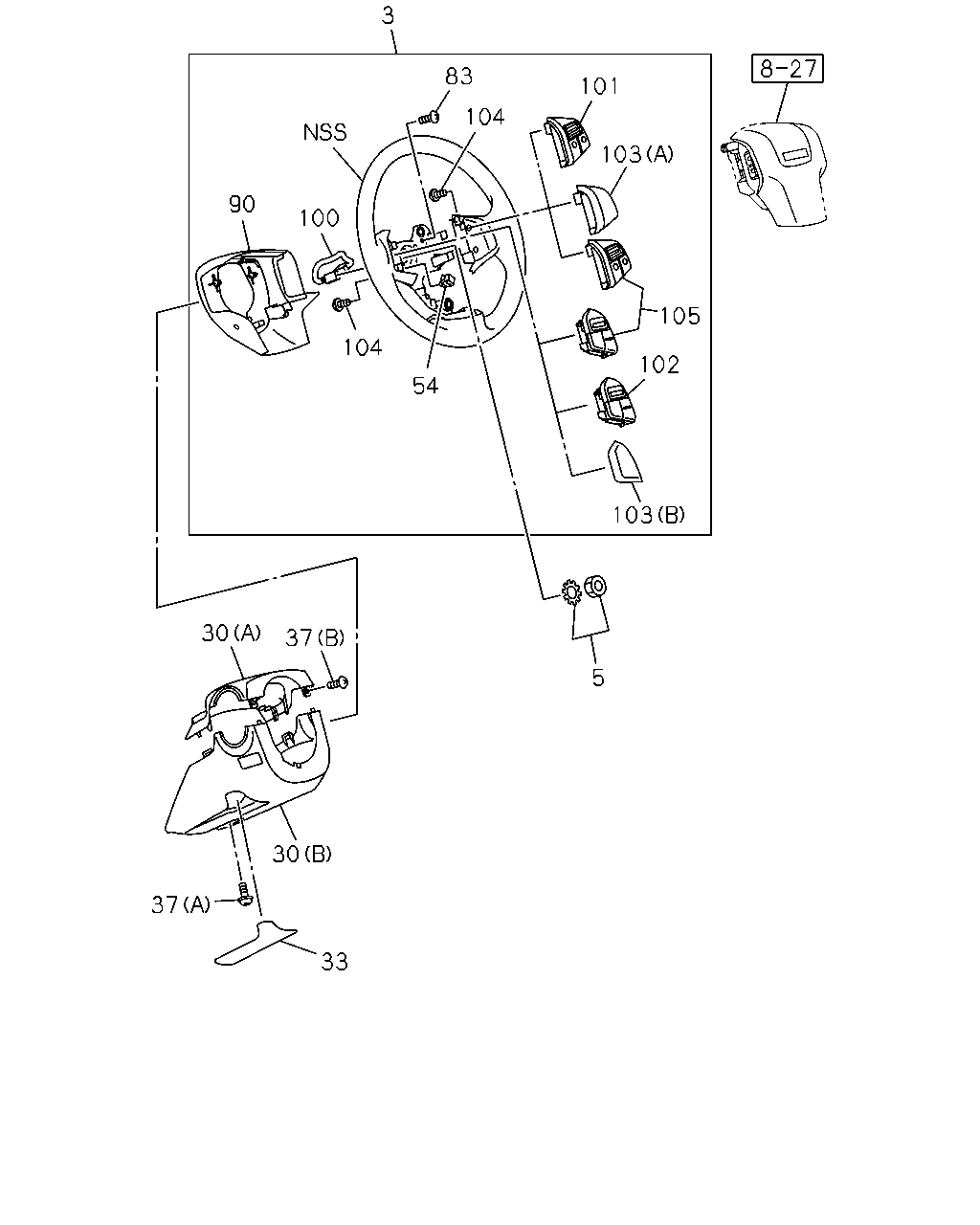

çizim 433002
3 83 104 101 103 105 102 103 5 54 104 100 90 30 37 30 37 33
BalonParca AdiParca NoAdetTipApplied Date A B
3 WHEEL; STRG
AUTO CRUISE CONT<K30> STRG WHL AUDIO CONTROL SW<8NE> BLACK 		8-97424-482-0 01 1 1407- ●
3 WHEEL; STRG
AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> STRG WHL AUDIO CONTROL SW<8NE> BLACK 		8-97424-482-0 01 1 1407- ●
3 WHEEL; STRG
AUTO CRUISE CONT<K30> EXC. STRG WHL AUDIO CONTROL SW<8NE> BLACK 		8-97424-480-0 01 1 1407- ●
3 WHEEL; STRG
AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> EXC. STRG WHL AUDIO CONTROL SW<8NE> BLACK 		8-97424-480-0 01 1 1407- ●
3 WHEEL; STRG
STRG WHL AUDIO CONTROL SW<8NE> EXC. AUTO CRUISE CONT<K30> BLACK 		8-97424-481-0 01 1 1407- ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> STRG WHL AUDIO CONTROL SW<8NE> EXC. AUTO CRUISE CONT<K30> BLACK 		8-97424-481-0 01 1 1407- ●
3 WHEEL; STRG
EXC. AUTO CRUISE CONT<K30>,STRG WHL AUDIO CONTROL SW<8NE> BLACK 		8-97424-479-0 01 1 1407- ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. AUTO CRUISE CONT<K30>,STRG WHL AUDIO CONTROL SW<8NE> BLACK 		8-97424-479-0 01 1 1407- ●
3 WHEEL; STRG
EXC. AUTO CRUISE CONT<K30>,STEERING WHEEL LEATHER<NP5>,STRG WHL AUDIO CONTROL SW<8NE> BLACK 		8-97416-797-3 01 1 1407- ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 1407- ● ●
30 COWL; STEERING
PASSIVE ENTRY AND START SYSTEM<AP3> (B) BLACK 		8-97427-833-0 01 1 1407-1408 ● ●
30 COWL; STEERING
(A) BLACK 		8-97416-863-4 01 1 1407- ● ●
30 COWL; STEERING
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) BLACK 		8-97416-794-6 01 1 1407-1408 ● ●
30 COWL; STEERING
(B) BLACK 		8-97416-794-6 01 1 1409- ● ●
33 COVER; STRG COWL
EXC. TILT STEERING<N33> BLACK 		8-97421-052-0 01 1 1407- ●
37 SCREW; STRG COWL UPR
(A) M4X12 W/PL WASHER 		0-36210-412-0 01 1 1407- ● ●
37 SCREW; STRG COWL UPR
(B) M5X16 TAPPING 		8-98167-449-0 02 1 1407- ● ●
54 CLIP; HARNESS 8-98165-703-0 01 1 1407- ● ●
83 SCREW; LWR COVER TO WHEEL
M4X10 TAPPING 		0-71240-410-0 02 1 1407- ● ●
90 COVER ASM; STRG WHEEL,LWR
BLACK 		8-97416-856-1 01 1 1407- ● ●
100 HARNESS; STRG WHEEL
AUTO CRUISE CONT<K30> STRG WHL AUDIO CONTROL SW<8NE> 		8-98108-694-0 01 1 1407- ●
100 HARNESS; STRG WHEEL
AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> STRG WHL AUDIO CONTROL SW<8NE> 		8-98108-694-0 01 1 1407- ●
100 HARNESS; STRG WHEEL
AUTO CRUISE CONT<K30> EXC. STRG WHL AUDIO CONTROL SW<8NE> 		8-98108-693-0 01 1 1407- ●
100 HARNESS; STRG WHEEL
AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> EXC. STRG WHL AUDIO CONTROL SW<8NE> 		8-98108-693-0 01 1 1407- ●
100 HARNESS; STRG WHEEL
STRG WHL AUDIO CONTROL SW<8NE> EXC. AUTO CRUISE CONT<K30> 		8-98108-695-0 01 1 1407- ●
100 HARNESS; STRG WHEEL
STEERING WHEEL LEATHER<NP5> STRG WHL AUDIO CONTROL SW<8NE> EXC. AUTO CRUISE CONT<K30> 		8-98108-695-0 01 1 1407- ●
101 SWITCH ASM; CRUISE CONT,STRG WHEEL
AUTO CRUISE CONT<K30> EXC. STRG WHL AUDIO CONTROL SW<8NE> 		8-98196-491-0 01 1 1407- ●
101 SWITCH ASM; CRUISE CONT,STRG WHEEL
AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> EXC. STRG WHL AUDIO CONTROL SW<8NE> 		8-98196-491-0 01 1 1407- ●
102 SWITCH ASM; AUDIO CONT,STRG WHEEL
STRG WHL AUDIO CONTROL SW<8NE> EXC. AUTO CRUISE CONT<K30> 		8-98196-493-0 01 1 1407- ●
102 SWITCH ASM; AUDIO CONT,STRG WHEEL
STEERING WHEEL LEATHER<NP5> STRG WHL AUDIO CONTROL SW<8NE> EXC. AUTO CRUISE CONT<K30> 		8-98196-493-0 01 1 1407- ●
103 BEZEL; COVER,SWITCH HOLE
EXC. AUTO CRUISE CONT<K30> (A) 		8-98196-497-0 01 1 1407- ●
103 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> EXC. AUTO CRUISE CONT<K30> (A) 		8-98196-497-0 01 1 1407- ●
103 BEZEL; COVER,SWITCH HOLE
EXC. STRG WHL AUDIO CONTROL SW<8NE> (B) 		8-98196-496-0 01 1 1407- ●
103 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> EXC. STRG WHL AUDIO CONTROL SW<8NE> (B) 		8-98196-496-0 01 1 1407- ●
104 SCREW; SWITCH AND BEZEL
M4X10 TAPPING 		0-71240-410-0 04 1 1407- ●
104 SCREW; SWITCH AND BEZEL
STEERING WHEEL LEATHER<NP5> M4X10 TAPPING 		0-71240-410-0 04 1 1407- ●
105 SWITCH ASM; AUDIO & AUTO CRUISE
AUTO CRUISE CONT<K30> STRG WHL AUDIO CONTROL SW<8NE> 		8-98196-492-0 01 1 1407- ●
105 SWITCH ASM; AUDIO & AUTO CRUISE
AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> STRG WHL AUDIO CONTROL SW<8NE> 		8-98196-492-0 01 1 1407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
