◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#145198) — 57 parça

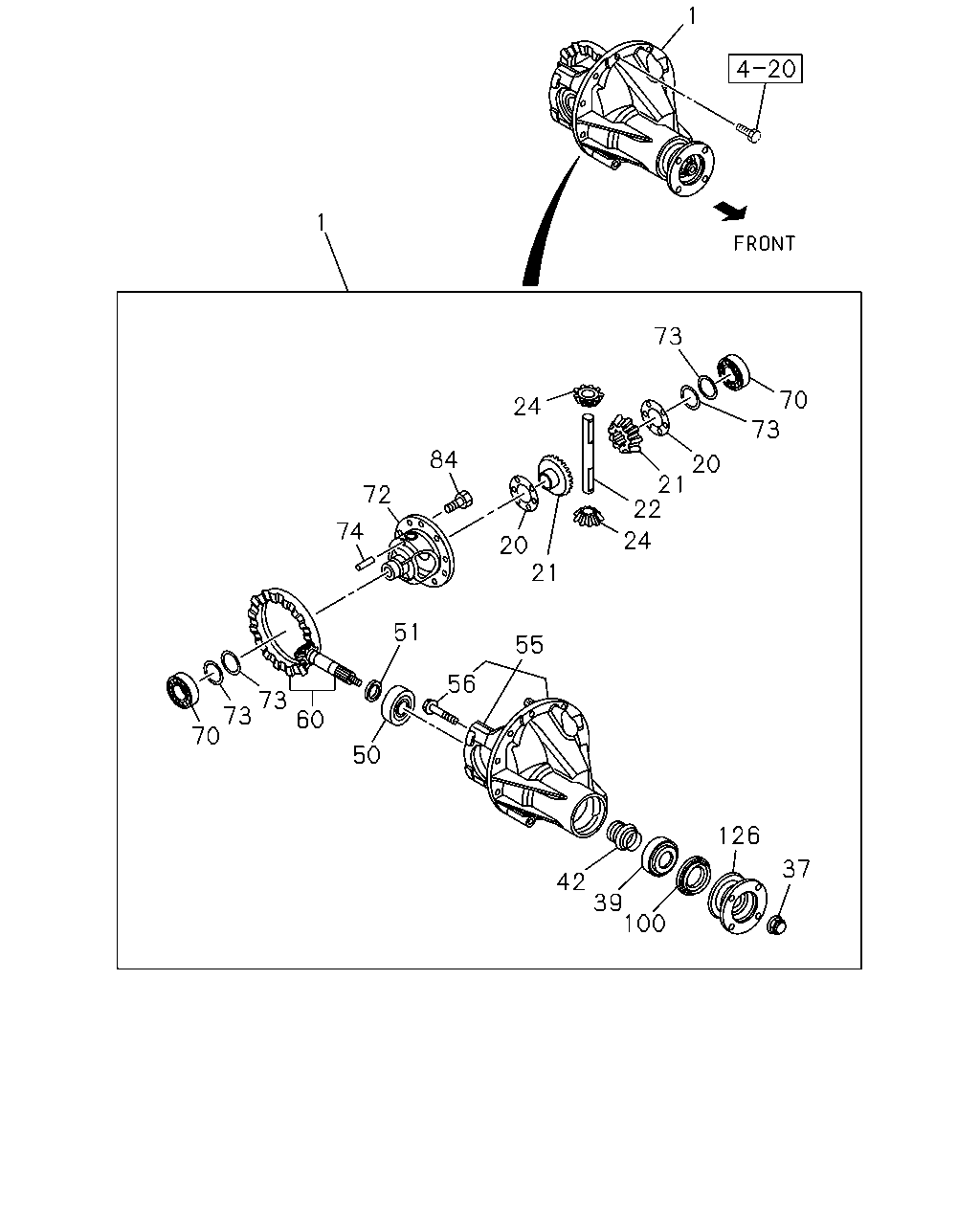

çizim 433344
70 73 73 60 50 51 56 55 42 39 100 126 37 21 20 74 72 84 24 73 24 22 21 20 73 70 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
43/11 		8-98190-116-0 01 1 1407- ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/11(GW1) 43/11 		8-98190-116-0 01 1 1407- ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-98190-117-0 01 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
T=0.80 		8-94435-343-0 02 1 1407- ● ●
20 WASHER; THRUST,SIDE GEAR
T=0.90 		8-94435-344-0 02 1 1407- ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.10 		8-94435-345-0 02 1 1407- ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.20 		8-94435-346-0 02 1 1407- ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.30 		8-94435-347-0 02 1 1407- ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.00 		9-41562-602-0 02 1 1407- ● ●
21 GEAR; SIDE,DIFF
Z=18 		8-98186-828-1 02 1 1407- ● ●
22 SPIDER; DIFF PINION 8-94435-308-1 01 1 1407- ● ●
24 GEAR; PINION,DIFF
Z=10 		8-98186-829-0 02 1 1407- ● ●
37 NUT; DRIVING PINION
M24 FLANGE 		8-94376-261-1 01 1 1407- ● ●
39 BEARING; FINAL PINION
NSK 		9-00093-078-0 01 1 1407- ● ●
42 COLLAR; DIST,COLLAPSIBLE 8-97035-399-0 01 1 1407- ● ●
50 BEARING; FINAL PINION
NSK 		8-94435-342-0 01 1 1407- ● ●
50 BEARING; FINAL PINION
JTEKT 		8-94452-448-0 01 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.94 		8-94435-356-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.96 		8-94435-357-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.98 		8-94435-358-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.00 		8-94435-359-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.02 		8-94435-360-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.04 		8-94435-361-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.06 		8-94435-362-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.08 		8-94435-363-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.10 		8-94435-364-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.12 		8-94435-365-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.14 		8-94435-366-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.16 		8-94435-367-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.18 		8-94435-368-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.20 		8-94435-369-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.22 		8-94435-370-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.24 		8-94435-371-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.26 		8-94435-372-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.28 		8-94435-373-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.30 		8-94435-374-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.32 		8-94435-375-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.34 		8-94435-376-0 AR 1 1407- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.36 		8-94435-377-0 AR 1 1407- ● ●
55 CARRIER; DIFF 8-97240-889-2 01 1 1407- ● ●
56 BOLT; BRG CAP
M12X75 FLANGE 		8-98176-233-0 04 1 1407- ● ●
60 GEAR SET; FINAL DRIVE,RR
43/11 		8-98014-980-1 01 1 1407- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/11(GW1) 43/11 		8-98014-980-1 01 1 1407- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-98014-984-1 01 1 1407- ●
70 BEARING; DIFF CAGE
NSK 		8-94435-355-0 02 1 1407- ● ●
70 BEARING; DIFF CAGE
JTEKT 		8-94452-449-1 02 1 1407- ● ●
72 CAGE; DIFF 8-94325-448-0 01 1 1407- ● ●
73 SHIM; DIFF SIDE BRG
T=0.12 		8-94435-348-0 AR 1 1407- ● ●
73 SHIM; DIFF SIDE BRG
T=0.15 		8-94435-349-0 AR 1 1407- ● ●
73 SHIM; DIFF SIDE BRG
T=0.18 		8-94435-350-0 AR 1 1407- ● ●
73 SHIM; DIFF SIDE BRG
T=0.25 		8-94435-351-0 AR 1 1407- ● ●
73 SHIM; DIFF SIDE BRG
T=0.30 		8-94435-352-0 AR 1 1407- ● ●
73 SHIM; DIFF SIDE BRG
T=0.50 		8-94435-353-0 AR 1 1407- ● ●
74 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 1407- ● ●
84 BOLT; FINAL DRIVE GEAR
M10X18.5 		8-97038-064-0 12 1 1407- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		8-97328-648-0 01 1 1407- ● ●
126 COUPLING; DRIVING PINION 8-98166-552-1 01 1 1407- ● ●
