4-11 — FRONT HUB AND DRUM OR ROTOR (#145194) — 28 parça

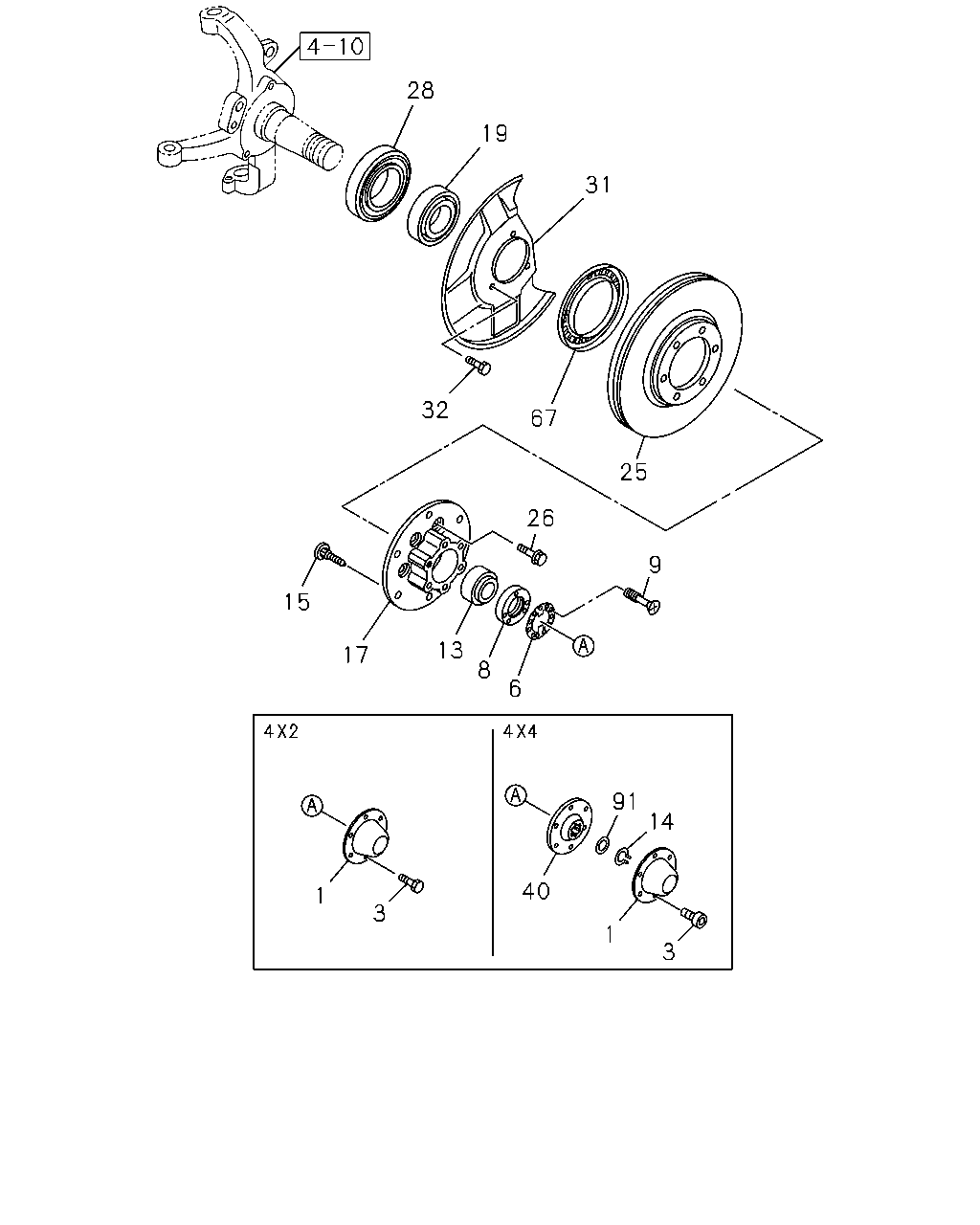

çizim 433343
28 19 31 25 67 32 26 9 6 8 13 17 15 1 3 40 91 14 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE 8-97944-565-0 02 1 1407- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M10X20 		0-20951-020-0 12 1 1407- ●
3 BOLT; HUB CAP,FRT WHEEL
M10X33 		8-98117-920-0 12 1 1407- ●
6 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 1407- ● ●
8 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 		8-94442-399-1 02 1 1407- ● ●
9 SCREW; ADJ,NUT
M4X8 CK-HEAD 		8-98008-301-0 06 1 1407- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		8-94227-041-0 02 1 1407- ● ●
14 RING; SPR,FRT WHEEL
ID=25.9 		9-09180-028-0 02 1 1407- ●
15 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97944-564-1 12 1 1407- ● ●
17 HUB; FRT AXLE 8-98054-665-0 02 1 1407- ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		8-94258-819-0 02 1 1407- ● ●
25 ROTOR; DISC BRK,FRT 8-98124-663-4 02 1 1407- ● ●
26 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE 		8-98006-065-0 12 1 1407- ● ●
28 SEAL; OIL,FRT HUB 8-98036-594-0 02 1 1407- ● ●
31 COVER; DUST,FRT BRAKE 8-98062-190-0 01 1 1407- ●
31 COVER; DUST,FRT BRAKE
ABS W/EBD BRAKE ASSIST<JE5> 		8-98062-190-0 01 1 1407- ●
31 COVER; DUST,FRT BRAKE 8-98062-191-0 01 1 1407- ●
31 COVER; DUST,FRT BRAKE
ABS W/EBD BRAKE ASSIST<JE5> 		8-98062-191-0 01 1 1407- ●
31 COVER; DUST,FRT BRAKE
EXC. ABS W/EBD BRAKE ASSIST<JE5> 		8-98062-188-0 01 1 1407- ●
31 COVER; DUST,FRT BRAKE
EXC. ABS W/EBD BRAKE ASSIST<JE5> 		8-98062-189-0 01 1 1407- ●
32 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-98006-352-0 06 1 1407- ● ●
40 FLANGE; FRT WHEEL HUB 8-98197-869-0 02 1 1407- ●
67 ROTOR; SENSOR 8-97238-280-0 02 1 1407- ●
67 ROTOR; SENSOR
ABS W/EBD BRAKE ASSIST<JE5> 		8-97238-280-0 02 1 1407- ●
91 SPACER; HUB BRG
T=0.20 		8-94178-929-0 AR 1 1407- ●
91 SPACER; HUB BRG
T=0.30 		8-94178-930-0 AR 1 1407- ●
91 SPACER; HUB BRG
T=0.50 		8-94178-931-0 AR 1 1407- ●
91 SPACER; HUB BRG
T=1.00 		8-94178-932-0 AR 1 1407- ●
