4-01 — PROPELLER SHAFT (#145192) — 96 parça

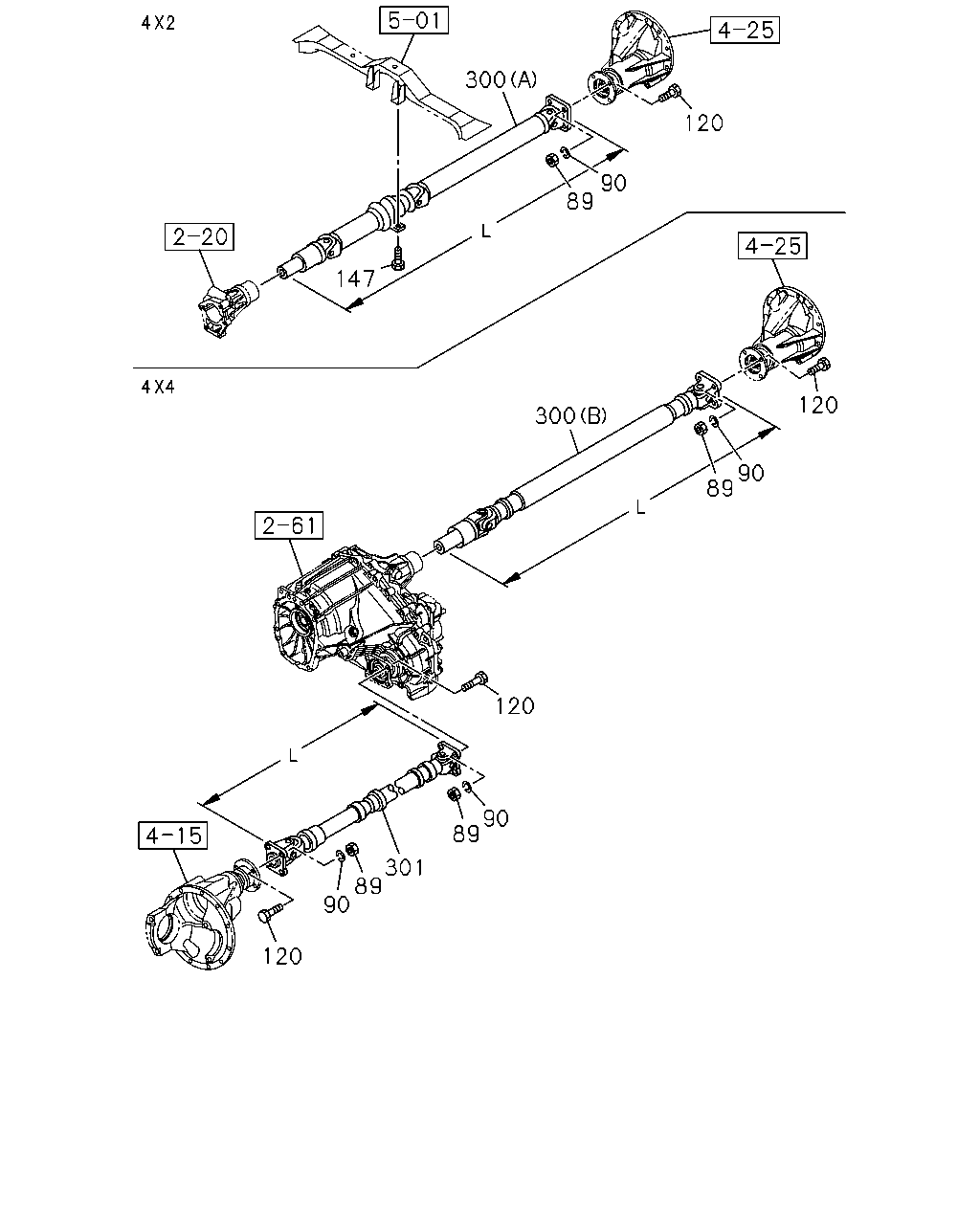

120 90 89 301 89 90 120 300 89 90 120 89 90 120 300 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	1407-	●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	1407-		●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	04	1	1407-	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	08	1	1407-		●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	1407-	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	1407-		●
147	BOLT; CENTER BRG MTG A/T 5 SPEED-AISIN(MA1) M12X25 FLANGE	0-28661-225-0	02	1	1407-	●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1480.5	8-97947-748-0	01	1	1407-1407	●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1480.5	8-97948-752-0	01	1	1408-	●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1142	8-97947-751-0	01	1	1407-1407		●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1142	8-97948-765-0	01	1	1408-		●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (B) L=1260	8-97947-784-0	01	1	1407-1407		●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (B) L=1260	8-97948-766-0	01	1	1408-		●
301	SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97946-601-0	01	1	1407-1407		●
301	SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97948-762-0	01	1	1408-		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED 5H(MWQ) L=671	8-97947-414-0	01	1	1407-1407		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED 5H(MWQ) L=671	8-97948-758-0	01	1	1408-		●

103 301 220 9 17 8 17 9 106 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97942-849-0	01	1	1407-1407	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97942-849-0	01	1	1407-1407		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97948-770-0	01	1	1408-	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97948-770-0	01	1	1408-		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97943-048-0	01	1	1407-1407		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97948-771-0	01	1	1408-		●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	02	1	1407-1407		●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1408-		●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-642-0	03	1	1407-	●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (C)	8-97947-645-0	02	1	1407-		●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-582-0	02	1	1407-		●
9	JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1407-		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1407-		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1407-		●
103	BOOT; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1407-	●
103	BOOT; PROP SHAFT (A)	8-97940-114-0	01	1	1407-		●
103	BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1407-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1407-		●
220	YOKE; SPLINED	8-97945-105-0	01	1	1407-		●
301	SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97946-601-0	01	1	1407-1407		●
301	SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97948-762-0	01	1	1408-		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED 5H(MWQ) L=671	8-97947-414-0	01	1	1407-1407		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED 5H(MWQ) L=671	8-97948-758-0	01	1	1408-		●

300 125 103 20 125 9 59 9 9 8 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97942-849-0	01	1	1407-1407	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97942-849-0	01	1	1407-1407		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97948-770-0	01	1	1408-	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97948-770-0	01	1	1408-		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97943-048-0	01	1	1407-1407		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97948-771-0	01	1	1408-		●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	02	1	1407-1407		●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1408-		●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-642-0	03	1	1407-	●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (C)	8-97947-645-0	02	1	1407-		●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-582-0	02	1	1407-		●
9	JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1407-		●
20	BEARING ASM; CTR,PROP SHAFT A/T 5 SPEED-AISIN(MA1) NSK	8-97947-655-0	01	1	1407-	●
20	BEARING ASM; CTR,PROP SHAFT A/T 5 SPEED-AISIN(MA1) NTN	8-97947-656-0	01	1	1407-	●
59	NUT; RET TO SUPPORT A/T 5 SPEED-AISIN(MA1)	8-97947-557-0	01	1	1407-	●
103	BOOT; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1407-	●
103	BOOT; PROP SHAFT (A)	8-97940-114-0	01	1	1407-		●
103	BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1407-		●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-631-0	01	1	1407-	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (B)	8-97947-663-0	01	1	1407-	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-630-0	01	1	1407-		●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-629-0	01	1	1407-		●
218	WASHER; PL,PROP SHAFT A/T 5 SPEED-AISIN(MA1) ID=30 H=40 L=35	8-97192-641-0	01	1	1407-	●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1480.5	8-97947-748-0	01	1	1407-1407	●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1480.5	8-97948-752-0	01	1	1408-	●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1142	8-97947-751-0	01	1	1407-1407		●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1142	8-97948-765-0	01	1	1408-		●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (B) L=1260	8-97947-784-0	01	1	1407-1407		●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (B) L=1260	8-97948-766-0	01	1	1408-		●

125 103 9 9 300 9 9 17 8 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97942-849-0	01	1	1407-1407	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97942-849-0	01	1	1407-1407		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97948-770-0	01	1	1408-	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97948-770-0	01	1	1408-		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97943-048-0	01	1	1407-1407		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97948-771-0	01	1	1408-		●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	02	1	1407-1407		●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1408-		●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-642-0	03	1	1407-	●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (C)	8-97947-645-0	02	1	1407-		●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-582-0	02	1	1407-		●
9	JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1407-		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1407-		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1407-		●
103	BOOT; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1407-	●
103	BOOT; PROP SHAFT (A)	8-97940-114-0	01	1	1407-		●
103	BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1407-		●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-631-0	01	1	1407-	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (B)	8-97947-663-0	01	1	1407-	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-630-0	01	1	1407-		●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-629-0	01	1	1407-		●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1480.5	8-97947-748-0	01	1	1407-1407	●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1480.5	8-97948-752-0	01	1	1408-	●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1142	8-97947-751-0	01	1	1407-1407		●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1142	8-97948-765-0	01	1	1408-		●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (B) L=1260	8-97947-784-0	01	1	1407-1407		●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (B) L=1260	8-97948-766-0	01	1	1408-		●
