3-58 — FIXING PARTS; OIL PIPING
(#145190) — 31 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

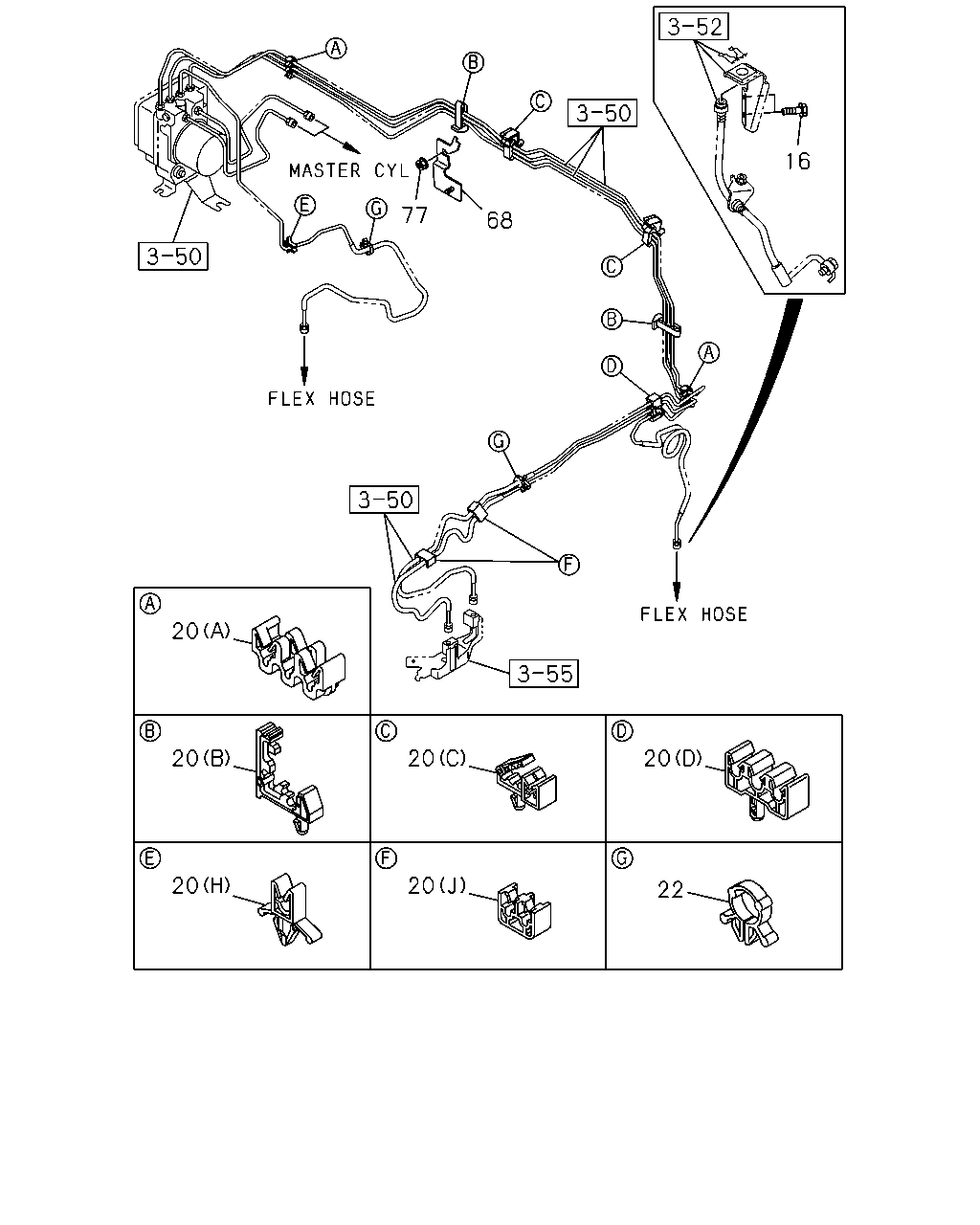

[358A] FRONT (18 parça)

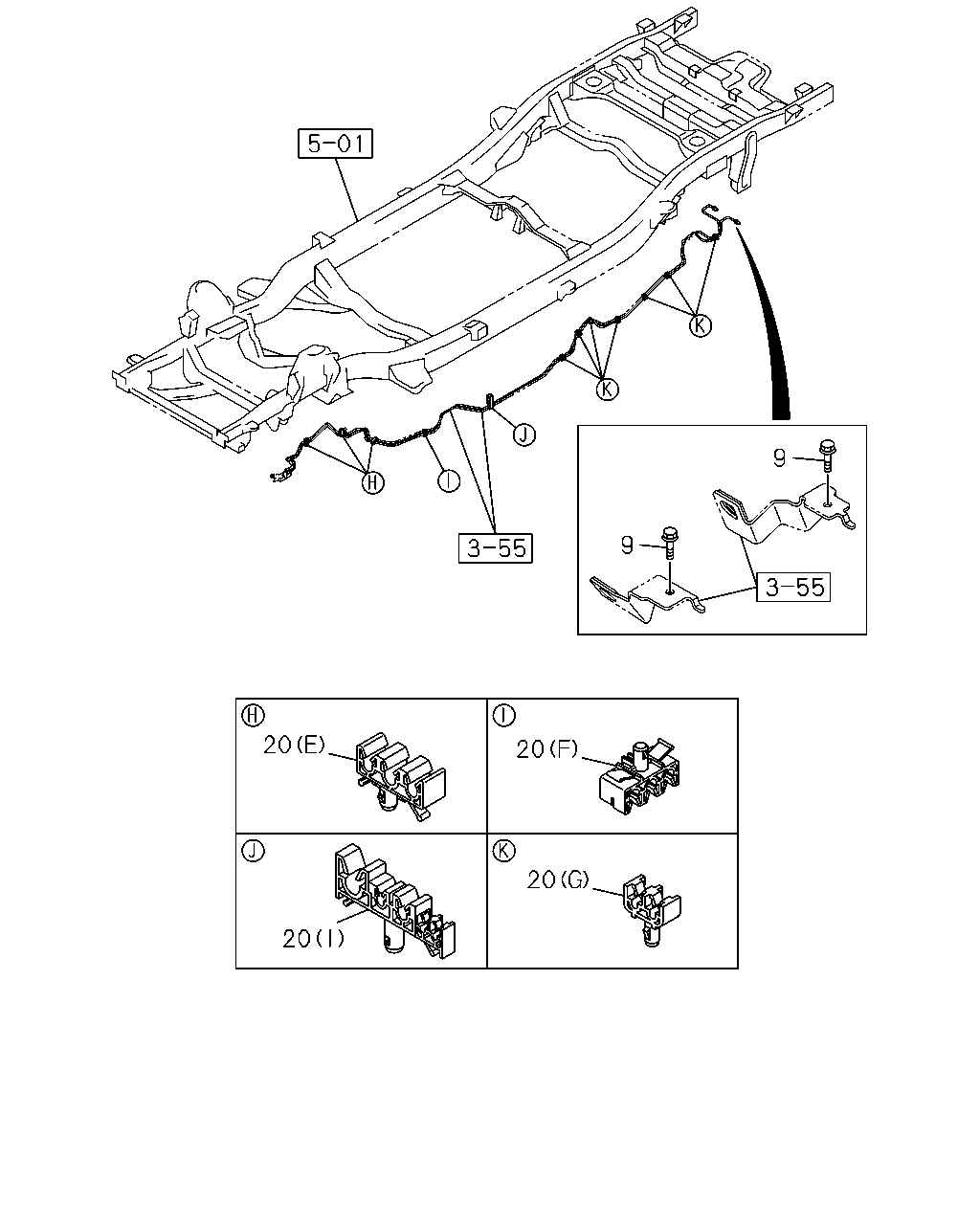

[358A] REAR (13 parça)
▶
77
68
16
20
20
20
20
20
20
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
16
BOLT; BRKT TO FRAME
M8X20 FLANGE
0-28650-820-0
04
1
1407-
●
●
20
CLIP; BRK PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) ID=4.8X3
8-94487-369-0
01
1
1410-
●
20
CLIP; BRK PIPE
REAR COOLER WO/HEATER<C69> (A) ID=4.8X3
8-94487-369-0
01
1
1410-
●
20
CLIP; BRK PIPE
(A) ID=4.8X3
8-94487-369-0
02
1
1407-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3
8-97216-721-1
03
1
1407-
●
●
20
CLIP; BRK PIPE
(F) ID=10 & 6.8X2 OR 8.4X3
8-97249-906-1
01
1
1407-
●
●
20
CLIP; BRK PIPE
(J) ID=6.8X2
8-97251-122-0
02
1
1407-
●
●
20
CLIP; BRK PIPE
(G) ID=6.8X2
8-97251-124-0
07
1
1407-
●
●
20
CLIP; BRK PIPE
(H) ID=4.76
8-97300-443-0
01
1
1407-
●
●
20
CLIP; BRK PIPE
(B) ID=4.76X3
8-98113-388-0
02
1
1407-
●
●
20
CLIP; BRK PIPE
(C) ID=4.76X3 & 6.35X1 OR 10X1
8-98113-389-0
02
1
1407-
●
●
20
CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1
8-98113-394-0
01
1
1407-
●
●
20
CLIP; BRK PIPE
(D) ID=4.76 OR 6.8X3
8-98113-396-0
01
1
1407-
●
●
22
CLIP; PIPE TO FRAME
ID=9
5-09707-027-0
02
1
1407-
●
●
68
BRACKET; CLIP
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)
8-98211-446-0
01
1
1407-
●
68
BRACKET; CLIP
REAR COOLER WO/HEATER<C69>
8-98211-446-0
01
1
1407-
●
77
NUT; BRKT,OIL PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M6 FLANGE
0-91180-106-0
01
1
1407-
●
77
NUT; BRKT,OIL PIPE
REAR COOLER WO/HEATER<C69> M6 FLANGE
0-91180-106-0
01
1
1407-
●
9
20
20
20
20
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1407-
●
●
20
CLIP; BRK PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) ID=4.8X3
8-94487-369-0
01
1
1410-
●
20
CLIP; BRK PIPE
REAR COOLER WO/HEATER<C69> (A) ID=4.8X3
8-94487-369-0
01
1
1410-
●
20
CLIP; BRK PIPE
(A) ID=4.8X3
8-94487-369-0
02
1
1407-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3
8-97216-721-1
03
1
1407-
●
●
20
CLIP; BRK PIPE
(F) ID=10 & 6.8X2 OR 8.4X3
8-97249-906-1
01
1
1407-
●
●
20
CLIP; BRK PIPE
(J) ID=6.8X2
8-97251-122-0
02
1
1407-
●
●
20
CLIP; BRK PIPE
(G) ID=6.8X2
8-97251-124-0
07
1
1407-
●
●
20
CLIP; BRK PIPE
(H) ID=4.76
8-97300-443-0
01
1
1407-
●
●
20
CLIP; BRK PIPE
(B) ID=4.76X3
8-98113-388-0
02
1
1407-
●
●
20
CLIP; BRK PIPE
(C) ID=4.76X3 & 6.35X1 OR 10X1
8-98113-389-0
02
1
1407-
●
●
20
CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1
8-98113-394-0
01
1
1407-
●
●
20
CLIP; BRK PIPE
(D) ID=4.76 OR 6.8X3
8-98113-396-0
01
1
1407-
●
●
