Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#145187) — 24 parça

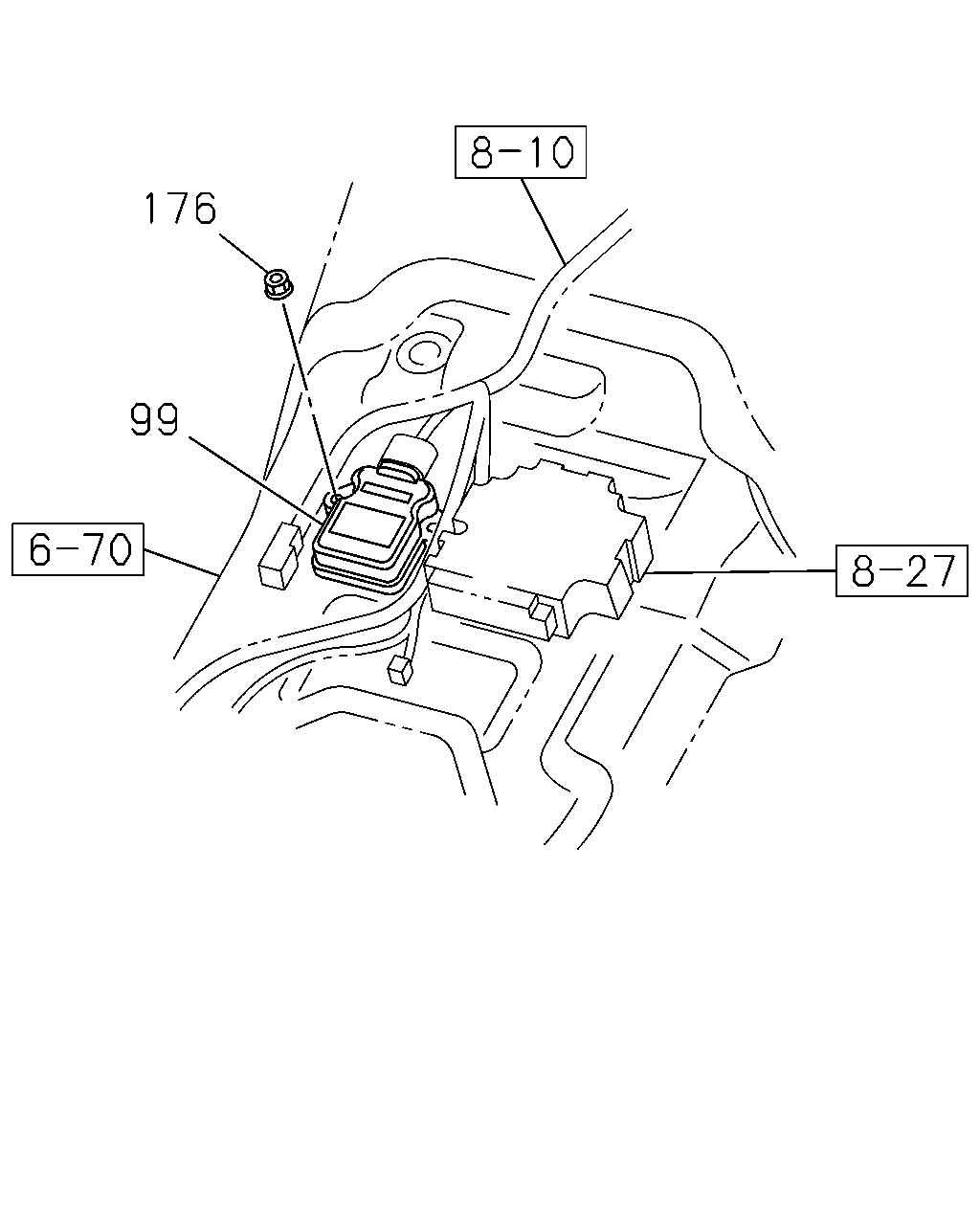

176 99

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	99	SENSOR; DECELERATION	8-98052-116-1	01	1	1407-	●	●
	176	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1407-	●	●

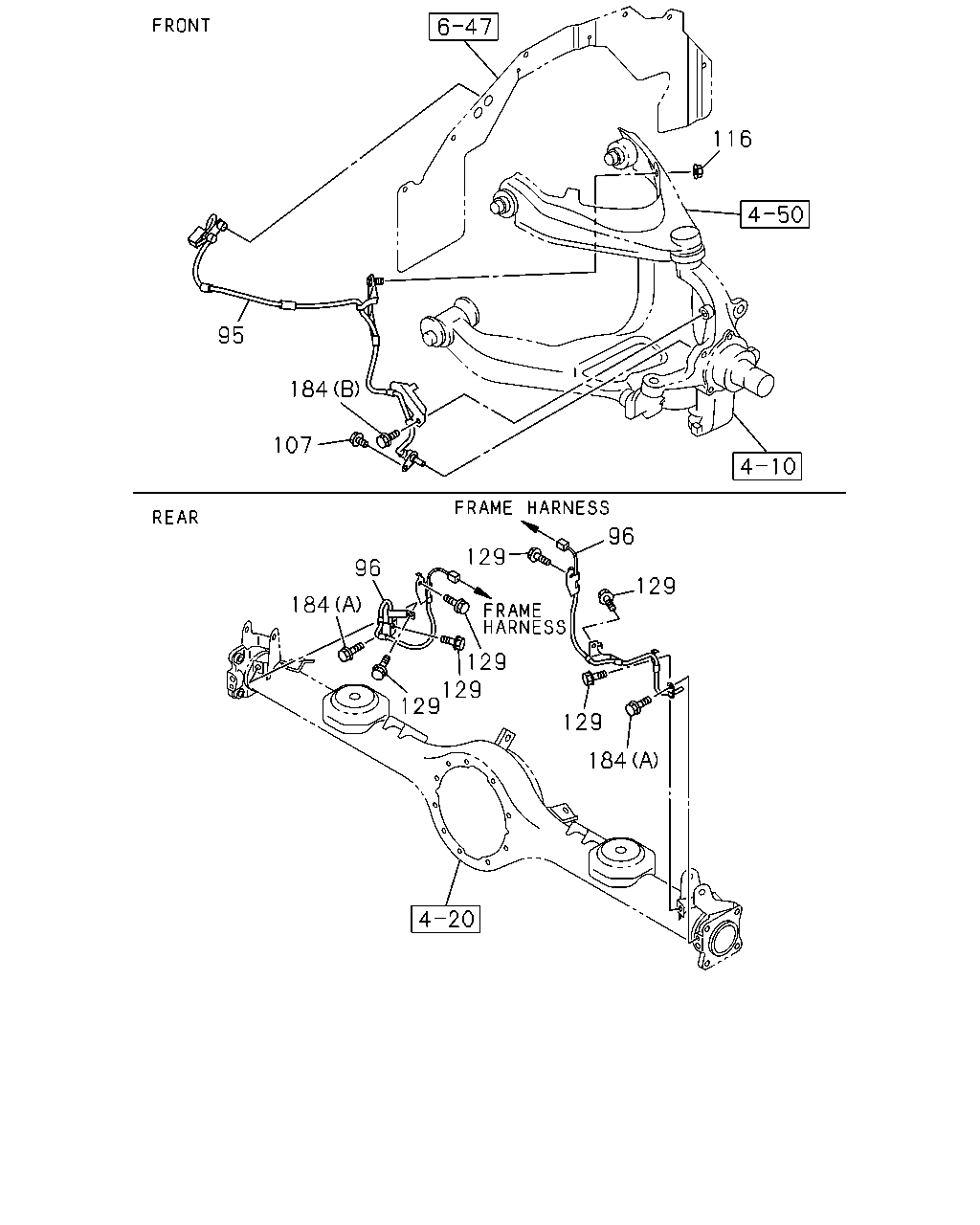

95 184 107 116 129 96 129 129 184 129 129 129 184 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	SENSOR; SPD,FRT WHEEL	8-98052-119-1	01	1	1407-1509	●	●
95	SENSOR; SPD,FRT WHEEL	8-98292-432-0	01	1	1510-	●	●
95	SENSOR; SPD,FRT WHEEL	8-98052-120-1	01	1	1407-1509	●	●
95	SENSOR; SPD,FRT WHEEL	8-98292-433-0	01	1	1510-	●	●
96	SENSOR; SPD,RR WHEEL	8-98196-302-0	01	1	1407-	●	●
96	SENSOR; SPD,RR WHEEL	8-98196-303-0	01	1	1407-	●	●
107	BOLT; WHEEL SPD SENSOR M6X10 FLANGE	0-28050-610-0	02	1	1407-1509	●	●
107	BOLT; WHEEL SPD SENSOR M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●
116	NUT M8 FLANGE	0-91180-108-0	02	1	1407-	●	●
129	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	06	1	1407-	●	●
184	BOLT; CLIP (B) M6X10 FLANGE	0-28050-610-0	02	1	1407-1509	●	●
184	BOLT; CLIP (B) M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●
184	BOLT; CLIP (A) M6X16 FLANGE	0-28650-616-0	02	1	1407-	●	●

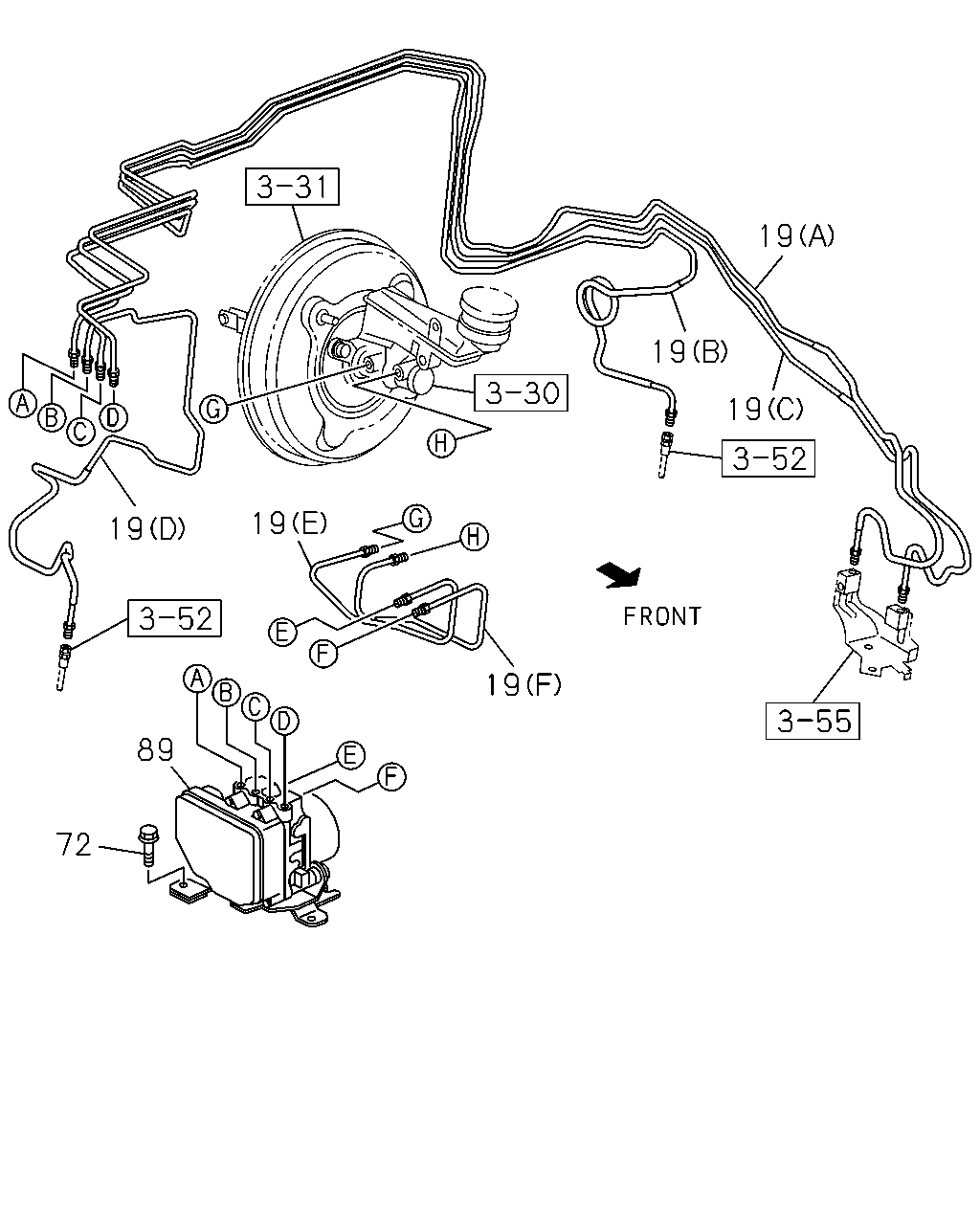

19 19 19 19 19 19 89 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; BRK,M/CYL TO UNION (A)	8-98099-730-0	01	1	1407-	●	●
19	PIPE; BRK,M/CYL TO UNION (C)	8-98099-736-2	01	1	1407-	●	●
19	PIPE; BRK,M/CYL TO UNION (D)	8-98099-744-2	01	1	1407-	●	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-98159-938-1	01	1	1407-	●	●
19	PIPE; BRK,M/CYL TO UNION (F)	8-98099-738-0	01	1	1407-	●	●
19	PIPE; BRK,M/CYL TO UNION (E)	8-98099-739-0	01	1	1407-	●	●
72	BOLT; BRKT TO BODY M6X16 FLANGE	0-28650-616-0	03	1	1407-	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK	8-98197-805-1	01	1	1407-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5>	8-98250-547-0	01	1	1407-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
