Isuzu WW
▶
SUV
▶
UCR
▶
51518 - UCR/UCS(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE
▶

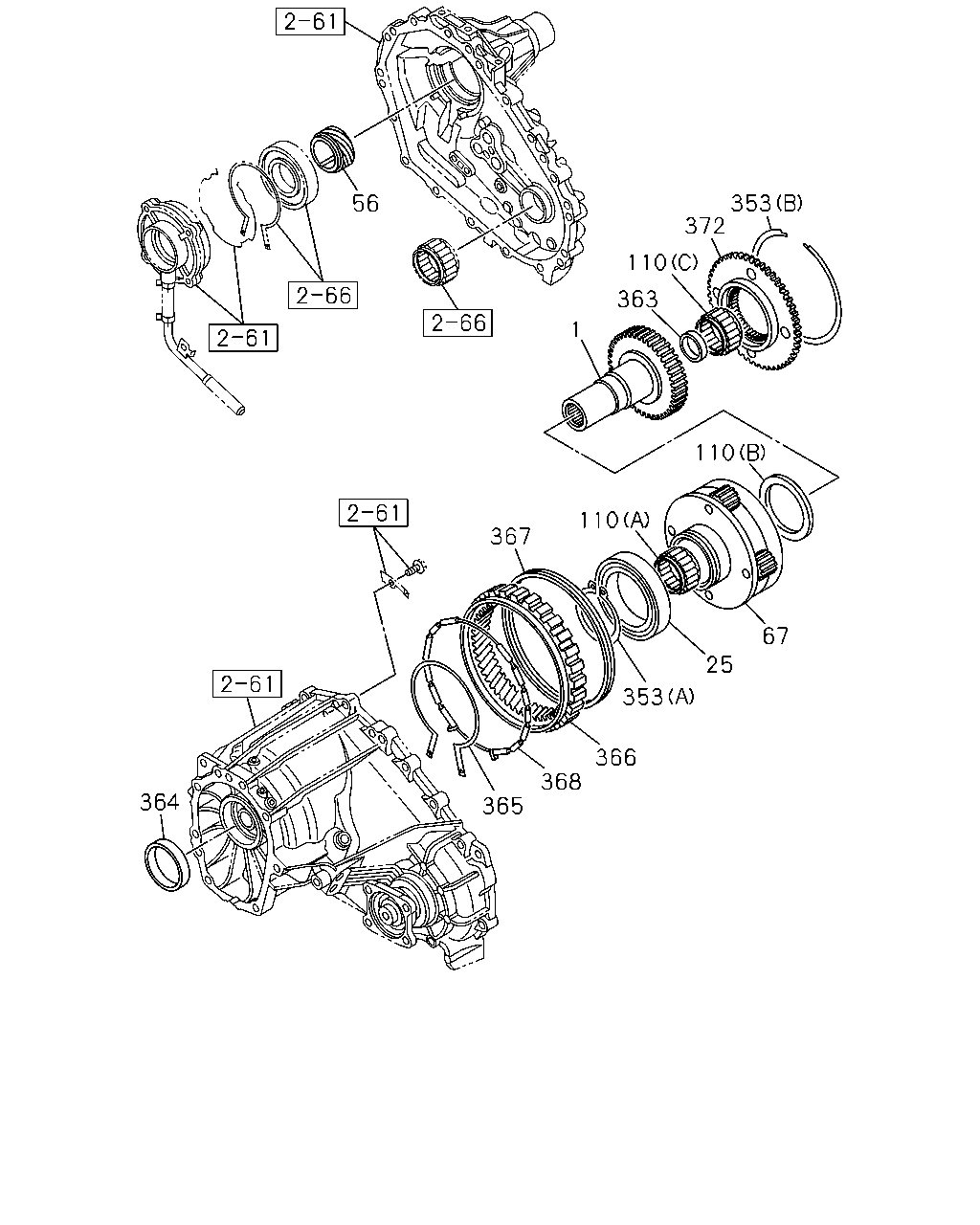

2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE
(#145178) — 17 parça
56
353
372
110
363
1
110
67
25
353
110
367
366
368
365
364
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHAFT; GEAR,INPUT
A/T 5 SPEED-AISIN(MA1)
8-98118-924-1
01
1
1407-
1
SHAFT; GEAR,INPUT
M/T MUA 5 SPEED 5H(MWQ)
8-97373-467-0
01
1
1407-
25
BEARING; BALL,INPUT SHAFT
NSK
8-97234-735-0
01
1
1407-
56
GEAR; SPD DRIVE,TRANSFER
Z=6
8-97238-581-0
01
1
1407-
67
CARRIER; TRANSFER
8-98158-116-0
01
1
1407-
110
BEARING; NEEDLE
(A)
8-97234-739-0
01
1
1407-
110
BEARING; NEEDLE
(B)
8-97234-741-0
01
1
1407-
110
BEARING; NEEDLE
(C)
8-97234-743-0
01
1
1407-
353
RING; SNAP,CARRIER
(A) ID=65.5
8-97305-403-0
01
1
1407-
353
RING; SNAP,CARRIER
(B) ID=137
8-97305-406-0
01
1
1407-
363
CAP; SEAL,INPUT SHAFT
8-97238-725-0
01
1
1407-
364
SEAL; OIL,COVER,INPUT
NOK
8-97238-999-0
01
1
1407-
365
RING; RETAINING,OUTER INPUT
ID=97
8-97305-010-1
01
1
1407-
366
GEAR; INTERNAL,HIGH-LOW
Z=27
8-97231-831-2
01
1
1407-
367
RING; RETAINING,SPIRAL TYPE
ID=162 OD=176
8-97247-459-0
01
1
1407-
368
RING; DAMPER,TRANSFER
ID=168.4 OD=178
8-97320-914-0
01
1
1407-
372
TEETH; DOG,PLANETARY
Z=56
8-97358-244-0
01
1
1407-
