2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#145177) — 26 parça

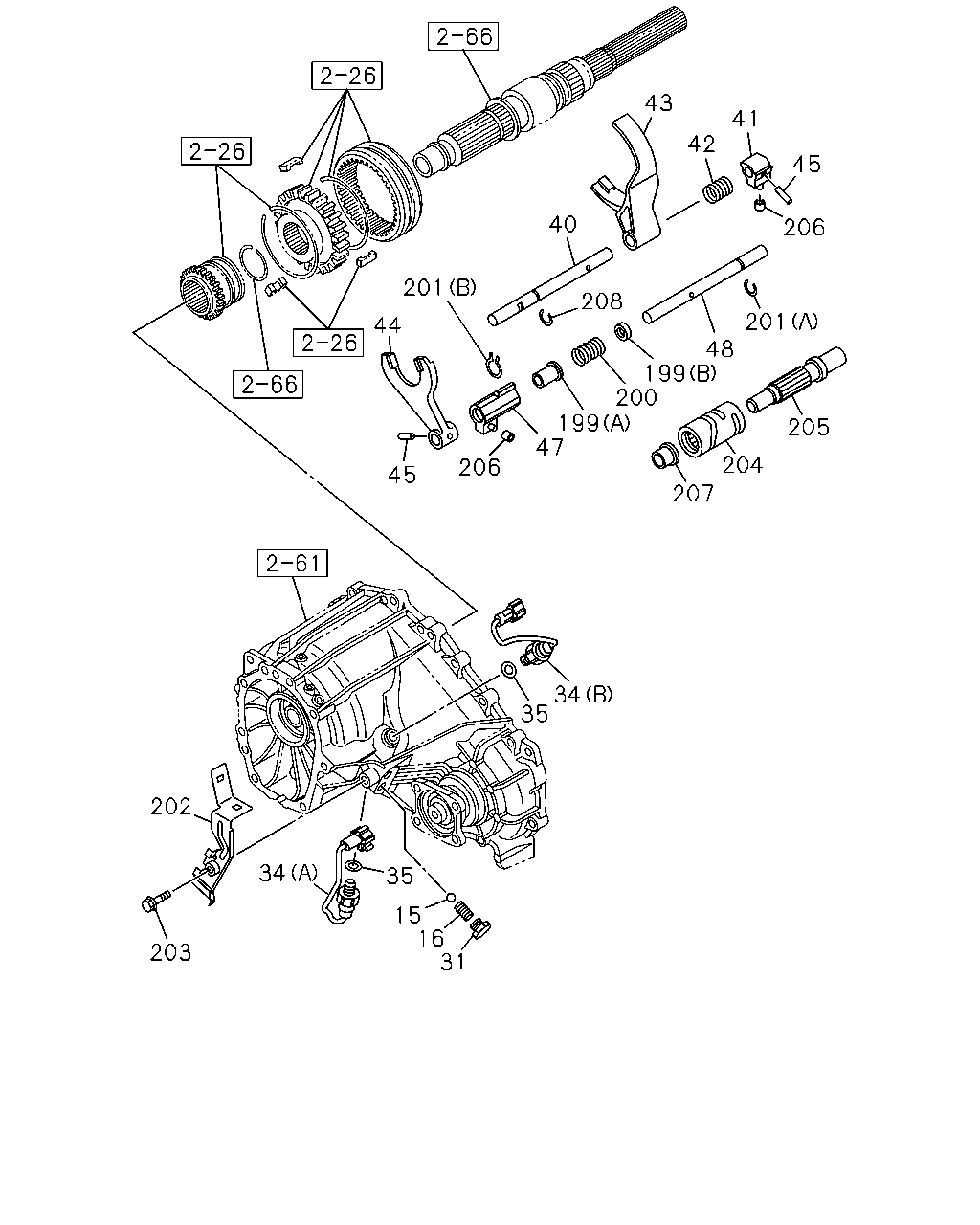

çizim 432877
43 42 41 45 206 201 205 204 207 199 48 200 199 47 206 45 201 40 208 44 34 35 202 203 34 35 15 16 31
BalonParca AdiParca NoAdetTipApplied Date
15 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 1407-
16 SPRING; DETENT,SHIFT ROD,TRANSFER
L=23.4 		8-97145-374-0 02 1 1407-
31 PLUG; DETENT BALL,TRANSFER
M12X9 		0-92002-412-0 02 1 1407-
34 SWITCH; TRANSFER INDICATOR
(A) 		8-98181-233-0 01 1 1407-
34 SWITCH; TRANSFER INDICATOR
(B) 		8-98181-234-0 01 1 1407-
35 GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0 		9-09571-414-0 02 1 1407-
40 ROD; SHIFT,4X2-4X4,TRANSFER 8-97234-229-0 01 1 1407-
41 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97234-233-1 01 1 1407-
42 SPRING; GEAR LOCK RELEASE,TRANSFER 8-97239-010-1 01 1 1407-
43 ARM; SHIFT,4X2-4X4,TRANSFER 8-97234-231-0 01 1 1407-
44 ARM; SHIFT,HIGH-LOW,TRANSFER 8-97300-106-1 01 1 1407-
45 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 02 1 1407-
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-98161-034-0 01 1 1407-
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97234-230-0 01 1 1407-
199 COLLAR; TRANSFER CONTROL
(A) 		8-97234-662-1 01 1 1407-
199 COLLAR; TRANSFER CONTROL
(B) 		8-97234-663-1 01 1 1407-
200 SPRING; SHIFT HIGH-LOW 8-97239-011-0 01 1 1407-
201 RING; SNAP,SHIFT
(A) ID=12 		8-94460-357-0 01 1 1407-
201 RING; SNAP,SHIFT
(B) ID=23 		8-97305-011-1 01 1 1407-
202 BRACKET; SWITCH 8-98118-922-1 01 1 1407-
203 BOLT; BRACKET,SWITCH
M8X25 FLANGE 		0-28650-825-0 01 1 1407-
204 DRUM; SHIFT 8-98158-123-0 01 1 1407-
205 SHAFT; SHIFT DRUM 8-98063-364-1 01 1 1407-
206 ROLLER; GUIDE,SHIFT 8-97234-499-0 02 1 1407-
207 BUSH; CONTROL SHAFT 8-98158-124-0 01 1 1407-
208 RING; SNAP,SHIFT
ID=12 		8-94460-357-0 01 1 1407-
