2-26 — MANUAL TRANSMISSION GEAR (#145161) — 83 parça

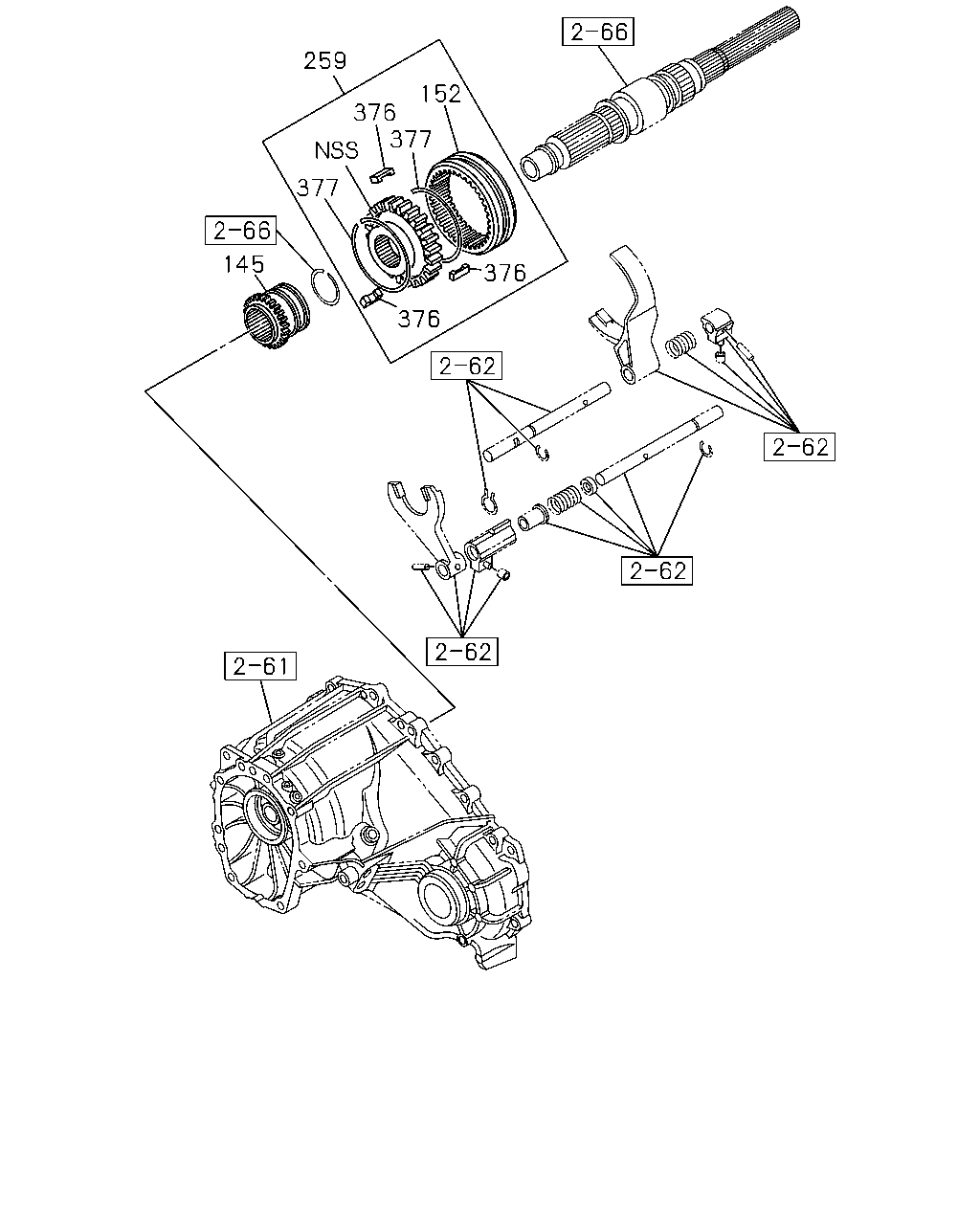

377 376 152 259 377 145 376 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER	8-98063-369-1	01	1	1407-	●
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(UCS***)	8-98063-369-1	01	1	1407-		●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER	8-94363-060-0	01	1	1407-	●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(UCS***)	8-94363-060-0	01	1	1407-		●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER	8-97234-225-0	01	1	1407-	●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(UCS***)	8-97234-225-0	01	1	1407-		●
376	INSERT; 4X2-4X4 SYN,TRANSFER	8-97238-590-0	03	1	1407-	●
376	INSERT; 4X2-4X4 SYN,TRANSFER 4X4(UCS***)	8-97238-590-0	03	1	1407-		●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94448-045-0	02	1	1407-	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER 4X4(UCS***)	8-94448-045-0	02	1	1407-		●

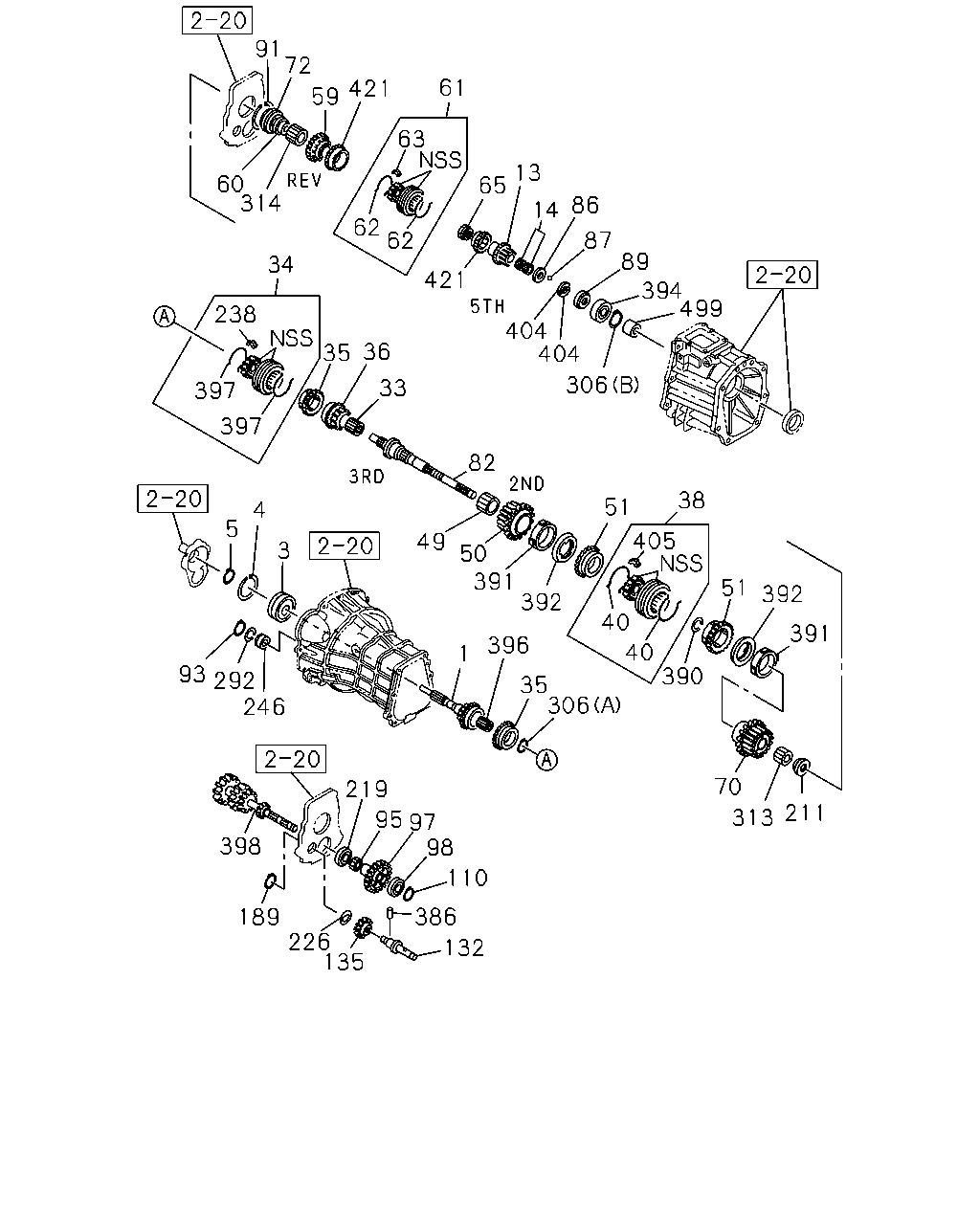

91 59 72 60 34 314 421 61 63 13 65 499 394 89 87 86 14 306 404 404 421 62 62 238 397 35 36 33 397 82 51 49 392 391 50 38 405 51 392 391 390 40 40 396 35 306 1 211 313 70 110 98 97 95 219 398 189 226 135 132 386 246 292 93 5 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	SHAFT; TOP GEAR,TRANS Z=26	8-98210-247-0	01	1	1407-	●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	1407-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1407-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	1407-	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1407-	●
14	BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1407-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	1407-	●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1407-	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1407-	●
36	GEAR; 3RD,MAINSHAFT Z=27	8-98210-226-0	01	1	1407-	●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1407-	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1407-	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1407-	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	1407-	●
51	RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1407-	●
59	GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1407-	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	1407-	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1407-	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1407-	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1407-	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	1407-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	1407-	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1407-	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-980-0	01	1	1407-	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1407-	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1407-	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1407-	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1407-	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	1407-	●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1407-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1407-	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	1407-	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1407-	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1407-	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1407-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1407-	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1407-	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1407-	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1407-	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1407-	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1407-	●
132	SHAFT; REV	8-98249-849-0	01	1	1407-	●
135	GEAR; REV IDLER Z=33	8-98146-726-1	01	1	1407-	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1407-	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1407-	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1407-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1407-	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1407-	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1407-	●
238	INSERT	8-94448-202-2	03	1	1407-	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	1407-	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1407-	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	1407-	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	1407-	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	1407-	●
306	RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	01	1	1407-	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1407-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1407-	●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1407-	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1407-	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1407-	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1407-	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1407-	●
391	RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1407-	●
392	RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1407-	●
394	BEARING; BALL,MAINSHAFT RR NSK	8-97018-921-1	01	1	1407-	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1407-	●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1407-	●
398	GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	1407-	●
404	PLATE; THRUST	8-94421-892-0	02	1	1407-	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1407-	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1407-	●
499	COLLAR; OIL SEAL	8-97300-954-0	01	1	1407-	●
