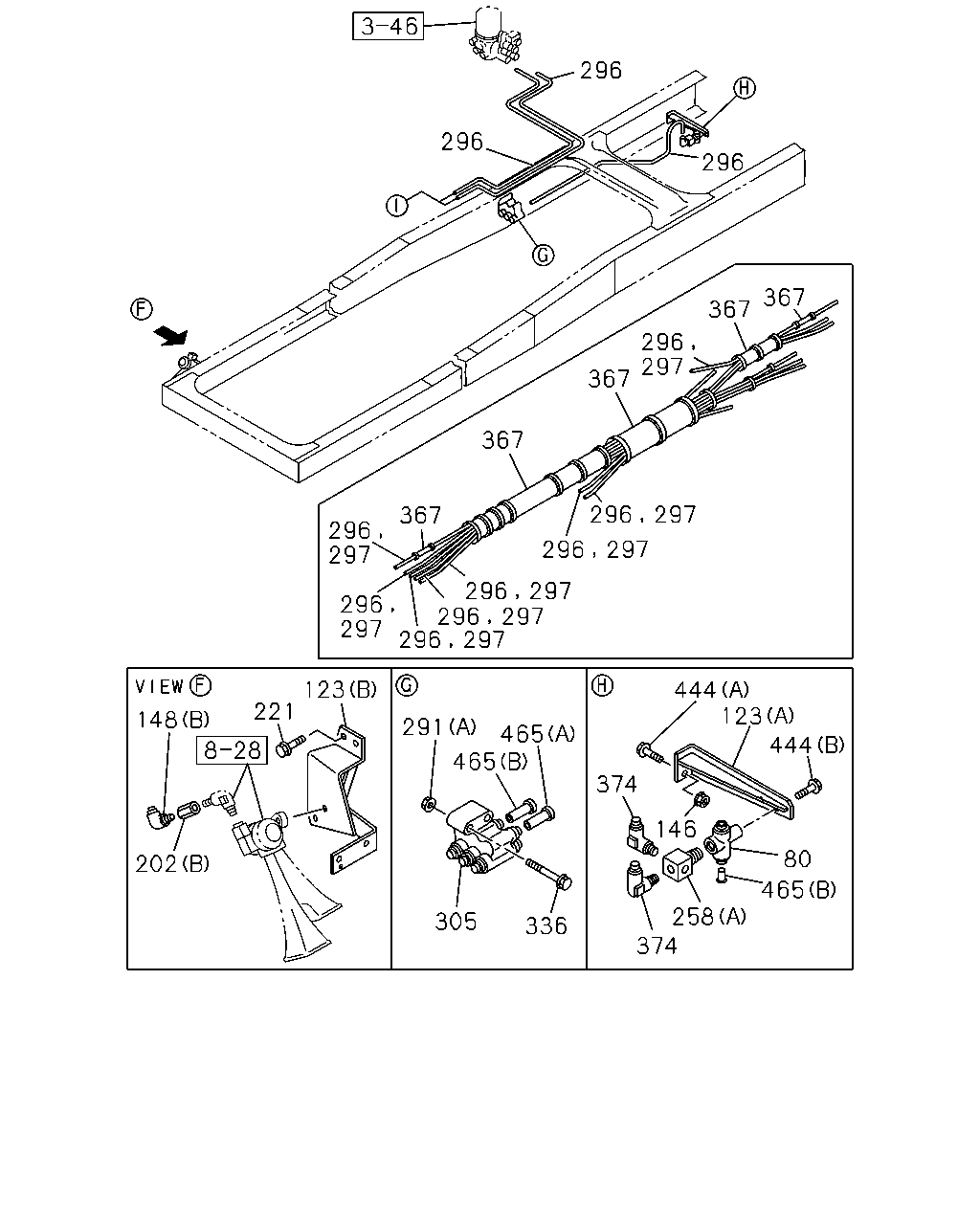

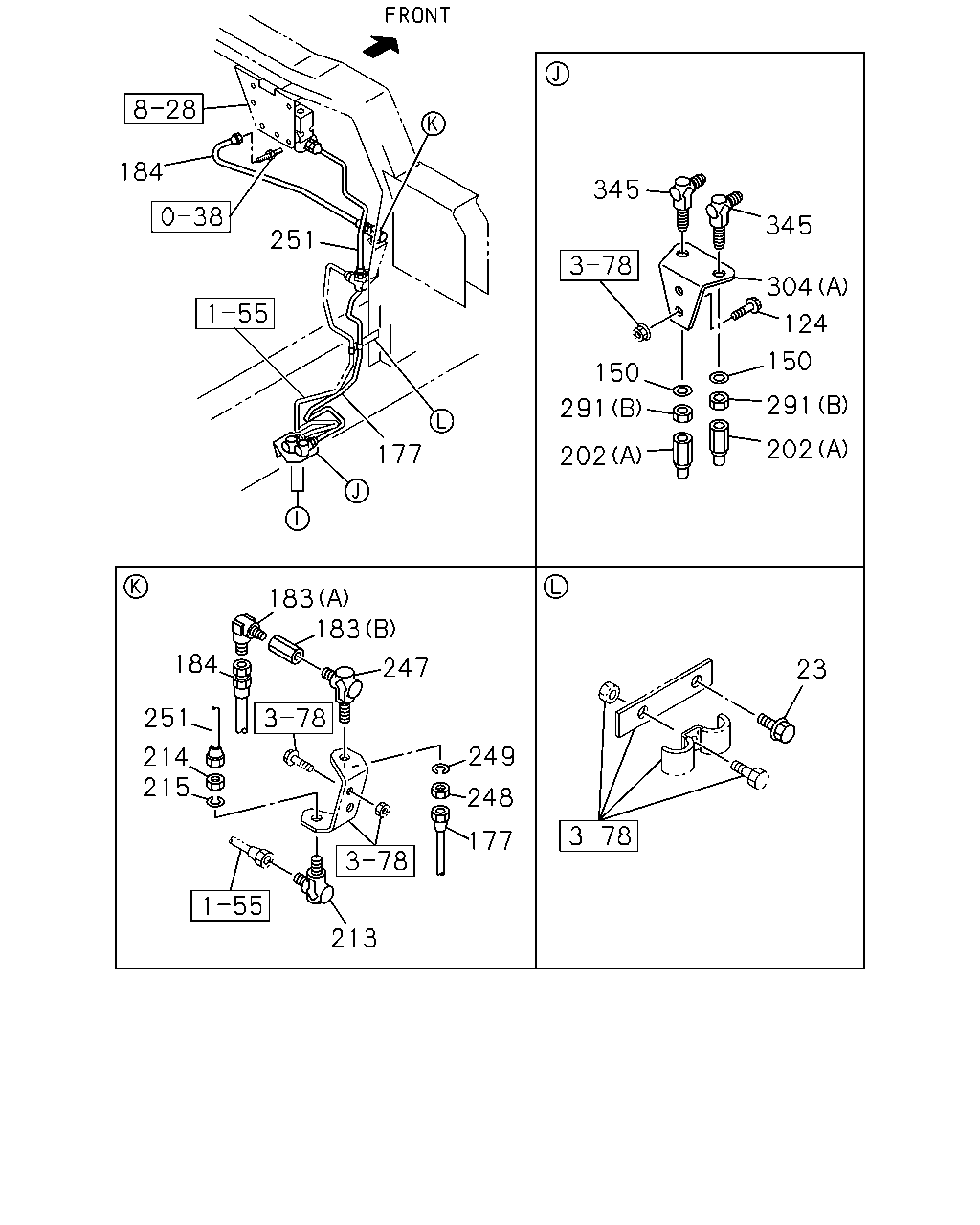

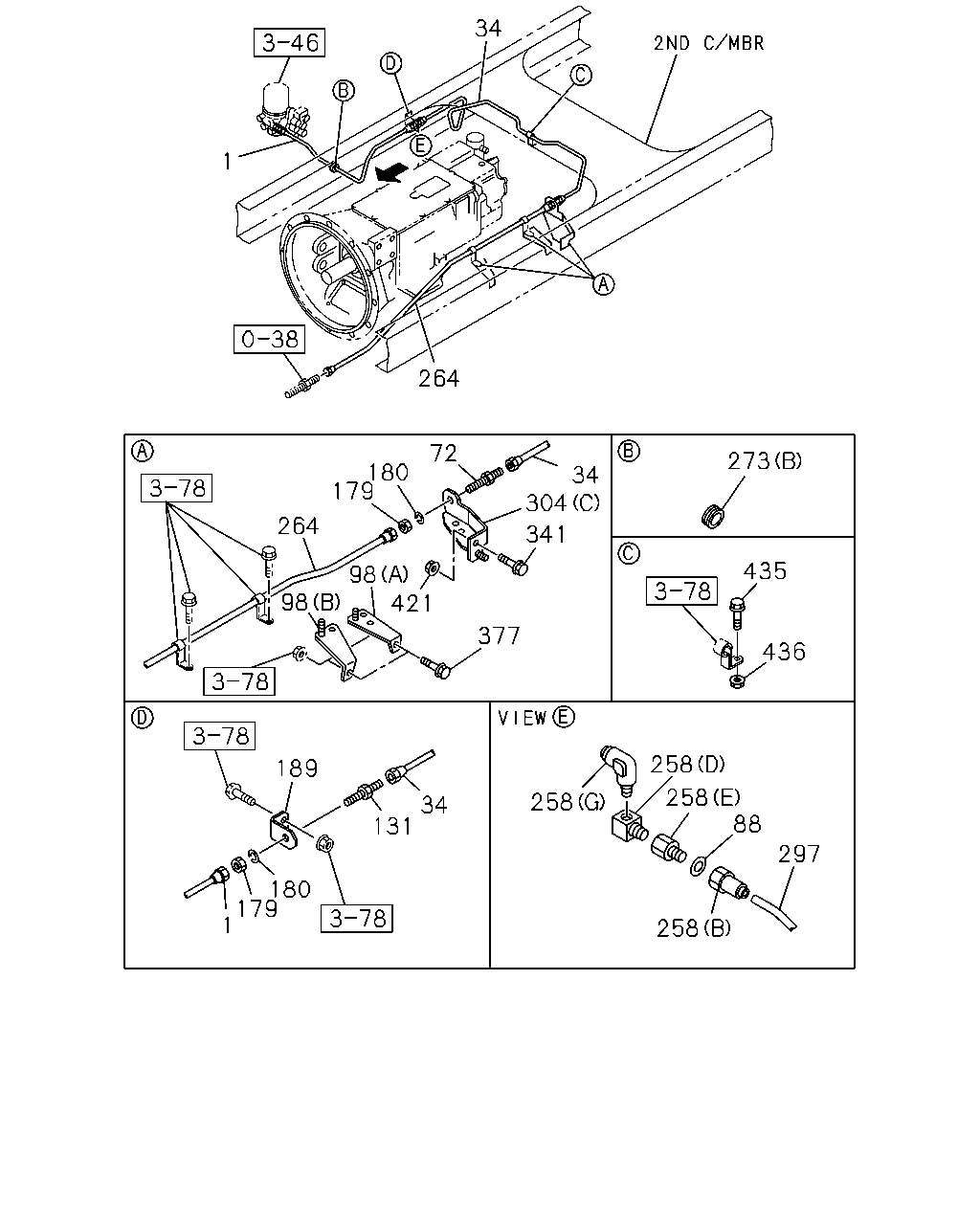

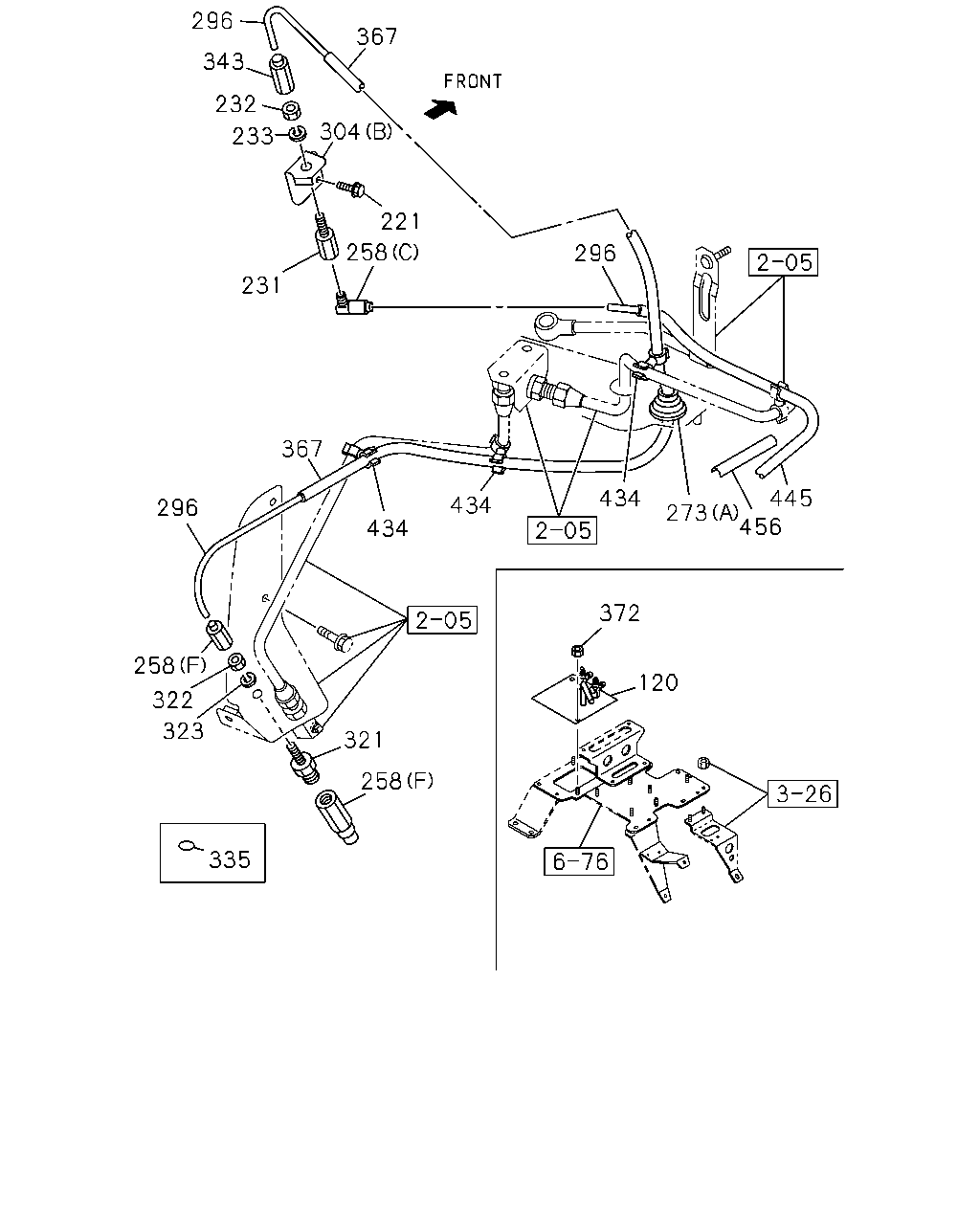

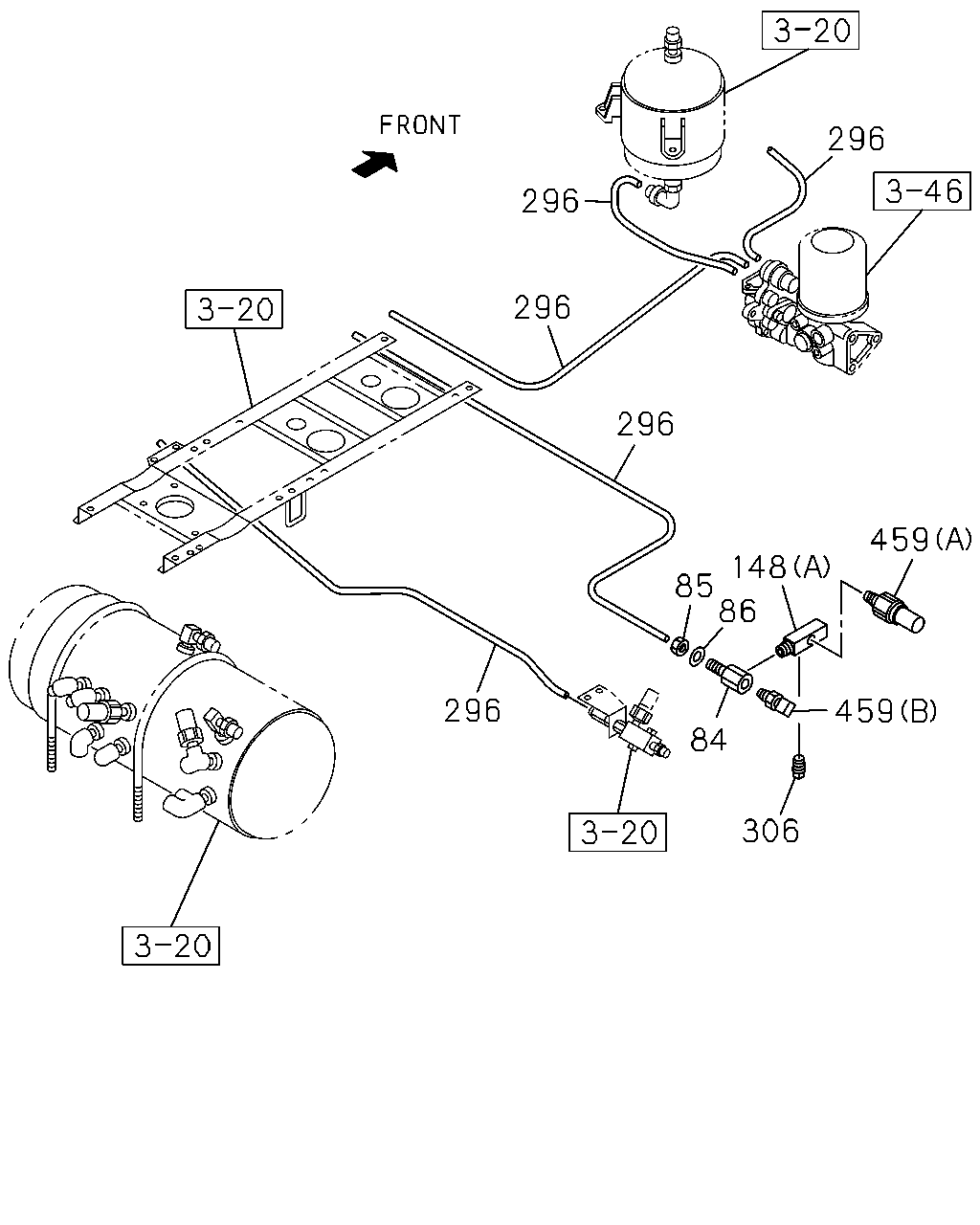

3-70 — BRAKE PIPING; AIR,AIR MASTER (#14516) — 142 parça

184 345 345 251 304 124 150 150 291 291 202 177 202 183 183 184 247 23 251 249 214 215 248 177 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BOLT; BRKT,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0611-
124	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0611-
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	0611-
177	PIPE; AIR,UNION TO UNION L=714 SERVICED BY L=800	1-47428-812-0	01	1	0611-
183	UNION; FLEX HOSE,GOV (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0611-
183	UNION; FLEX HOSE,GOV (B) M12 & RC3/8 STRAIGHT	1-09660-879-0	01	1	0611-
184	HOSE; FLEX,AIR GOV L=740	1-09363-675-0	01	1	0611-
202	ADAPTER (A) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0611-
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0611-
213	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0611-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0611-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-512-0	01	1	0611-
247	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0611-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0611-
249	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	0611-
251	PIPE; AIR,UNION TO MAG VLV L=375	1-49124-511-0	01	1	0611-
291	NUT; UNION (A) M8 FLANGE	0-91180-108-0	02	1	0611-
291	NUT; UNION (B) M12	9-09840-280-0	02	1	0611-
304	BRACKET; UNION (A)	1-47478-359-0	01	1	0611-
304	BRACKET; UNION (C)	8-97610-319-1	01	1	0611-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0611-
345	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	02	1	0611-

296 367 343 232 304 233 221 258 296 231 367 434 445 434 296 273 456 434 372 258 120 322 323 321 258 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE	1-47470-418-2	01	1	0611-
221	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0611-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0611-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/8 & M10 STRAIGHT	1-09656-713-2	01	1	0611-
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0611-
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	0-91510-510-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (D) PT3/8 & PT3/8	1-09661-303-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (A) PT3/8 3WAY	1-09661-300-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (E)	1-48319-059-0	01	1	0611-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0611-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0611-
273	GROMMET (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0611-
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09332-102-0	01	1	0611-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0611-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0611-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0611-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0611-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0611-
304	BRACKET; UNION (A)	1-47478-359-0	01	1	0611-
304	BRACKET; UNION (C)	8-97610-319-1	01	1	0611-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0611-
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5	0-92113-306-0	01	1	0611-
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12	9-09840-280-0	01	1	0611-
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2	0-91510-512-0	01	1	0611-
335	SEAL; UNION EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0611-
343	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	0611-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0611-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0611-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0611-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0611-
372	NUT M8 FLANGE	0-91180-108-0	02	1	0611-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	03	1	0611-
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=800	1-83129-031-1	01	1	0611-
456	SEAL; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40	1-72498-022-1	01	1	0611-

34 1 264 72 273 180 179 34 304 264 341 435 98 98 421 377 436 258 189 258 88 258 34 131 297 180 179 1 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=660	1-09363-766-0	01	1	0611-
34	PIPE; AIR L=1126	1-49124-667-0	01	1	0611-
72	UNION; AIR PIPE M22	0-92123-315-0	01	1	0611-
88	GASKET; NYLON TUBE ID=14.2 OD=23.0	9-09572-014-0	01	1	0611-
98	BRACKET; AIR PIPE (B)	1-47479-639-0	01	1	0611-
98	BRACKET; AIR PIPE (A)	1-47479-723-0	01	1	0611-
131	UNION; AIR PIPE M22	0-92123-315-0	01	1	0611-
179	NUT; UNION M22	0-91111-522-0	02	1	0611-
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0611-
189	BRACKET; FLEX HOSE	1-47479-473-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (D) PT3/8 & PT3/8	1-09661-303-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (A) PT3/8 3WAY	1-09661-300-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (E)	1-48319-059-0	01	1	0611-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0611-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0611-
264	HOSE; FLEX L=1000	1-09363-794-0	01	1	0611-
273	GROMMET (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0611-
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09332-102-0	01	1	0611-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0611-
304	BRACKET; UNION (A)	1-47478-359-0	01	1	0611-
304	BRACKET; UNION (C)	8-97610-319-1	01	1	0611-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0611-
341	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0611-
377	BOLT; BRKT FIX M8X35 FLANGE	0-28650-835-0	02	1	0611-
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0611-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0611-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0611-

296 296 296 296 459 148 85 86 296 459 84 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	UNION; NYLON TUBE	1-09661-092-0	01	1	0611-
85	NUT; UNION M18	0-91110-518-0	01	1	0611-
86	WASHER; LK,TUBE UNION ID=18.2	0-91510-518-0	01	1	0611-
148	CONNECTOR; UNION (A) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	0611-
148	CONNECTOR; UNION (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0611-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0611-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0611-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0611-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0611-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0611-
306	PLUG; NYLON TUBE PT1/4	9-99204-513-0	01	1	0611-
459	SWITCH; PRESS (A)	1-48340-065-0	01	1	0611-
459	SWITCH; PRESS (B) THREAD R1/4	1-80220-023-1	01	1	0611-

296 296 296 367 367 296 297 367 367 296 367 296 297 296 296 296 296 296 297 123 444 123 221 148 291 465 465 444 374 146 80 202 465 258 305 336 374 297 297 297 297 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0611-
123	BRACKET; UNION (A)	1-47479-401-0	01	1	0611-
123	BRACKET; UNION (B)	1-53457-161-0	01	1	0611-
146	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	0611-
148	CONNECTOR; UNION (A) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	0611-
148	CONNECTOR; UNION (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0611-
202	ADAPTER (A) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0611-
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0611-
221	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0611-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0611-
258	CONNECTOR; NYLON TUBE (D) PT3/8 & PT3/8	1-09661-303-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (A) PT3/8 3WAY	1-09661-300-0	01	1	0611-
258	CONNECTOR; NYLON TUBE (E)	1-48319-059-0	01	1	0611-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0611-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0611-
291	NUT; UNION (A) M8 FLANGE	0-91180-108-0	02	1	0611-
291	NUT; UNION (B) M12	9-09840-280-0	02	1	0611-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0611-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0611-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0611-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0611-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0611-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0611-
305	UNION ASM; NYLON TUBE	1-09661-613-1	01	1	0611-
336	BOLT; PIPE UNION M8X70 FLANGE	0-28050-870-0	02	1	0907-
336	BOLT; PIPE UNION M8X80 FLANGE	0-28050-880-0	02	1	0611-0906
336	BOLT; PIPE UNION M8X80 FLANGE	0-28050-880-0	02	1	0611-0906
336	BOLT; PIPE UNION M8X80 FLANGE	0-28050-880-0	02	1	0907-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0611-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0611-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0611-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0611-
374	CONNECTOR DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0611-
444	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	01	1	0611-
444	BOLT; UNION (A) M8X35 FLANGE	0-28650-835-0	02	1	0611-
465	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	0611-
465	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	0611-
465	PLUG EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27	1-09661-615-0	01	1	0611-
465	PLUG EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27	1-09661-615-0	01	1	0611-
465	PLUG EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27	1-09661-615-0	01	1	0611-
