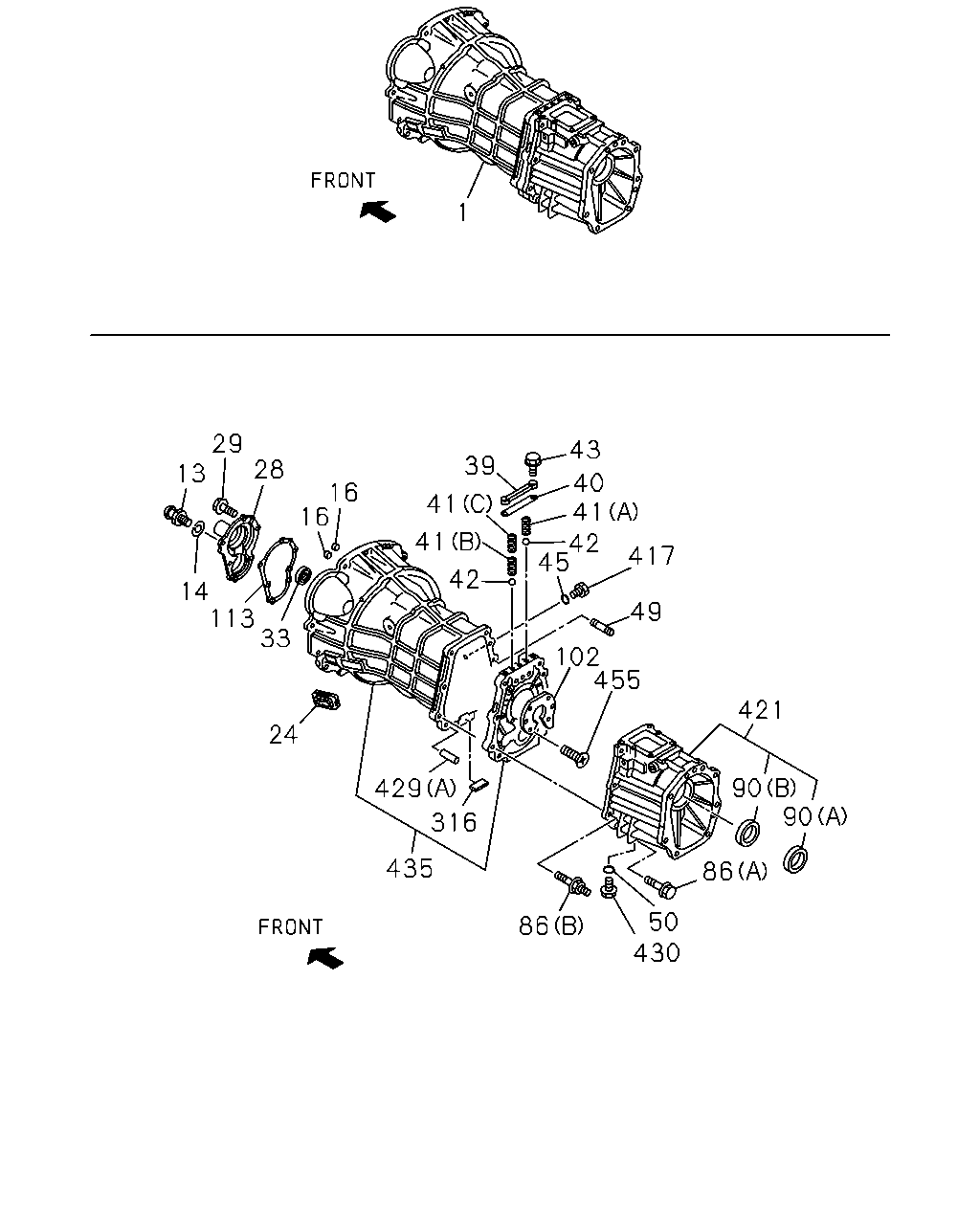

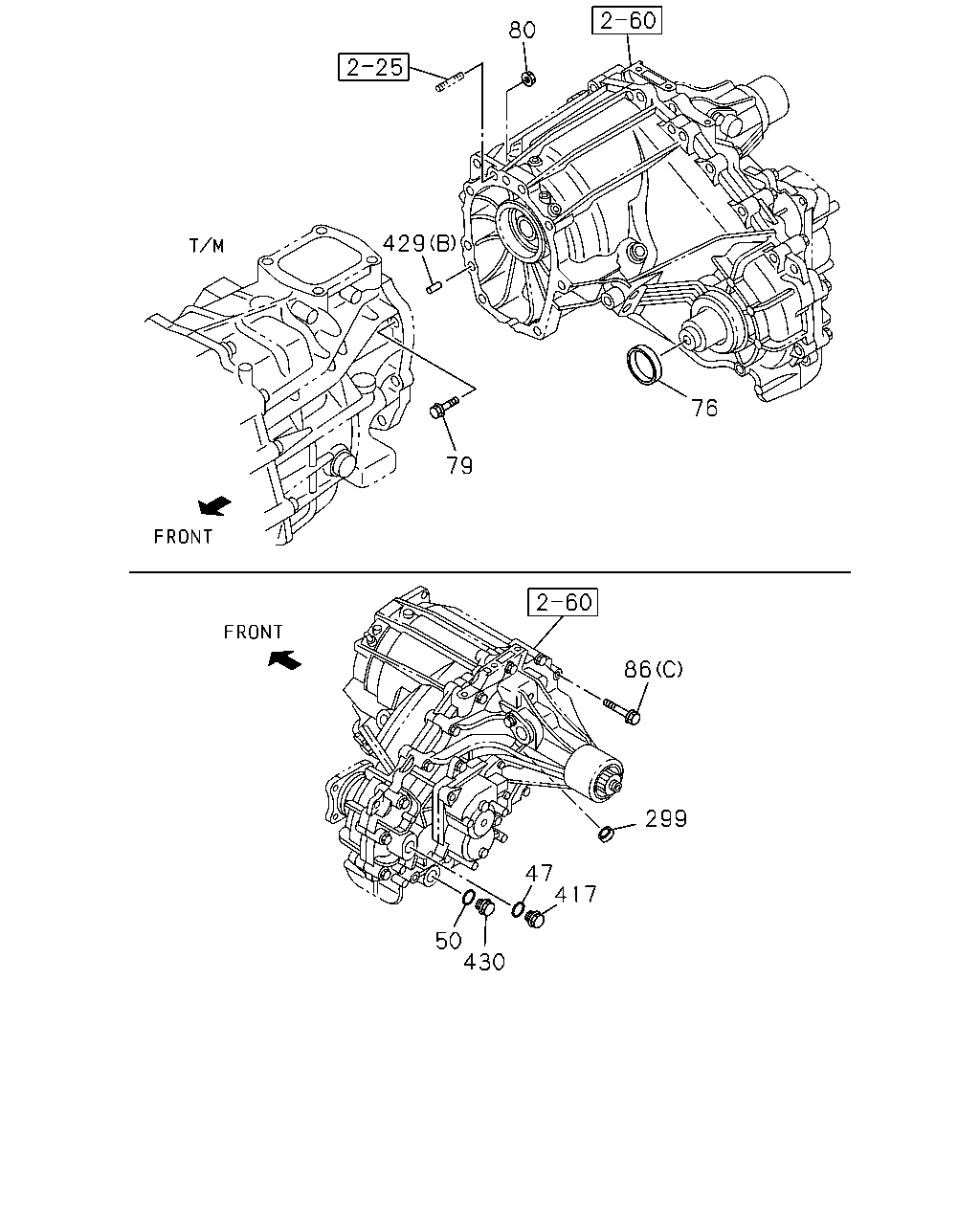

2-20 — MANUAL TRANSMISSION ASM AND CASE (#145159) — 69 parça

1 43 40 41 42 45 417 49 455 102 421 90 90 86 50 430 86 435 24 429 316 33 113 14 13 29 28 16 16 41 41 39 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	8-98278-659-0	01	1	1407-	●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1407-	●
14	WASHER; LK,SUPPORT ID=12.2	0-91510-512-0	01	1	1407-	●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1407-	●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	1407-	●
28	COVER; FRT,TRANS CASE	8-97104-676-0	01	1	1407-	●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1407-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	1407-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1407-	●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	1407-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1407-	●
41	SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1407-	●
41	SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1407-	●
41	SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1407-	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1407-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	1407-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1407-	●
49	STUD; TRANSFER CASE M10X27 L=43.5	8-98035-677-0	01	1	1407-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1407-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1407-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) ID=17	8-97115-712-0	01	1	1407-		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1407-	●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1407-	●
86	BOLT; RR COVER (C) M8X45 FLANGE	0-28050-845-0	16	1	1407-	●
86	BOLT; RR COVER 4X4(UCS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1407-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) TKK	8-97046-700-0	01	1	1407-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-701-2	01	1	1407-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1407-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) (A) NOK	8-97046-705-3	01	1	1407-		●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1407-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1407-	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1407-	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1407-	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1407-	●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	1407-		●
421	COVER; RR,TRANS	8-98277-853-0	01	1	1407-	●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1407-	●
429	PIN; STRAIGHT (B) OD=10 L=20	8-97135-423-0	02	1	1407-	●
429	PIN; STRAIGHT 4X4(UCS***) (B) OD=10 L=20	8-97135-423-0	02	1	1407-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1407-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1407-	●
430	PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	1407-		●
435	CASE; TRANS	8-98277-968-0	01	1	1407-	●
455	SCREW; BRG RET M8X22	8-98035-654-0	04	1	1407-	●

80 429 79 76 86 299 47 417 430 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	GASKET; FILLER PLUG,TRANSFER CASE ID=17	8-97115-712-0	01	1	1407-	●
47	GASKET; FILLER PLUG,TRANSFER CASE 4X4(UCS***) ID=17	8-97115-712-0	01	1	1407-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1407-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1407-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) ID=17	8-97115-712-0	01	1	1407-		●
76	SEAL; OIL,TRANSFER CASE NOK	8-97238-999-0	01	1	1407-	●
76	SEAL; OIL,TRANSFER CASE 4X4(UCS***) NOK	8-97238-999-0	01	1	1407-		●
79	BOLT; TRANSFER CASE 4X4(UCS***) M10X45 FLANGE	0-28051-045-0	07	1	1407-		●
79	BOLT; TRANSFER CASE M10X35 FLANGE	0-28051-035-0	06	1	1407-	●
80	NUT; TRANSFER CASE M10 FLANGE	0-91180-110-0	01	1	1407-	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1407-	●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1407-	●
86	BOLT; RR COVER (C) M8X45 FLANGE	0-28050-845-0	16	1	1407-	●
86	BOLT; RR COVER 4X4(UCS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1407-		●
299	PLUG; SHIFTER ROD OD=15.6	8-94173-641-0	02	1	1407-	●
299	PLUG; SHIFTER ROD 4X4(UCS***) OD=15.6	8-94173-641-0	02	1	1407-		●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1407-	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1407-	●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	1407-		●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1407-	●
429	PIN; STRAIGHT (B) OD=10 L=20	8-97135-423-0	02	1	1407-	●
429	PIN; STRAIGHT 4X4(UCS***) (B) OD=10 L=20	8-97135-423-0	02	1	1407-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1407-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1407-	●
430	PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	1407-		●
