◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#145154) — 13 parça

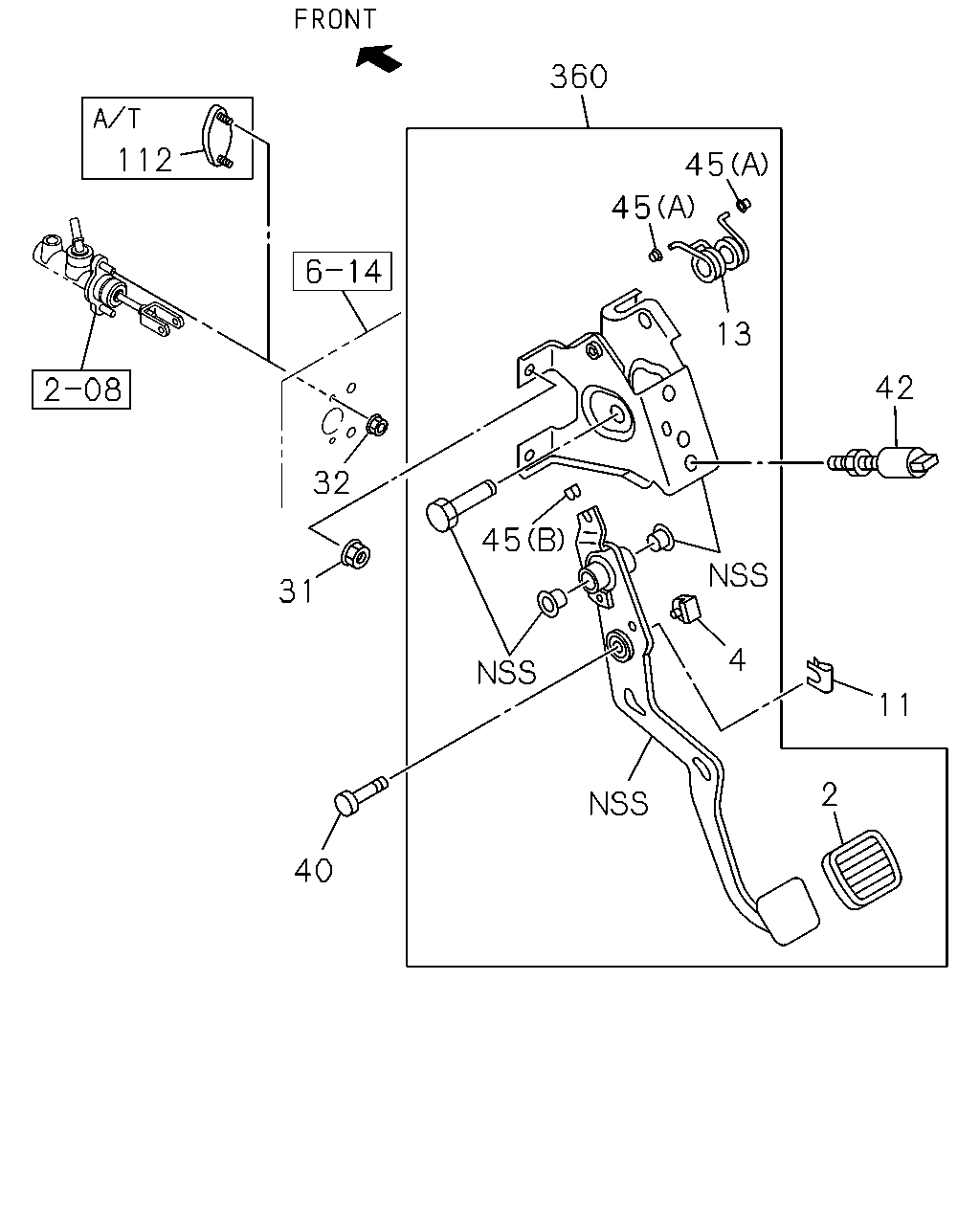

çizim 431501
11 2 4 42 13 45 45 360 45 32 31 40 112
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97318-799-0 01 1 1407- ●
4 STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97947-783-0 01 1 1407- ●
11 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-98007-161-0 01 1 1407- ●
13 SPRING; ASSIST,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97942-312-0 01 1 1407- ●
31 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ) M8 FLANGE 		0-91180-108-0 04 1 1407- ●
32 NUT; BRKT TO CLU M/CYL
M8 FLANGE 		0-91180-108-0 02 1 1407- ● ●
40 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ) OD=7.9 L=27.5 		8-97312-338-0 01 1 1407- ●
42 SWITCH; CLU
M/T MUA 5 SPEED 5H(MWQ) 		8-98154-210-0 01 1 1407- ●
45 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97942-313-0 02 1 1407- ●
45 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97942-314-0 01 1 1407- ●
112 PLUG; METAL,M/CYL
A/T 5 SPEED-AISIN(MA1) 		8-97945-168-0 01 1 1407- ● ●
360 PEDAL ASM; CLUTCH
M/T MUA 5 SPEED 5H(MWQ) 		8-98219-800-0 01 1 1407-1512 ●
360 PEDAL ASM; CLUTCH
M/T MUA 5 SPEED 5H(MWQ) 		8-98317-389-0 01 1 1601- ●
