1-35 — CHARGE AIR COOLER (#145149) — 21 parça

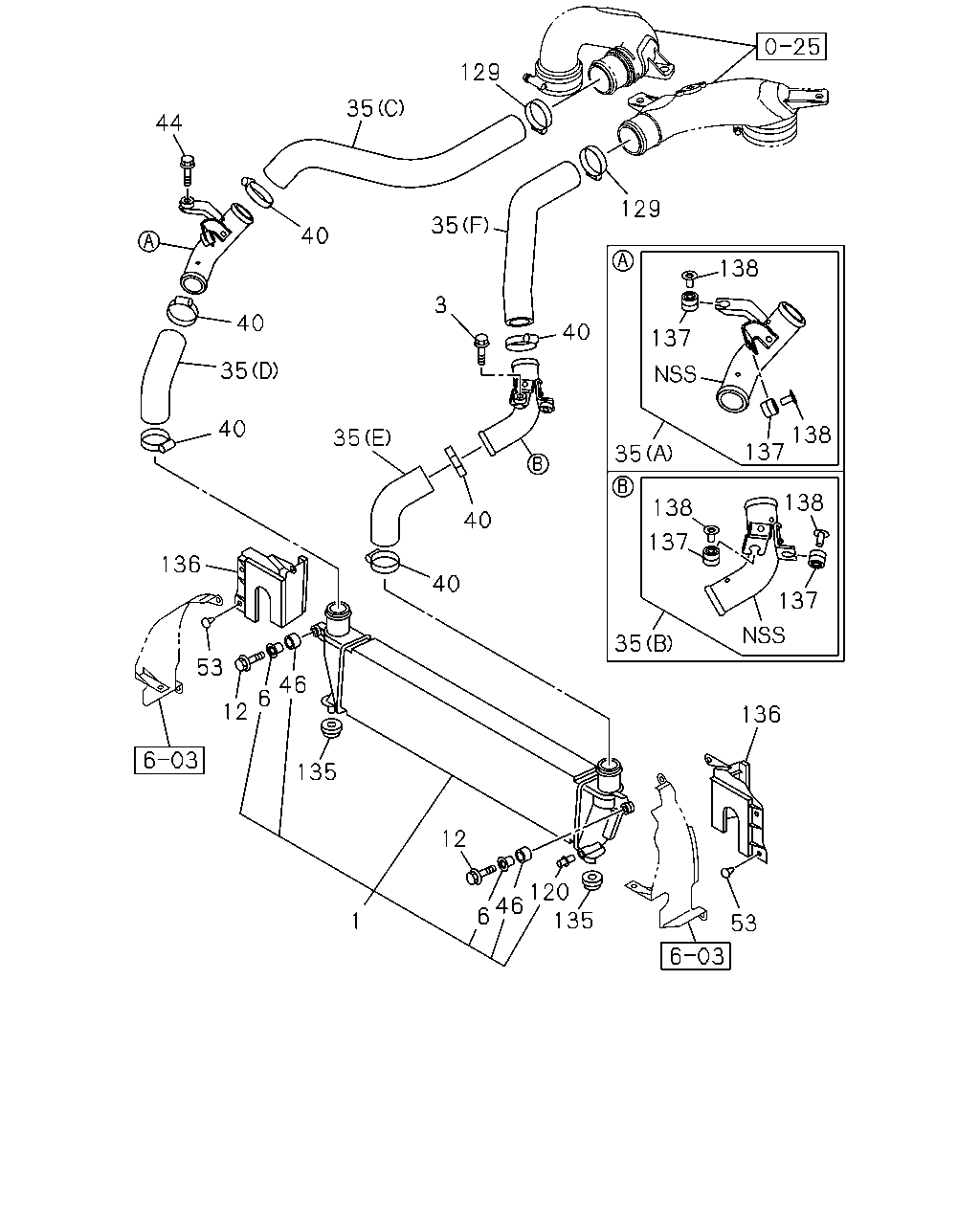

çizim 431943
129 138 137 35 137 138 138 138 137 137 35 136 53 135 120 46 6 12 1 135 46 6 12 53 136 40 40 40 35 129 35 3 40 44 40 35 35 40
BalonParca AdiParca NoAdetTipApplied Date
1 COOLER; CHARGE AIR 8-98090-627-4 01 1 1407-
3 BOLT; CHARGE AIR COOLER
M6X33 W/PL WASHER 		8-98048-997-0 02 1 1407-
6 COLLAR; MTG,CHARGE AIR COOLER 8-97942-932-0 02 1 1407-
12 BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1407-
35 HOSE; CONNECTING
(A) 		8-98065-553-1 01 1 1407-
35 HOSE; CONNECTING
(B) 		8-98065-554-1 01 1 1407-
35 HOSE; CONNECTING
(C) 		8-98065-695-2 01 1 1407-
35 HOSE; CONNECTING
(D) 		8-98065-696-2 01 1 1407-
35 HOSE; CONNECTING
(E) 		8-98065-697-2 01 1 1407-
35 HOSE; CONNECTING
(F) 		8-98065-698-2 01 1 1407-
40 CLIP; RUBBER HOSE
ID=45-65 		8-98133-396-0 06 1 1407-
44 BOLT; PIPE
M6X33 W/PL WASHER 		8-98048-997-0 02 1 1407-
46 RUBBER; MTG,CHARGE AIR COOLER 8-97942-930-0 02 1 1407-
53 CLIP; AIR DUCT
OD=22 L=10.7 		8-94215-211-0 06 1 1407-
120 PIPE; WATER DRAIN 8-98189-894-0 01 1 1407-
129 CLAMP; HOSE
ID=45-65 		8-98133-396-0 02 1 1407-
135 RUBBER; CUSHION 8-97249-541-1 02 1 1407-
136 SEAL; CHARGE AIR COOLER 8-98166-396-0 01 1 1407-
136 SEAL; CHARGE AIR COOLER 8-98166-398-0 01 1 1407-
137 RUBBER; PIPE 8-98137-144-0 04 1 1407-
138 COLLAR; RUBBER,PIPE 8-98137-143-0 04 1 1407-
