◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#145147) — 26 parça

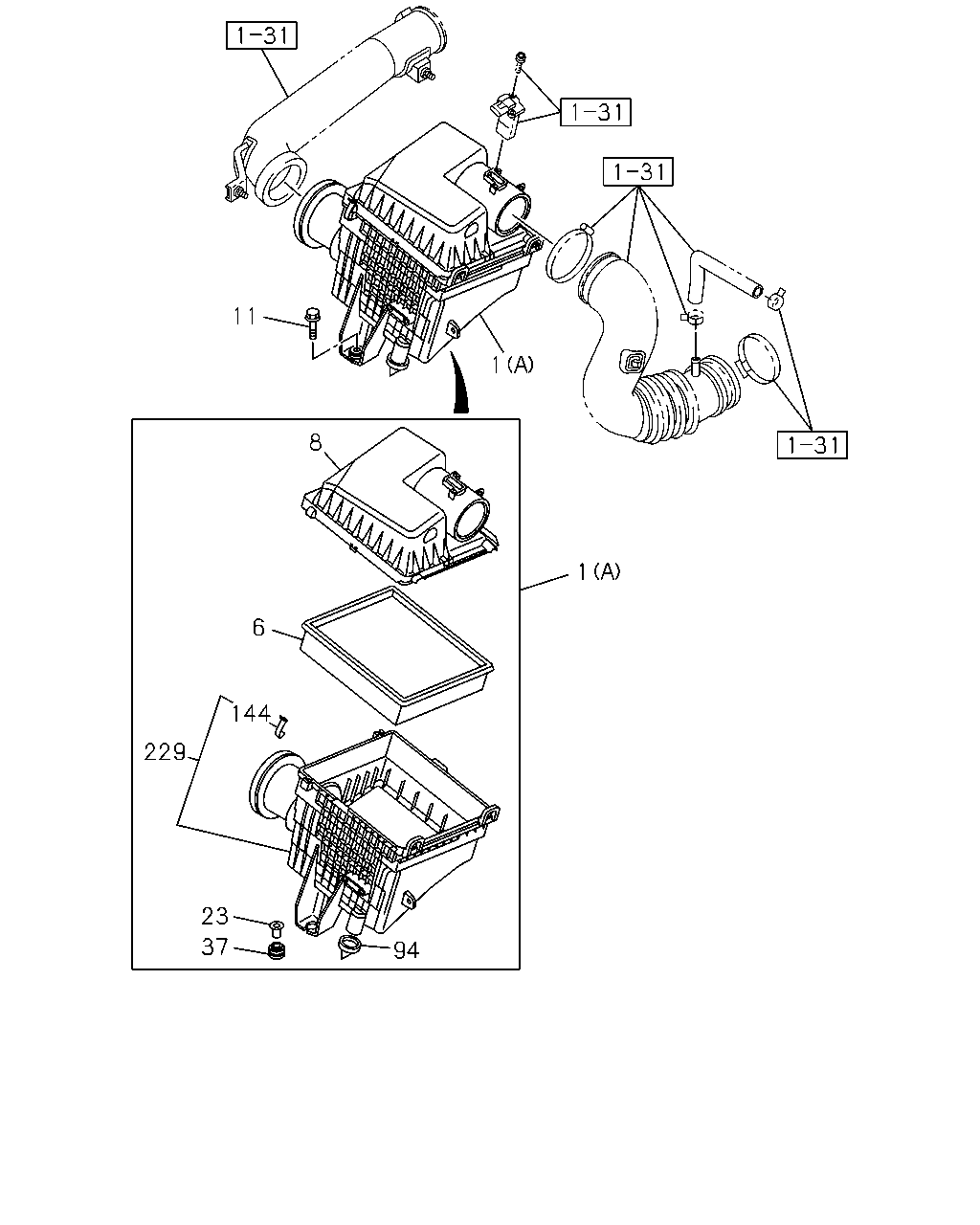

çizim 431615
1 11 8 1 6 144 229 23 37 94
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1407-
1 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1407-
6 FILTER; ACL 8-98140-266-0 01 1 1407-
8 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-388-0 01 1 1407-
8 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-385-0 01 1 1407-
11 BOLT; ACL
M8X35 FLANGE 		0-28650-835-0 03 1 1407-
23 COLLAR; ACL STAY 8-98140-270-0 03 1 1407-
37 RUBBER; MTG,ACL 8-98140-269-0 03 1 1407-
94 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1407-
94 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1407-
144 CLIP; ACL 8-97324-624-0 02 1 1407-
229 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-391-0 01 1 1407-
229 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-267-0 01 1 1407-

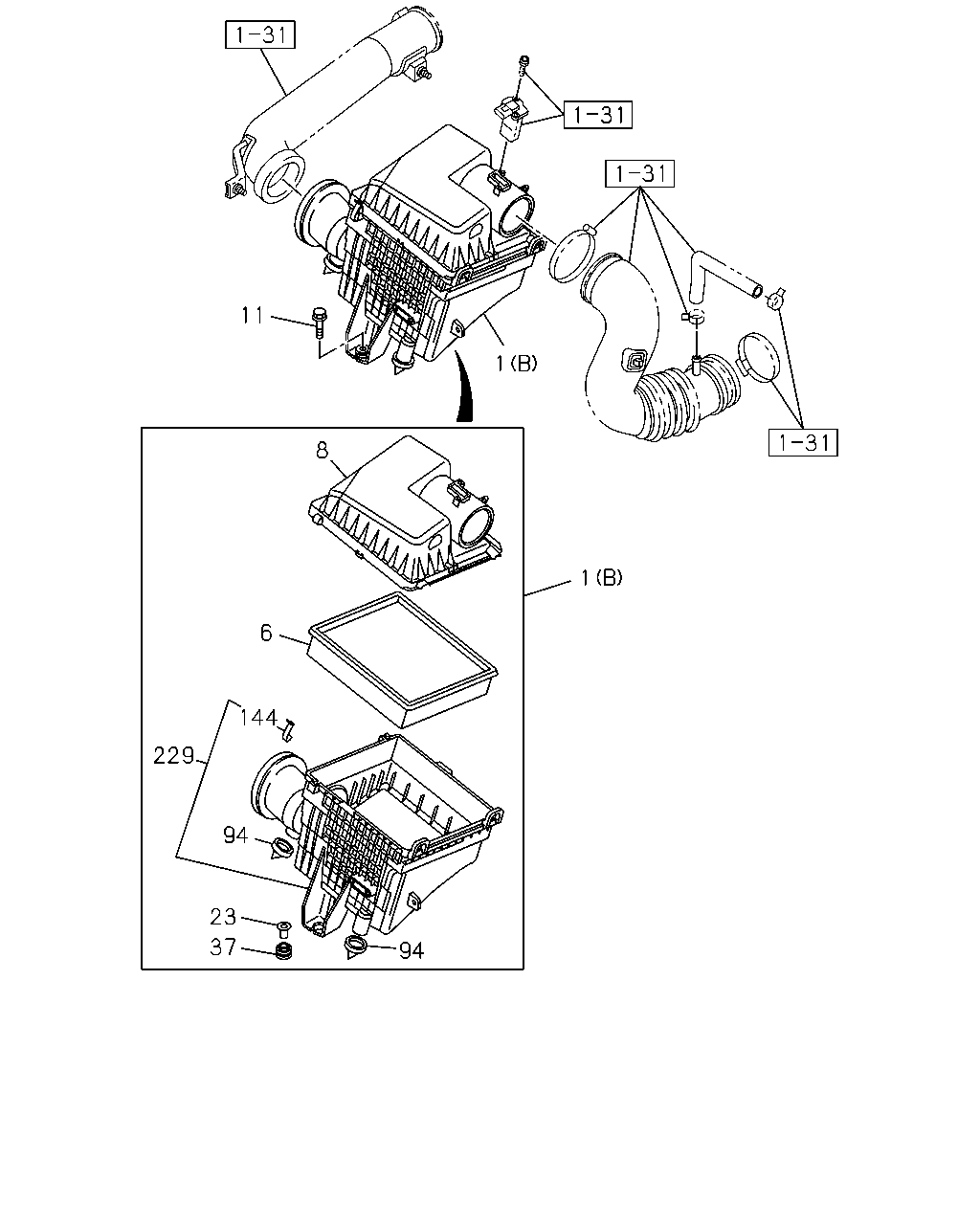

çizim 431666
1 6 144 229 94 23 37 94 1 11 8
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1407-
1 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1407-
6 FILTER; ACL 8-98140-266-0 01 1 1407-
8 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-388-0 01 1 1407-
8 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-385-0 01 1 1407-
11 BOLT; ACL
M8X35 FLANGE 		0-28650-835-0 03 1 1407-
23 COLLAR; ACL STAY 8-98140-270-0 03 1 1407-
37 RUBBER; MTG,ACL 8-98140-269-0 03 1 1407-
94 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1407-
94 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1407-
144 CLIP; ACL 8-97324-624-0 02 1 1407-
229 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-391-0 01 1 1407-
229 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-267-0 01 1 1407-
