◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#145141) — 6 parça

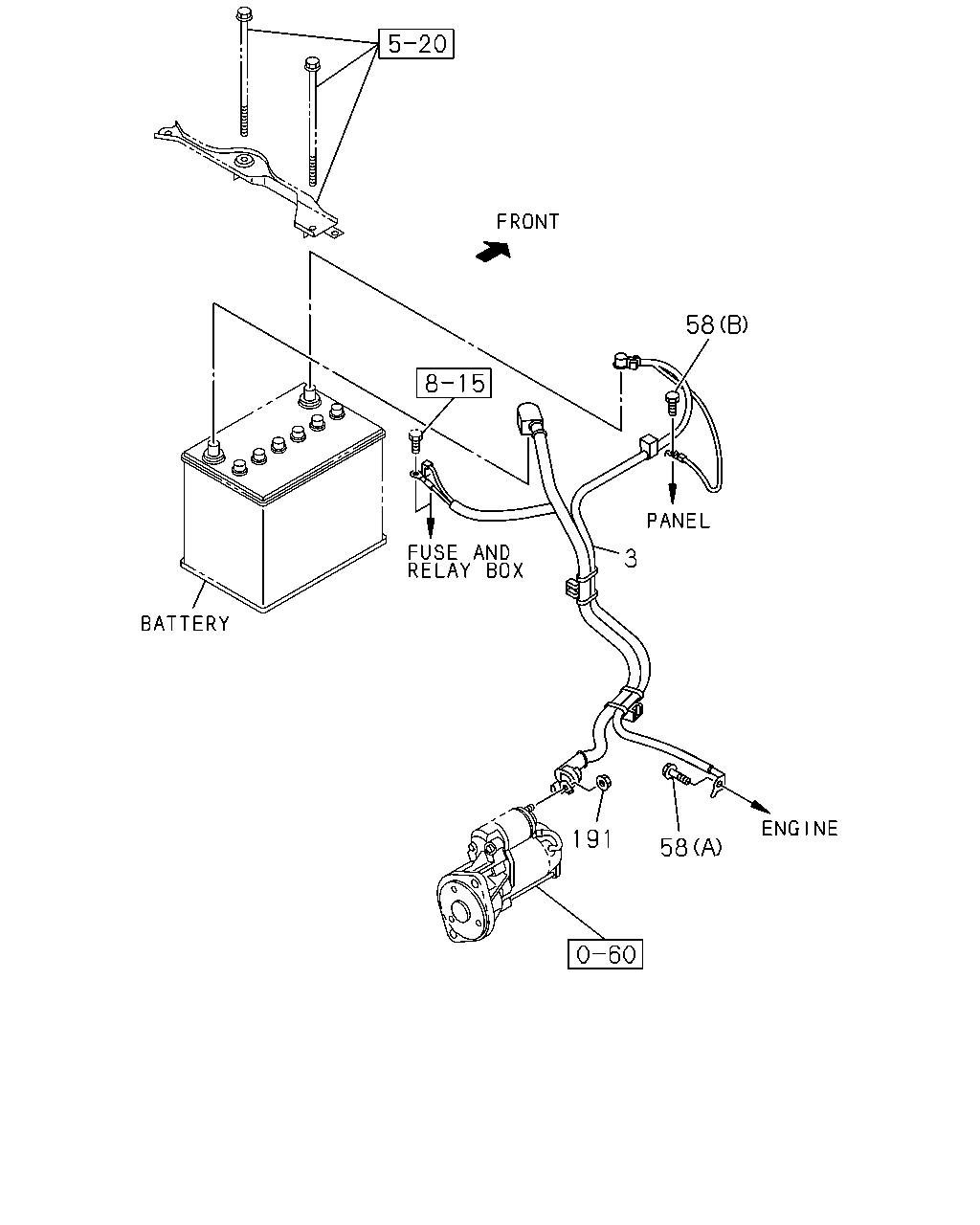

çizim 432236
3 191 58 58
BalonParca AdiParca NoAdetTipApplied Date
3 HARNESS; CABLE,BATTERY TO STARTER
BATTERY 80D26L(TM1) 		8-98238-380-2 01 1 1407-
3 HARNESS; CABLE,BATTERY TO STARTER
BATTERY 95D31L(TQ8) 		8-98160-809-3 01 1 1407-
58 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1407-
58 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1407-1501
58 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502-
191 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) M8 FLANGE 		0-91180-108-0 01 1 1407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
