51518 - UCR/UCS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#145140) — 38 parça
◀

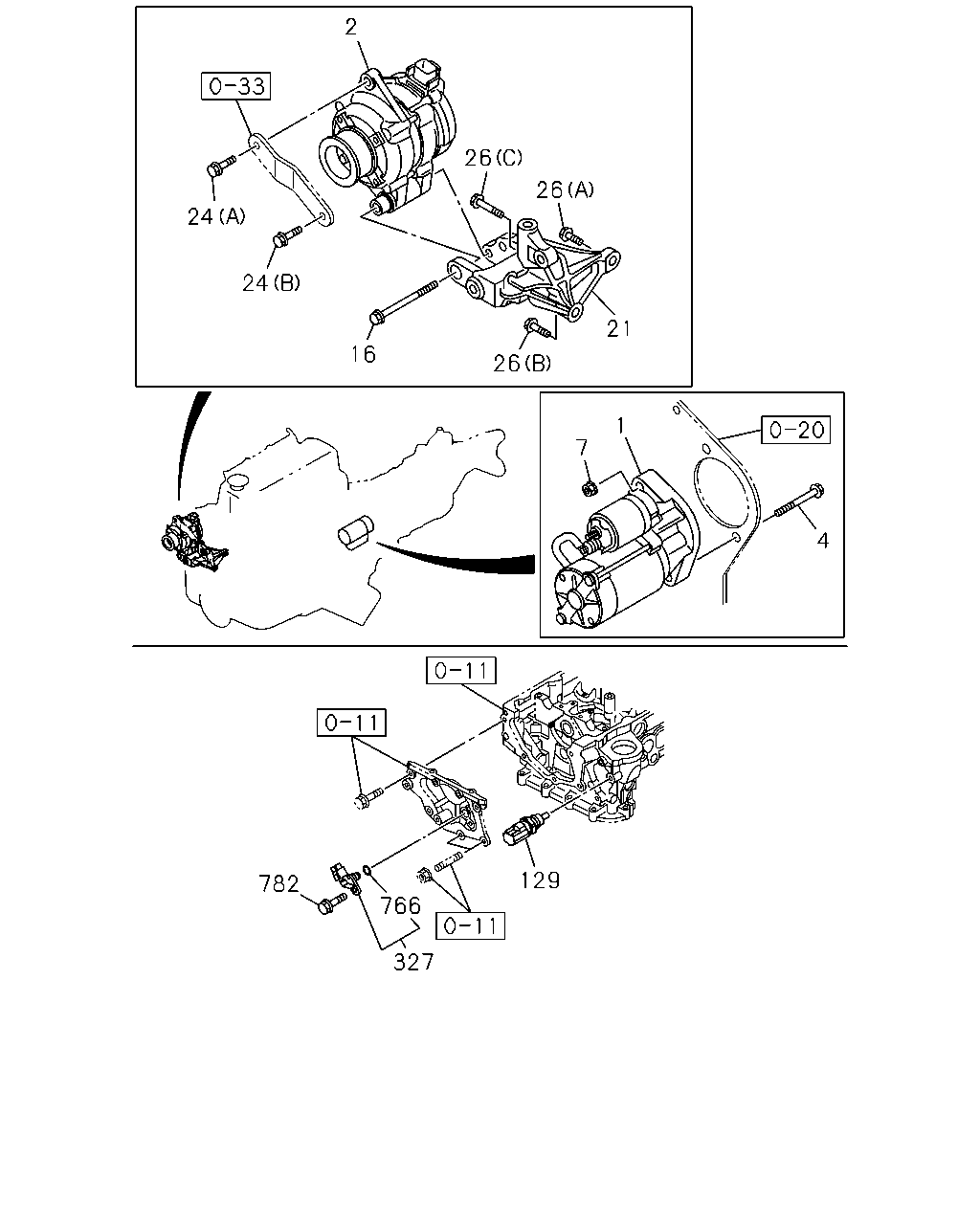

[060A] STARTER,GENERATOR AND THERMO SENSOR (16 parça)

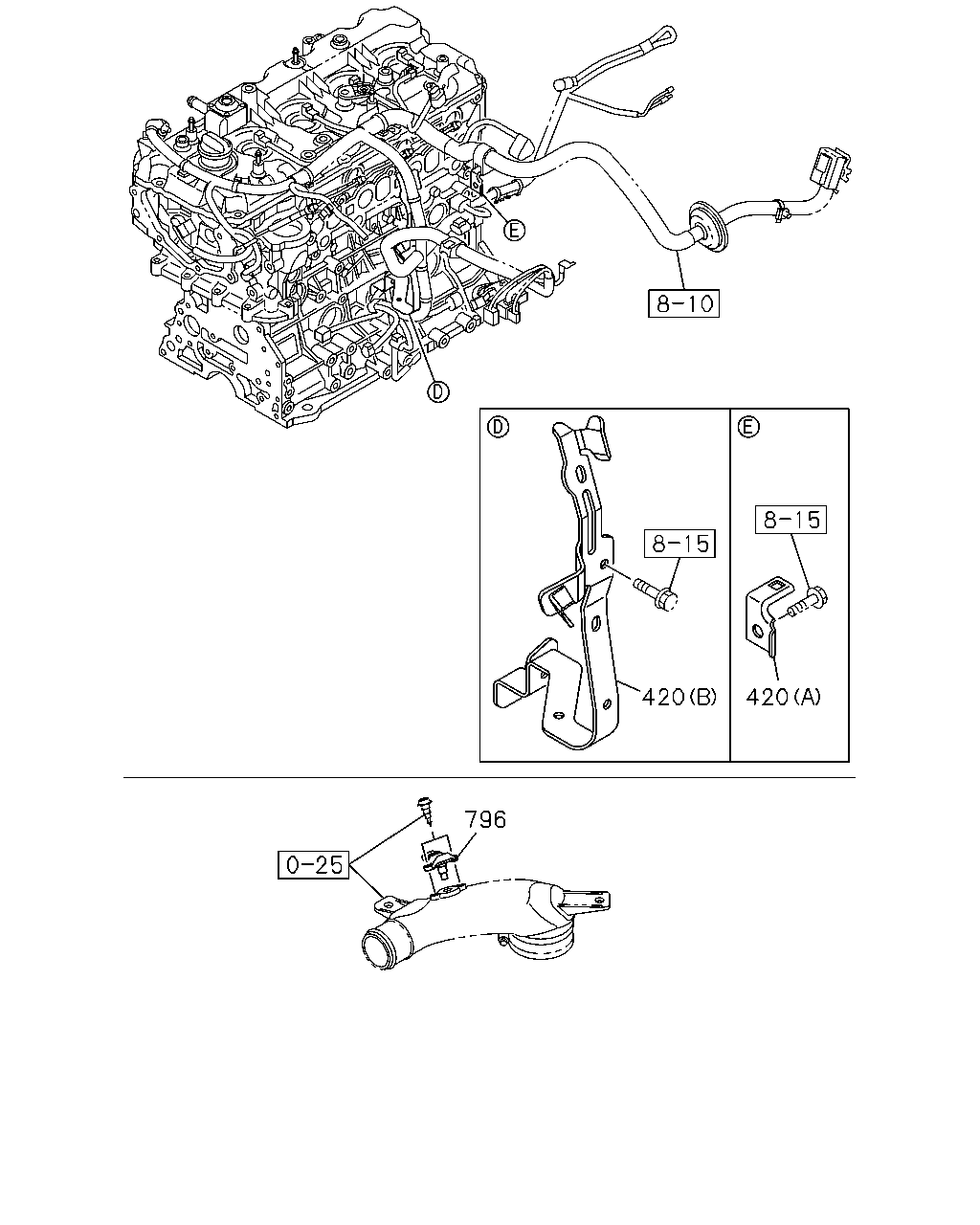

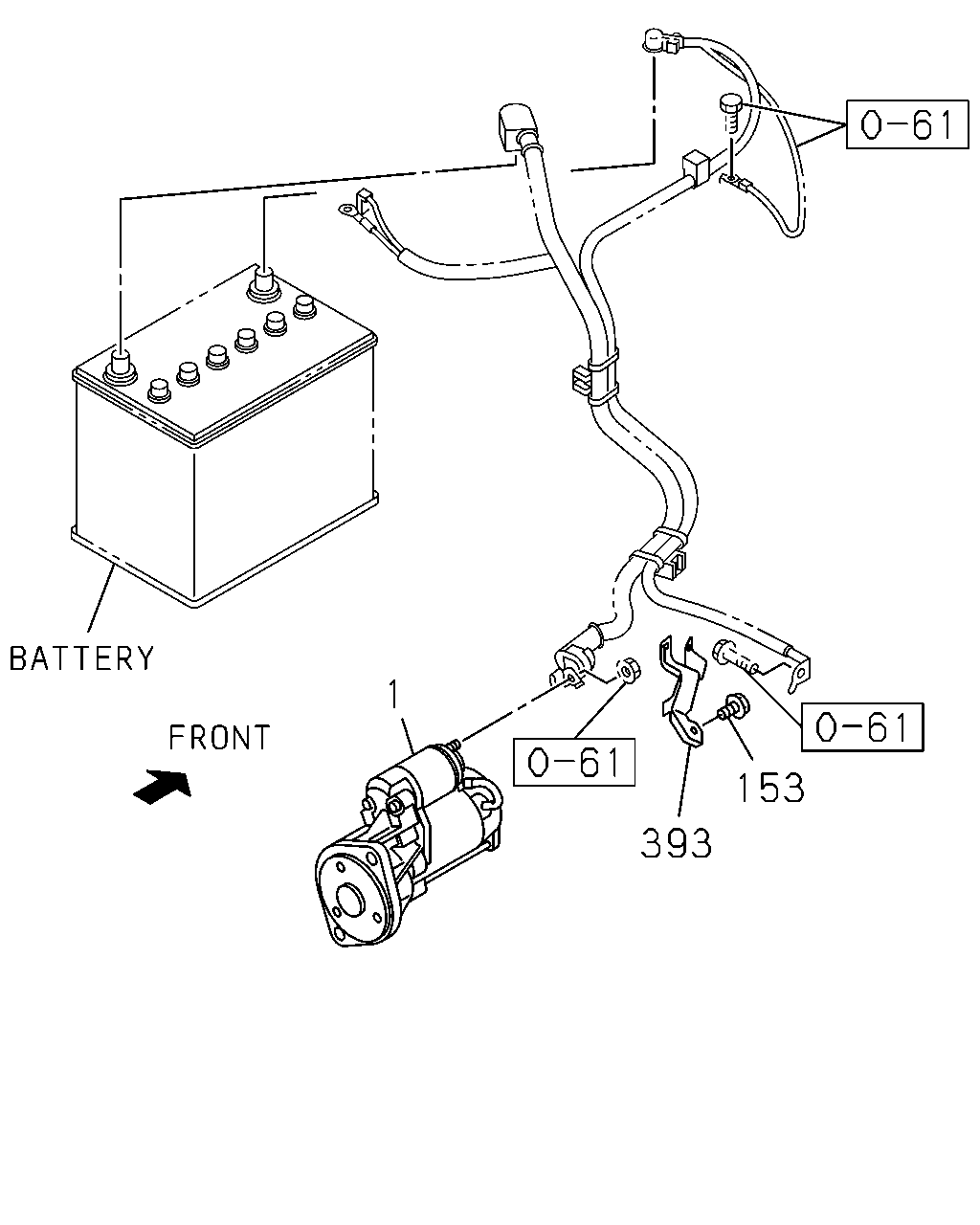

[060A] BATTERY HARNESS BRACKET (3 parça)
[060A] ENG HARNESS BRACKET AND SENSOR (3 parça)

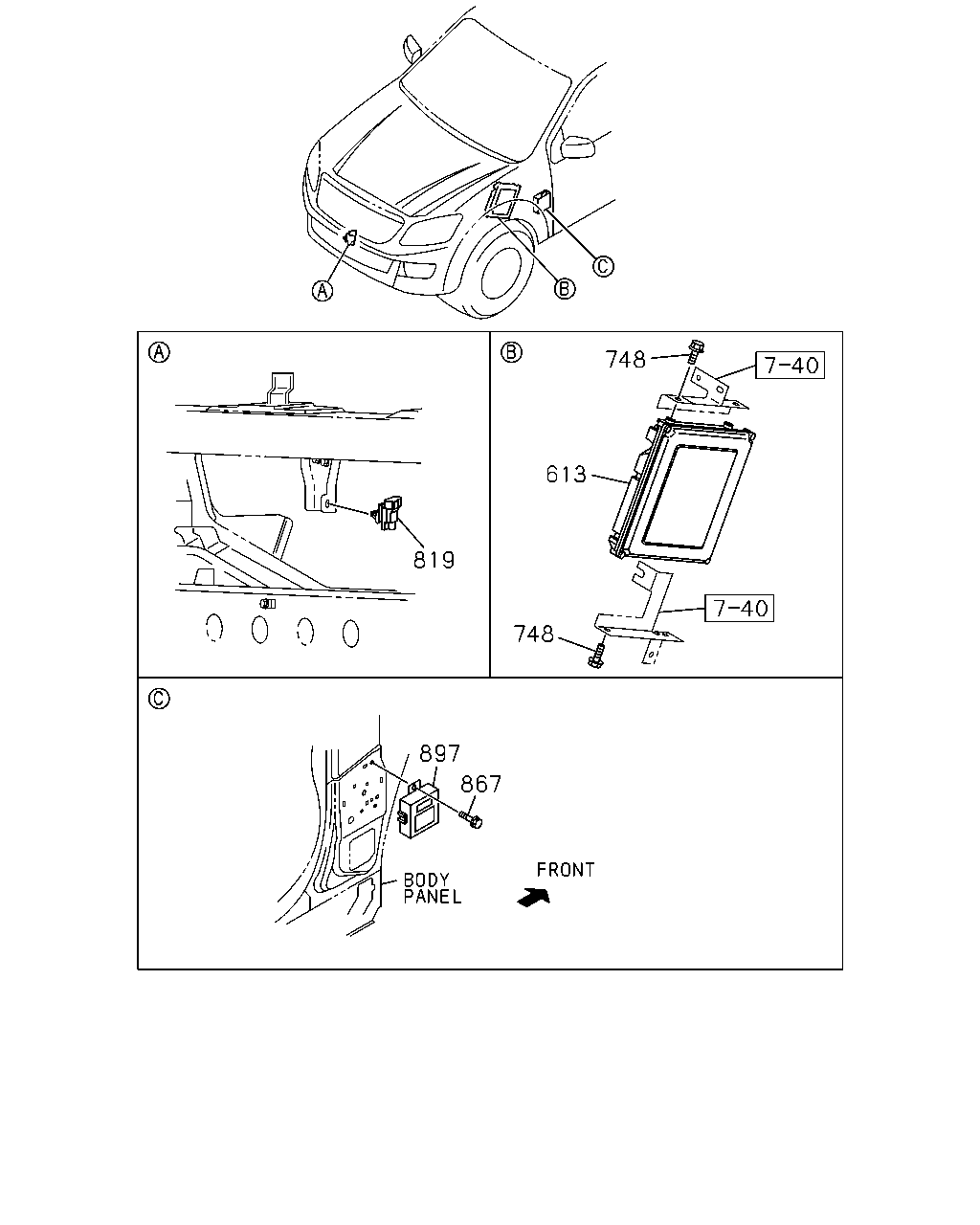

[060A] SENSOR AND CONTROL UNIT (16 parça)
▶
2
24
24
26
26
21
26
16
7
1
4
129
766
327
782
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW
8-98028-199-0
01
1
1407-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 120A
8-98225-157-0
01
1
1407-
4
BOLT; STARTER
M12X60
8-97161-846-1
02
1
1407-
7
NUT; STARTER
M12 FLANGE
0-91180-112-0
02
1
1407-
16
BOLT; GEN
M10X95 FLANGE
8-98236-407-0
01
1
1407-
21
BRACKET; GEN
8-98275-351-0
01
1
1407-
24
BOLT; GEN BRKT
(A) M8X25 FLANGE
0-28050-825-0
01
1
1407-
24
BOLT; GEN BRKT
(B) M8X20 FLANGE
0-28650-820-0
01
1
1407-
26
BOLT; GEN BRKT
(A) M10X25 FLANGE
0-28051-025-0
01
1
1407-
26
BOLT; GEN BRKT
(B) M10X35 FLANGE
0-28051-035-0
01
1
1407-
26
BOLT; GEN BRKT
(C) M10X45 FLANGE
0-28051-045-0
01
1
1407-
129
SENSOR; GLOW PLUG,THERMO
MITSUBISHI
8-98023-883-0
01
1
1407-1412
129
SENSOR; GLOW PLUG,THERMO
NISHIDA
8-98260-257-0
01
1
1501-
327
SENSOR; CAMSHAFT POSITION
8-98019-024-0
01
1
1407-
766
GASKET; SENSOR
ID=14.2 OD=18.8
8-97369-404-0
01
1
1407-
782
BOLT; SENSOR
M6X16 FLANGE
0-28050-616-0
01
1
1407-
153
393
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW
8-98028-199-0
01
1
1407-
153
BOLT; BRKT FIX
M6X10 FLANGE
8-98043-527-0
01
1
1407-
393
BRACKET; HARNESS TO BODY
8-98102-992-4
01
1
1407-
420
420
796
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
420
BRACKET; HARNESS
(A)
8-98179-101-0
01
1
1407-
420
BRACKET; HARNESS
(B)
8-98226-846-1
01
1
1407-
796
SENSOR; MAP
8-98009-418-0
01
1
1407-
748
613
819
748
897
867
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
613
CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30>
8-98260-263-1
01
1
1407-1408
613
CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. AUTO CRUISE CONT<K30>
8-98260-264-1
01
1
1407-1408
613
CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>
8-98222-957-5
01
1
1407-1408
613
CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30>
8-98222-957-5
01
1
1409-
613
CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>
8-98222-958-5
01
1
1407-1408
613
CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30>
8-98222-958-5
01
1
1409-
613
CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30>
8-98260-267-1
01
1
1407-1408
613
CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. AUTO CRUISE CONT<K30>
8-98260-268-1
01
1
1407-1408
613
CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>
8-98222-965-5
01
1
1407-1408
613
CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30>
8-98222-965-5
01
1
1409-
613
CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>
8-98222-966-5
01
1
1407-1408
613
CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30>
8-98222-966-5
01
1
1409-
748
BOLT; CONT UNIT
M6X16 FLANGE
0-28650-616-0
04
1
1407-
819
SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>
8-98008-687-0
01
1
1407-
867
BOLT
M6X16 FLANGE
0-28650-616-0
01
1
1407-
897
DRM
8-98221-054-4
01
1
1407-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
