51518 - UCR/UCS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#145139) — 28 parça
◀

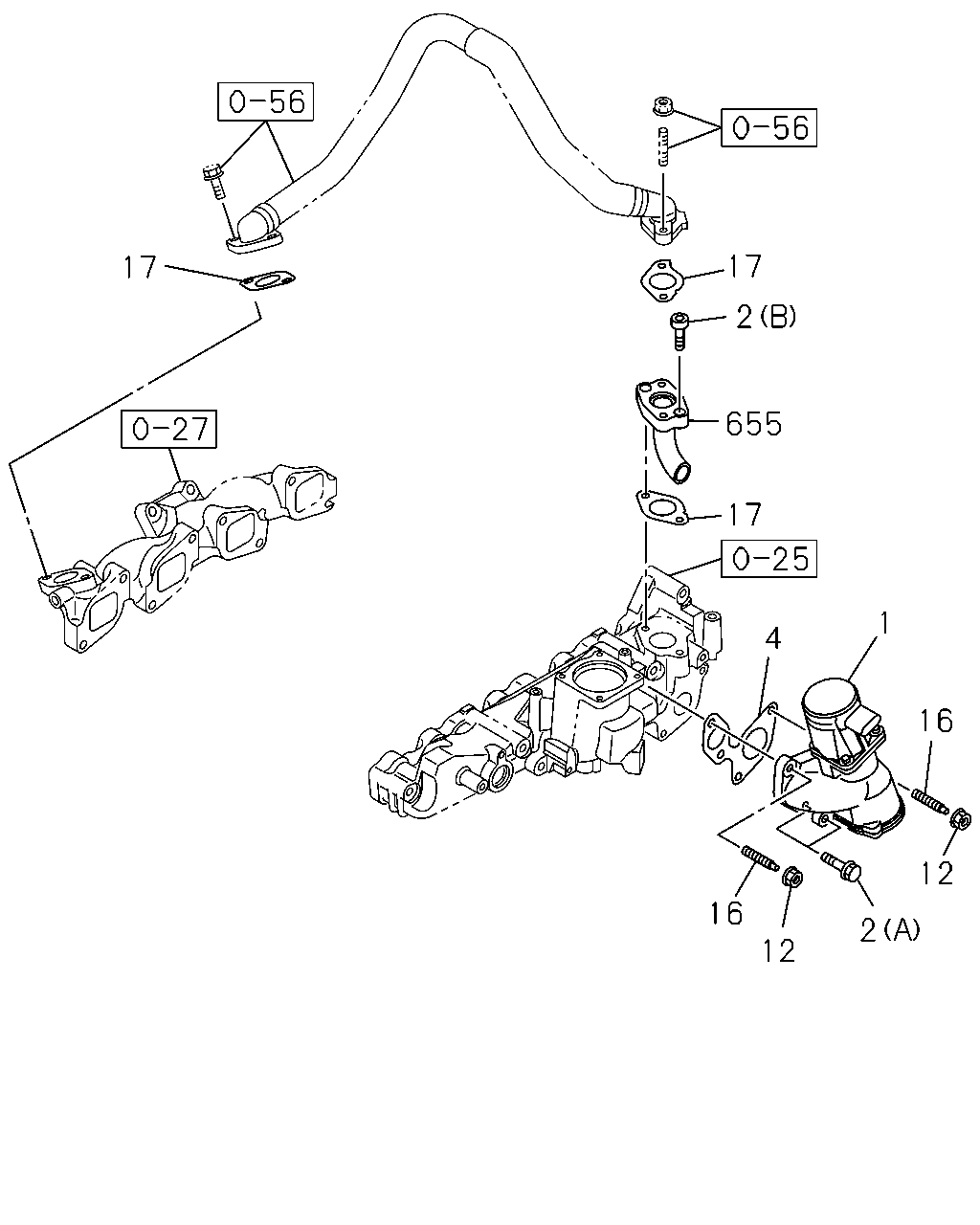

[057A] EGR VALVE (9 parça)
[057A] EGR COOLER BRACKET AND COVER (5 parça)

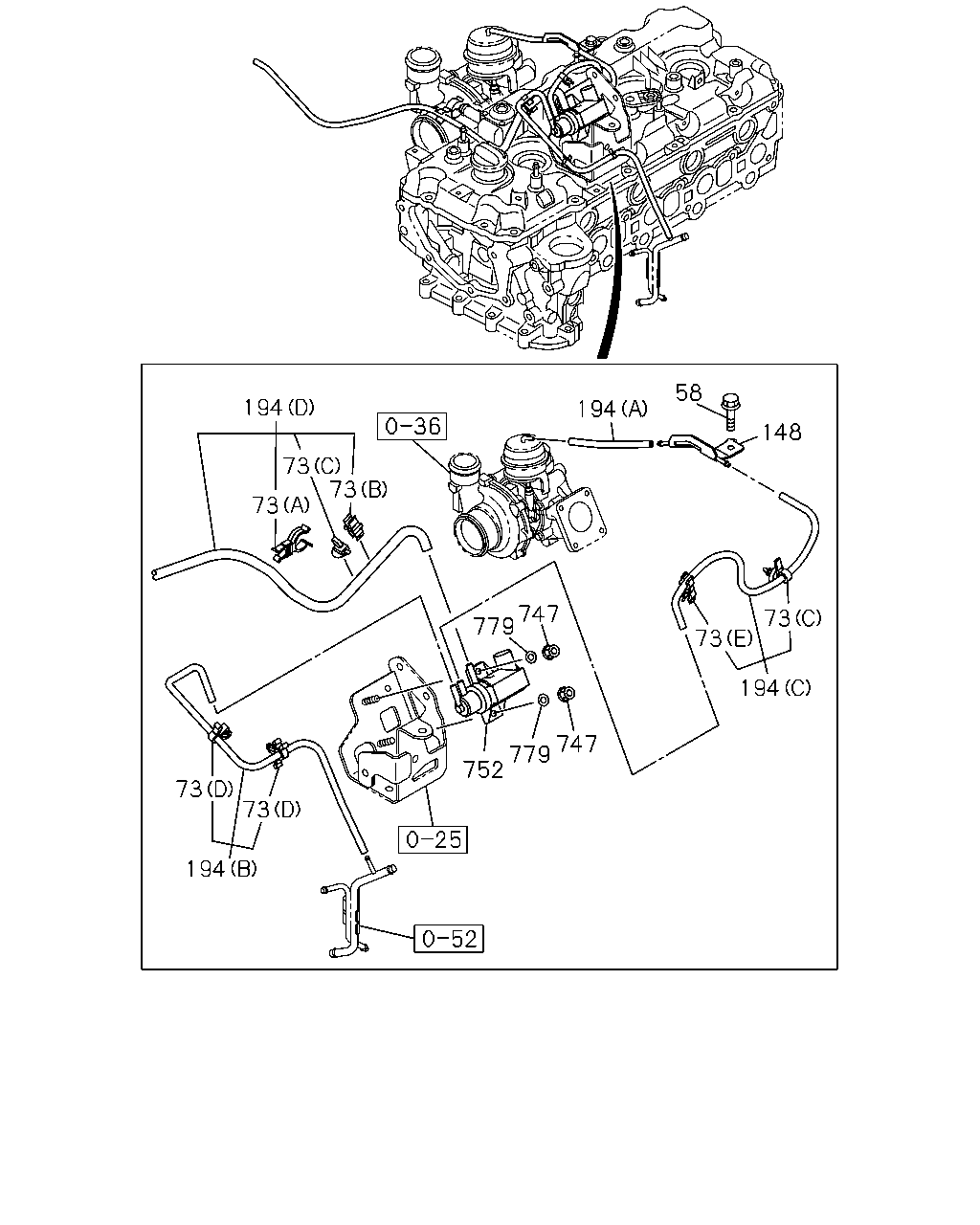

[057A] EVRV AND VACUUM HOSE (14 parça)
▶
17
2
655
17
4
1
16
12
2
12
16
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
8-98133-202-3
01
1
1407-
2
BOLT; EGR VLV
(A) M8X25 FLANGE
0-28650-825-0
02
1
1407-
2
BOLT; EGR VLV
(B) M8X20 HEX SOCKET
0-58330-820-0
02
1
1407-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97356-711-3
01
1
1407-
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
02
1
1407-
16
STUD; EGR VLV
M8X22 L=40
0-49140-822-0
02
1
1407-
16
STUD; EGR VLV
M8X22 L=33
8-94257-319-0
02
1
1407-
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97357-684-3
03
1
1407-
655
PIPE; EGR VLV
8-98132-053-0
01
1
1407-
710
271
678
789
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
271
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
02
1
1407-
678
BOLT; PLATE
M8X16 FLANGE
0-28050-816-0
02
1
1407-
678
BOLT; PLATE
M8X16 FLANGE
0-28050-816-0
02
1
1407-
710
BRACKET; EGR COOLER
8-98230-108-0
01
1
1407-
789
COVER; COOLER,EGR
8-98228-434-0
01
1
1407-
194
73
73
73
194
58
148
73
194
73
747
779
747
779
752
73
73
194
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
58
BOLT; PIPE
M8X16 FLANGE
0-28050-816-0
01
1
1407-
73
CLIP; VAC HOSE
(B) ID=11.8 & 7.5
1-09709-182-0
01
1
1506-
73
CLIP; VAC HOSE
(D) ID=6.5
8-94257-639-0
02
1
1506-
73
CLIP; VAC HOSE
(E) ID=7.5 & 7.5
8-97019-084-0
01
1
1506-
73
CLIP; VAC HOSE
(A) ID=21 & 9.8
8-97309-945-0
01
1
1506-
73
CLIP; VAC HOSE
(C)
8-98324-179-0
02
1
1506-
148
PIPE; VAC
8-98132-082-0
01
1
1407-
194
HOSE; VAC
(A)
0-14040-110-0
01
1
1407-
194
HOSE; VAC
(B)
8-98228-439-0
01
1
1407-
194
HOSE; VAC
(C)
8-98239-037-0
01
1
1407-
194
HOSE; VAC
(D)
8-98239-038-1
01
1
1407-
747
NUT; VAC REG VALVE
M6 FLANGE
0-91180-106-0
02
1
1407-
752
VALVE; EVRV
8-98239-935-0
01
1
1407-
779
WASHER; VALVE
ID=8.4 OD=18
0-91610-608-0
02
1
1407-
