Isuzu WW
▶
SUV
▶
UCR
▶
51518 - UCR/UCS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶

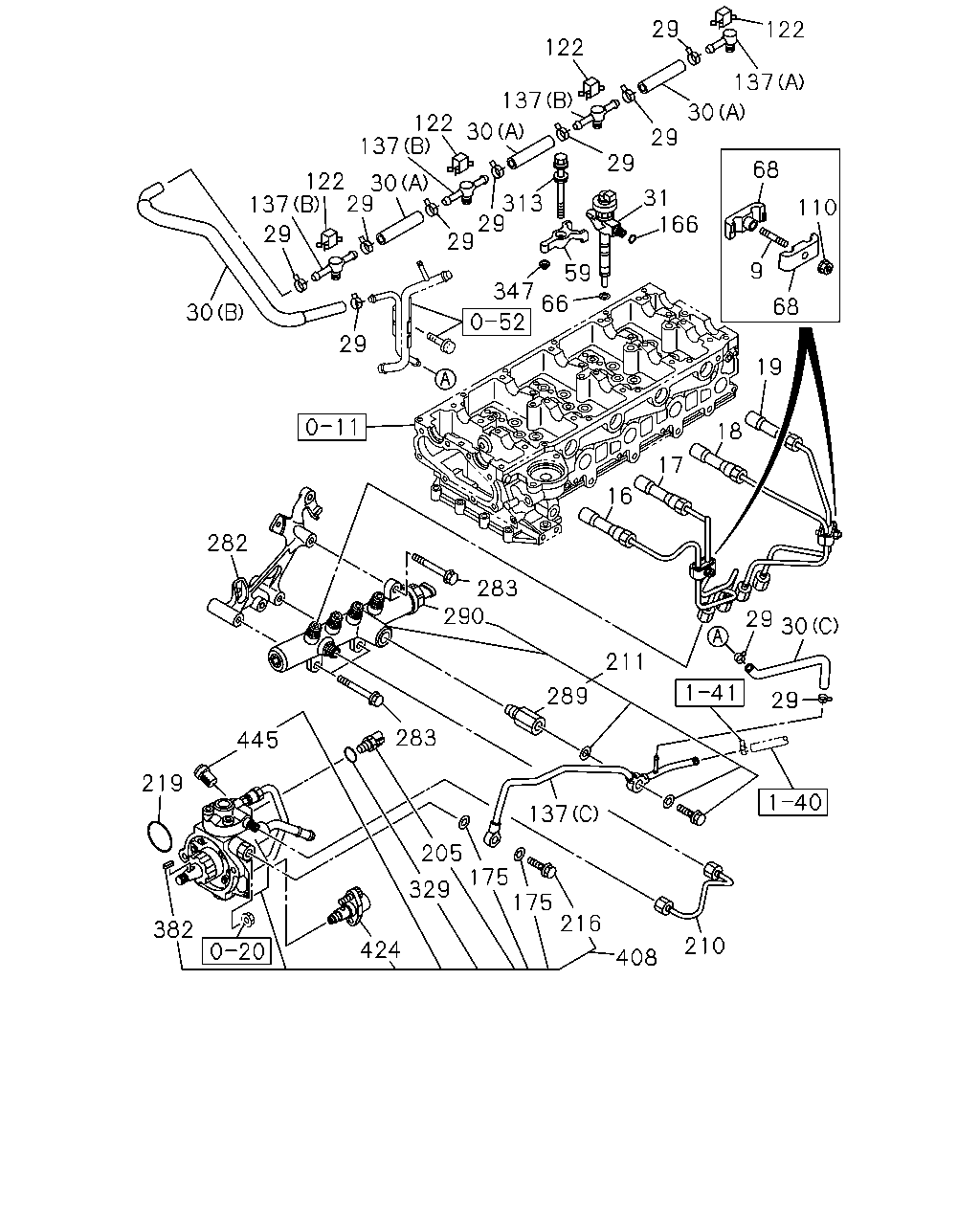

0-40 — FUEL INJECTION SYSTEM
(#145133) — 39 parça
122
137
30
29
29
31
166
68
110
9
68
19
18
17
16
211
29
30
29
289
210
408
216
175
175
205
329
424
382
219
445
283
290
283
282
30
29
137
122
137
122
29
30
29
29
29
313
30
137
122
29
59
66
347
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
STUD; CLIP
M6X30 L=38
0-41010-630-0
02
1
1407-
16
PIPE; INJ NO.1
8-98223-194-0
01
1
1407-
17
PIPE; INJ NO.2
8-98223-195-1
01
1
1407-
18
PIPE; INJ NO.3
8-98223-196-0
01
1
1407-
19
PIPE; INJ NO.4
8-98223-197-0
01
1
1407-
29
CLIP; HOSE
ID=10.5
8-97944-126-0
10
1
1407-
30
HOSE; RUBBER,FUEL LEAK
(A) L=96
8-98053-693-0
03
1
1407-
30
HOSE; RUBBER,FUEL LEAK
(C)
8-98179-014-0
01
1
1407-
30
HOSE; RUBBER,FUEL LEAK
(B)
8-98189-998-0
01
1
1407-
31
NOZZLE ASM; INJ
8-98246-130-0
04
1
1407-
59
CLAMP; NOZZLE HOLDER
8-98092-539-0
04
1
1407-
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98181-540-0
04
1
1407-
68
CLIP; INJ PIPE
ID=11 & 11 L=19
8-98148-996-2
04
1
1407-
110
NUT; CLIP
M6 FLANGE
0-91180-106-0
02
1
1407-
122
CLIP; LEAK OFF PIPE
8-97315-286-0
04
1
1407-
137
PIPE ASM; LEAK OFF
(C)
8-98158-737-1
01
1
1407-
137
PIPE ASM; LEAK OFF
(B)
8-98211-775-0
03
1
1407-
137
PIPE ASM; LEAK OFF
(A)
8-98211-776-0
01
1
1407-
166
GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11 OD=14.8
9-09566-111-0
04
1
1407-
175
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2
1-09630-083-0
02
1
1407-1505
175
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
1-15619-508-0
02
1
1506-
205
SENSOR; FUEL TEMP
8-98023-581-0
01
1
1407-
210
PIPE; INJ,C/R
8-98233-237-0
01
1
1407-
211
RAIL ASM; COMMON
8-98228-475-0
01
1
1407-
216
BOLT; EYE
9-88130-088-0
01
1
1407-1409
216
BOLT; EYE
8-98209-777-0
01
1
1410-
219
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7
1-09623-541-0
01
1
1407-
282
BRACKET; COMMON RAIL
8-98205-942-0
01
1
1407-
283
BOLT; COMMON RAIL
M8X66 FLANGE
8-98228-566-0
03
1
1407-
289
LIMITER; FUEL PRESS
8-98032-549-0
01
1
1407-
290
SENSOR; PRESS
8-98181-616-0
01
1
1407-
313
BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER
8-98228-637-0
04
1
1407-
329
GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7
9-09566-110-0
01
1
1407-1409
347
PIN
8-98165-035-0
04
1
1407-
382
KEY; DRIVE SHAFT
8-97375-384-0
01
1
1407-1409
382
KEY; DRIVE SHAFT
8-98161-995-0
01
1
1410-
408
PUMP ASM; FUEL,SUPPLY
8-98155-988-3
01
1
1407-
424
OVERHAUL KIT; SUPPLY PUMP
8-98145-455-1
01
1
1407-
445
SCREW; FILTER,INLET
8-98209-778-0
01
1
1407-
