51518 - UCR/UCS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

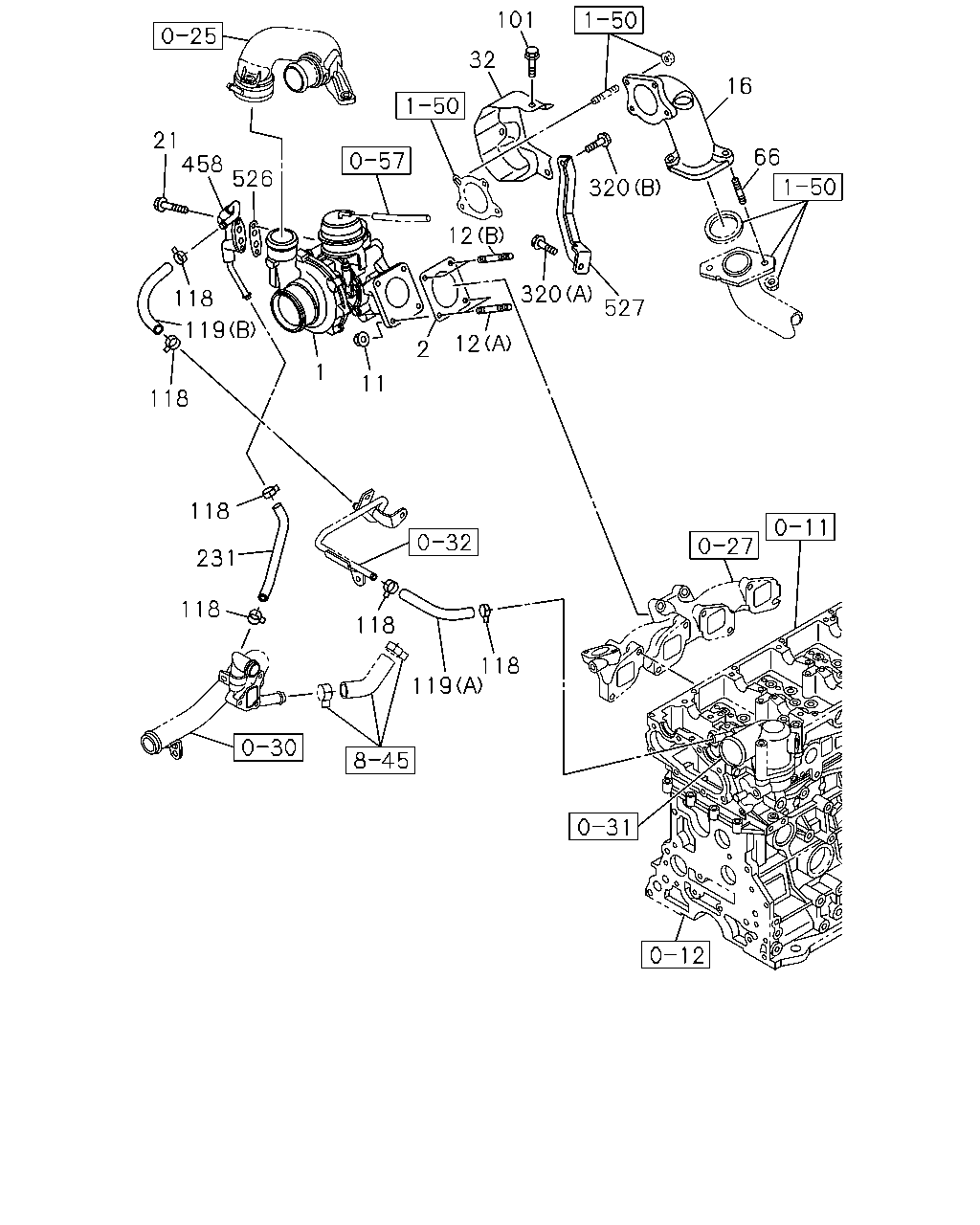

0-36 — TURBOCHARGER SYSTEM
(#145132) — 19 parça
66
16
320
527
320
12
12
101
32
2
11
1
118
119
118
526
458
21
118
231
118
118
119
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
8-98235-628-1
01
1
1407-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98132-073-0
01
1
1407-
11
NUT; TURBOCHARGER
M8 FLANGE
8-97379-384-0
04
1
1407-
12
STUD; TURBOCHARGER
(A) M8X25 L=36
8-97378-062-0
02
1
1407-
12
STUD; TURBOCHARGER
(B) M8X30 L=41
8-97378-064-0
02
1
1407-
16
ADAPTER; EXH PIPE
8-98250-275-0
01
1
1407-
21
BOLT; PIPE
M6X45 FLANGE
0-28050-645-0
02
1
1407-
32
PROTECTOR; HEAT,TURBOCHARGER
8-98156-389-0
01
1
1407-
66
STUD; EXH PIPE
M10X25 L=40
0-44011-025-0
02
1
1407-
101
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28050-812-0
02
1
1407-
118
CLIP; WATER HOSE
ID=15.1
8-98179-581-0
06
1
1407-
119
HOSE; WATER,TURBOCHARGER
(B)
8-98179-580-0
01
1
1407-
119
HOSE; WATER,TURBOCHARGER
(A)
8-98239-061-0
01
1
1407-
231
HOSE; RUBBER,TURBOCHARGER OUT
8-98228-462-0
01
1
1407-
320
BOLT; BRKT,TURBOCHARGER
(A) M8X20 FLANGE
0-28650-820-0
01
1
1407-
320
BOLT; BRKT,TURBOCHARGER
(B) M8X18 FLANGE
8-97378-076-0
01
1
1407-
458
PIPE; WATER,TURBOCHARGER
8-98184-505-0
01
1
1407-
526
GASKET; PLATE
8-97352-985-0
01
1
1407-
527
BRACKET; TURBOCHARGER
8-98156-388-0
01
1
1407-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
