51518 - UCR/UCS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶

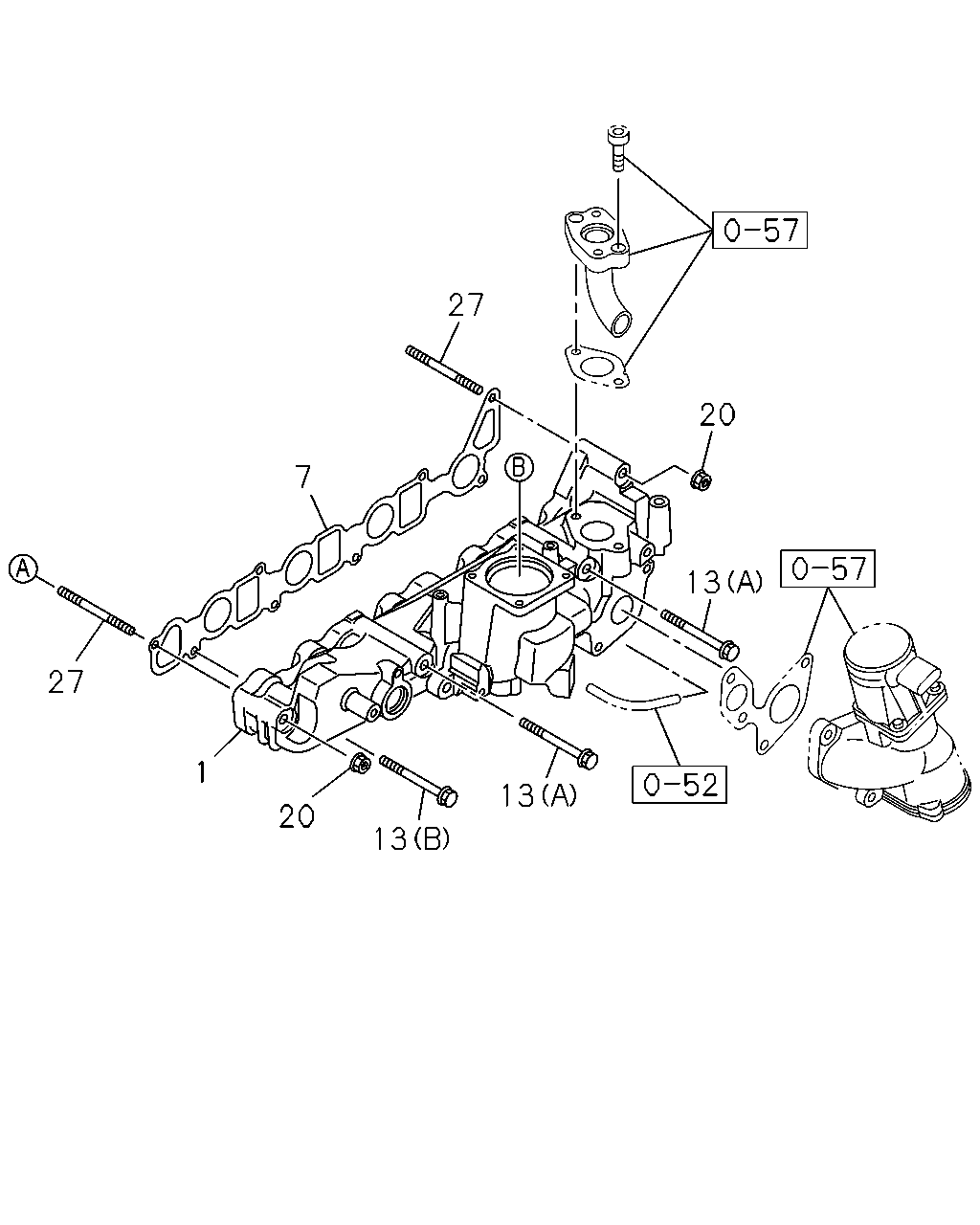

0-25 — INLET MANIFOLD
(#145126) — 23 parça
◀
[025A] NO.2 (6 parça)
[025A] NO.1 (17 parça)
▶
27
27
1
7
13
20
13
13
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MANIFOLD; INL
8-98228-252-0
01
1
1407-
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98212-999-0
01
1
1407-
13
BOLT; INL MANIF
(A) M8X110 FLANGE
0-28055-811-0
02
1
1407-
13
BOLT; INL MANIF
(B) M8X70 12-POINT HEAD
8-97101-065-0
04
1
1407-
20
NUT; INL MANIF
M8 FLANGE
0-91180-208-0
02
1
1407-
27
STUD; INL MANIF
M8X71 L=83
8-97367-083-0
02
1
1407-
807
323
729
200
373
184
731
731
139
323
771
200
323
729
200
139
57
64
55
771
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
NUT; INL PIPE
M8 FLANGE
0-91180-208-0
01
1
1407-
57
WASHER; PL
ID=8.4 OD=22
0-91614-708-0
01
1
1407-
64
STUD; INL PIPE
M8X30 L=41
0-41010-830-0
01
1
1407-
139
BOLT; BRKT FIX
(A) M8X16 FLANGE
0-28050-816-0
01
1
1407-
139
BOLT; BRKT FIX
(B) M8X20 FLANGE
0-28650-820-0
03
1
1407-
184
GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98096-968-0
01
1
1407-
200
BRACKET; AIR DUCT
(A)
8-98154-158-2
01
1
1407-
200
BRACKET; AIR DUCT
(B)
8-98228-262-0
01
1
1407-
200
BRACKET; AIR DUCT
(C)
8-98228-445-2
01
1
1407-
323
BOLT; DUCT
(A) M6X16 FLANGE
0-28050-616-0
02
1
1407-
323
BOLT; DUCT
(B) M8X25 FLANGE
0-28050-825-0
01
1
1407-
373
THROTTLE ASM; INT
8-98131-738-3
01
1
1407-
729
DUCT; INLET
(A)
8-98117-651-1
01
1
1407-
729
DUCT; INLET
(B)
8-98228-260-1
01
1
1407-
731
BOLT; THROTTLE ASM
M6X50 HEX SOCKET
0-58330-650-0
04
1
1407-
771
WASHER; DUCT
ID=6.4 OD=18
0-91610-706-0
02
1
1407-
807
SCREW; SENSOR
M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1407-
