0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#145122) — 43 parça
◀

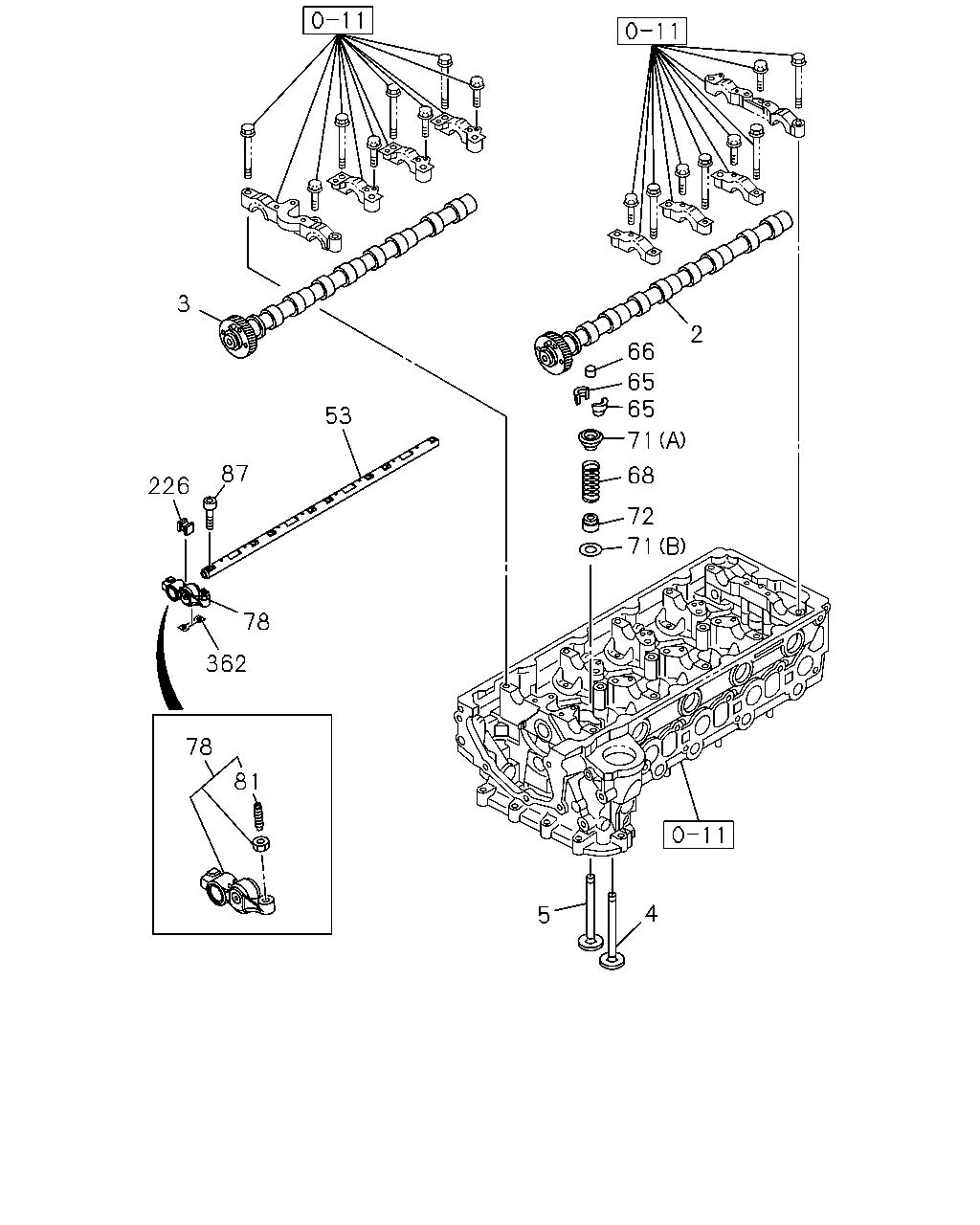

[014A] CAMSHAFT,ROCKER ARM AND VALVE (16 parça)

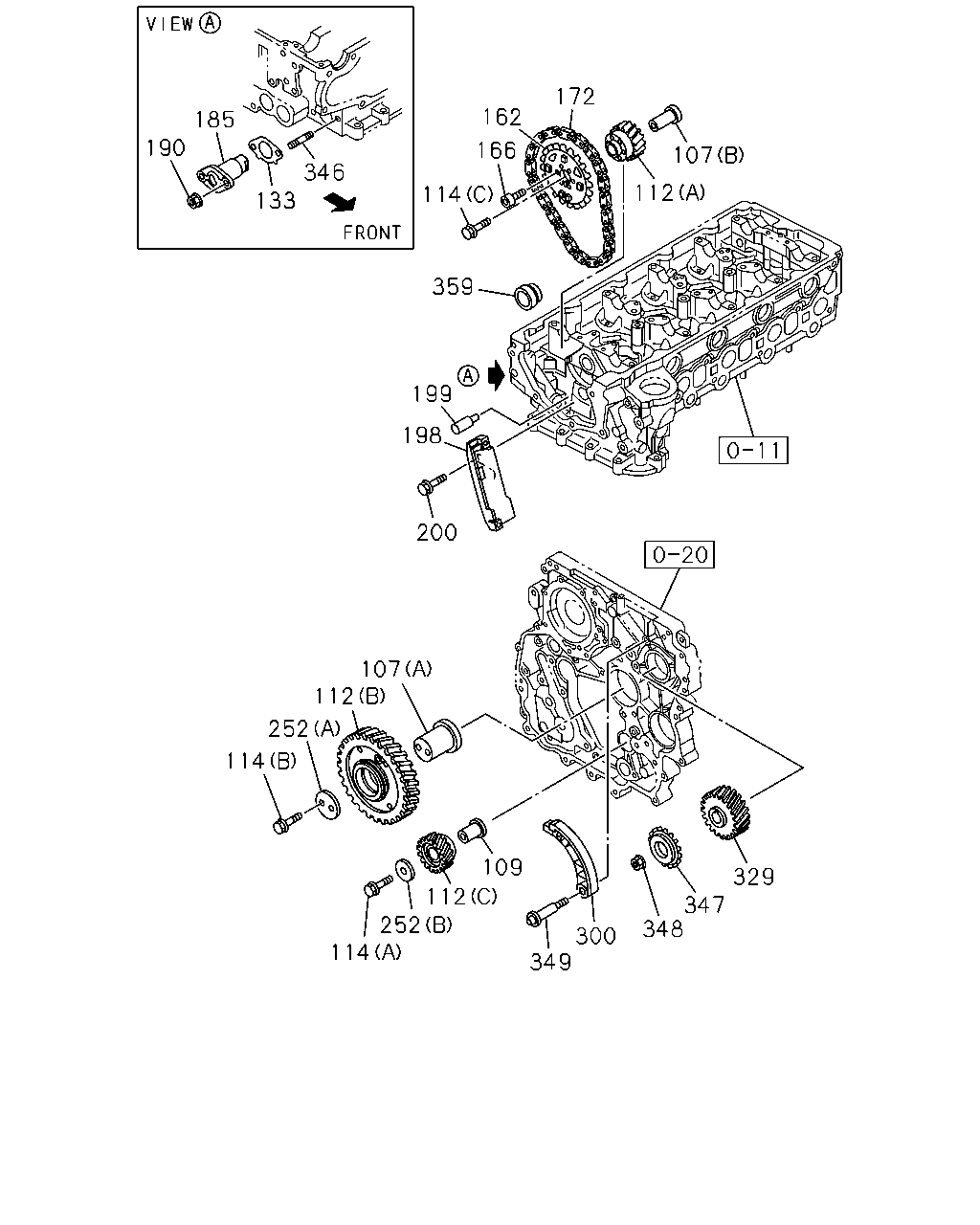

[014A] IDLE GEAR (27 parça)
▶
3
226
87
53
78
362
78
81
2
66
65
65
71
68
72
71
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CAMSHAFT; INL
8-98228-489-1
01
1
1407-
3
CAMSHAFT; EXH
8-98228-492-1
01
1
1407-
4
VALVE; INL
8-97309-675-1
08
1
1407-
5
VALVE; EXH
8-97309-677-1
08
1
1407-
53
SHAFT; ROCKER ARM
8-98244-914-0
02
1
1407-
65
COLLAR; SPLIT
8-94239-501-0
32
1
1407-
66
CAP; VLV STEM END
8-98147-945-0
16
1
1407-
68
SPRING; VLV
H=49 NATURAL
8-97311-669-0
16
1
1407-
71
SEAT; SPR
(B) OD=31
8-97144-584-0
16
1
1407-
71
SEAT; SPR
(A) OD=29.5
8-97311-668-0
16
1
1407-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97328-647-0
16
1
1407-
78
ARM; ROCKER
8-98204-885-1
16
1
1407-
81
SCREW; ADJ,ROCKER ARM
M8 L=22
8-98029-893-0
16
1
1407-
87
BOLT; ROCKER SHAFT
M6X25 HEX SOCKET
8-98224-626-0
14
1
1407-
226
SPRING; CMPR,ROCKER ARM
8-98204-889-0
08
1
1407-
362
PLATE
8-98233-620-0
06
1
1407-
185
190
133
346
162
172
166
114
359
199
198
200
107
112
107
112
252
114
329
347
348
300
349
109
112
252
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
SHAFT; IDLE GEAR
(A)
8-97312-315-2
01
1
1407-
107
SHAFT; IDLE GEAR
(B)
8-98245-905-0
01
1
1407-
109
SHAFT; IDLE GEAR
8-97312-319-1
01
1
1407-
112
GEAR; IDLE
(C) Z=34
8-98021-052-1
01
1
1407-
112
GEAR; IDLE
(A) Z=35
8-98231-907-0
01
1
1407-
112
GEAR; IDLE
(B) Z=80
8-98233-470-1
01
1
1407-
114
BOLT; IDLE GEAR
(B) M10X60 FLANGE
0-28061-060-0
02
1
1407-
114
BOLT; IDLE GEAR
(A) M12X60 FLANGE
0-28161-260-0
01
1
1407-
114
BOLT; IDLE GEAR
(C) M12X75 FLANGE
8-98176-233-0
01
1
1407-
133
GASKET; CHAIN TENSIONER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97312-336-0
01
1
1407-
162
SPROCKET; IDLE
8-97312-331-1
01
1
1407-
166
BOLT; SPROCKET TO LAYSHAFT
M6X16 HEX SOCKET
0-58330-616-0
06
1
1407-
172
CHAIN; TIMING,CM/SHF
8-98119-279-1
01
1
1407-
185
TENSIONER; CHAIN
8-98258-885-0
01
1
1407-
190
NUT; CHAIN TENSIONER
M6 FLANGE
0-91180-206-0
02
1
1407-
198
GUIDE; TIMING CHAIN
8-98173-188-0
01
1
1407-
199
JET; OIL,TIMING CHAIN
8-97356-061-1
01
1
1407-
200
BOLT; CHAIN GUIDE,LWR
M8X20
1-09070-120-1
02
1
1407-
252
FLANGE; IDLE SHAFT
(A)
8-97312-316-1
01
1
1407-
252
FLANGE; IDLE SHAFT
(B)
8-97312-323-1
01
1
1407-
300
LEVER; TENSION,TIMING CHAIN
8-98119-278-1
01
1
1407-
329
GEAR; INJ PUMP
Z=44
8-97312-298-3
01
1
1407-
346
STUD; CHAIN
M6X18 L=27
0-41010-618-0
02
1
1407-
347
SPROCKET; I/PUMP
8-98246-954-0
01
1
1407-
348
NUT; SPROCKET
M14 FLANGE
8-97312-423-2
01
1
1407-
349
PIVOT; CHAIN LEVER
8-97312-328-0
01
1
1407-
359
SLEEVE; GEAR
8-97947-983-0
01
1
1407-
