51518 - UCR/UCS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶

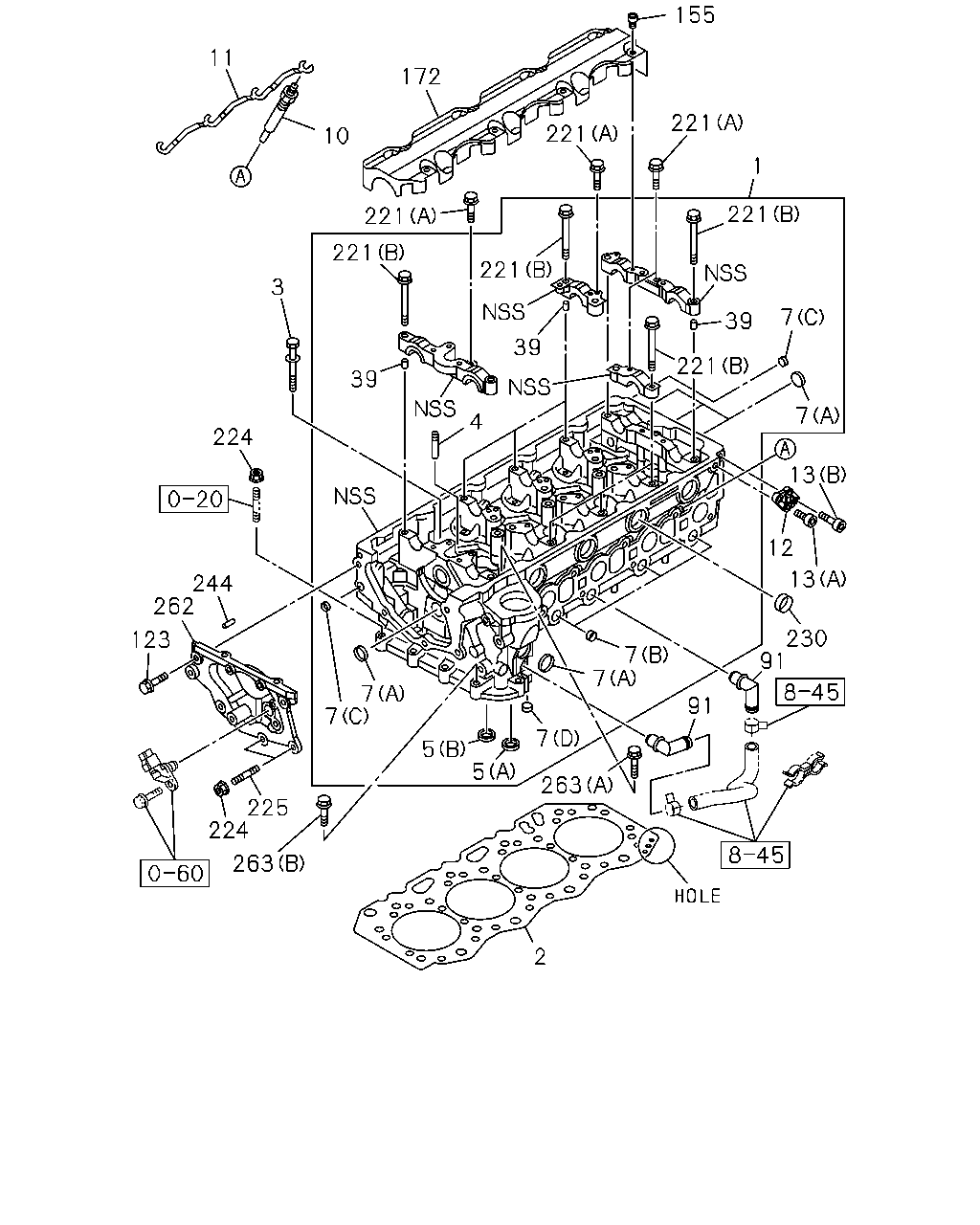

0-11 — CYLINDER HEAD
(#145119) — 36 parça
11
10
172
221
221
155
1
221
39
221
7
7
13
12
13
230
91
91
2
5
263
7
7
7
5
7
7
263
224
225
123
262
244
224
39
4
39
221
221
3
221
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98238-315-0
01
1
1407-1410
1
HEAD ASM; CYL
8-98270-378-1
01
1
1411-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OVER SIZE
8-97388-314-0
01
1
1407-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE A T=1.11 1-HOLE
8-98228-333-0
01
1
1407-1411
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE A T=1.14 1-HOLE
8-98261-318-0
01
1
1412-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE B T=1.16 2-HOLE
8-98228-334-0
01
1
1407-1411
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE B T=1.19 2-HOLE
8-98261-319-0
01
1
1412-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE C T=1.21 3-HOLE
8-98228-335-0
01
1
1407-1411
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE C T=1.24 3-HOLE
8-98261-320-0
01
1
1412-
3
BOLT; CYL HD TO BLOCK
M11X114 W/WASHER
8-98201-019-0
18
1
1407-
4
GUIDE; VLV
L=42
8-94239-423-0
16
1
1407-
5
SEAT; VLV INSERT
(A) INLET ID=29 OD=35
8-97311-378-0
08
1
1407-
5
SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32
8-97311-379-0
08
1
1407-
7
CUP; SEALING,CYL HEAD
(B) OD=18
5-11219-008-0
06
1
1407-
7
CUP; SEALING,CYL HEAD
(C) OD=14
5-11219-011-0
02
1
1407-
7
CUP; SEALING,CYL HEAD
(D) OD=8
8-97233-429-0
01
1
1407-
7
CUP; SEALING,CYL HEAD
(A) OD=24
8-97333-120-0
05
1
1407-
10
PLUG; GLOW
NGK
8-98117-567-1
04
1
1407-
11
CONNECTOR; GLOW PLUG
8-98209-370-0
01
1
1407-
12
HANGER; ENG,RR
8-98239-364-0
01
1
1407-
13
BOLT; HANGER
(A) M8X20 HEX SOCKET
0-58330-820-0
01
1
1407-
13
BOLT; HANGER
(B) M8X30 HEX SOCKET
0-58330-830-0
01
1
1407-
39
DOWEL; CAP,CM/SHF
8-97329-129-1
26
1
1407-
91
PIPE; HTR
8-98228-414-0
02
1
1407-
123
BOLT; COVER
M8X20 FLANGE
0-28050-820-0
03
1
1407-
155
BOLT; BAFFLE PLATE
M6X10 HEX SOCKET
0-58330-610-0
08
1
1407-
172
PLATE; BAFFLE,CYL HD
8-98250-484-0
01
1
1407-
221
BOLT; BRKT
(A) M6X30 FLANGE
0-28050-630-0
08
1
1407-
221
BOLT; BRKT
(B) M8X85
1-09044-074-0
21
1
1407-
224
NUT; COVER
M8 FLANGE
0-91180-208-0
04
1
1407-
225
STUD; COVER
M8X20 L=31
8-97945-022-0
02
1
1407-
230
GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97943-955-0
04
1
1407-
244
PIN; HEAD GASKET
OD=5 L=10
9-08150-510-0
01
1
1407-
262
COVER; CYL HEAD
8-98243-226-0
01
1
1407-
263
BOLT; CYL HD
(A) M8X60 FLANGE
0-28050-860-0
01
1
1407-
263
BOLT; CYL HD
(B) M8X35 FLANGE
0-28650-835-0
03
1
1407-
