◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-85 - REAR WIPER AND WASHER ▶
8-85 — REAR WIPER AND WASHER (#145111) — 18 parça
çizim 431718
1 99 99 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.064 MOTOR ASM; RR WIPER
CONTINUOUS REAR WIPER<CD6> 		8-98187-251-0 01 1 1407- ●
1 16.064 MOTOR ASM; RR WIPER 8-98187-251-0 01 1 1407- ●
99 16.064 BOLT; WIPER MOTOR
CONTINUOUS REAR WIPER<CD6> 02.762 M6X23.5 W/LK&PL WASHER 		8-98164-723-0 03 1 1407- ●
99 16.064 BOLT; WIPER MOTOR
02.762 M6X23.5 W/LK&PL WASHER 		8-98164-723-0 03 1 1407- ●

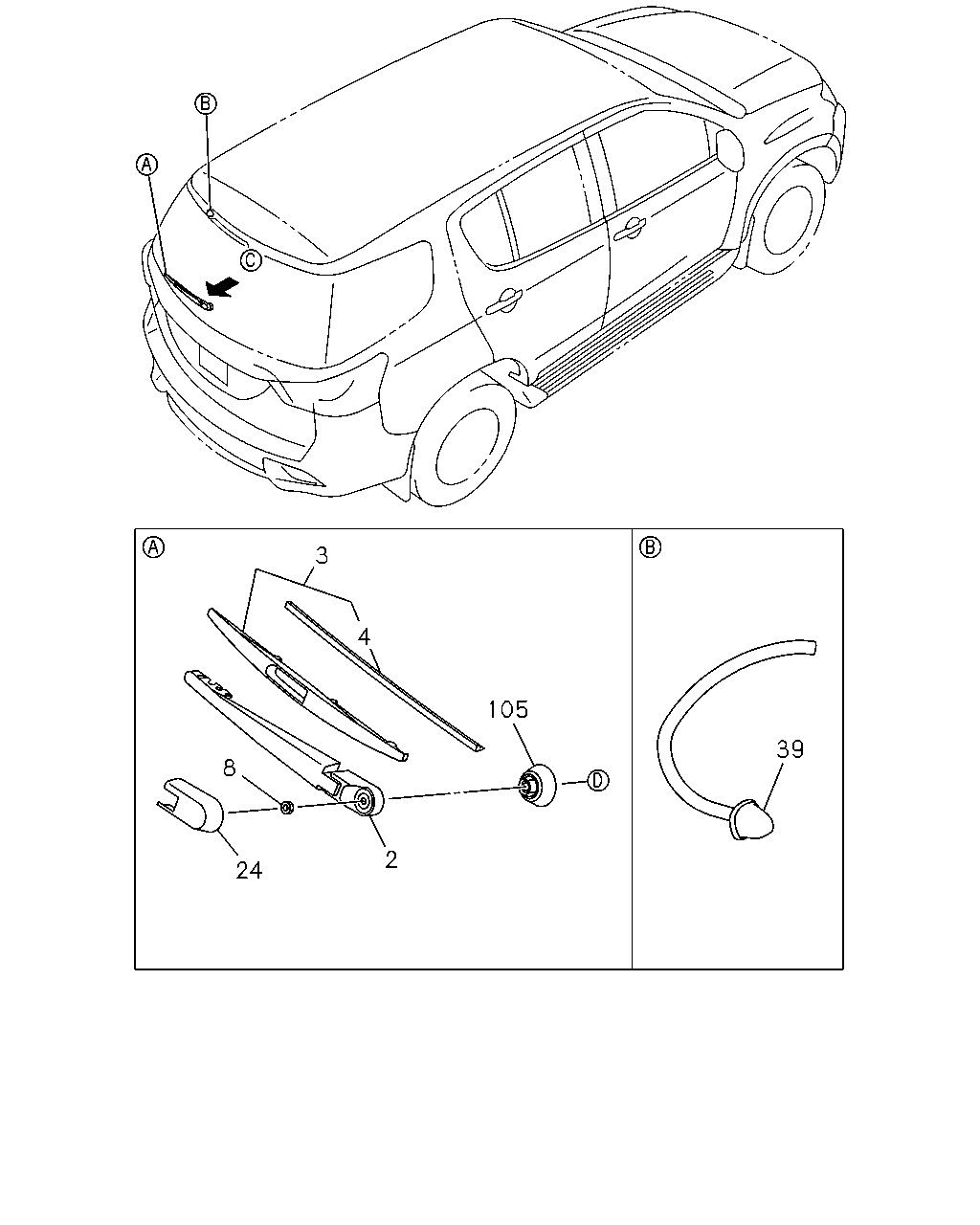

çizim 434256
3 4 105 2 24 8 39
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.064 ARM ASM; REAR WIPER
CONTINUOUS REAR WIPER<CD6> 		8-98222-258-0 01 1 1407- ●
2 16.064 ARM ASM; REAR WIPER 8-98222-258-0 01 1 1407- ●
3 16.062 BLADE ASM; REAR WIPER
CONTINUOUS REAR WIPER<CD6> 		8-98222-259-0 01 1 1407- ●
3 16.062 BLADE ASM; REAR WIPER 8-98222-259-0 01 1 1407- ●
4 16.062 RUBBER; BLADE,RR WIPER
CONTINUOUS REAR WIPER<CD6> 		8-98253-585-0 01 1 1407- ●
4 16.062 RUBBER; BLADE,RR WIPER 8-98253-585-0 01 1 1407- ●
8 16.064 NUT; RR WIPER ARM TO WIPER MOTOR
CONTINUOUS REAR WIPER<CD6> 08.155 M6 		0-91111-506-0 01 1 1407- ●
8 16.064 NUT; RR WIPER ARM TO WIPER MOTOR
08.155 M6 		0-91111-506-0 01 1 1407- ●
24 16.065 CAP; WASHER TANK,RR
CONTINUOUS REAR WIPER<CD6> 		8-98210-717-0 01 1 1407- ●
24 16.065 CAP; WASHER TANK,RR 8-98210-717-0 01 1 1407- ●
39 16.065 NOZZLE; RR WINDSHIELD,WASHER
CONTINUOUS REAR WIPER<CD6> 		8-98201-496-1 01 1 1407- ●
39 16.065 NOZZLE; RR WINDSHIELD,WASHER 8-98201-496-1 01 1 1407- ●
105 16.065 GROMMET; RR WIPER MOTOR
CONTINUOUS REAR WIPER<CD6> 		8-98210-508-0 01 1 1407- ●
105 16.065 GROMMET; RR WIPER MOTOR 8-98210-508-0 01 1 1407- ●
