51517 - UCR/UCS-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶

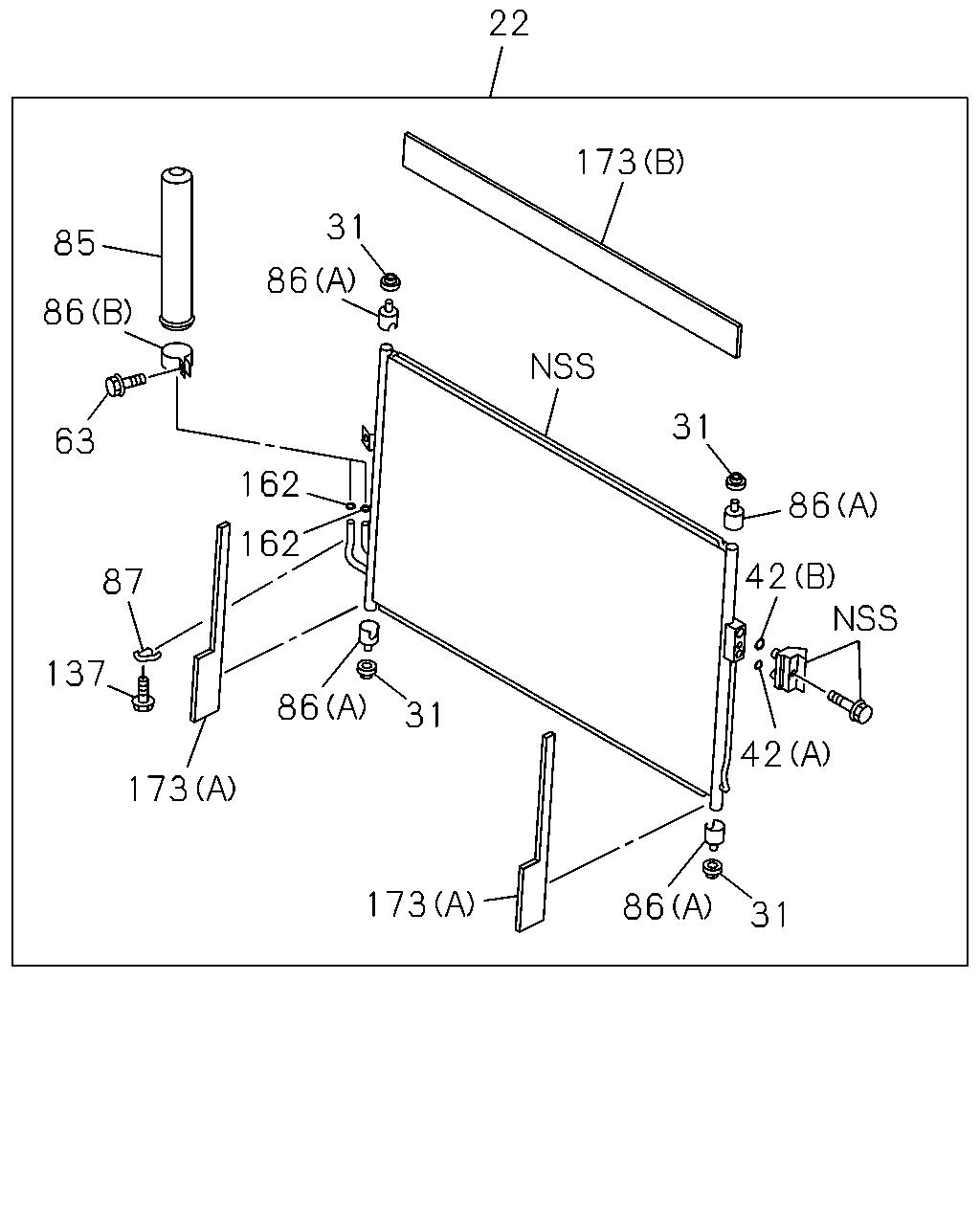

8-75 — CONDENSER
(#145109) — 14 parça
Tümü
A - UCB6VC
B - UCS6VC
22
173
31
86
42
42
31
86
173
173
86
31
162
162
87
137
63
86
85
86
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
09.190 CONDENSER ASM; A/C
REAR COOLER WO/HEATER<C69>
8-98235-191-0
01
1
1407-
●
●
22
09.190 CONDENSER ASM; A/C
EXC. REAR COOLER WO/HEATER<C69>
8-98052-634-3
01
1
1407-
●
31
09.190 RUBBER; MTG,CONDENSER
8-98193-616-0
04
1
1407-
●
●
42
09.190 GASKET; CONDENSER
(A) ID=8
8-98193-614-0
01
1
1407-
●
●
42
09.190 GASKET; CONDENSER
(B) ID=12
8-98193-615-0
01
1
1407-
●
●
63
09.175 BOLT; RECEIVER TANK
M5X16
8-98193-604-0
01
1
1407-
●
●
85
09.172 DRYER; RECEIVER
8-98233-381-0
01
1
1407-
●
●
86
09.196 BRACKET; RECEIVER DRYER
(B)
8-98193-599-0
01
1
1407-
●
●
86
09.196 BRACKET; RECEIVER DRYER
(A)
8-98193-618-0
04
1
1407-
●
●
87
09.196 BRACKET; RECEIVER DRYER
8-98193-602-0
01
1
1407-
●
●
137
09.196 BOLT; BRKT,DRYER
M6X12
8-98193-603-0
01
1
1407-
●
●
162
09.195 GASKET; PIPE TO DRYER
09.190 ID=8
8-98193-614-0
02
1
1407-
●
●
173
09.190 INSULATOR; CONDENSER
REAR COOLER WO/HEATER<C69> (A)
8-98250-018-0
02
1
1407-
●
●
173
09.190 INSULATOR; CONDENSER
(B)
8-98233-382-0
01
1
1407-
●
●
