8-73 — BLOWER UNIT (#145108) — 57 parça

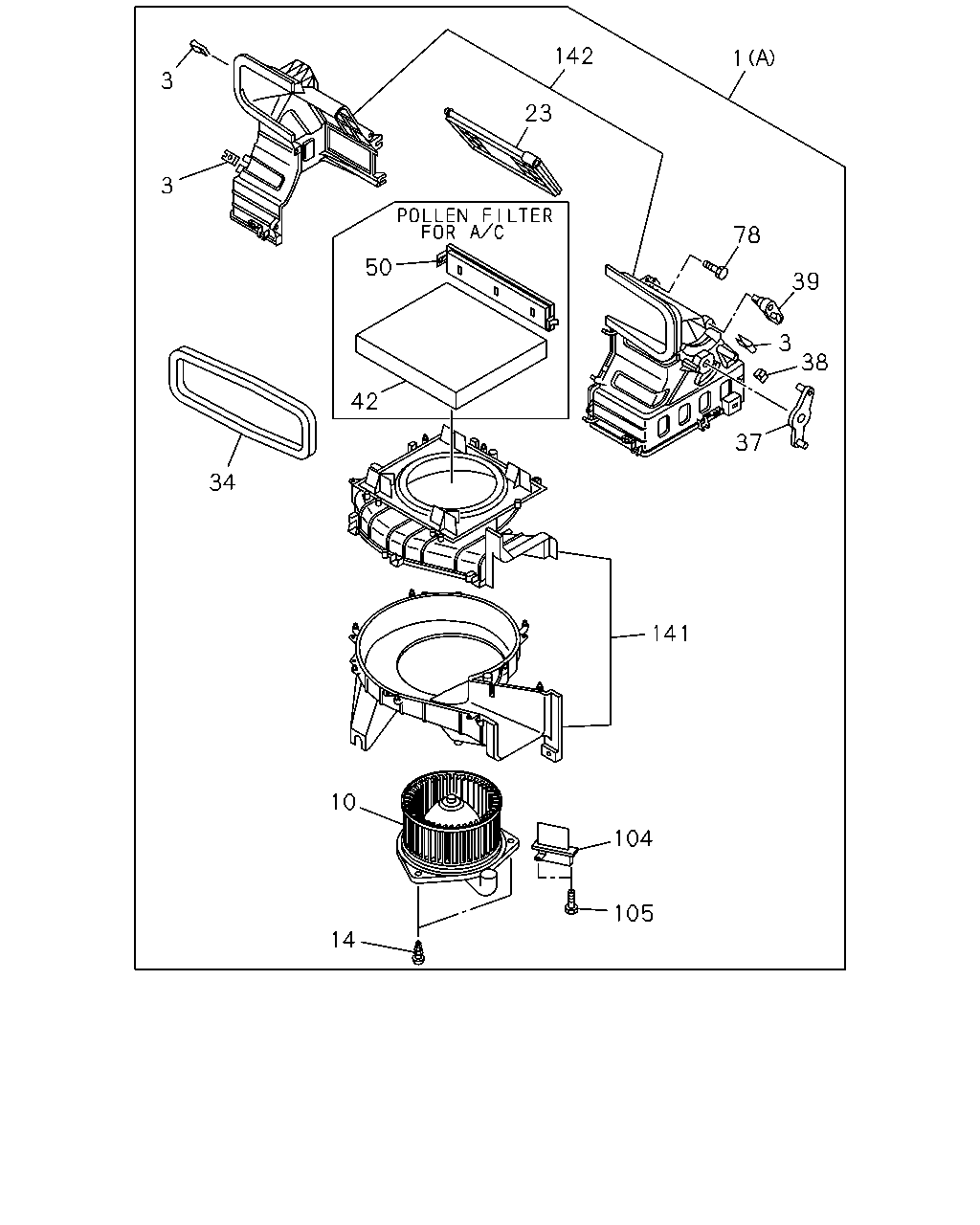

çizim 434184
3 3 23 142 1 78 39 3 37 38 42 50 34 10 141 104 105 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-048-1 01 1 1407- ● ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-043-1 01 1 1407- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-047-1 01 1 1407- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-042-1 01 1 1407- ● ●
1 08.855 BLOWER ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98197-707-0 01 1 1407- ●
3 08.855 NUT; CASE
08.845 		8-98139-394-1 03 1 1407- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98165-412-0 01 1 1407- ● ●
14 08.857 SCREW; COVER TO CASE
08.852 		8-98139-395-1 03 1 1407- ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1407-1410 ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) 		8-98295-682-0 01 1 1411- ● ●
34 08.856 LINING; BLOWER UNIT 8-98139-426-1 01 1 1407- ● ●
37 09.786 LEVER; MODE LEVER
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98165-410-0 01 1 1407- ● ●
38 09.787 CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-422-1 01 1 1407- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) 		8-98165-409-0 01 1 1407- ● ●
42 08.857 FILTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1407- ● ●
50 08.857 COVER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1407- ● ●
78 08.857 SCREW; CASE TO CASE
08.852 		8-98139-395-1 01 1 1407- ● ●
104 08.855 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98183-234-0 01 1 1407- ● ●
104 08.855 RESISTOR; BLOWER UNIT
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98183-234-0 01 1 1407- ●
105 08.855 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-1 02 1 1407- ● ●
105 08.855 SCREW; RESISTOR
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 08.852 		8-98139-395-1 02 1 1407- ●
141 08.857 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-652-0 01 1 1407- ● ●
141 08.857 CASE ASM; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98233-651-0 01 1 1407- ● ●
141 08.857 CASE ASM; BLOWER UNIT
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-651-0 01 1 1407- ●
142 08.857 CASE ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98285-633-0 01 1 1407- ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-656-0 01 1 1407- ● ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-654-0 01 1 1407- ● ●
142 08.857 CASE ASM
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-655-0 01 1 1407- ● ●
142 08.857 CASE ASM
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-653-0 01 1 1407- ● ●

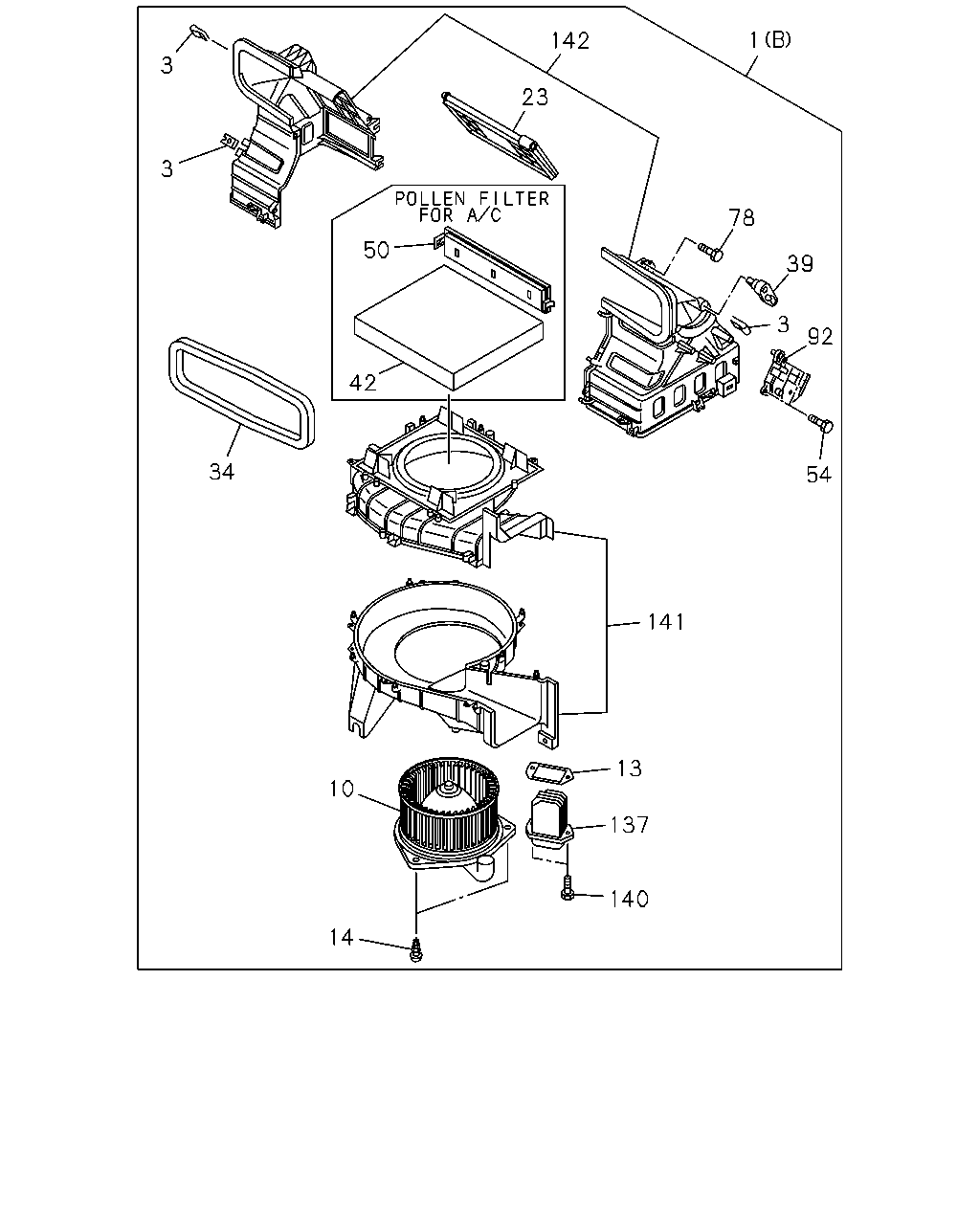

çizim 434253
3 3 142 1 23 50 78 39 92 3 54 141 137 140 14 10 34 42 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-048-1 01 1 1407- ● ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-043-1 01 1 1407- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-047-1 01 1 1407- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-042-1 01 1 1407- ● ●
1 08.855 BLOWER ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98197-707-0 01 1 1407- ●
3 08.855 NUT; CASE
08.845 		8-98139-394-1 03 1 1407- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98165-412-0 01 1 1407- ● ●
13 08.856 LINING; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98157-116-1 01 1 1407- ● ●
14 08.857 SCREW; COVER TO CASE
08.852 		8-98139-395-1 03 1 1407- ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1407-1410 ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) 		8-98295-682-0 01 1 1411- ● ●
34 08.856 LINING; BLOWER UNIT 8-98139-426-1 01 1 1407- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) 		8-98165-409-0 01 1 1407- ● ●
42 08.857 FILTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1407- ● ●
50 08.857 COVER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1407- ● ●
54 08.856 SCREW; ACTUATOR TO CASE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-1 02 1 1407- ● ●
78 08.857 SCREW; CASE TO CASE
08.852 		8-98139-395-1 01 1 1407- ● ●
92 08.857 ACTUATOR; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98165-411-0 01 1 1407- ● ●
137 08.855 MODULE ASM; BLOWER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-431-1 01 1 1407- ● ●
140 08.857 SCREW; MODULE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-421-0 02 1 1407- ● ●
141 08.857 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-652-0 01 1 1407- ● ●
141 08.857 CASE ASM; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98233-651-0 01 1 1407- ● ●
141 08.857 CASE ASM; BLOWER UNIT
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-651-0 01 1 1407- ●
142 08.857 CASE ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98285-633-0 01 1 1407- ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-656-0 01 1 1407- ● ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-654-0 01 1 1407- ● ●
142 08.857 CASE ASM
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-655-0 01 1 1407- ● ●
142 08.857 CASE ASM
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-653-0 01 1 1407- ● ●
