◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#145106) — 6 parça

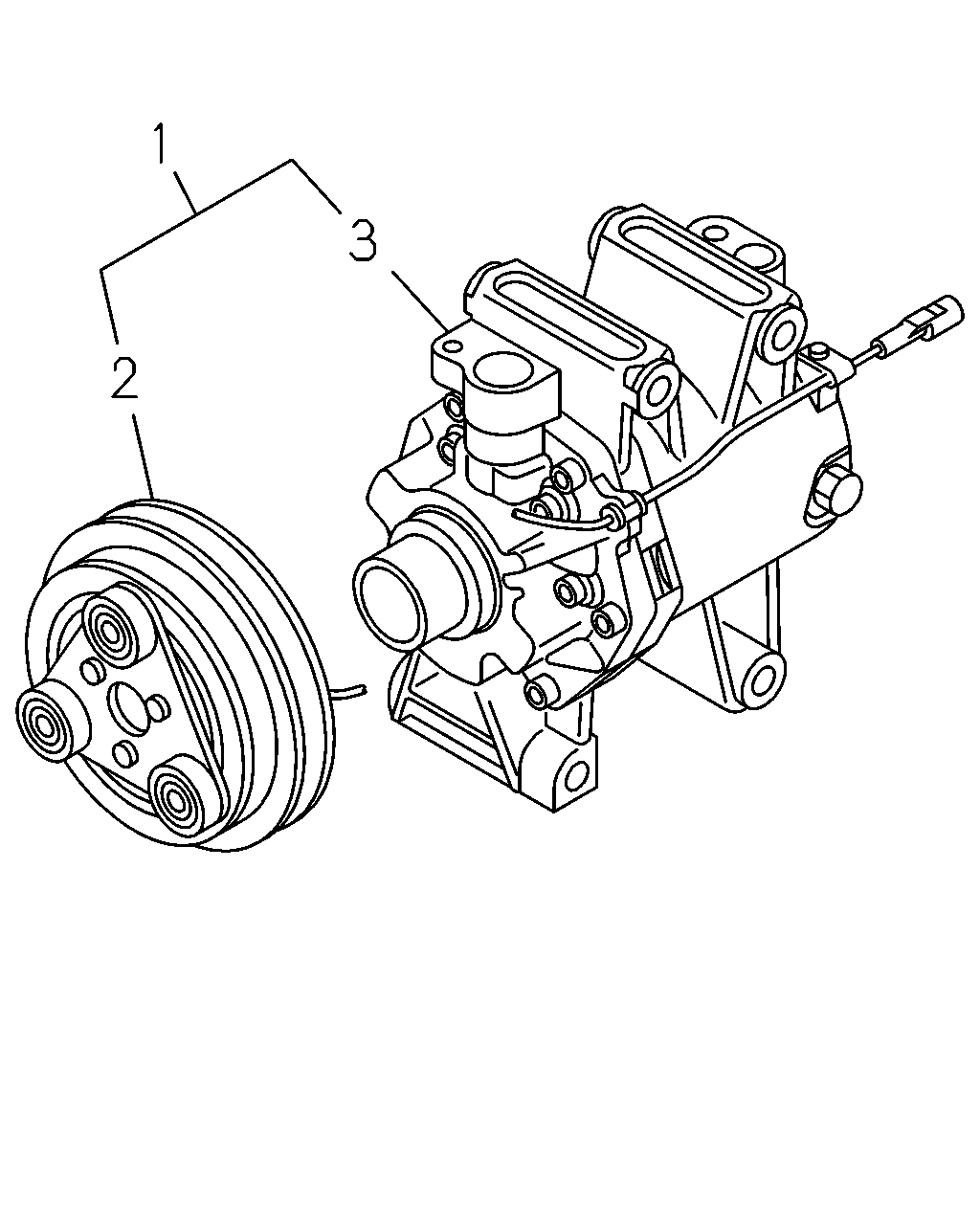

çizim 432371
3 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.170 COMPRESSOR ASM; A/C
REAR COOLER WO/HEATER<C69> 		8-98251-192-0 01 1 1407- ● ●
1 09.170 COMPRESSOR ASM; A/C
EXC. REAR COOLER WO/HEATER<C69> 		8-98199-293-1 01 1 1407- ●
2 09.188 CLUTCH; MAGNET,A/C
REAR COOLER WO/HEATER<C69> 		8-97372-920-0 01 1 1407- ● ●
2 09.188 CLUTCH; MAGNET,A/C
EXC. REAR COOLER WO/HEATER<C69> 		8-98252-777-0 01 1 1407- ●
3 09.170 COMPRESSOR ASM; A/C
REAR COOLER WO/HEATER<C69> 		8-98252-180-0 01 1 1407- ● ●
3 09.170 COMPRESSOR ASM; A/C
EXC. REAR COOLER WO/HEATER<C69> 		8-98258-534-0 01 1 1407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
