8-65 — CONTROL LEVER; HEATER AND AIR CON (#145105) — 63 parça

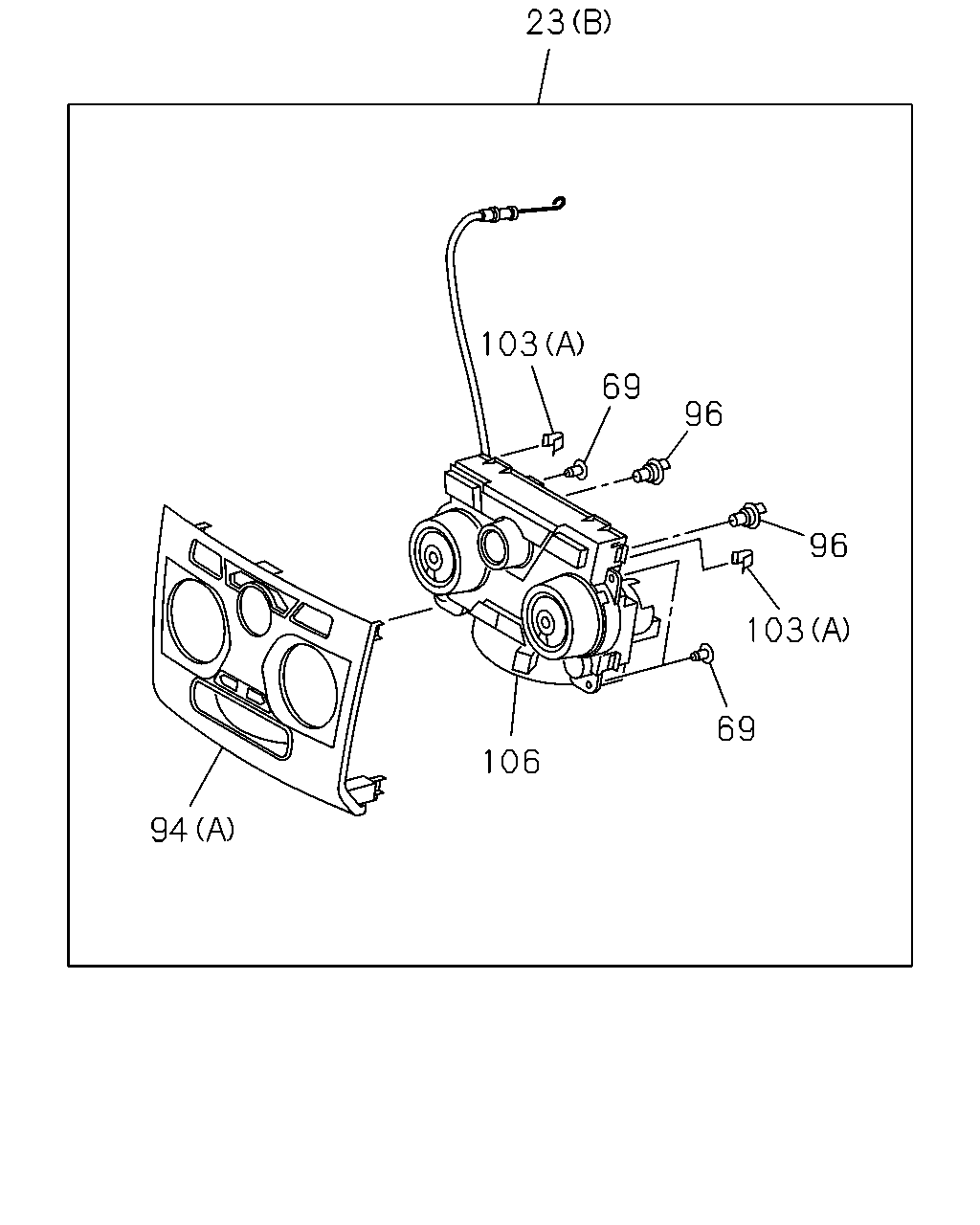

23 103 69 96 103 69 106 94 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	08.852 BEZEL; CONT LEVER KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B)	8-98120-146-4	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65) (B)	8-98120-145-4	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER AUTO COOLER SYSTEM(CJ2) (A)	8-98197-684-1	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B)	8-98120-140-4	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-548-5	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER REAR COOLER WO/HEATER<C69> (C)	8-98198-067-0	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER REAR COOLER WO/HEATER<C69> (D)	8-98250-024-0	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9> (B)	8-98198-066-0	01	1	1407-	●
69	08.852 SCREW; BEZEL BRKT KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65) M4X10 TAPPING	8-98164-986-0	04	1	1407-	●	●
69	08.852 SCREW; BEZEL BRKT AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61) M4X10 TAPPING	8-98164-986-0	04	1	1407-	●	●
69	08.852 SCREW; BEZEL BRKT COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9> M4X10 TAPPING	8-98164-986-0	04	1	1407-	●
94	08.849 PANEL; BEZEL KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65) (A)	8-98164-669-0	01	1	1407-	●	●
94	08.849 PANEL; BEZEL AIR CONDITIONER MANUAL CONT(C60) (A)	8-98164-669-0	01	1	1407-	●	●
94	08.849 PANEL; BEZEL AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98141-789-0	01	1	1407-	●	●
94	08.849 PANEL; BEZEL COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9> (A)	8-98164-670-0	01	1	1407-	●
96	08.852 BULB ASM; BEZEL KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65)	8-98156-188-0	02	1	1407-	●	●
96	08.852 BULB ASM; BEZEL AIR CONDITIONER MANUAL CONT(C60)	8-98156-188-0	02	1	1407-	●	●
96	08.852 BULB ASM; BEZEL COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9>	8-98156-188-0	02	1	1407-	●
103	08.854 CLIP KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65) 16.165 (A)	8-98164-677-0	04	1	1407-	●	●
103	08.854 CLIP AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61) 16.165 (A)	8-98164-677-0	04	1	1407-	●	●
103	08.854 CLIP COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9> 16.165 (A)	8-98164-677-0	04	1	1407-	●
103	08.854 CLIP REAR COOLER WO/HEATER<C69> (B)	8-97386-832-0	02	1	1407-	●	●
106	08.852 CONTROL SUB ASM; HTR & A/C KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60)	8-98156-908-0	01	1	1407-	●	●
106	08.852 CONTROL SUB ASM; HTR & A/C KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65)	8-98156-907-0	01	1	1407-	●	●
106	08.852 CONTROL SUB ASM; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9>	8-98156-902-0	01	1	1407-	●	●
106	08.852 CONTROL SUB ASM; HTR & A/C COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9>	8-98250-550-0	01	1	1407-	●

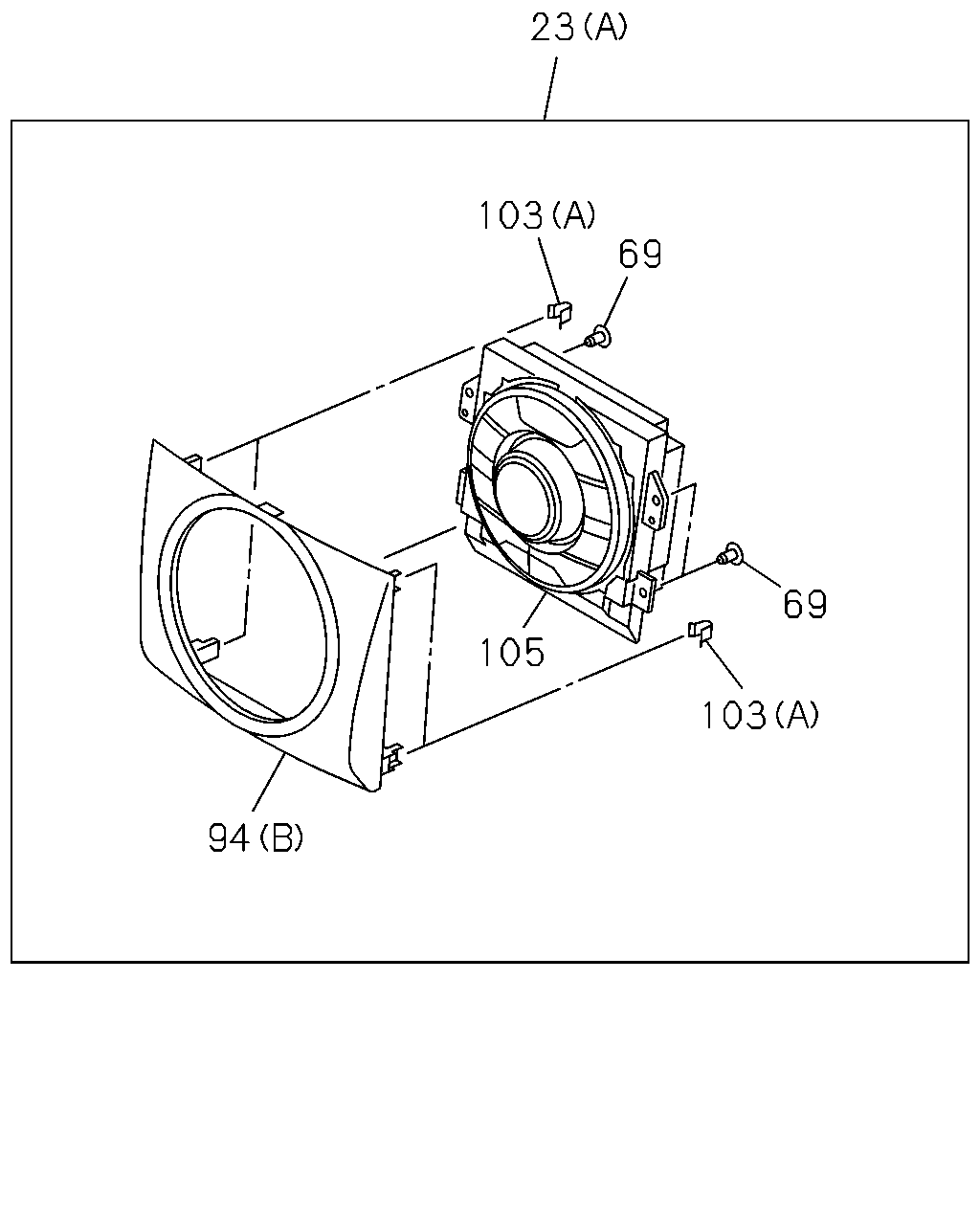

23 103 69 69 103 105 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	08.852 BEZEL; CONT LEVER KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B)	8-98120-146-4	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65) (B)	8-98120-145-4	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER AUTO COOLER SYSTEM(CJ2) (A)	8-98197-684-1	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B)	8-98120-140-4	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-548-5	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER REAR COOLER WO/HEATER<C69> (C)	8-98198-067-0	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER REAR COOLER WO/HEATER<C69> (D)	8-98250-024-0	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9> (B)	8-98198-066-0	01	1	1407-	●
69	08.852 SCREW; BEZEL BRKT KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65) M4X10 TAPPING	8-98164-986-0	04	1	1407-	●	●
69	08.852 SCREW; BEZEL BRKT AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61) M4X10 TAPPING	8-98164-986-0	04	1	1407-	●	●
69	08.852 SCREW; BEZEL BRKT COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9> M4X10 TAPPING	8-98164-986-0	04	1	1407-	●
94	08.849 PANEL; BEZEL KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65) (A)	8-98164-669-0	01	1	1407-	●	●
94	08.849 PANEL; BEZEL AIR CONDITIONER MANUAL CONT(C60) (A)	8-98164-669-0	01	1	1407-	●	●
94	08.849 PANEL; BEZEL AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98141-789-0	01	1	1407-	●	●
94	08.849 PANEL; BEZEL COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9> (A)	8-98164-670-0	01	1	1407-	●
103	08.854 CLIP KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65) 16.165 (A)	8-98164-677-0	04	1	1407-	●	●
103	08.854 CLIP AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61) 16.165 (A)	8-98164-677-0	04	1	1407-	●	●
103	08.854 CLIP COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9> 16.165 (A)	8-98164-677-0	04	1	1407-	●
103	08.854 CLIP REAR COOLER WO/HEATER<C69> (B)	8-97386-832-0	02	1	1407-	●	●
105	08.852 SWITCH ASM; A/C AUTO COOLER SYSTEM(CJ2)	8-98243-227-0	01	1	1407-	●	●
105	08.852 SWITCH ASM; A/C AIR CONDITIONER AUTOMATIC CONT(C61)	8-98164-679-0	01	1	1407-	●	●

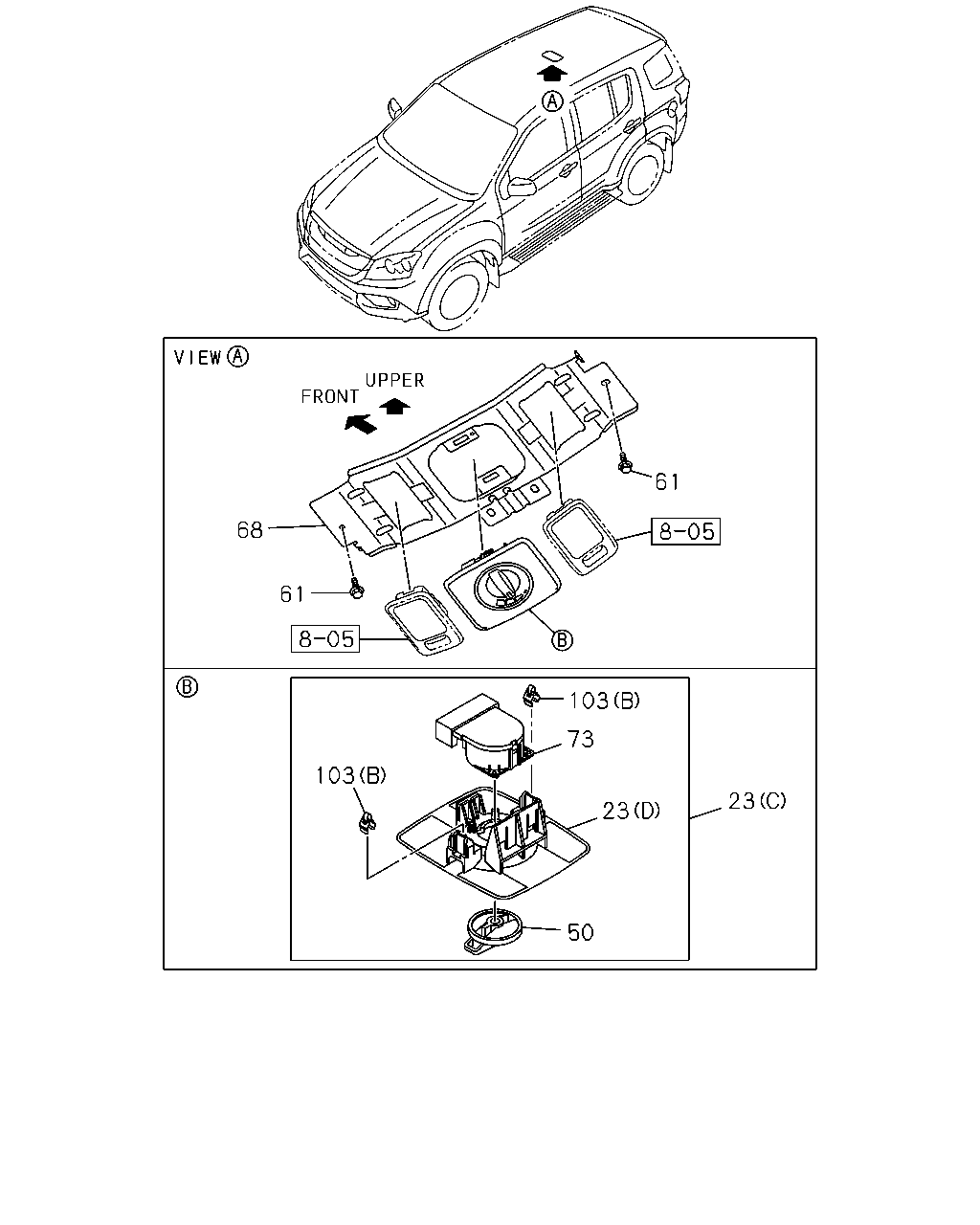

68 61 61 103 73 23 23 50 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	08.852 BEZEL; CONT LEVER KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B)	8-98120-146-4	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65) (B)	8-98120-145-4	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER AUTO COOLER SYSTEM(CJ2) (A)	8-98197-684-1	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B)	8-98120-140-4	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-548-5	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER REAR COOLER WO/HEATER<C69> (C)	8-98198-067-0	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER REAR COOLER WO/HEATER<C69> (D)	8-98250-024-0	01	1	1407-	●	●
23	08.852 BEZEL; CONT LEVER COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9> (B)	8-98198-066-0	01	1	1407-	●
50	08.852 KNOB; CONT PANEL REAR COOLER WO/HEATER<C69>	8-98250-549-0	01	1	1407-	●	●
61	08.849 BOLT; CONT LEVER 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1407-	●	●
68	08.849 BRACKET; BEZEL	8-98198-068-0	01	1	1407-	●	●
73	02.895 SWITCH; FAN,CONT PANEL REAR COOLER WO/HEATER<C69>	8-97386-830-0	01	1	1407-	●	●
103	08.854 CLIP KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR(C65) 16.165 (A)	8-98164-677-0	04	1	1407-	●	●
103	08.854 CLIP AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61) 16.165 (A)	8-98164-677-0	04	1	1407-	●	●
103	08.854 CLIP COOLER WO/FRESH AIR(8NF) EXC. KNOB DECORATION W/CHROME RING<BY9> 16.165 (A)	8-98164-677-0	04	1	1407-	●
103	08.854 CLIP REAR COOLER WO/HEATER<C69> (B)	8-97386-832-0	02	1	1407-	●	●
