51517 - UCR/UCS-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#145103) — 65 parça
Tümü
A - UCB6VC
B - UCS6VC
◀

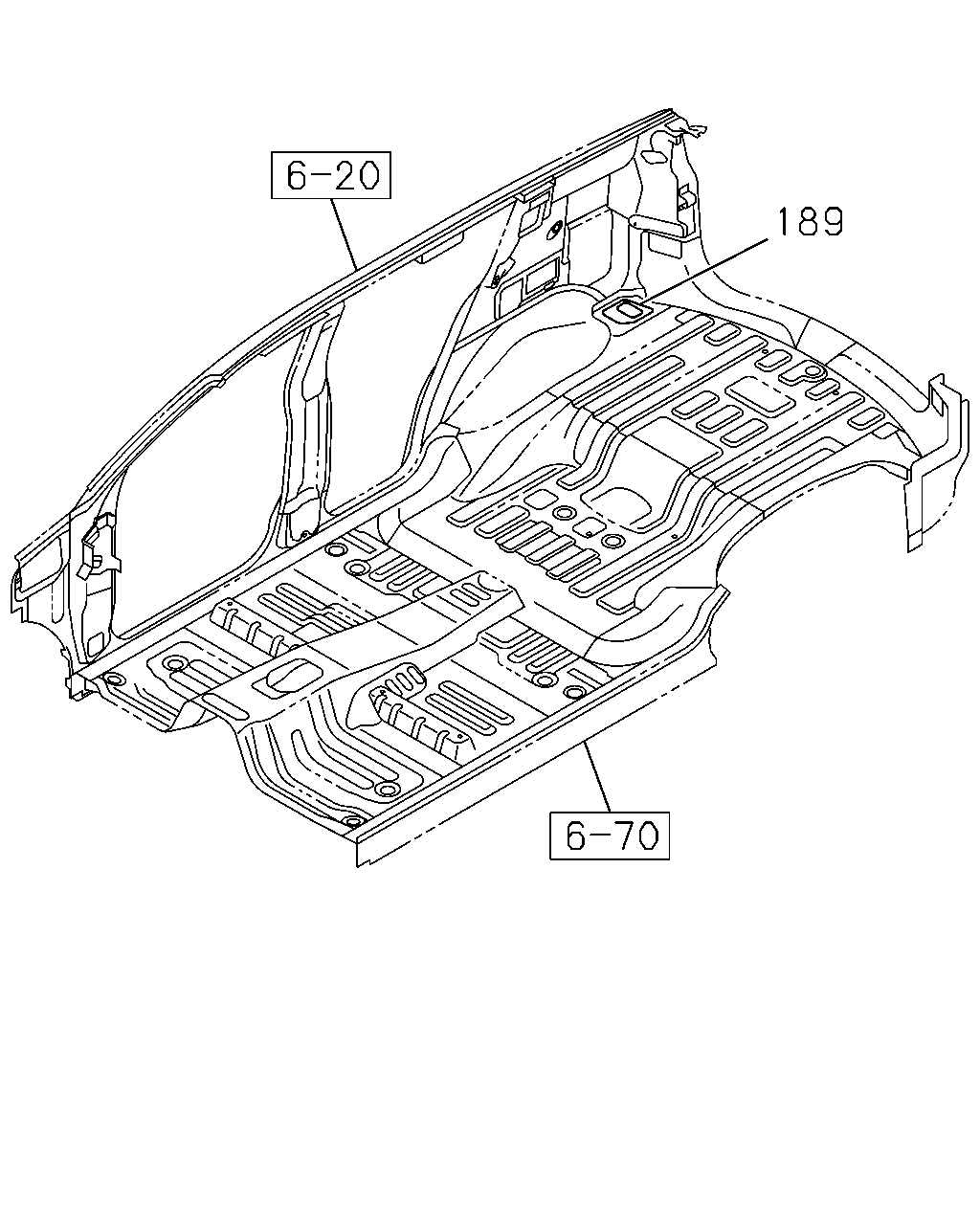

[852A] GROMMET;EXC.REAR COOLER WO/HEATER (1 parça)

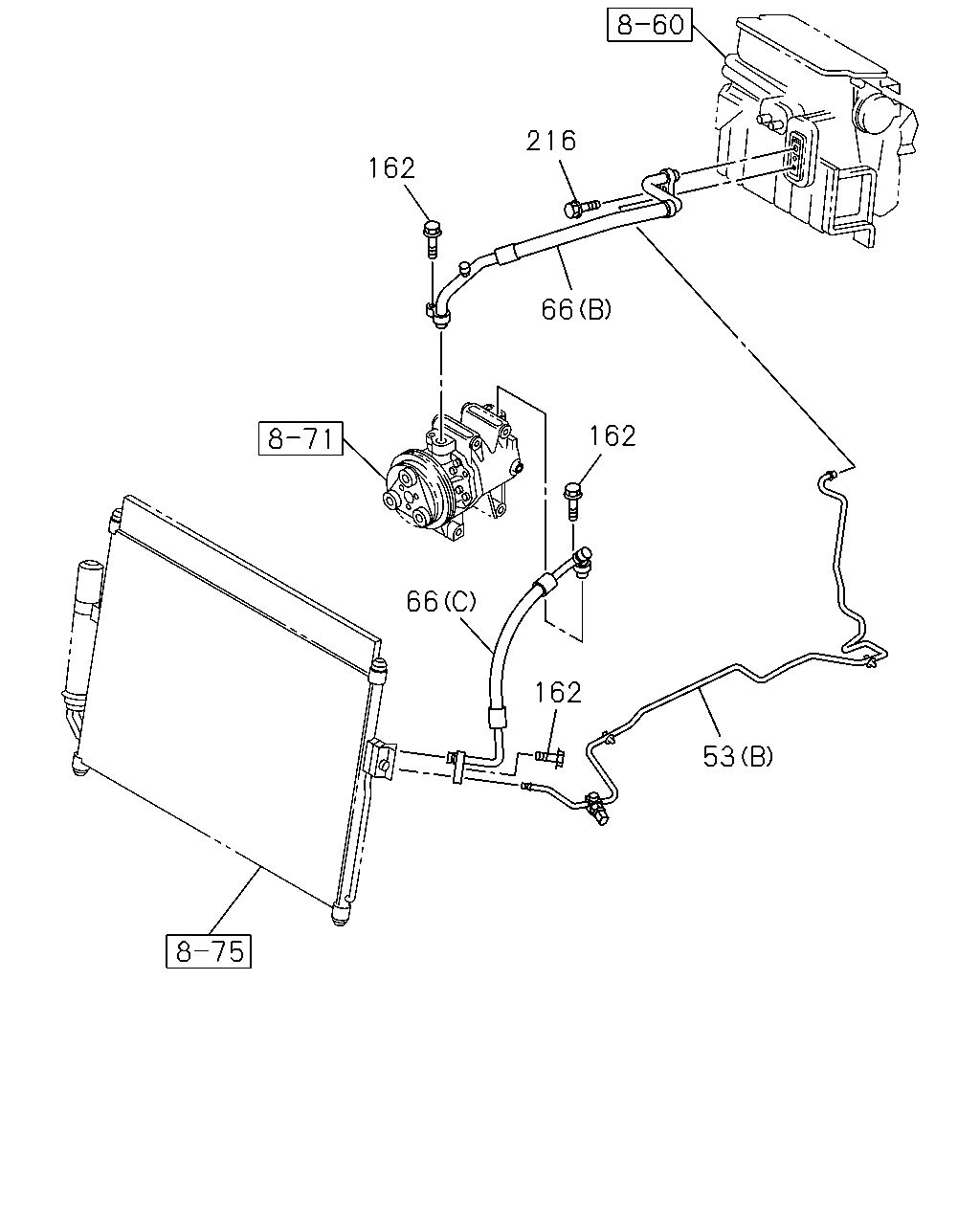

[852A] PIPING;EXC.REAR COOLER WO/HEATER (8 parça)
[852A] COMPONENT;EXC.REAR COOLER WO/HEATER (18 parça)

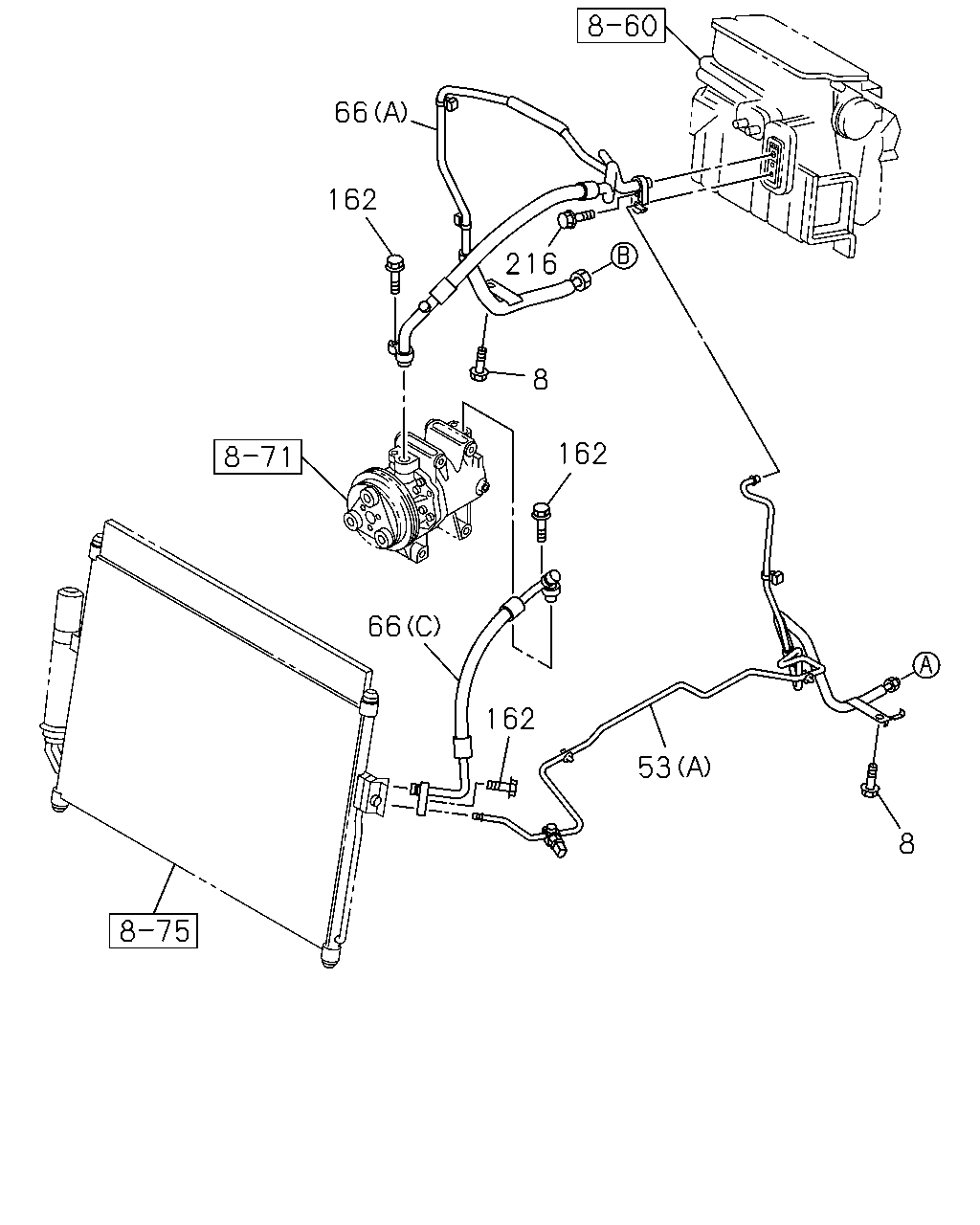

[852A] PIPING;REAR COOLER WO/HEATER,FRONT (9 parça)

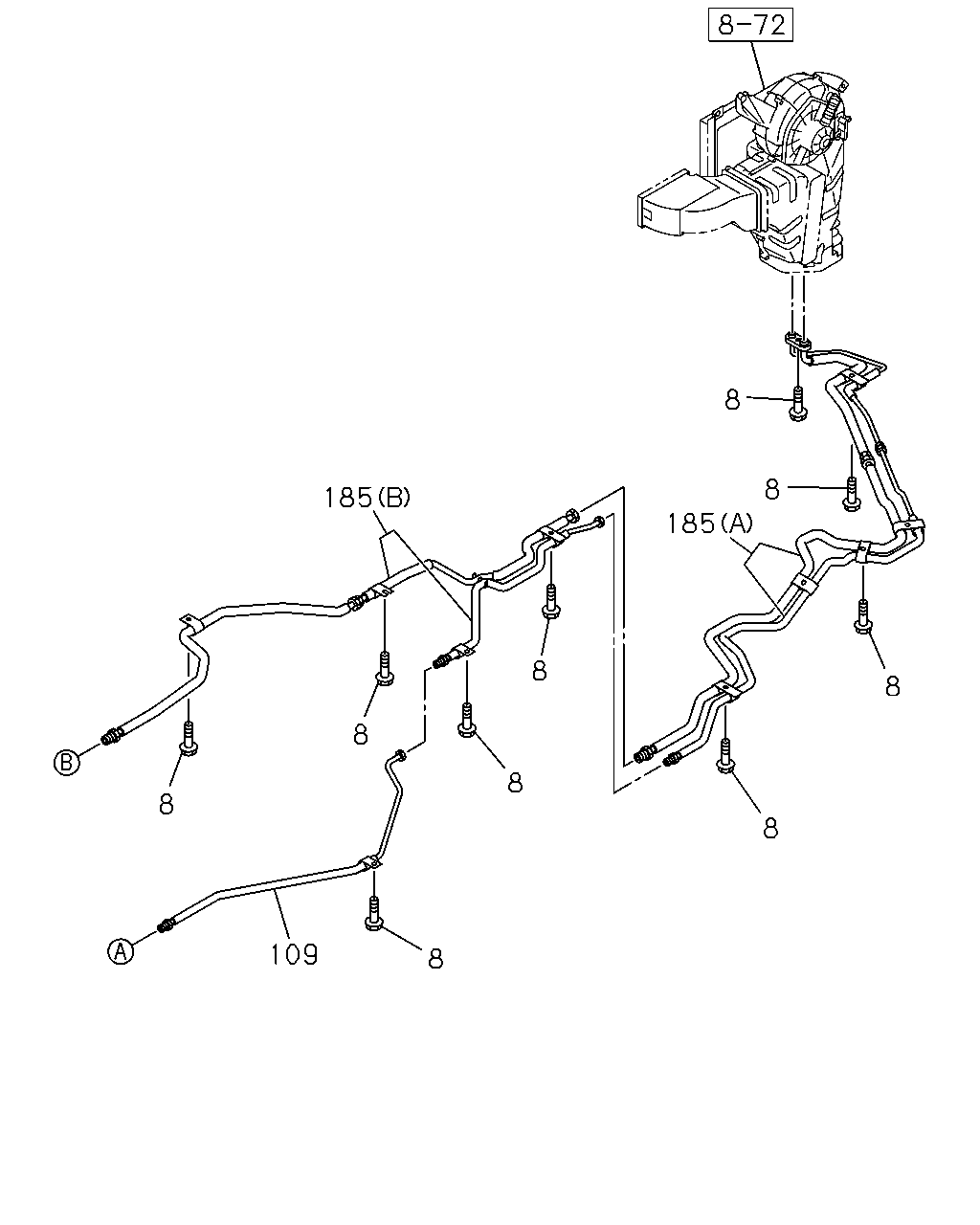

[852A] PIPING;REAR COOLER WO/HEATER,REAR (4 parça)
[852A] COMPONENT;REAR COOLER WO/HEATER,FRONT (19 parça)
[852A] COMPONENT;REAR COOLER WO/HEATER,REAR (6 parça)
▶
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
189
09.225 GROMMET
EXC. REAR COOLER WO/HEATER<C69>
8-98192-298-0
01
1
1407-
●
66
162
216
66
162
53
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
09.220 PIPE; RECEIVER TANK TO EVAP
REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE
8-98197-724-1
01
1
1407-
●
●
53
09.220 PIPE; RECEIVER TANK TO EVAP
EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE
8-98129-150-4
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE
8-98102-233-3
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE
8-98209-993-0
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE
8-98197-721-1
01
1
1407-
●
●
66
09.225 HOSE; FLEX,A/C
(C) HIGH PRESSURE
8-98129-345-1
01
1
1407-
●
●
162
09.173 BOLT; FLEX HOSE
06.216 M8X25 FLANGE
0-28650-825-0
03
1
1407-
●
●
216
09.173 BOLT; HOSE FIX
03.162 M6X20 FLANGE
0-28650-620-0
01
1
1407-
●
●
53
66
66
123
146
122
123
146
202
147
67
67
147
67
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
09.220 PIPE; RECEIVER TANK TO EVAP
REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE
8-98197-724-1
01
1
1407-
●
●
53
09.220 PIPE; RECEIVER TANK TO EVAP
EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE
8-98129-150-4
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE
8-98102-233-3
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE
8-98209-993-0
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE
8-98197-721-1
01
1
1407-
●
●
66
09.225 HOSE; FLEX,A/C
(C) HIGH PRESSURE
8-98129-345-1
01
1
1407-
●
●
67
09.260 GASKET; FLEX HOSE
(B)
8-98164-687-0
01
1
1407-
●
●
67
09.260 GASKET; FLEX HOSE
(C)
8-98164-688-0
01
1
1407-
●
●
67
09.260 GASKET; FLEX HOSE
REAR COOLER WO/HEATER<C69> 09.195 (D) SCAL
8-97919-270-0
01
1
1407-
●
●
67
09.260 GASKET; FLEX HOSE
(A)
8-98193-624-0
02
1
1407-
●
●
122
09.225 GASKET
8-98164-690-0
01
1
1407-
●
●
123
09.195 GASKET; RECEIVER PIPE
REAR COOLER WO/HEATER<C69>
8-98164-689-0
03
1
1407-
●
●
123
09.195 GASKET; RECEIVER PIPE
EXC. REAR COOLER WO/HEATER<C69>
8-98164-689-0
02
1
1407-
●
146
09.196 CLIP; RECEIVER PIPE
REAR COOLER WO/HEATER<C69> (A)
8-97370-357-0
01
1
1407-
●
●
146
09.196 CLIP; RECEIVER PIPE
(B)
8-98193-622-0
02
1
1407-
●
●
147
09.242 CAP; FLEX HOSE
(A)
8-98193-623-0
01
1
1407-
●
●
147
09.242 CAP; FLEX HOSE
(B)
8-98193-625-0
01
1
1407-
●
●
202
09.275 SWITCH; PRESSURE
8-98164-691-0
01
1
1407-
●
●
8
53
162
66
162
8
216
162
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
09.242 BOLT; CLIP
REAR COOLER WO/HEATER<C69> 03.162 M6X20 FLANGE
0-28650-620-0
10
1
1407-
●
●
53
09.220 PIPE; RECEIVER TANK TO EVAP
REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE
8-98197-724-1
01
1
1407-
●
●
53
09.220 PIPE; RECEIVER TANK TO EVAP
EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE
8-98129-150-4
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE
8-98102-233-3
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE
8-98209-993-0
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE
8-98197-721-1
01
1
1407-
●
●
66
09.225 HOSE; FLEX,A/C
(C) HIGH PRESSURE
8-98129-345-1
01
1
1407-
●
●
162
09.173 BOLT; FLEX HOSE
06.216 M8X25 FLANGE
0-28650-825-0
03
1
1407-
●
●
216
09.173 BOLT; HOSE FIX
03.162 M6X20 FLANGE
0-28650-620-0
01
1
1407-
●
●
109
8
8
8
8
8
8
8
185
185
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
09.242 BOLT; CLIP
REAR COOLER WO/HEATER<C69> 03.162 M6X20 FLANGE
0-28650-620-0
10
1
1407-
●
●
109
09.220 PIPE; PIPE TO PIPE
REAR COOLER WO/HEATER<C69>
8-98197-727-0
01
1
1407-
●
●
185
09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
REAR COOLER WO/HEATER<C69> (A)
8-98197-725-1
01
1
1407-
●
●
185
09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
REAR COOLER WO/HEATER<C69> (B)
8-98197-726-1
01
1
1407-
●
●
53
66
66
67
147
67
67
147
67
122
146
202
146
146
123
123
67
150
150
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
09.220 PIPE; RECEIVER TANK TO EVAP
REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE
8-98197-724-1
01
1
1407-
●
●
53
09.220 PIPE; RECEIVER TANK TO EVAP
EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE
8-98129-150-4
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE
8-98102-233-3
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE
8-98209-993-0
01
1
1407-
●
66
09.225 HOSE; FLEX,A/C
REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE
8-98197-721-1
01
1
1407-
●
●
66
09.225 HOSE; FLEX,A/C
(C) HIGH PRESSURE
8-98129-345-1
01
1
1407-
●
●
67
09.260 GASKET; FLEX HOSE
(B)
8-98164-687-0
01
1
1407-
●
●
67
09.260 GASKET; FLEX HOSE
(C)
8-98164-688-0
01
1
1407-
●
●
67
09.260 GASKET; FLEX HOSE
REAR COOLER WO/HEATER<C69> 09.195 (D) SCAL
8-97919-270-0
01
1
1407-
●
●
67
09.260 GASKET; FLEX HOSE
(A)
8-98193-624-0
02
1
1407-
●
●
122
09.225 GASKET
8-98164-690-0
01
1
1407-
●
●
123
09.195 GASKET; RECEIVER PIPE
REAR COOLER WO/HEATER<C69>
8-98164-689-0
03
1
1407-
●
●
123
09.195 GASKET; RECEIVER PIPE
EXC. REAR COOLER WO/HEATER<C69>
8-98164-689-0
02
1
1407-
●
146
09.196 CLIP; RECEIVER PIPE
REAR COOLER WO/HEATER<C69> (A)
8-97370-357-0
01
1
1407-
●
●
146
09.196 CLIP; RECEIVER PIPE
(B)
8-98193-622-0
02
1
1407-
●
●
147
09.242 CAP; FLEX HOSE
(A)
8-98193-623-0
01
1
1407-
●
●
147
09.242 CAP; FLEX HOSE
(B)
8-98193-625-0
01
1
1407-
●
●
150
09.242 CLIP; HOSE
REAR COOLER WO/HEATER<C69> 09.196
8-97370-357-0
02
1
1407-
●
●
202
09.275 SWITCH; PRESSURE
8-98164-691-0
01
1
1407-
●
●
116
116
116
185
185
109
116
116
116
116
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
109
09.220 PIPE; PIPE TO PIPE
REAR COOLER WO/HEATER<C69>
8-98197-727-0
01
1
1407-
●
●
116
09.225 GASKET; PIPE
REAR COOLER WO/HEATER<C69> 09.260 (A)
8-97321-351-0
01
1
1407-
●
●
116
09.225 GASKET; PIPE
REAR COOLER WO/HEATER<C69> 09.260 (B)
8-97321-353-0
03
1
1407-
●
●
116
09.225 GASKET; PIPE
REAR COOLER WO/HEATER<C69> 09.195 (C) SCAL
8-97919-270-0
04
1
1407-
●
●
185
09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
REAR COOLER WO/HEATER<C69> (A)
8-98197-725-1
01
1
1407-
●
●
185
09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
REAR COOLER WO/HEATER<C69> (B)
8-98197-726-1
01
1
1407-
●
●
