◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#145102) — 16 parça

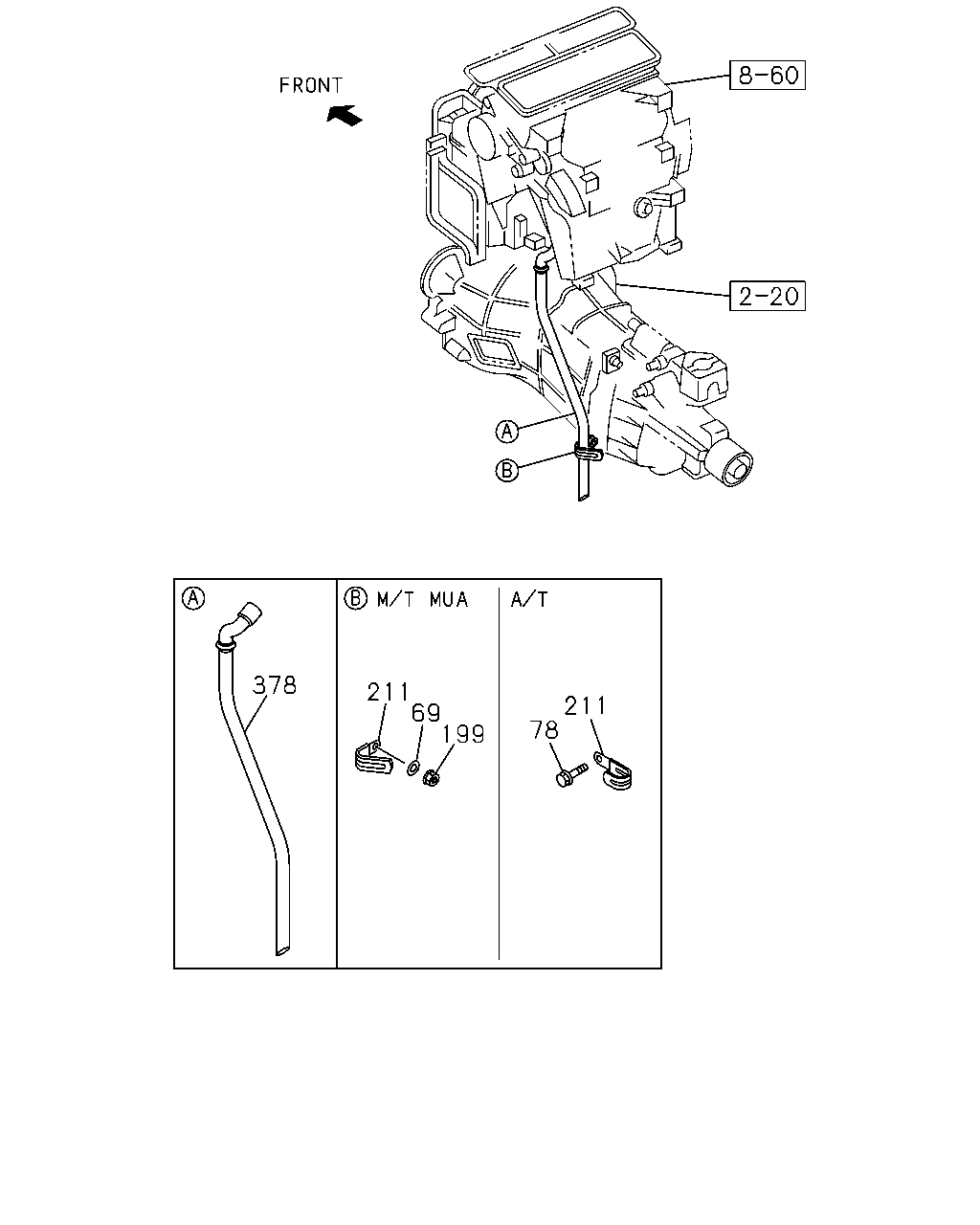

çizim 432029
378 211 69 199 211 78
BalonParca AdiParca NoAdetTipApplied Date A B
69 09.190 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H(MWQ) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1407- ●
78 09.211 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN(MA1) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1407- ● ●
199 09.225 NUT
M/T MUA 5 SPEED 5H(MWQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1407- ●
211 09.190 CLIP; HOSE
A/T 5 SPEED-AISIN(MA1) 02.343 ID=22 L=35 		8-97375-643-0 01 1 1407- ● ●
211 09.190 CLIP; HOSE
M/T MUA 5 SPEED 5H(MWQ) 		8-98173-569-0 01 1 1407- ●
378 09.211 HOSE; DRAIN,EVAPORATOR 8-98163-367-2 01 1 1407- ● ●
çizim 434022
37 25 46 47 14 32 99 262 262 99
BalonParca AdiParca NoAdetTipApplied Date A B
14 09.171 BOLT; CMPR
02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1407- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR 8-98205-963-0 01 1 1407- ● ●
32 01.066 BELT; A/C CMPR
L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1407- ● ●
32 01.066 BELT; A/C CMPR
L=1445 BANDO 		8-97985-122-0 01 1 1407- ● ●
37 09.173 BOLT; PULLEY BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1407- ● ●
46 09.171 BRACKET; CMPR 8-98226-839-0 01 1 1407- ● ●
47 09.173 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1407- ● ●
99 09.171 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1407- ● ●
262 09.190 BRACKET; CONDENSER
(B) 		8-98103-644-0 01 1 1407- ● ●
262 09.190 BRACKET; CONDENSER
(A) 		8-98103-645-0 01 1 1407- ● ●
