◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#145101) — 22 parça

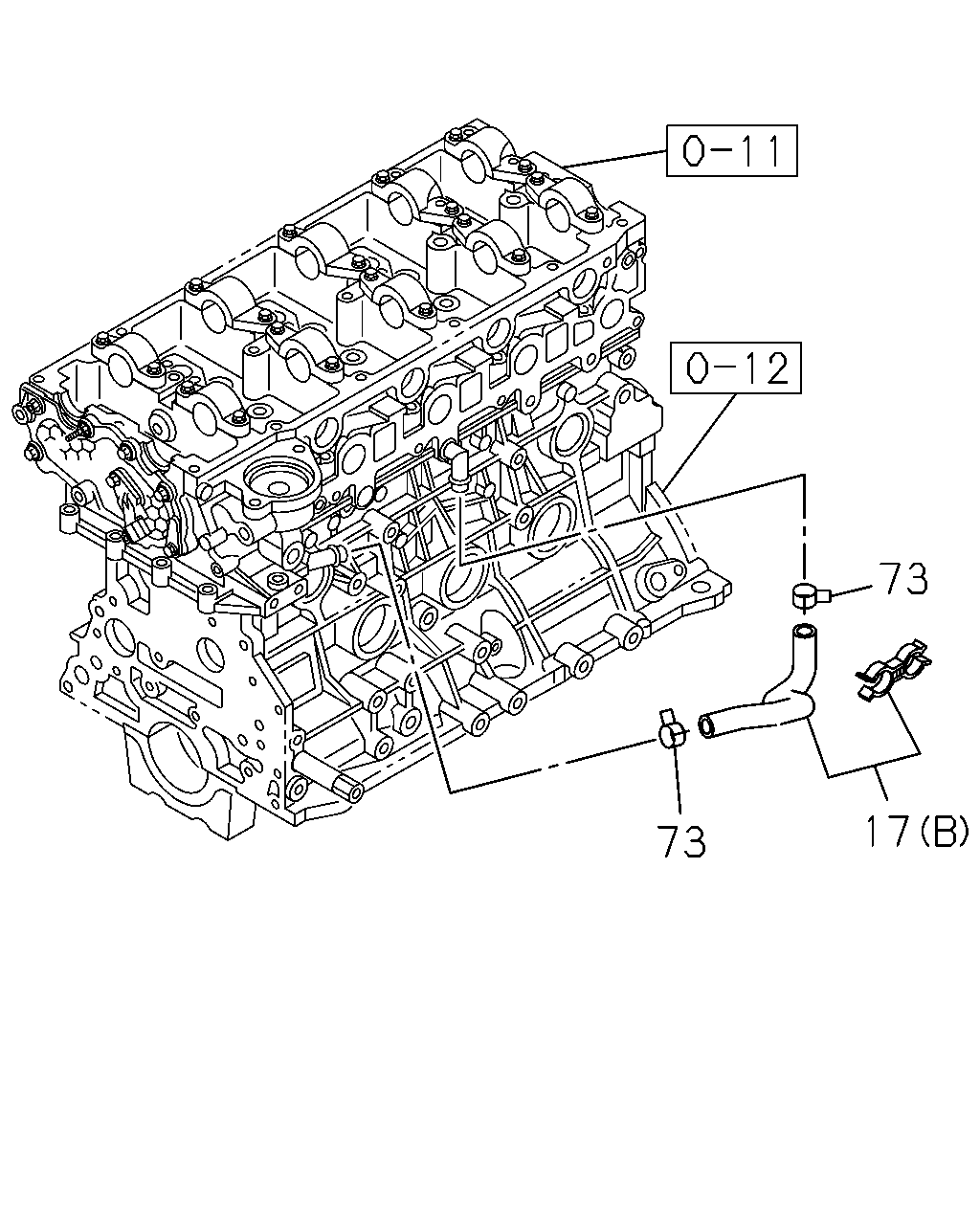

çizim 432712
73 17 73
BalonParca AdiParca NoAdetTipApplied Date A B
17 08.846 HOSE; WATER,BYPASS
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98132-368-0 01 1 1407- ● ●
17 08.846 HOSE; WATER,BYPASS
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98205-896-0 01 1 1407- ● ●
73 08.846 CLIP; HTR HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=20.8 		8-97944-127-0 02 1 1407- ● ●
73 08.846 CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8 		8-97944-127-0 06 1 1407- ● ●

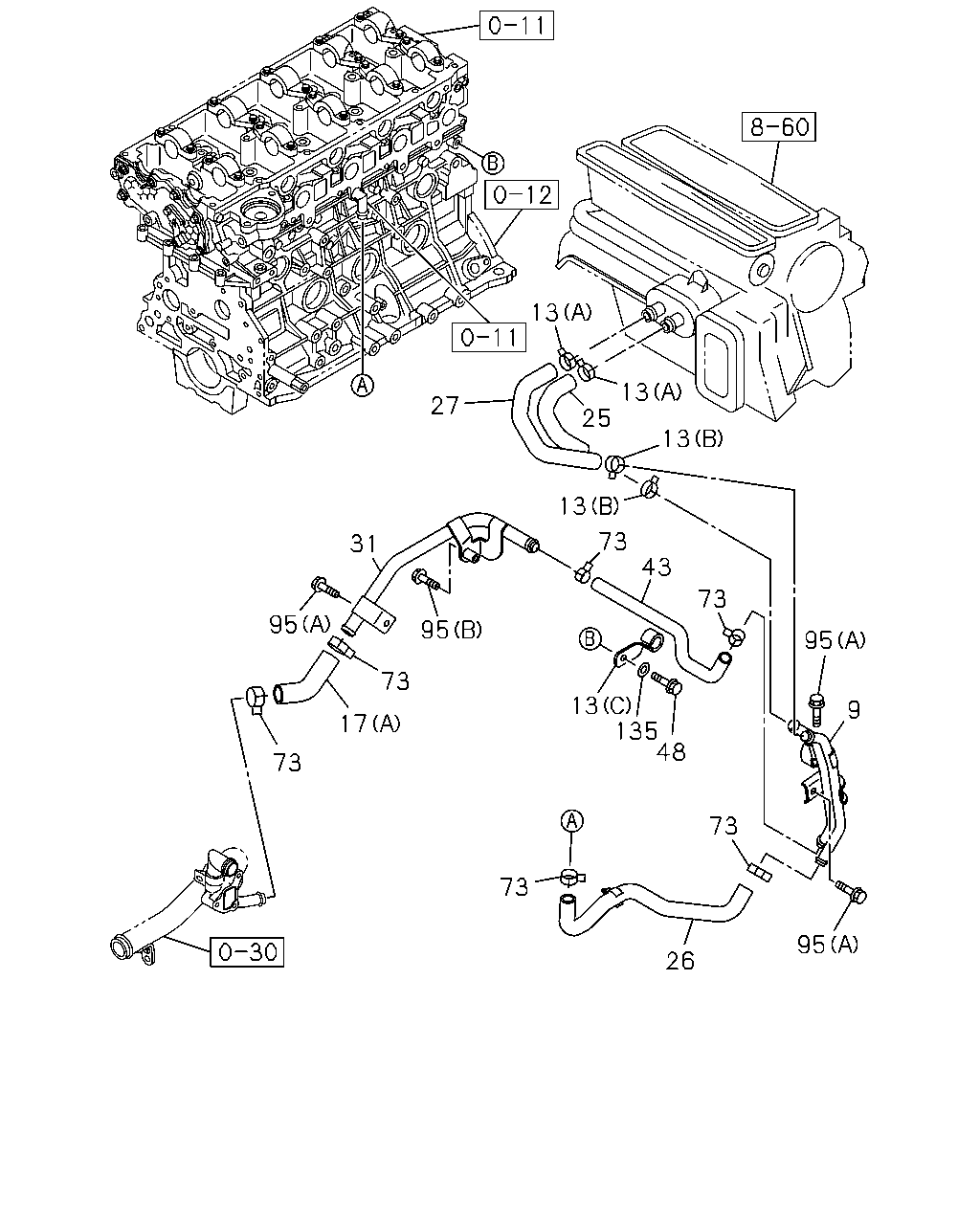

çizim 434349
13 13 13 27 13 25 73 73 43 95 9 95 73 48 135 13 26 73 95 73 31 95 17 73
BalonParca AdiParca NoAdetTipApplied Date A B
9 08.846 PIPE; HTR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98228-412-0 01 1 1407- ● ●
13 08.846 CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22 		8-97359-141-0 02 1 1407- ● ●
13 08.846 CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8 		8-98133-607-0 02 1 1407- ● ●
13 08.846 CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54 		1-09700-392-1 01 1 1407- ● ●
17 08.846 HOSE; WATER,BYPASS
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98132-368-0 01 1 1407- ● ●
17 08.846 HOSE; WATER,BYPASS
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98205-896-0 01 1 1407- ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98129-341-3 01 1 1407- ● ●
26 08.846 HOSE; HTR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98228-459-0 01 1 1407-1510 ● ●
26 08.846 HOSE; HTR 8-98228-459-0 01 1 1511- ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98129-339-3 01 1 1407- ● ●
31 08.846 PIPE; BYPASS,HTR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98131-989-0 01 1 1407- ● ●
43 08.846 HOSE; WATER,OUTLET,HTR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98239-131-0 01 1 1407- ● ●
48 09.262 BOLT; CLIP FIX
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1407- ● ●
73 08.846 CLIP; HTR HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=20.8 		8-97944-127-0 02 1 1407- ● ●
73 08.846 CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8 		8-97944-127-0 06 1 1407- ● ●
95 08.866 BOLT; BYPASS PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 1407- ● ●
95 08.866 BOLT; BYPASS PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1407- ● ●
135 08.846 WASHER; PL
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1407- ● ●
