Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

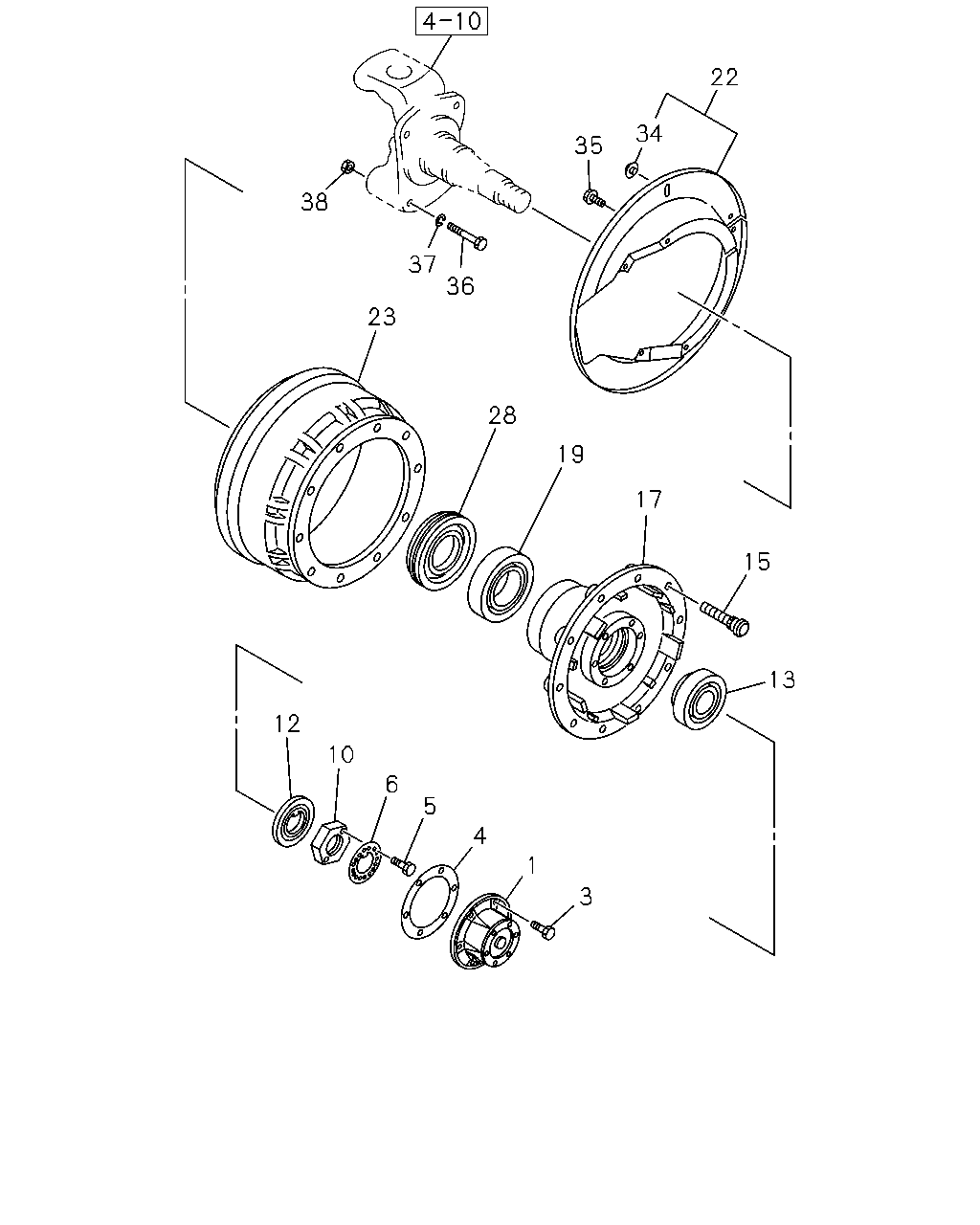

4-11 — FRONT HUB AND DRUM OR ROTOR
(#1451) — 25 parça
22
34
35
38
37
36
23
28
19
17
15
13
12
10
6
5
4
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
1-42313-016-1
02
1
9203-
3
BOLT; HUB CAP,FRT WHEEL
M8X18 W/LK WASHER
9-01900-818-0
12
1
9203-9204
3
BOLT; HUB CAP,FRT WHEEL
M8X18 W/LK WASHER
0-50040-818-0
12
1
9205-9509
3
BOLT; HUB CAP,FRT WHEEL
M8X16 FLANGE
0-28080-816-0
12
1
9510-
4
GASKET; HUB CAP,FRT WHEEL
1-09630-119-0
02
1
9203-
5
BOLT; LK WASHER
M6X16 W/LK WASHER
0-50040-616-0
04
1
9203-
6
WASHER; LK,FRT HUB
ID=48
1-09533-012-1
02
1
9203-
10
NUT; FRT HUB BRG
M48
1-09840-012-3
02
1
9203-
12
WASHER; LK,FRT HUB BRG
ID=48
1-09533-016-0
02
1
9203-
13
BEARING; HUB OUTER,FRT AXLE
NSK
1-09812-084-0
02
1
9203-
13
BEARING; HUB OUTER,FRT AXLE
KOYO
1-09812-085-0
02
1
9203-
15
PIN; WHEEL,FRT AXLE
1-42337-031-0
20
1
9203-
17
HUB; FRT AXLE
1-42312-089-1
02
1
9203-
19
BEARING; HUB INNER,FRT AXLE
NSK
1-09812-142-0
02
1
9203-
19
BEARING; HUB INNER,FRT AXLE
KOYO
1-09812-143-0
02
1
9203-
22
COVER SET; FRT BRK DRUM
1-87061-774-0
01
1
9203-
22
COVER SET; FRT BRK DRUM
1-87061-773-0
01
1
9203-
23
DRUM; BRK,FRT
1-42315-330-1
02
1
9203-
28
SEAL; OIL,FRT HUB
TOKYO BUHIN
1-09625-449-1
02
1
9203-
34
COVER; CHECK HOLE,DRUM COVER
1-87061-402-0
04
1
9203-
35
BOLT; DRUM COVER
1-87061-389-0
08
1
9203-
36
BOLT; BACK PLATE
M16X52
1-09044-001-1
04
1
9203-
37
WASHER; LK,BACK PLATE
ID=16.2
9-09150-516-0
04
1
9203-9401
37
WASHER; LK,BACK PLATE
ID=16.2
9-09150-816-0
04
1
9402-
38
NUT; BACK PLATE
M16
9-99110-416-0
04
1
9203-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
