8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#145096) — 46 parça

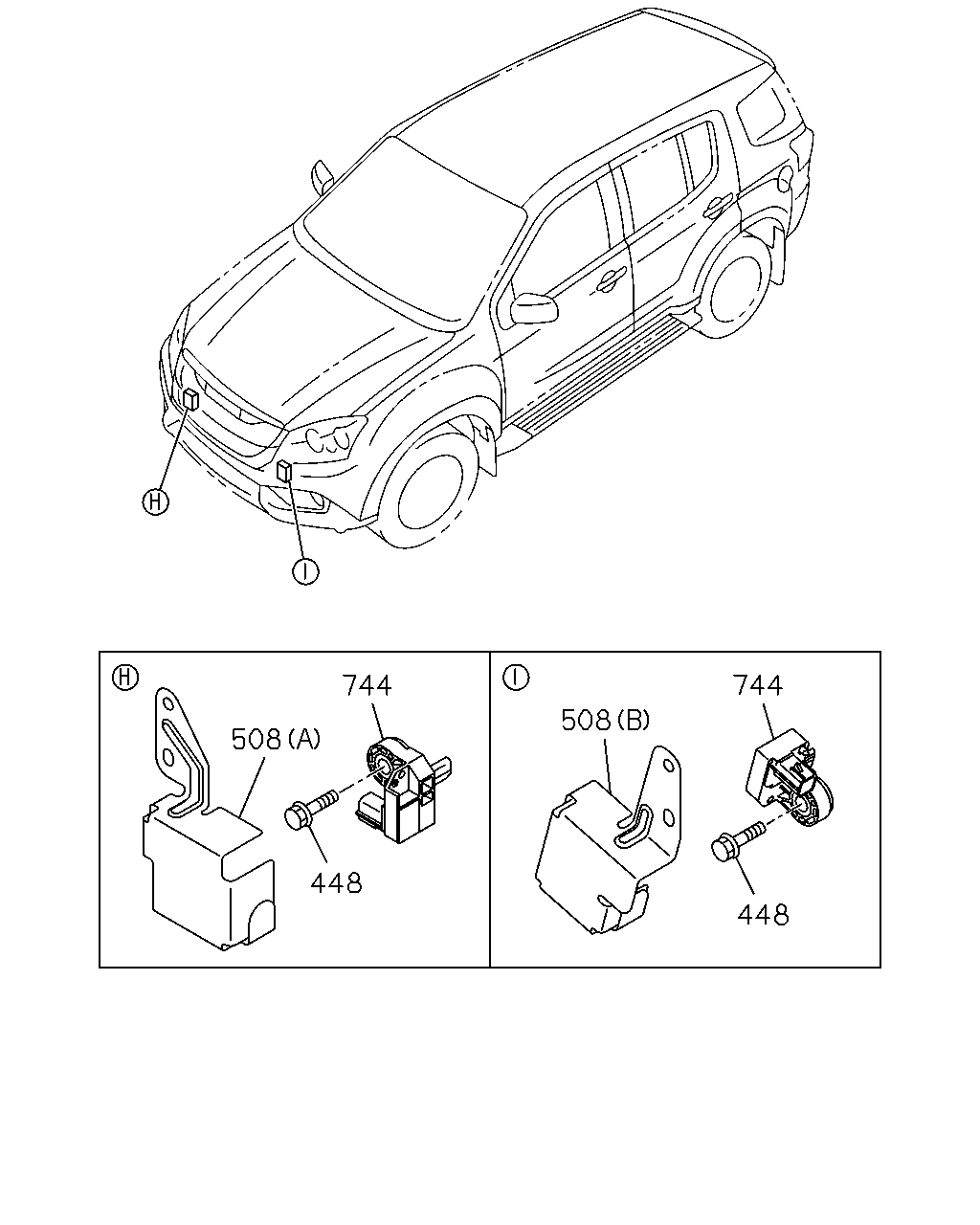

çizim 432127
744 508 448 508 744 448
BalonParca AdiParca NoAdetTipApplied Date A B
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER(AK5) 00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1407- ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1407- ●
508 03.682 PROTECTOR
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98165-179-0 01 1 1407- ●
508 03.682 PROTECTOR
(A) 		8-98165-179-0 01 1 1407- ●
508 03.682 PROTECTOR
AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98165-180-0 01 1 1407- ●
508 03.682 PROTECTOR
(B) 		8-98165-180-0 01 1 1407- ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER(AK5) 		8-98059-533-2 02 1 1407- ●
744 03.682 SENSOR; AIR BAG 8-98059-533-2 02 1 1407- ●

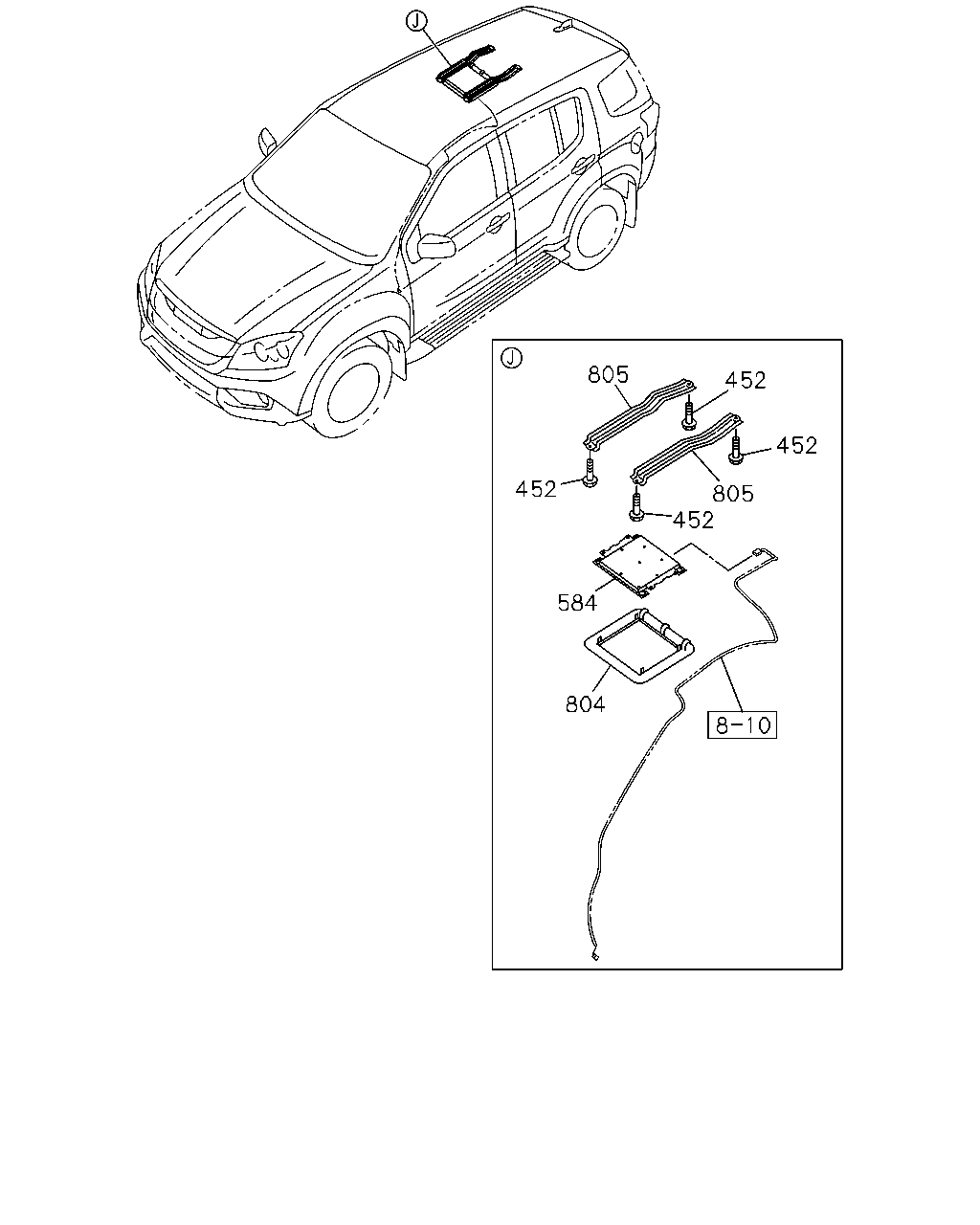

çizim 432631
805 452 452 805 452 452 584 804
BalonParca AdiParca NoAdetTipApplied Date A B
452 08.900 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1407- ● ●
452 08.900 BOLT; BRKT
2ND SEAT DVD MONITOR<U48> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1407- ● ●
584 09.766 DISPLAY
2ND SEAT DVD MONITOR<U48> 		8-98197-955-2 01 1 1407-1409 ● ●
584 09.766 DISPLAY
2ND SEAT DVD MONITOR<U48> 		8-98291-255-0 01 1 1410- ● ●
804 02.487 BEZEL; DISPLAY
2ND SEAT DVD MONITOR<U48> 		8-98197-957-1 01 1 1407- ● ●
805 02.510 BRACKET; DISPLAY 8-98197-956-1 01 1 1407- ● ●
805 02.510 BRACKET; DISPLAY 8-98211-399-1 01 1 1407- ● ●

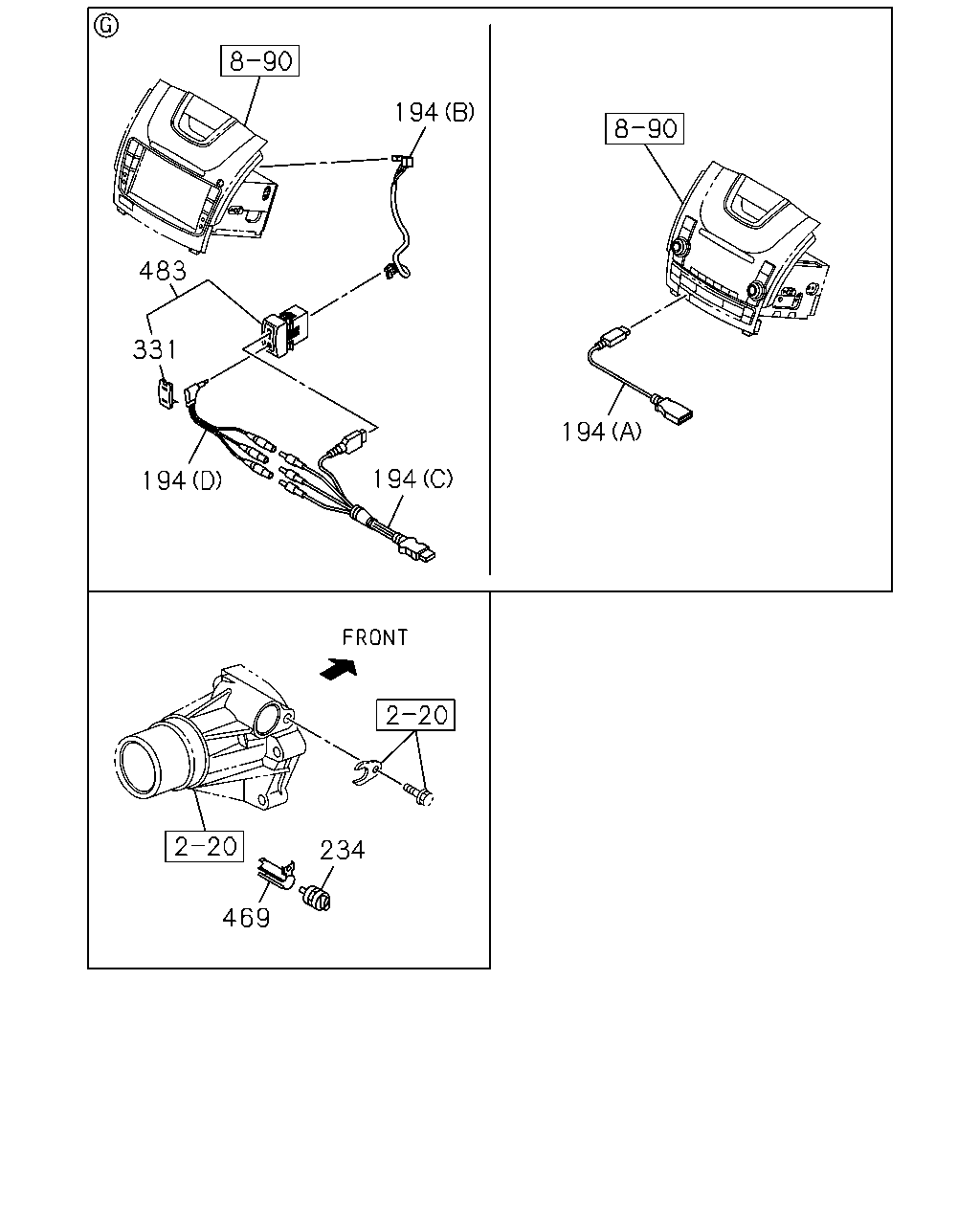

çizim 432807
194 483 331 194 194 194 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 09.665 (A) 		8-98193-631-0 01 1 1407- ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 09.665 (C) 		8-98235-372-0 01 1 1503- ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) 		8-98209-263-0 01 1 1503- ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (D) 		8-98209-351-0 01 1 1503- ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T 5 SPEED-AISIN(MA1) EXC. ABS W/EBD BRAKE ASSIST<JE5> 4 PULSE PPS RESIN WHITE/BLACK 		8-98043-734-0 01 1 1407- ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ) EXC. ABS W/EBD BRAKE ASSIST<JE5> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1407- ●
331 16.081 COVER; SW
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98217-463-0 01 1 1503- ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ) EXC. ABS W/EBD BRAKE ASSIST<JE5> 		8-98119-901-0 01 1 1407- ●
483 09.755 SWITCH
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98209-259-1 01 1 1503- ● ●

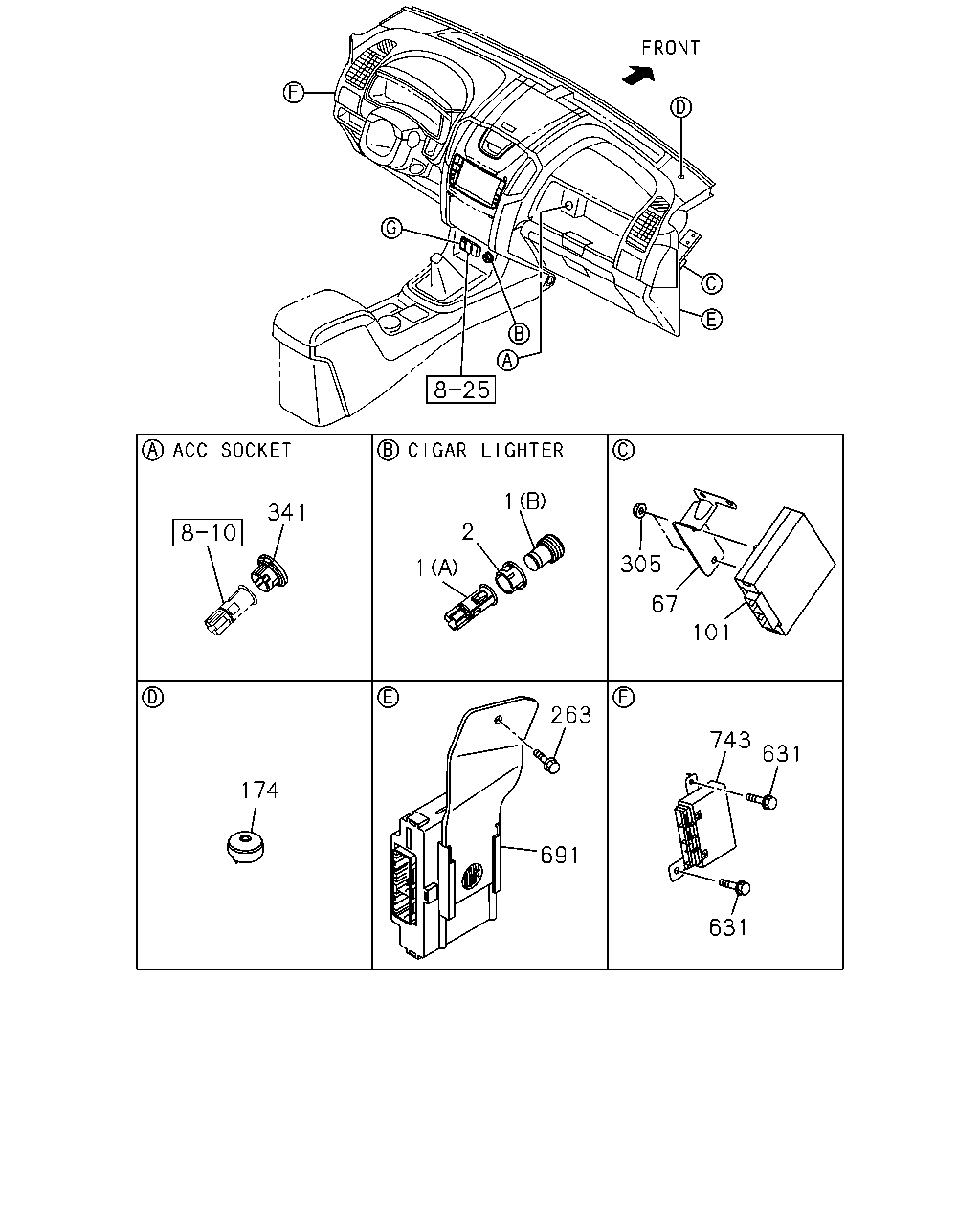

çizim 434489
341 2 174 691 263 743 631 631 305 67 101 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR
(A) 		8-98123-114-0 01 1 1407- ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-98123-117-0 01 1 1407- ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98123-118-0 01 1 1407- ● ●
67 03.887 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98117-178-0 01 1 1407- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION(NT4) 		8-98239-694-0 01 1 1509- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION(NT4) 		8-98239-696-0 01 1 1509- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 		8-98300-510-0 01 1 1509- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 		8-98239-695-0 01 1 1407- ● ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98153-855-0 01 1 1407- ● ●
263 04.115 BOLT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1407- ●
305 08.915 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1407- ● ●
341 04.115 COVER ASM
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-123-0 01 1 1407- ●
341 04.115 COVER ASM 8-98123-123-0 01 1 1407- ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98142-409-1 01 1 1407- ●
631 04.054 BOLT; CONT UNIT
09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1407- ● ●
691 04.115 CONTROLLER; TRANSFER
A/T 5 SPEED-AISIN(MA1) 		8-98186-110-0 01 1 1407- ●
743 02.510 CONTROL UNIT; BCM
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-503-1 01 1 1407- ● ●
743 02.510 CONTROL UNIT; BCM
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-501-1 01 1 1407- ● ●

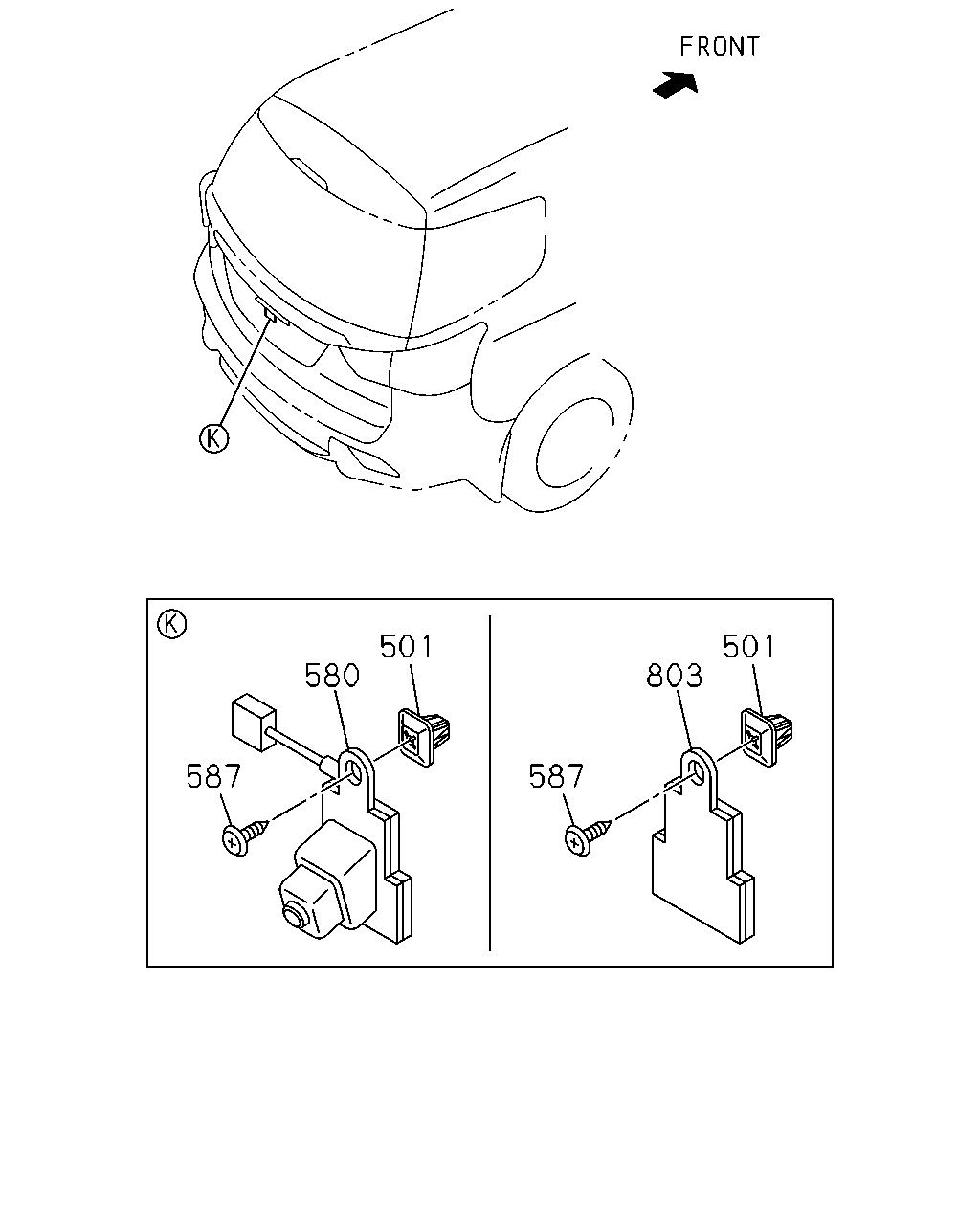

çizim 503340
580 587 587 803 501 501
BalonParca AdiParca NoAdetTipApplied Date A B
501 04.342 GROMMET; SCREW
09.655 		8-98163-895-0 01 1 1407- ● ●
580 02.510 CAMERA; REAR
2ND SEAT DVD MONITOR<U48> 		8-98210-822-0 01 1 1407- ● ●
587 02.500 SCREW; CAMERA
12.182 M5X14 		8-94152-495-0 01 1 1407- ● ●
803 09.744 COVER; CAMERA
EXC. 2ND SEAT DVD MONITOR<U48> 		8-98210-821-0 01 1 1407- ● ●
