8-15 — FIXING PARTS; WIRING HARNESS (#145093) — 53 parça

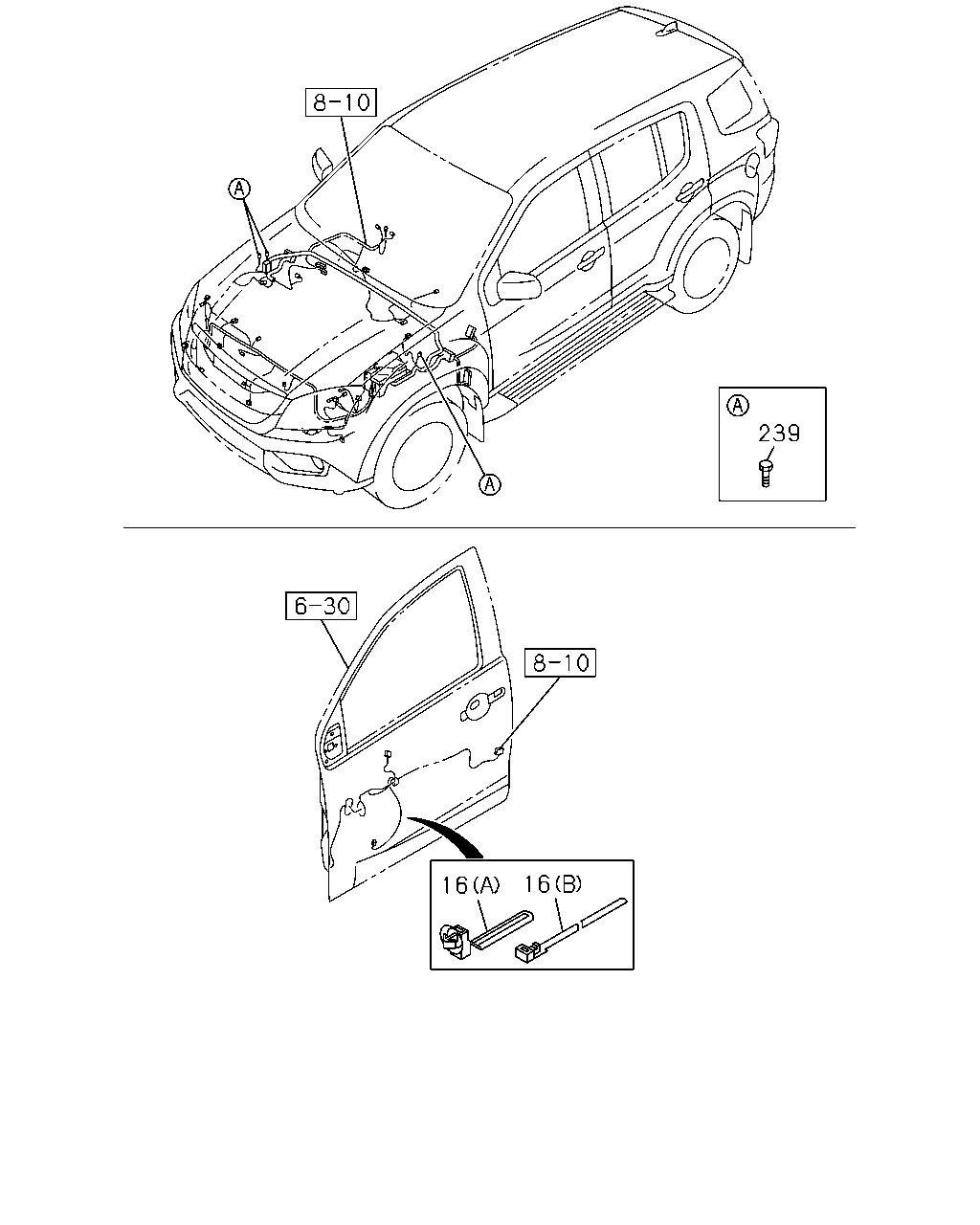

239 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1407-1502	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A) L=155	8-97173-307-0	02	1	1407-1502	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A) L=155	8-97173-307-0	02	1	1407-1502	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1407-1502	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1407-1502	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-	●	●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A) L=155	8-97173-307-0	02	1	1503-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>,DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-		●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1407-1502	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140	8-97378-707-0	03	1	1407-1502	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140	8-97378-707-0	03	1	1407-1502	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1407-1502	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1407-1502	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-	●	●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140	8-97378-707-0	03	1	1503-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>,DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-		●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	07	1	1407-1501	●	●
239	02.559 BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	07	1	1502-	●	●

408 459

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

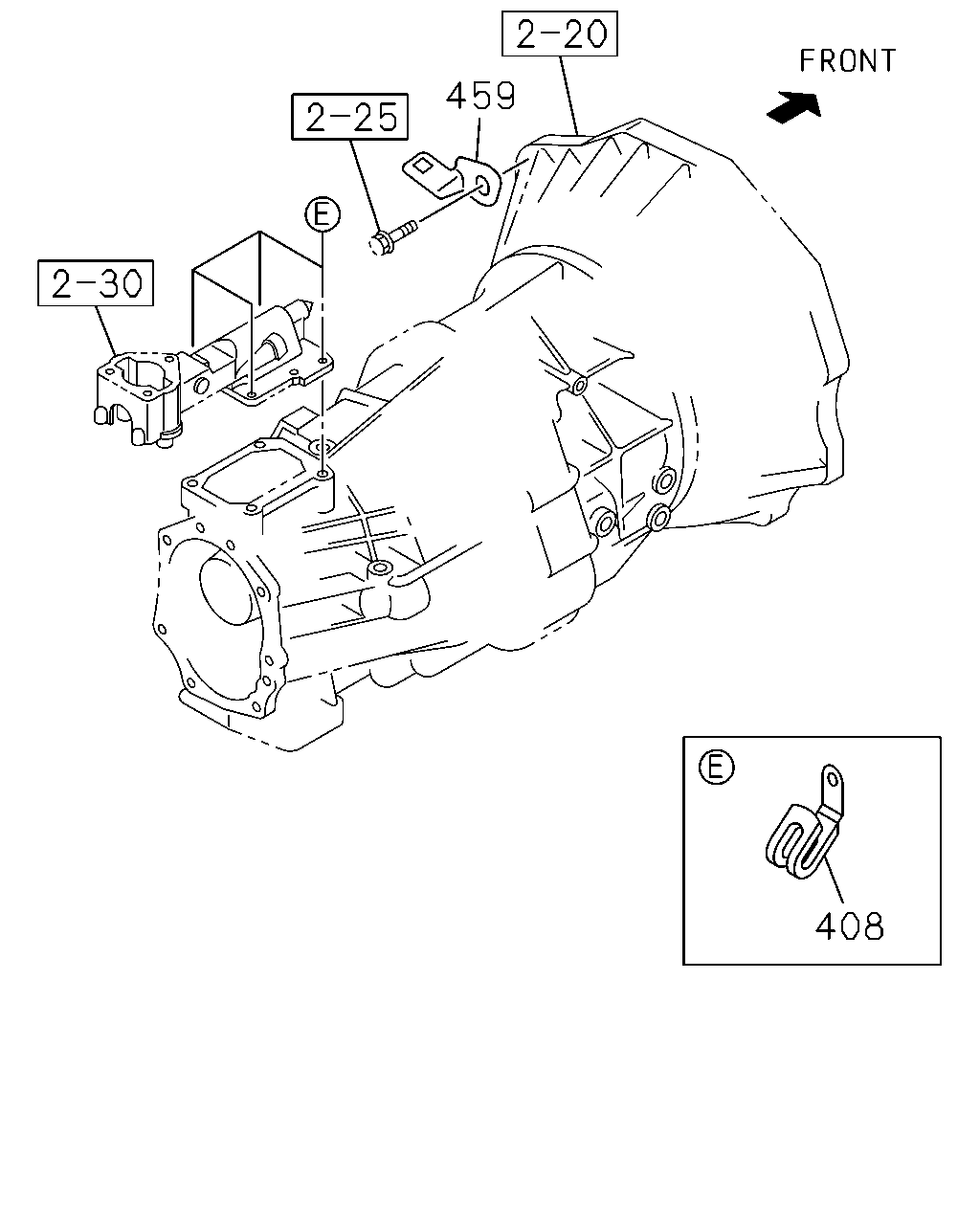

	408	02.559 CLIP; TRANS HARNESS 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	1407-	●
	459	02.483 BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5H(MWQ)	8-98050-882-0	01	1	1407-	●

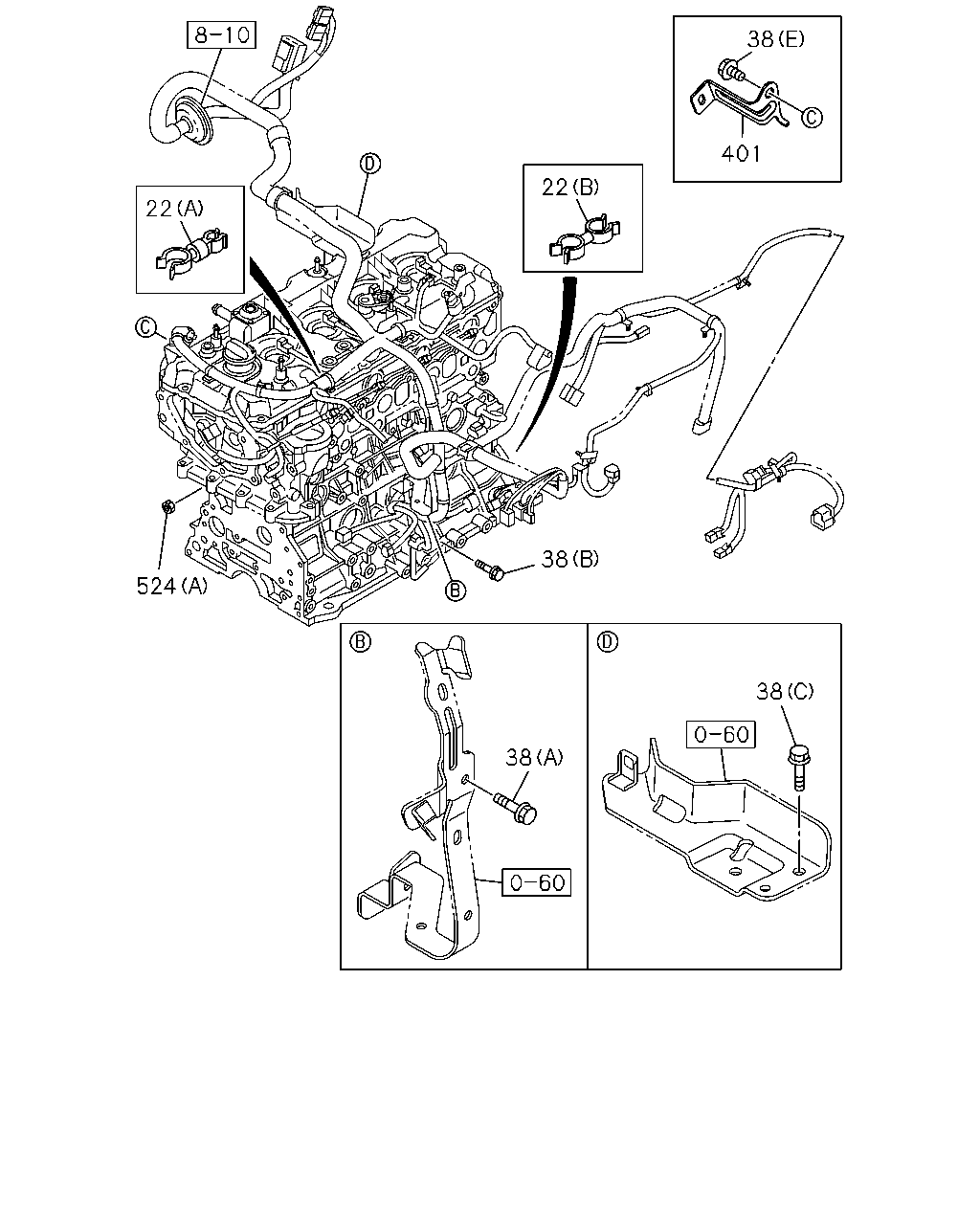

22 22 38 401 38 524 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	02.559 CLIP; ENG HARNESS (A) ID=11.8 & 7.5	8-98212-982-0	01	1	1407-	●	●
22	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (B) ID=7.5 & 7.5	8-98212-981-0	01	1	1407-	●	●
38	02.559 BOLT; CLIP,HARNESS 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1407-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1407-	●	●
38	02.559 BOLT; CLIP,HARNESS 04.338 (C) M8X20 FLANGE	0-28050-820-0	02	1	1407-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (E) M10X12 FLANGE	0-28151-012-0	01	1	1407-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE	0-28650-616-0	05	1	1407-1508	●	●
38	02.559 BOLT; CLIP,HARNESS BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE	0-28650-616-0	05	1	1509-	●	●
401	02.559 BRACKET; HARNESS,GEN	8-98224-801-0	01	1	1407-	●	●
524	02.559 NUT; HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1407-	●	●
524	02.559 NUT; HARNESS 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1407-	●	●

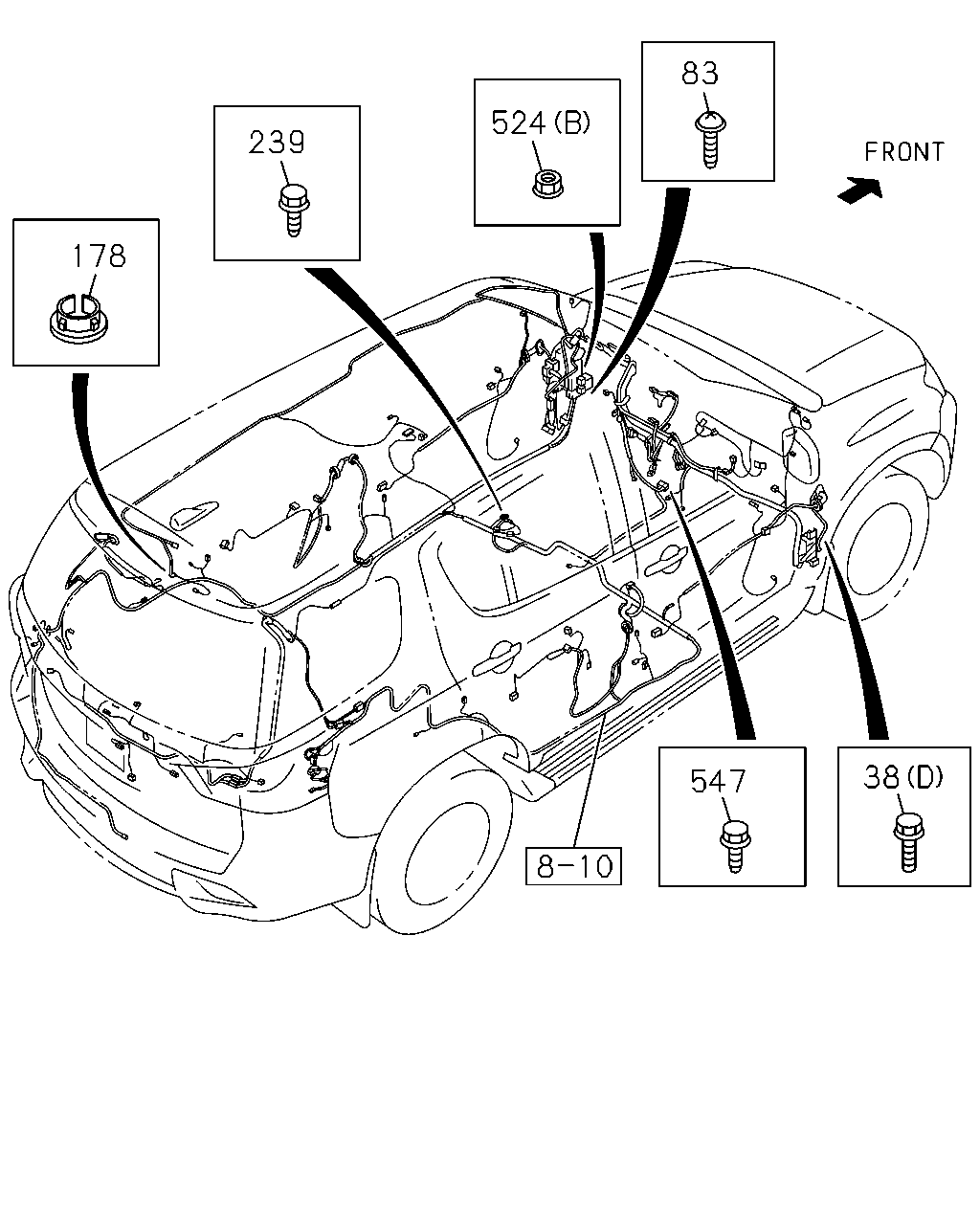

547 38 83 524 239 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	02.559 BOLT; CLIP,HARNESS 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1407-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1407-	●	●
38	02.559 BOLT; CLIP,HARNESS 04.338 (C) M8X20 FLANGE	0-28050-820-0	02	1	1407-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (E) M10X12 FLANGE	0-28151-012-0	01	1	1407-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE	0-28650-616-0	05	1	1407-1508	●	●
38	02.559 BOLT; CLIP,HARNESS BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE	0-28650-616-0	05	1	1509-	●	●
83	02.483 SCREW; HARNESS 16.549 M5X25 TAPPING W/PL WASHER	0-74360-525-0	01	1	1407-	●	●
178	02.559 GROMMET; HARNESS 09.647	8-97027-381-0	01	1	1407-	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	07	1	1407-1501	●	●
239	02.559 BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	07	1	1502-	●	●
524	02.559 NUT; HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1407-	●	●
524	02.559 NUT; HARNESS 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1407-	●	●
547	02.559 BOLT AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	1407-1501	●
547	02.559 BOLT M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	1407-1501		●
547	02.559 BOLT AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-	●
547	02.559 BOLT M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-		●
