Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#145092) — 298 parça

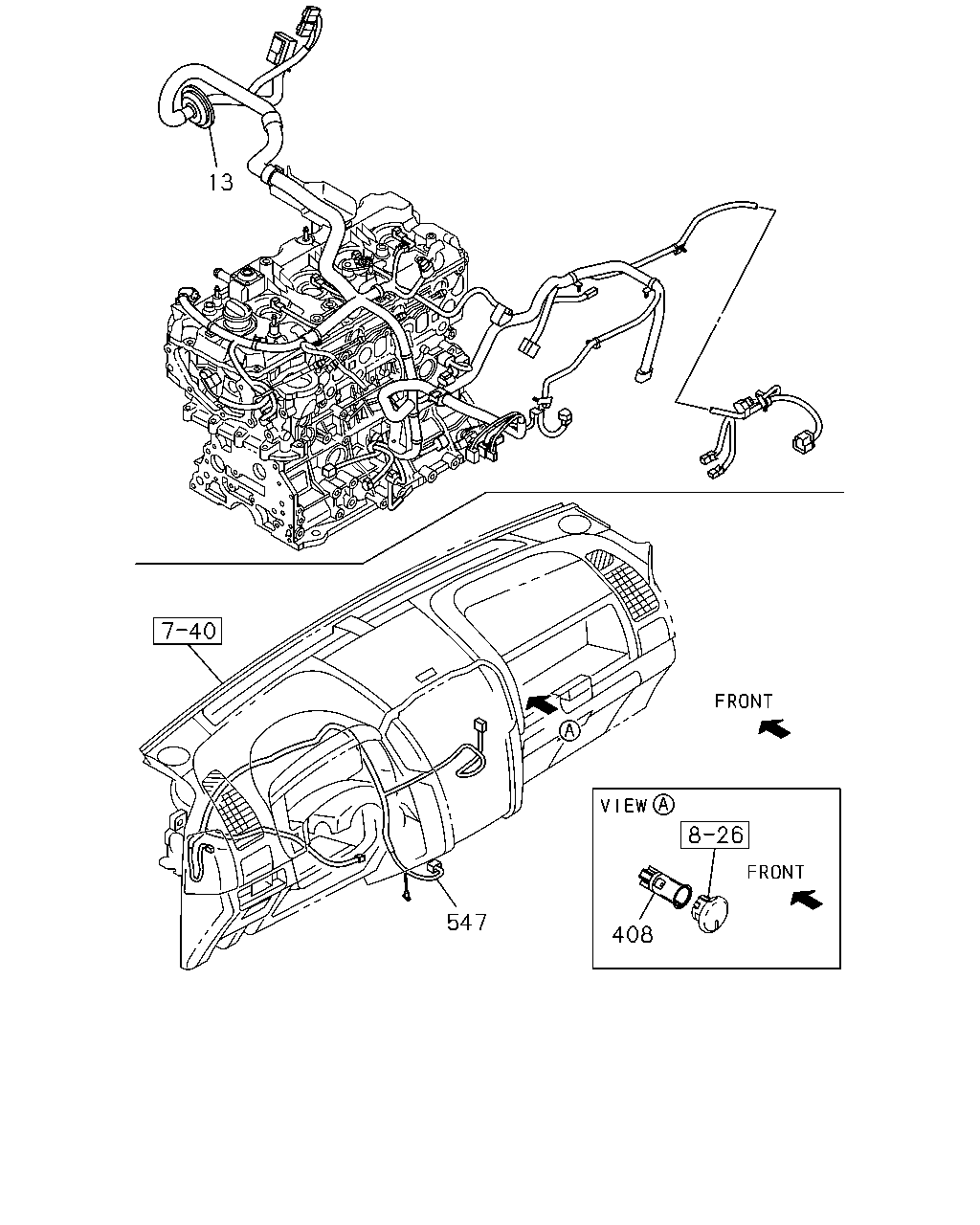

547 13 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EURO2 SPECIFICATION(NT2)	8-98259-825-2	01	1	1509-	●
13	02.525 HARNESS; ENG 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) EURO2 SPECIFICATION(NT2)	8-98259-826-2	01	1	1509-		●
13	02.525 HARNESS; ENG 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04(K75)	8-98305-401-0	01	1	1509-	●
13	02.525 HARNESS; ENG 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04(K75)	8-98305-402-0	01	1	1509-		●
13	02.525 HARNESS; ENG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EURO2 SPECIFICATION(NT2)	8-98206-410-2	01	1	1407-	●
13	02.525 HARNESS; ENG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04(K75)	8-98244-820-2	01	1	1407-	●
13	02.525 HARNESS; ENG 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04(K75)	8-98244-817-2	01	1	1407-	●
13	02.525 HARNESS; ENG 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION(NT2)	8-98206-007-2	01	1	1407-	●
13	02.525 HARNESS; ENG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EURO2 SPECIFICATION(NT2)	8-98206-409-2	01	1	1407-		●
13	02.525 HARNESS; ENG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04(K75)	8-98244-819-2	01	1	1407-		●
408	02.575 SOCKET ASM; ACCESSORY ACCESSORY SOCKET FRT CONSOLE<KC5>	8-98123-115-0	02	1	1407-	●
408	02.575 SOCKET ASM; ACCESSORY	8-98123-115-0	02	1	1407-		●
547	02.480 HARNESS; CABLE,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98250-367-1	01	1	1407-	●
547	02.480 HARNESS; CABLE,SRS	8-98250-367-1	01	1	1407-		●

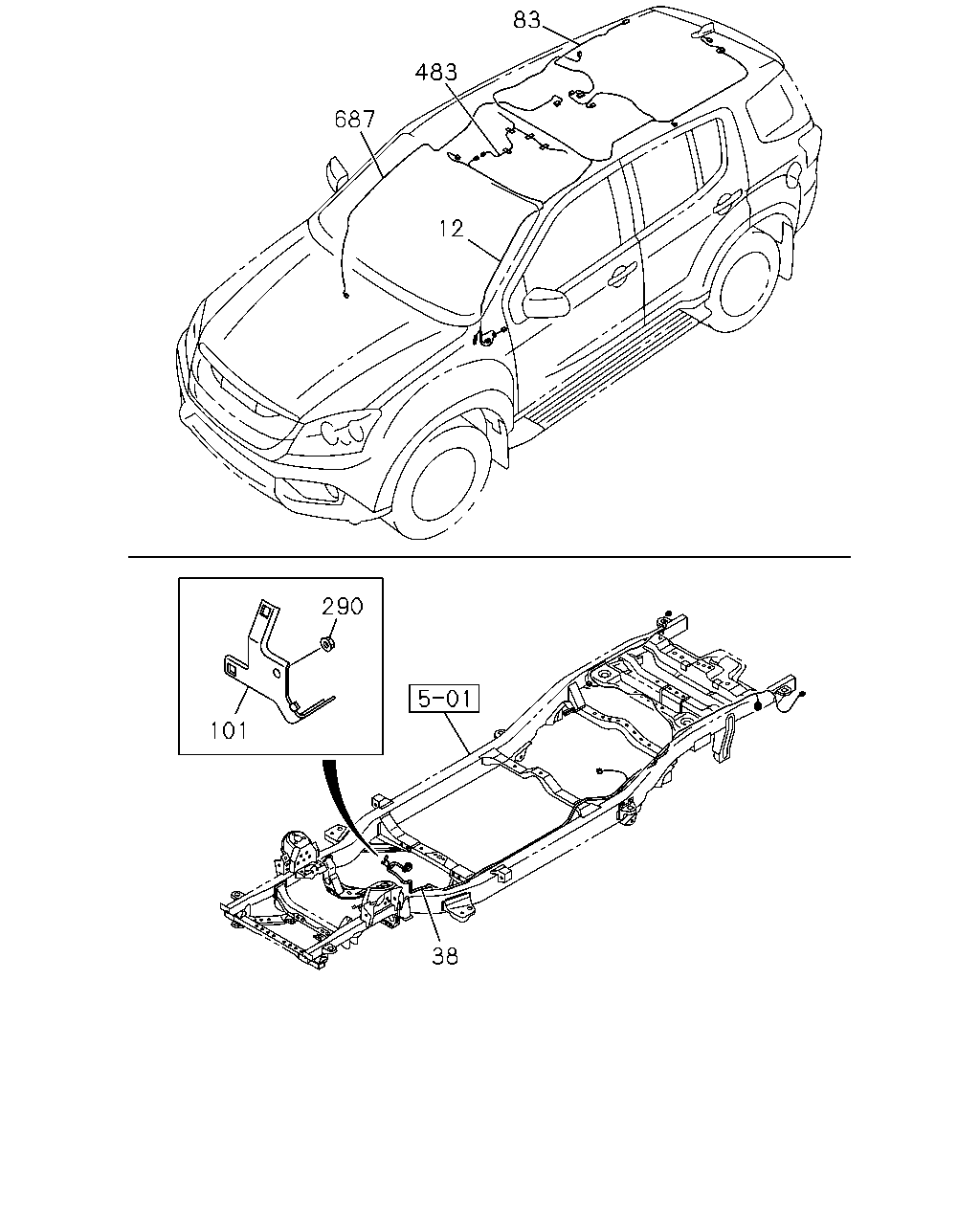

83 483 687 12 290 101 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	02.480 HARNESS; ROOF HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) 6-SPEAKER SYSTEM BASE<UW5>	8-98250-363-1	01	1	1407-1502	●
12	02.480 HARNESS; ROOF AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) 6-SPEAKER SYSTEM BASE<UW5>	8-98250-363-1	01	1	1407-1502		●
12	02.480 HARNESS; ROOF HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5>	8-98250-363-1	01	1	1503-	●
12	02.480 HARNESS; ROOF 6-SPEAKER SYSTEM BASE<UW5>	8-98250-363-1	01	1	1503-		●
12	02.480 HARNESS; ROOF HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) 8-SPEAKER SYSTEM CUSTOM<U87>	8-98250-361-1	01	1	1407-1502	●
12	02.480 HARNESS; ROOF AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) 8-SPEAKER SYSTEM CUSTOM<U87>	8-98250-361-1	01	1	1407-1502		●
12	02.480 HARNESS; ROOF HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87>	8-98250-361-1	01	1	1503-	●
12	02.480 HARNESS; ROOF 8-SPEAKER SYSTEM CUSTOM<U87>	8-98250-361-1	01	1	1503-		●
12	02.480 HARNESS; ROOF AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6>	8-98250-362-1	01	1	1407-1502	●
12	02.480 HARNESS; ROOF 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6>	8-98250-362-1	01	1	1503-	●
38	02.480 HARNESS; CHAS ABS W/EBD BRAKE ASSIST<JE5> TRAILER HITCH 7 PIN<7TW>	8-98198-064-2	01	1	1407-	●
38	02.480 HARNESS; CHAS TRAILER HITCH 7 PIN<7TW>	8-98198-064-2	01	1	1407-		●
38	02.480 HARNESS; CHAS ABS W/EBD BRAKE ASSIST<JE5> EXC. TRAILER HITCH 7 PIN<7TW>	8-98198-065-2	01	1	1407-	●
38	02.480 HARNESS; CHAS EXC. TRAILER HITCH 7 PIN<7TW>	8-98198-065-2	01	1	1407-		●
38	02.480 HARNESS; CHAS TRAILER HITCH 7 PIN<7TW> EXC. ABS W/EBD BRAKE ASSIST<JE5>	8-98198-062-2	01	1	1407-	●
38	02.480 HARNESS; CHAS EXC. ABS W/EBD BRAKE ASSIST<JE5>,TRAILER HITCH 7 PIN<7TW>	8-98198-063-2	01	1	1407-	●
83	02.480 HARNESS; AIR CONDITIONER REAR COOLER WO/HEATER<C69>	8-98198-188-2	01	1	1407-	●
83	02.480 HARNESS; AIR CONDITIONER	8-98198-188-2	01	1	1407-		●
101	02.483 BRACKET; HARNESS CONNECTOR 4JK1-TCX ENG(LR0)	8-98102-999-0	01	1	1407-1508	●	●
101	02.483 BRACKET; HARNESS CONNECTOR	8-98102-999-0	01	1	1509-	●	●
290	02.483 NUT; BRKT 4JK1-TCX ENG(LR0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-1508	●	●
290	02.483 NUT; BRKT BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
483	02.480 HARNESS; EXT,RADIO HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) 8-SPEAKER SYSTEM CUSTOM<U87>	8-98201-891-0	01	1	1407-1502	●
483	02.480 HARNESS; EXT,RADIO AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) 8-SPEAKER SYSTEM CUSTOM<U87>	8-98201-891-0	01	1	1407-1502		●
483	02.480 HARNESS; EXT,RADIO HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87>	8-98201-891-0	01	1	1503-	●
483	02.480 HARNESS; EXT,RADIO 8-SPEAKER SYSTEM CUSTOM<U87>	8-98201-891-0	01	1	1503-		●
687	02.480 HARNESS; VIDEO DISC PLYR 2ND SEAT DVD MONITOR<U48>	8-98248-854-1	01	1	1407-	●	●

430 588

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
430	02.575 COVER ASM; SOCKET,ACCESSORY ACCESSORY SOCKET FRT CONSOLE<KC5> 04.115	8-98123-123-0	01	1	1407-	●
430	02.575 COVER ASM; SOCKET,ACCESSORY 04.115	8-98123-123-0	01	1	1407-		●
430	02.575 COVER ASM; SOCKET,ACCESSORY EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 04.115	8-98142-409-1	01	1	1407-	●
588	02.480 SEAL; LOCATION HOLE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, 2ND SEAT DVD MONITOR<U48> 16.165 OD=25 BLACK	1-76798-019-0	03	1	1407-1502	●	●
588	02.480 SEAL; LOCATION HOLE CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 16.165 OD=25 BLACK	1-76798-019-0	03	1	1407-1502	●
588	02.480 SEAL; LOCATION HOLE RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 16.165 OD=25 BLACK	1-76798-019-0	03	1	1407-1502		●
588	02.480 SEAL; LOCATION HOLE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, 2ND SEAT DVD MONITOR<U48> 16.165 OD=25 BLACK	1-76798-019-0	03	1	1503-	●	●
588	02.480 SEAL; LOCATION HOLE CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 16.165 OD=25 BLACK	1-76798-019-0	03	1	1503-	●
588	02.480 SEAL; LOCATION HOLE RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 16.165 OD=25 BLACK	1-76798-019-0	03	1	1503-		●

4 734 745 750 749 762 761 758 759 764 763

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS	8-98166-752-0	01	1	1407-	●	●
734	02.694 RELAY; ACC SOCKET 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
745	02.694 RELAY; HEATER 03.670 (A) 12V YAZAKI	8-98146-834-0	01	1	1407-	●	●
745	02.694 RELAY; HEATER 02.485 (B) 12V YAZAKI	8-97309-292-0	01	1	1407-	●	●
749	02.694 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
750	02.694 RELAY; RR DEFOGGER 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
758	02.694 RELAY; RR WIPER 02.485 12V YAZAKI	8-97309-292-0	01	1	1407-	●	●
759	02.694 RELAY; RR COOLER 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
761	02.694 RELAY; ACC PASSIVE ENTRY AND START SYSTEM<AP3> 02.485 12V YAZAKI	8-97309-292-0	01	1	1407-	●	●
762	02.694 RELAY; IG2 PASSIVE ENTRY AND START SYSTEM<AP3> 02.485 12V YAZAKI	8-97309-292-0	01	1	1407-	●	●
763	02.694 RELAY; IG1 PASSIVE ENTRY AND START SYSTEM<AP3> 02.100 12V YAZAKI	8-98146-837-0	01	1	1407-	●	●
764	02.694 RELAY; FRT WIPER PASSIVE ENTRY AND START SYSTEM<AP3> 02.100 12V YAZAKI	8-98146-837-0	01	1	1407-	●	●

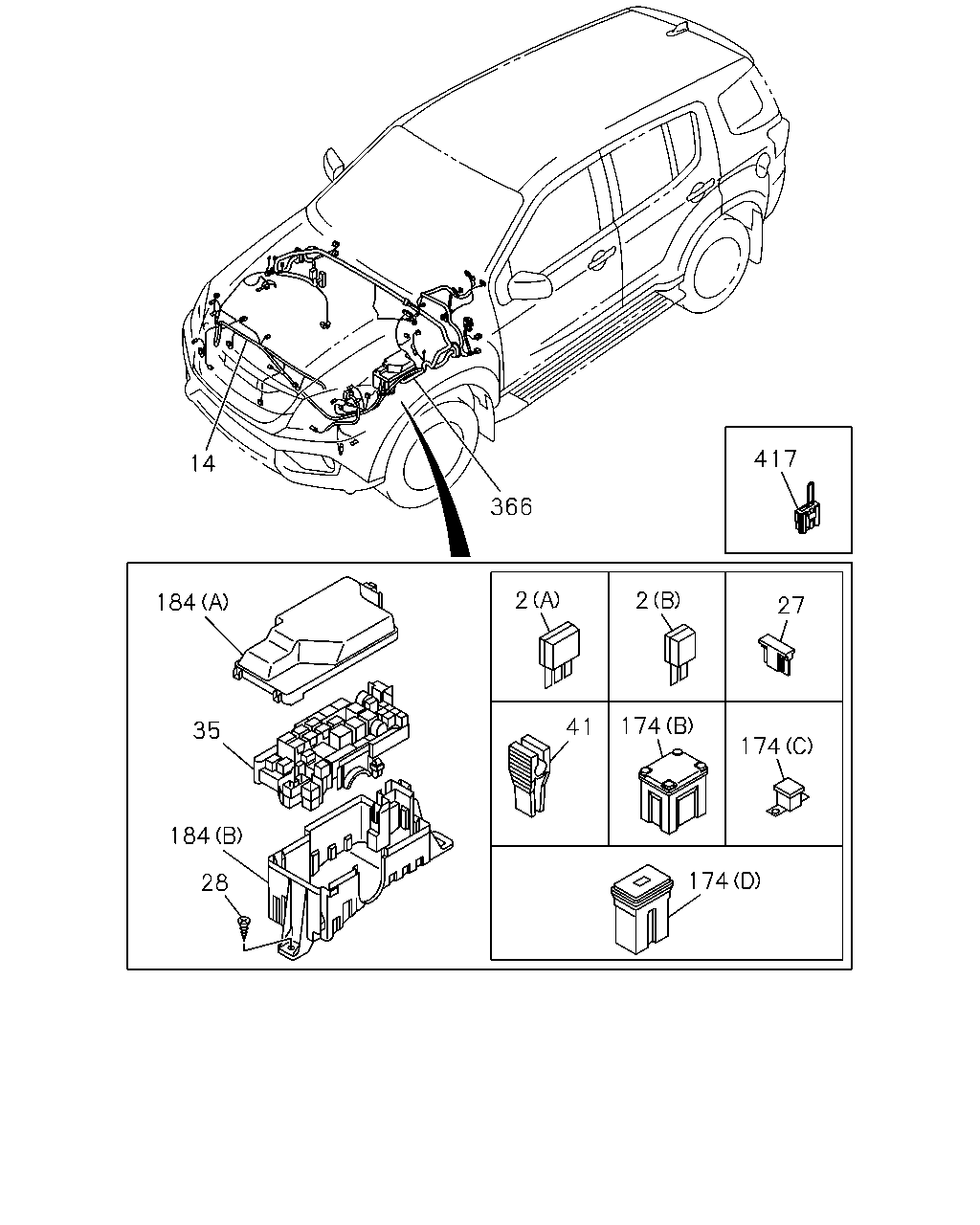

366 736 738 739 741 743 742 746 737 745 747 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ELECTRONIC TRACTION CONTROL<NW9>	8-98271-912-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ELECTRONIC TRACTION CONTROL<NW9>	8-98271-912-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98271-913-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98271-913-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,ELECTRONIC TRACTION CONTROL<NW9>, STRG WHL AUDIO CONTROL SW<8NE>	8-98250-364-4	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,ELECTRONIC TRACTION CONTROL<NW9>, STRG WHL AUDIO CONTROL SW<8NE>	8-98250-364-4	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE>	8-98250-365-4	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE>	8-98250-365-4	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW>	8-98250-407-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW>	8-98250-407-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> EXC. TRAILER HITCH 7 PIN<7TW>	8-98250-408-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> EXC. TRAILER HITCH 7 PIN<7TW>	8-98250-408-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-411-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-411-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> EXC. ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>	8-98250-412-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> EXC. ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>	8-98250-412-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98220-964-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98220-964-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW>	8-98198-117-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW>	8-98198-117-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98220-966-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98220-966-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98198-119-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98198-119-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL <NW9>	8-98271-914-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL <NW9>	8-98271-914-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL <NW9>,TRAILER HITCH 7 PIN<7TW>	8-98271-915-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL <NW9>,TRAILER HITCH 7 PIN<7TW>	8-98271-915-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,ELECT RONIC TRACTION CONTROL<NW9>,STRG WHL AUDIO CONTROL SW<8NE>	8-98220-967-4	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,ELECT RONIC TRACTION CONTROL<NW9>,STRG WHL AUDIO CONTROL SW<8NE>	8-98220-967-4	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,ELECT RONIC TRACTION CONTROL<NW9>,TRAILER HITCH7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE>	8-98198-120-4	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,ELECT RONIC TRACTION CONTROL<NW9>,TRAILER HITCH7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE>	8-98198-120-4	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW>	8-98250-405-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW>	8-98250-405-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> EXC. TRAILER HITCH 7 PIN<7TW>	8-98250-406-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> EXC. TRAILER HITCH 7 PIN<7TW>	8-98250-406-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> TRAILER HITCH 7 PIN<7TW> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-409-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> TRAILER HITCH 7 PIN<7TW> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-409-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>	8-98250-410-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>	8-98250-410-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98220-963-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98220-963-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW>	8-98198-116-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW>	8-98198-116-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98220-965-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98220-965-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98198-118-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98198-118-3	01	1	1509-		●
736	02.694 RELAY; STARTER CUT 02.485 12V YAZAKI	8-97309-292-0	01	1	1407-	●	●
737	02.694 RELAY; DIMMER 02.485 12V YAZAKI	8-97309-292-0	01	1	1407-	●	●
738	02.694 RELAY; HEADLAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
739	02.694 RELAY; TAIL LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
741	02.694 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
742	02.694 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
743	02.694 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
745	02.694 RELAY; HEATER 03.670 (A) 12V YAZAKI	8-98146-834-0	01	1	1407-	●	●
745	02.694 RELAY; HEATER 02.485 (B) 12V YAZAKI	8-97309-292-0	01	1	1407-	●	●
746	02.694 RELAY; ECM,MAIN 03.670 12V YAZAKI	8-98146-834-0	01	1	1407-	●	●
747	02.694 RELAY; GLOW 02.100 12V YAZAKI	8-98146-837-0	01	1	1407-	●	●
748	02.694 RELAY; STARTER 02.100 12V YAZAKI	8-98146-837-0	01	1	1407-	●	●

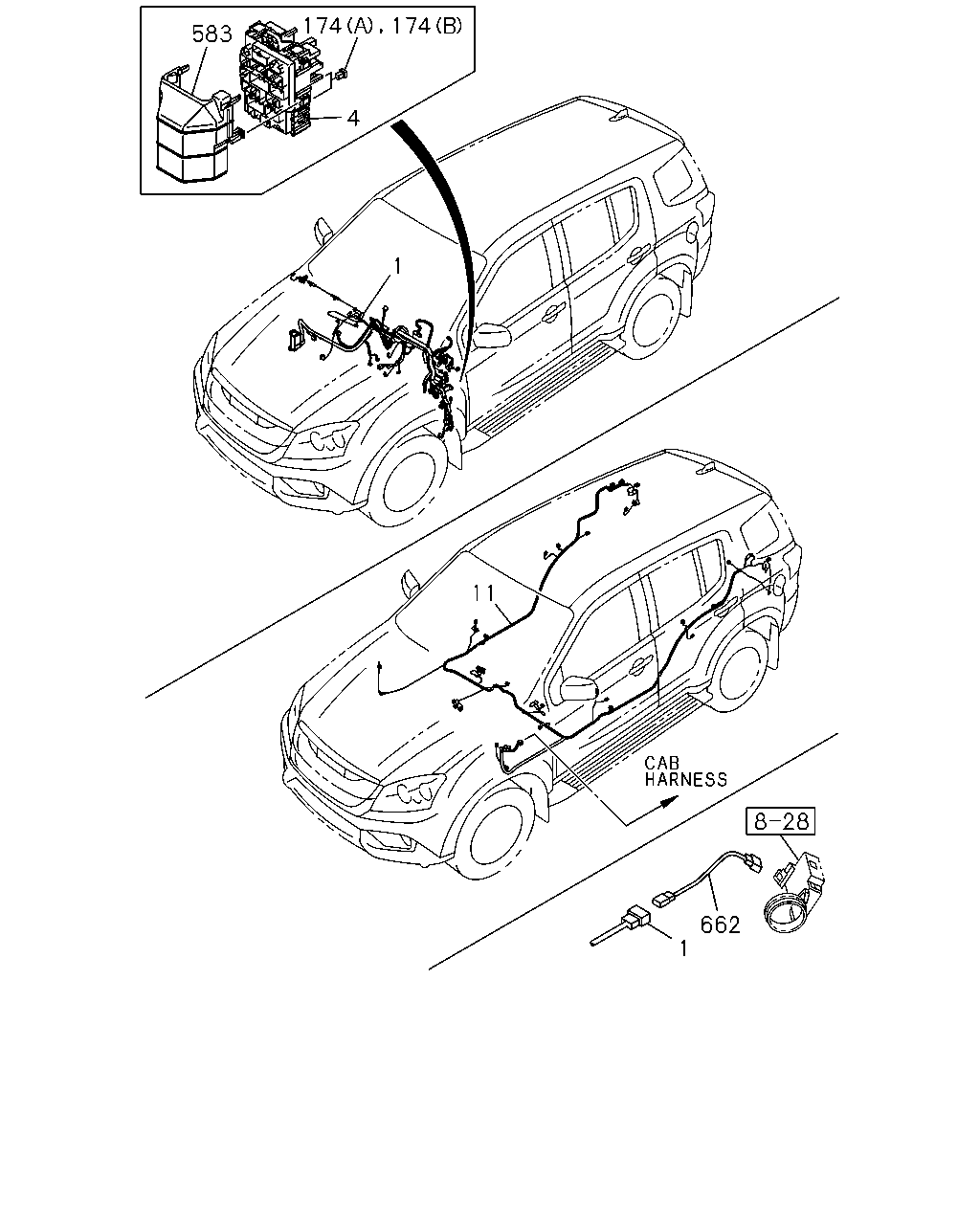

583 174 4 1 174 11 662 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. CONTINUOUS REAR WIPER<CD6>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-749-2	01	1	1407-	●
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-750-2	01	1	1407-	●
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,CONTINUOUS REAR WIPER<CD6>,2ND SEAT DVD MONITOR<U48>,RE MOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-139-2	01	1	1407-	●
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69>,2 ND SEAT DVD MONITOR<U48>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>	8-98198-140-2	01	1	1407-	●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-339-2	01	1	1407-1502	●
1	02.480 HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-339-2	01	1	1407-1502		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-339-2	01	1	1503-	●
1	02.480 HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-339-2	01	1	1503-		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48>	8-98250-341-2	01	1	1407-	●
1	02.480 HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48>	8-98250-341-2	01	1	1407-		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-340-2	01	1	1407-1502	●
1	02.480 HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-340-2	01	1	1407-1502		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-340-2	01	1	1503-	●
1	02.480 HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-340-2	01	1	1503-		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48>	8-98250-342-2	01	1	1407-	●
1	02.480 HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48>	8-98250-342-2	01	1	1407-		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-758-2	01	1	1407-1502	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-758-2	01	1	1407-1502		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-758-2	01	1	1503-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-758-2	01	1	1503-		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-759-2	01	1	1407-1502	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-759-2	01	1	1407-1502		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-759-2	01	1	1503-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-759-2	01	1	1503-		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48>	8-98198-134-2	01	1	1407-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48>	8-98198-134-2	01	1	1407-		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-135-2	01	1	1407-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-135-2	01	1	1407-		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-760-2	01	1	1407-1502	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-760-2	01	1	1407-1502		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-760-2	01	1	1503-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-760-2	01	1	1503-		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-761-2	01	1	1407-1502	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-761-2	01	1	1407-1502		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-761-2	01	1	1503-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-761-2	01	1	1503-		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48>	8-98198-137-2	01	1	1407-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48>	8-98198-137-2	01	1	1407-		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-138-2	01	1	1407-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-138-2	01	1	1407-		●
4	02.483 BOX ASM; FUSE,HARNESS	8-98166-752-0	01	1	1407-	●	●
11	02.480 HARNESS; BODY INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>	8-98271-906-1	01	1	1407-	●
11	02.480 HARNESS; BODY INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69>	8-98271-907-1	01	1	1407-	●
11	02.480 HARNESS; BODY INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>	8-98198-060-1	01	1	1407-	●
11	02.480 HARNESS; BODY INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69>	8-98198-061-1	01	1	1407-	●
11	02.480 HARNESS; BODY INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69>	8-98250-356-1	01	1	1407-	●
11	02.480 HARNESS; BODY PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98250-356-1	01	1	1407-		●
11	02.480 HARNESS; BODY INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69>	8-98250-357-1	01	1	1407-	●
11	02.480 HARNESS; BODY PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98250-357-1	01	1	1407-		●
11	02.480 HARNESS; BODY INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98247-964-1	01	1	1407-	●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98247-964-1	01	1	1407-		●
11	02.480 HARNESS; BODY INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98247-965-1	01	1	1407-	●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98247-965-1	01	1	1407-		●
174	08.965 FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 40A GREEN	8-98079-192-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 50A RED	8-98079-193-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (D) 60A YELLOW	8-98197-288-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 60A YELLOW	8-97219-407-0	AR	1	1407-	●	●
583	02.559 COVER; HARNESS M/T MUA 5 SPEED 5H(MWQ)	8-98179-407-0	01	1	1407-	●
662	02.525 HARNESS; IMMOBILIZER 4JK1-TCX ENG(LR0) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98163-074-0	01	1	1407-1508	●	●
662	02.525 HARNESS; IMMOBILIZER IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98163-074-0	01	1	1509-	●	●

14 184 35 184 28 366 2 41 174 2 174 174 27 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1407-	●	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	1407-	●	●
14	02.727 HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-349-1	01	1	1407-	●
14	02.727 HARNESS; HEADLAMP REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-349-1	01	1	1407-		●
14	02.727 HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-348-1	01	1	1407-	●
14	02.727 HARNESS; HEADLAMP EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-348-1	01	1	1407-		●
14	02.727 HARNESS; HEADLAMP EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTITHEFT<7KY>	8-98159-346-1	01	1	1407-	●
27	08.965 FUSE UNIT 5A ORANGE	8-98281-195-0	AR	1	1407-	●	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1407-	●	●
27	08.965 FUSE UNIT 02.485 15A BLUE	8-98054-258-0	AR	1	1407-	●	●
27	08.965 FUSE UNIT 02.485 20A YELLOW	8-98054-259-0	AR	1	1407-	●	●
28	02.483 SCREW; FUSE BOX	8-97249-192-0	02	1	1407-	●	●
35	02.530 BOX; RELAY & FUSE	8-98113-097-0	01	1	1407-	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 40A GREEN	8-98079-192-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 50A RED	8-98079-193-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (D) 60A YELLOW	8-98197-288-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 60A YELLOW	8-97219-407-0	AR	1	1407-	●	●
184	02.559 COVER; RELAY & FUSE BOX (A)	8-98113-098-0	01	1	1407-	●	●
184	02.559 COVER; RELAY & FUSE BOX (B)	8-98113-099-0	01	1	1407-	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ELECTRONIC TRACTION CONTROL<NW9>	8-98271-912-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ELECTRONIC TRACTION CONTROL<NW9>	8-98271-912-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98271-913-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98271-913-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,ELECTRONIC TRACTION CONTROL<NW9>, STRG WHL AUDIO CONTROL SW<8NE>	8-98250-364-4	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,ELECTRONIC TRACTION CONTROL<NW9>, STRG WHL AUDIO CONTROL SW<8NE>	8-98250-364-4	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE>	8-98250-365-4	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE>	8-98250-365-4	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW>	8-98250-407-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW>	8-98250-407-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> EXC. TRAILER HITCH 7 PIN<7TW>	8-98250-408-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> EXC. TRAILER HITCH 7 PIN<7TW>	8-98250-408-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-411-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-411-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> EXC. ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>	8-98250-412-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> EXC. ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>	8-98250-412-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98220-964-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98220-964-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW>	8-98198-117-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW>	8-98198-117-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98220-966-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98220-966-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98198-119-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98198-119-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL <NW9>	8-98271-914-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL <NW9>	8-98271-914-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL <NW9>,TRAILER HITCH 7 PIN<7TW>	8-98271-915-3	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL <NW9>,TRAILER HITCH 7 PIN<7TW>	8-98271-915-3	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,ELECT RONIC TRACTION CONTROL<NW9>,STRG WHL AUDIO CONTROL SW<8NE>	8-98220-967-4	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,ELECT RONIC TRACTION CONTROL<NW9>,STRG WHL AUDIO CONTROL SW<8NE>	8-98220-967-4	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,ELECT RONIC TRACTION CONTROL<NW9>,TRAILER HITCH7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE>	8-98198-120-4	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,ELECT RONIC TRACTION CONTROL<NW9>,TRAILER HITCH7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE>	8-98198-120-4	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW>	8-98250-405-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW>	8-98250-405-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> EXC. TRAILER HITCH 7 PIN<7TW>	8-98250-406-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> EXC. TRAILER HITCH 7 PIN<7TW>	8-98250-406-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> TRAILER HITCH 7 PIN<7TW> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-409-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> TRAILER HITCH 7 PIN<7TW> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-409-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>	8-98250-410-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>, TRAILER HITCH 7 PIN<7TW>	8-98250-410-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98220-963-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM ELECTRONIC TRACTION CONTROL<NW9> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98220-963-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW>	8-98198-116-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW>	8-98198-116-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98220-965-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98220-965-3	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98198-118-3	01	1	1407-1508		●
366	02.525 HARNESS; CABLE,ENG ROOM EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,TRAILER HITCH 7 PIN<7TW>	8-98198-118-3	01	1	1509-		●
417	02.530 CONNECTOR ASM; ENG HARNESS COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF)	8-97362-918-0	01	1	1407-	●
417	02.530 CONNECTOR ASM; ENG HARNESS COOLER W/FRESH AIR(C65)	8-97362-918-0	01	1	1407-		●

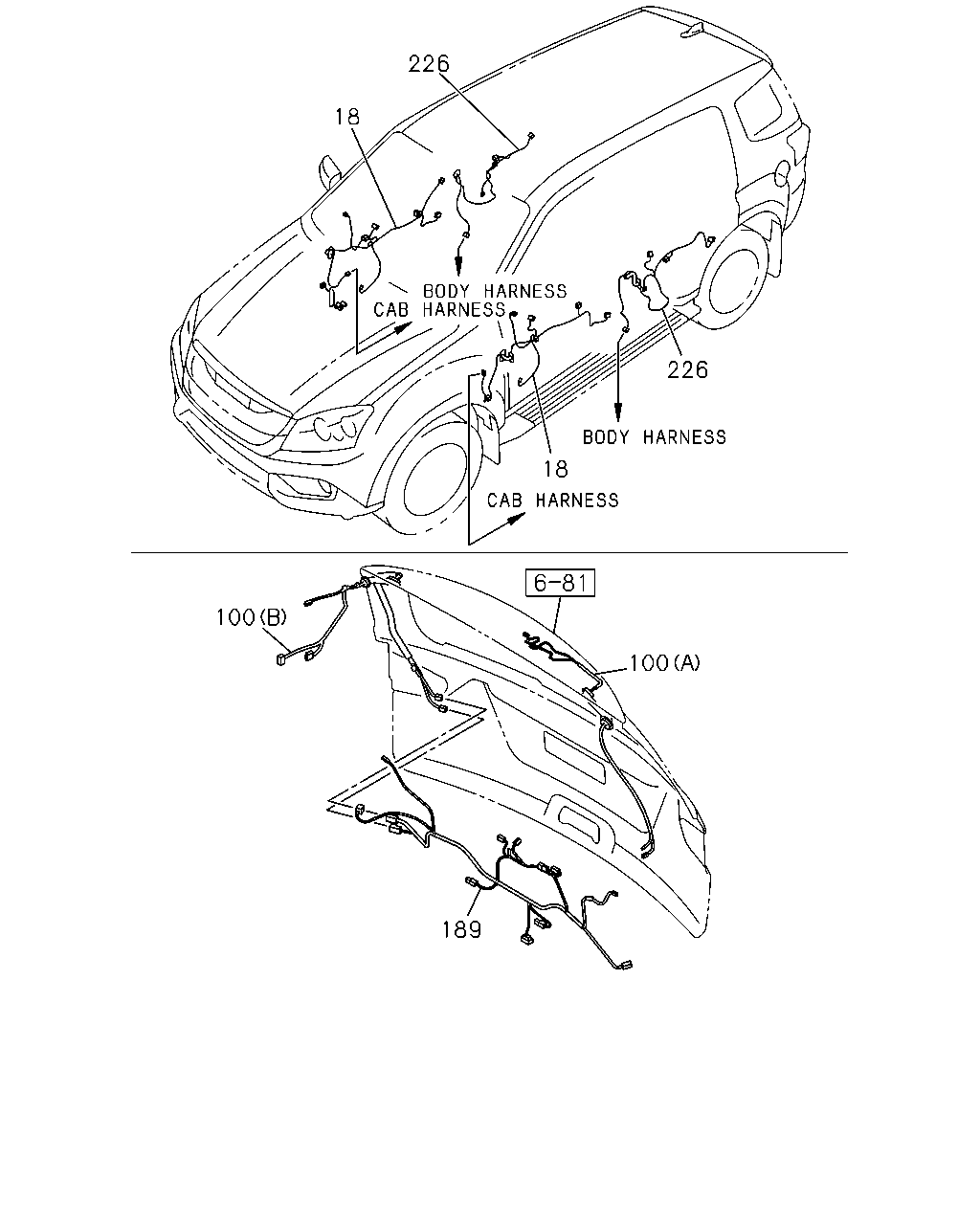

226 18 226 18 100 100 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	02.480 HARNESS; DOOR PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-287-1	01	1	1407-	●	●
18	02.480 HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98225-359-1	01	1	1407-	●	●
18	02.480 HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98225-361-1	01	1	1407-	●	●
18	02.480 HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-360-1	01	1	1407-	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-494-3	01	1	1407-	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-496-2	01	1	1407-1502	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-496-3	01	1	1503-	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-522-2	01	1	1407-	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-498-2	01	1	1407-1502	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-498-2	01	1	1503-	●
100	02.480 HARNESS; RR GATE CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> (A)	8-98198-222-2	01	1	1407-1502	●
100	02.480 HARNESS; RR GATE CONTINUOUS REAR WIPER<CD6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U48> (A)	8-98198-222-2	01	1	1407-1502	●
100	02.480 HARNESS; RR GATE RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> (A)	8-98198-222-2	01	1	1407-1502		●
100	02.480 HARNESS; RR GATE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U48> (A)	8-98198-222-2	01	1	1407-1502		●
100	02.480 HARNESS; RR GATE CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> (A)	8-98198-222-2	01	1	1503-	●
100	02.480 HARNESS; RR GATE CONTINUOUS REAR WIPER<CD6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U48> (A)	8-98198-222-2	01	1	1503-	●
100	02.480 HARNESS; RR GATE RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> (A)	8-98198-222-2	01	1	1503-		●
100	02.480 HARNESS; RR GATE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U48> (A)	8-98198-222-2	01	1	1503-		●
100	02.480 HARNESS; RR GATE INTERIOR BASIC(RBA) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> (B)	8-98274-807-0	01	1	1407-	●
100	02.480 HARNESS; RR GATE INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> (B)	8-98274-807-0	01	1	1407-	●
100	02.480 HARNESS; RR GATE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> (B)	8-98274-807-0	01	1	1407-		●
100	02.480 HARNESS; RR GATE INTERIOR BASIC(RBA) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69> (B)	8-98274-808-0	01	1	1407-	●
100	02.480 HARNESS; RR GATE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,2ND SEAT DVD MONITOR<U48> (A)	8-98206-101-2	01	1	1407-	●
189	02.480 HARNESS; EXT CONTINUOUS REAR WIPER<CD6>	8-98198-218-1	01	1	1407-1502	●	●
189	02.480 HARNESS; EXT PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48>	8-98198-218-1	01	1	1503-	●
189	02.480 HARNESS; EXT PASSIVE ENTRY AND START SYSTEM<AP3> RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48>	8-98198-218-1	01	1	1503-		●
189	02.480 HARNESS; EXT PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U48>	8-98198-219-1	01	1	1407-	●
189	02.480 HARNESS; EXT PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U48>	8-98198-219-1	01	1	1407-		●
189	02.480 HARNESS; EXT CONTINUOUS REAR WIPER<CD6> 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98198-220-1	01	1	1407-1502	●	●
189	02.480 HARNESS; EXT CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98198-220-1	01	1	1503-	●
189	02.480 HARNESS; EXT RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH, DVD W/DISPLAY(UVA) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98198-220-1	01	1	1503-		●
189	02.480 HARNESS; EXT CONTINUOUS REAR WIPER<CD6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, 2ND SEAT DVD MONITOR<U48>	8-98198-221-1	01	1	1407-	●
189	02.480 HARNESS; EXT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, 2ND SEAT DVD MONITOR<U48>	8-98198-221-1	01	1	1407-		●
189	02.480 HARNESS; EXT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,2ND SEAT DVD MONITOR<U48>	8-98198-217-1	01	1	1407-	●
226	02.480 HARNESS; RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-213-3	01	1	1407-	●	●
226	02.480 HARNESS; RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-215-3	01	1	1407-	●	●
226	02.480 HARNESS; RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-212-3	01	1	1407-1502	●	●
226	02.480 HARNESS; RR DOOR EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-212-3	01	1	1503-	●	●
226	02.480 HARNESS; RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-214-3	01	1	1407-1502	●	●
226	02.480 HARNESS; RR DOOR EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-214-3	01	1	1503-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
