◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#145086) — 15 parça

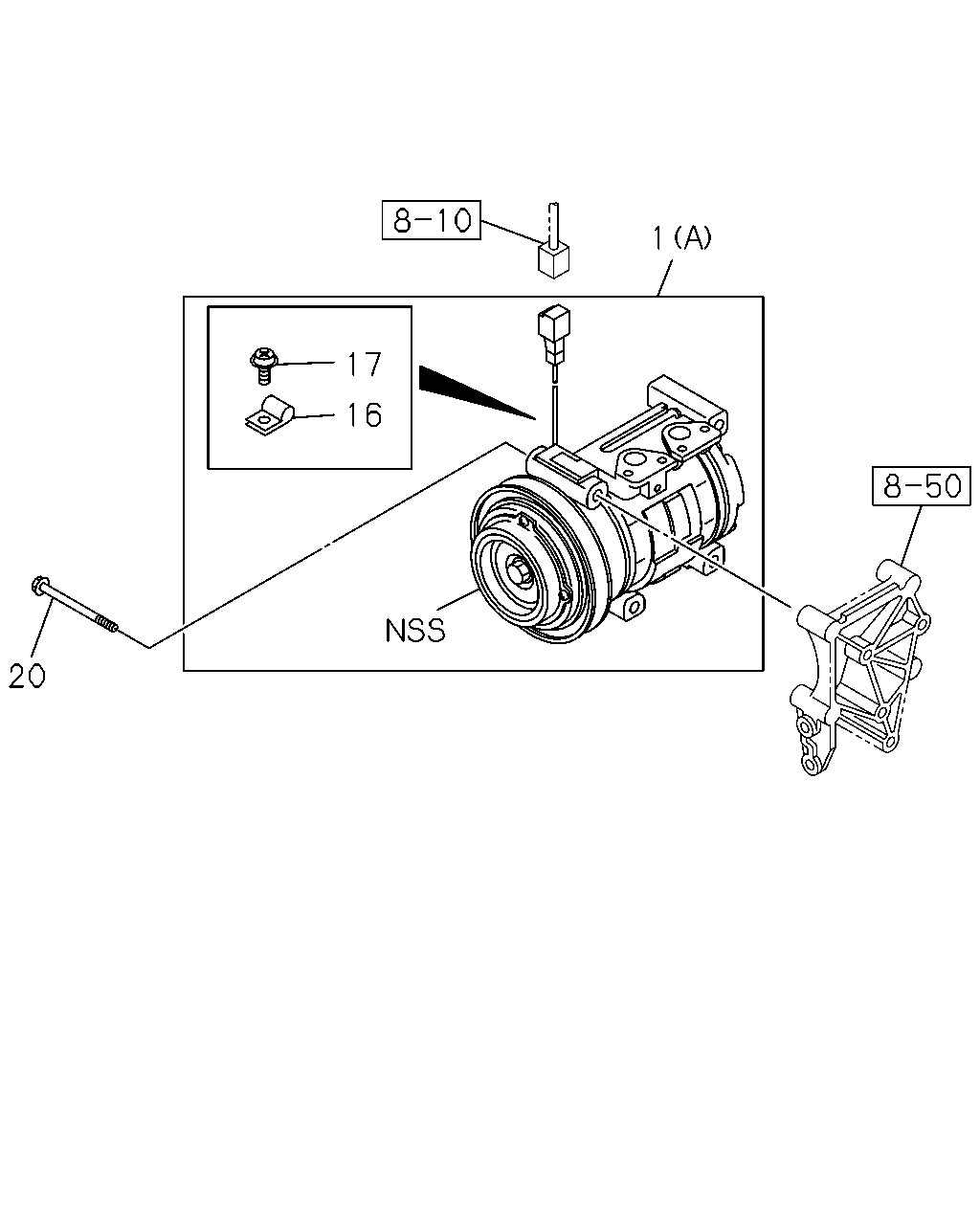

çizim 432099
1 17 16 20
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83532-328-0 01 1 1410-1504
1 COMPRESSOR ASM; A/C
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83532-328-0 01 1 1505-
1 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83532-326-1 01 1 1407-
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 1407-
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1410-1504
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1505-
17 SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 02 1 1407-
20 BOLT; CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) M8X75 FLANGE 		1-09044-073-0 04 1 1407-

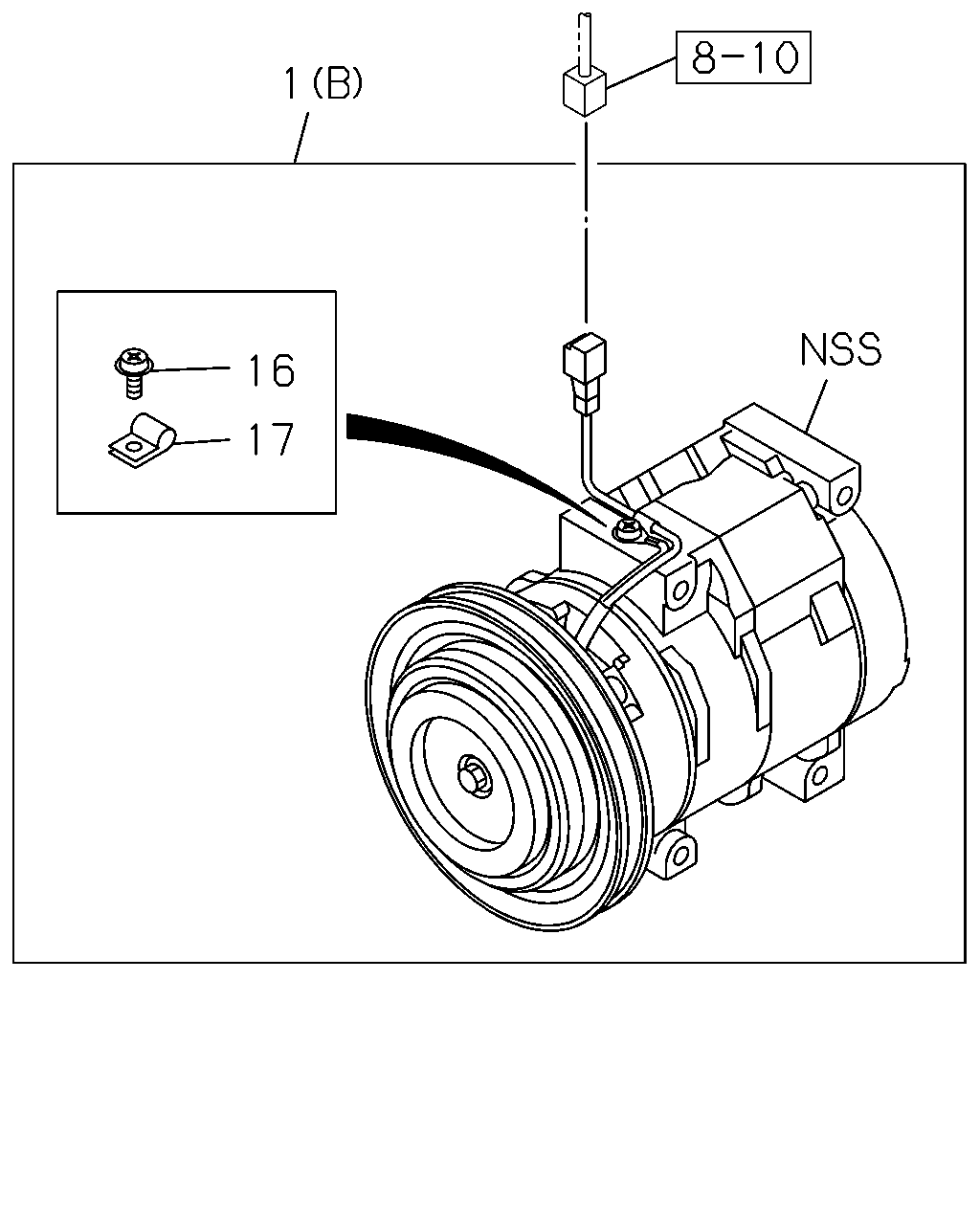

çizim 458910
1 16 17
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83532-328-0 01 1 1410-1504
1 COMPRESSOR ASM; A/C
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83532-328-0 01 1 1505-
1 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83532-326-1 01 1 1407-
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 1407-
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1410-1504
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1505-
17 SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 02 1 1407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
