8-52 — PIPING; AIR CONDITIONING (#145083) — 80 parça

158 116 171 156 202 33 12 27 33 27 27 158 174 116 158 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-329-0	01	1	1407-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1407-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1407-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1407-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE MAL	0-28650-616-0	02	1	1407-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	1407-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7	8-97095-907-0	01	1	1407-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-702-0	01	1	1407-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1407-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1407-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-331-0	01	1	1407-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-391-0	01	1	1407-

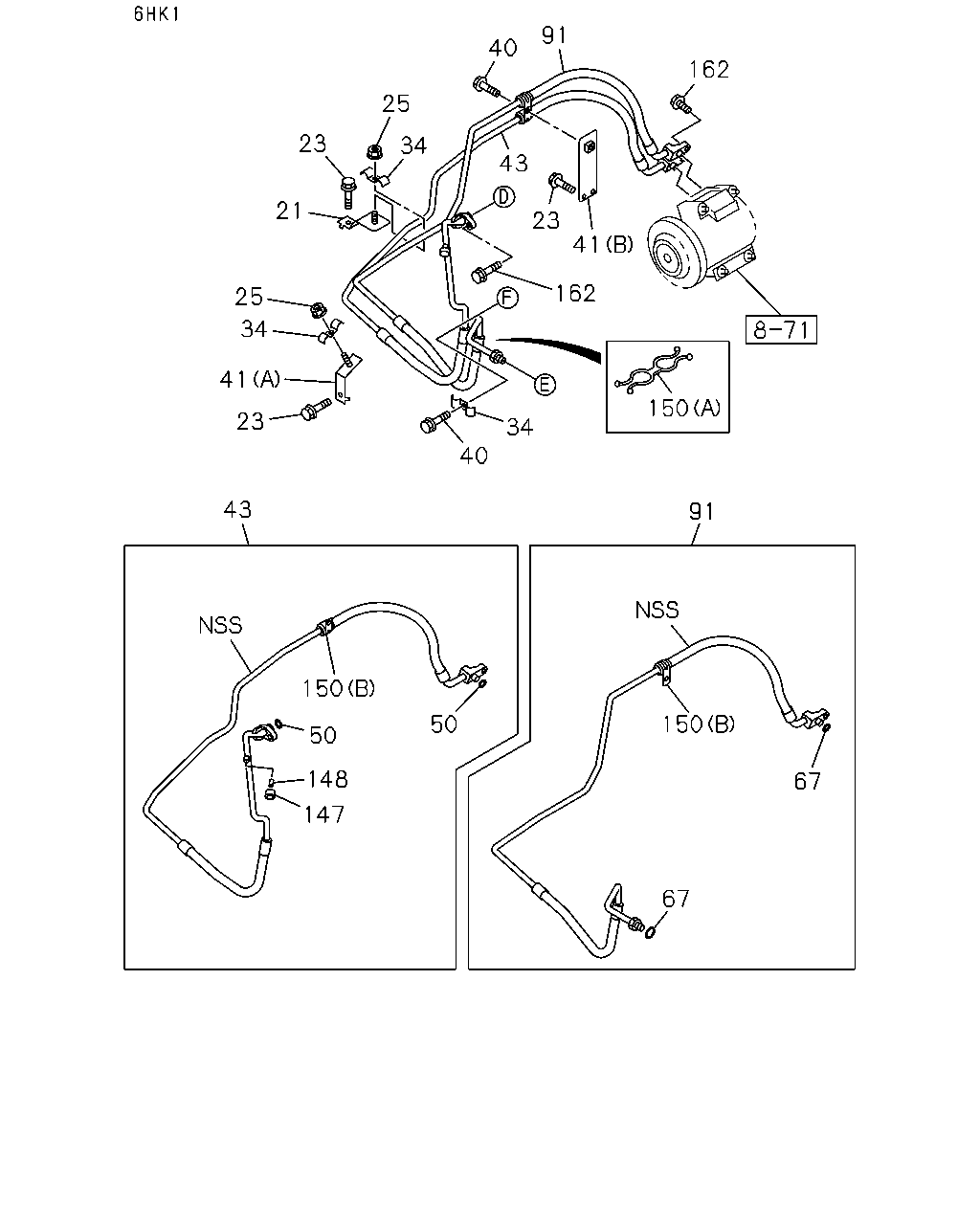

162 91 40 25 34 43 23 41 23 21 25 34 41 23 43 40 34 162 150 91 50 150 50 148 147 150 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98010-187-0	01	1	1407-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE MAL	0-28650-825-0	04	1	1407-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE MAL	0-91180-108-0	02	1	1407-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-673-0	03	1	1407-
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE MAL	0-28650-825-0	02	1	1407-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98010-188-1	01	1	1407-
41	BRACKET; PIPE CLIP 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98032-049-0	01	1	1407-1409
41	BRACKET; PIPE CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98032-049-0	01	1	1410-1504
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98032-049-0	01	1	1505-
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-98052-989-2	01	1	1410-1504
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-98052-989-2	01	1	1505-
43	HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)	8-98203-012-0	01	1	1407-
50	GASKET; FLEX HOSE,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1407-1409
50	GASKET; FLEX HOSE,A/C 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1410-1504
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1505-
67	GASKET; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1407-1409
67	GASKET; FLEX HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1410-1504
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1505-
91	HOSE; FLEX,CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-98052-990-2	01	1	1410-1504
91	HOSE; FLEX,CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-98052-990-2	01	1	1505-
91	HOSE; FLEX,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)	8-98203-013-0	01	1	1407-
147	CAP; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1407-1409
147	CAP; FLEX HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1410-1504
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1505-
148	VALVE; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1407-1409
148	VALVE; FLEX HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1410-1504
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1505-
150	CLIP; HOSE 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-249-0	01	1	1410-1504
150	CLIP; HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-249-0	01	1	1505-
150	CLIP; HOSE 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1410-1504
150	CLIP; HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1505-
150	CLIP; HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	02	1	1407-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94423-042-0	01	1	1407-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1407-

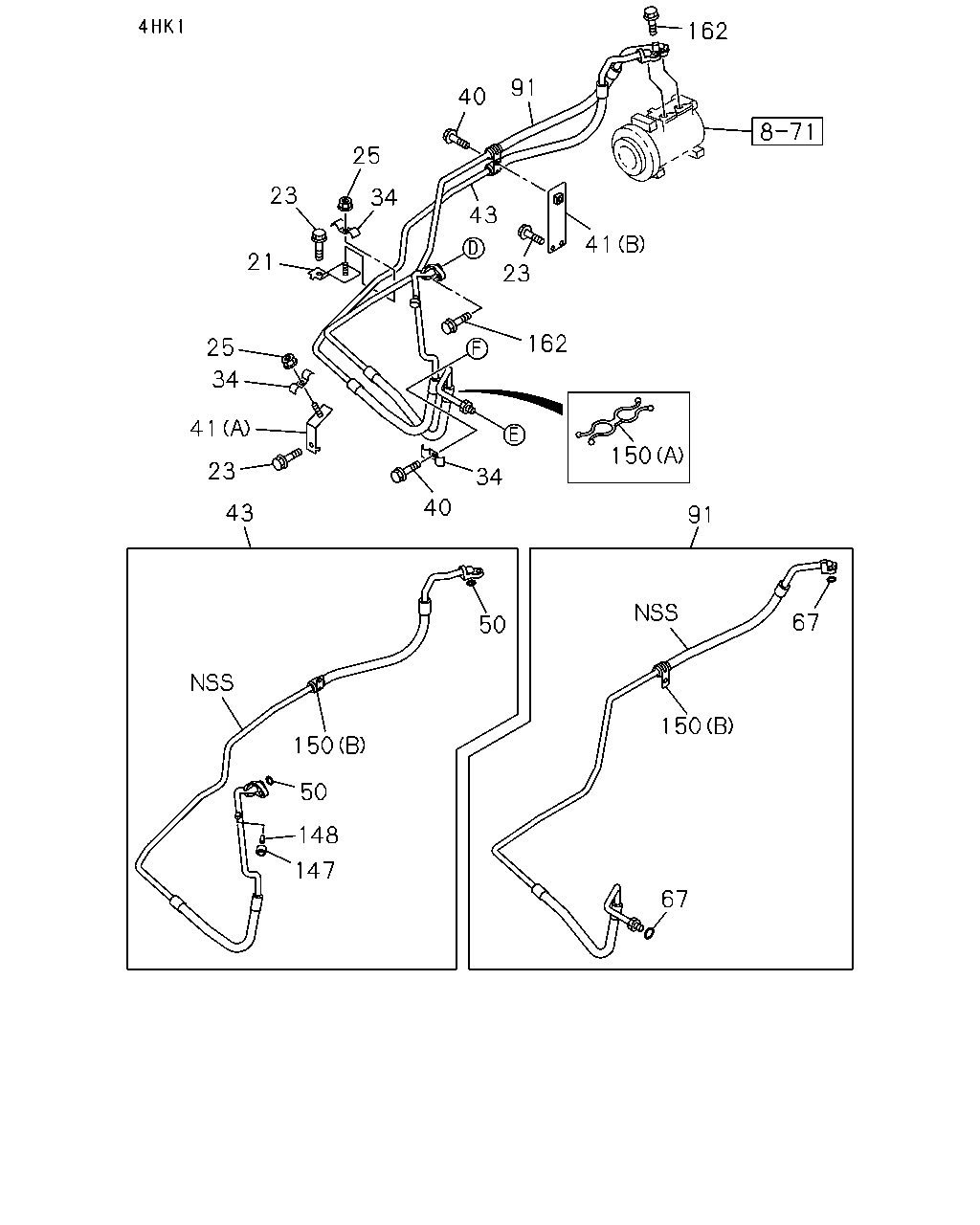

40 91 25 34 23 21 25 34 41 23 43 40 34 162 23 43 162 41 150 91 150 67 150 50 148 147 50 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98010-187-0	01	1	1407-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE MAL	0-28650-825-0	04	1	1407-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE MAL	0-91180-108-0	02	1	1407-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-673-0	03	1	1407-
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE MAL	0-28650-825-0	02	1	1407-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98010-188-1	01	1	1407-
41	BRACKET; PIPE CLIP 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98032-049-0	01	1	1407-1409
41	BRACKET; PIPE CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98032-049-0	01	1	1410-1504
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98032-049-0	01	1	1505-
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-98052-989-2	01	1	1410-1504
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-98052-989-2	01	1	1505-
43	HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)	8-98203-012-0	01	1	1407-
50	GASKET; FLEX HOSE,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1407-1409
50	GASKET; FLEX HOSE,A/C 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1410-1504
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1505-
67	GASKET; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1407-1409
67	GASKET; FLEX HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1410-1504
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1505-
91	HOSE; FLEX,CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-98052-990-2	01	1	1410-1504
91	HOSE; FLEX,CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-98052-990-2	01	1	1505-
91	HOSE; FLEX,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)	8-98203-013-0	01	1	1407-
147	CAP; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1407-1409
147	CAP; FLEX HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1410-1504
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1505-
148	VALVE; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1407-1409
148	VALVE; FLEX HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1410-1504
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1505-
150	CLIP; HOSE 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-249-0	01	1	1410-1504
150	CLIP; HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-249-0	01	1	1505-
150	CLIP; HOSE 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1410-1504
150	CLIP; HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1505-
150	CLIP; HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	02	1	1407-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94423-042-0	01	1	1407-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1407-
