◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#145078) — 68 parça

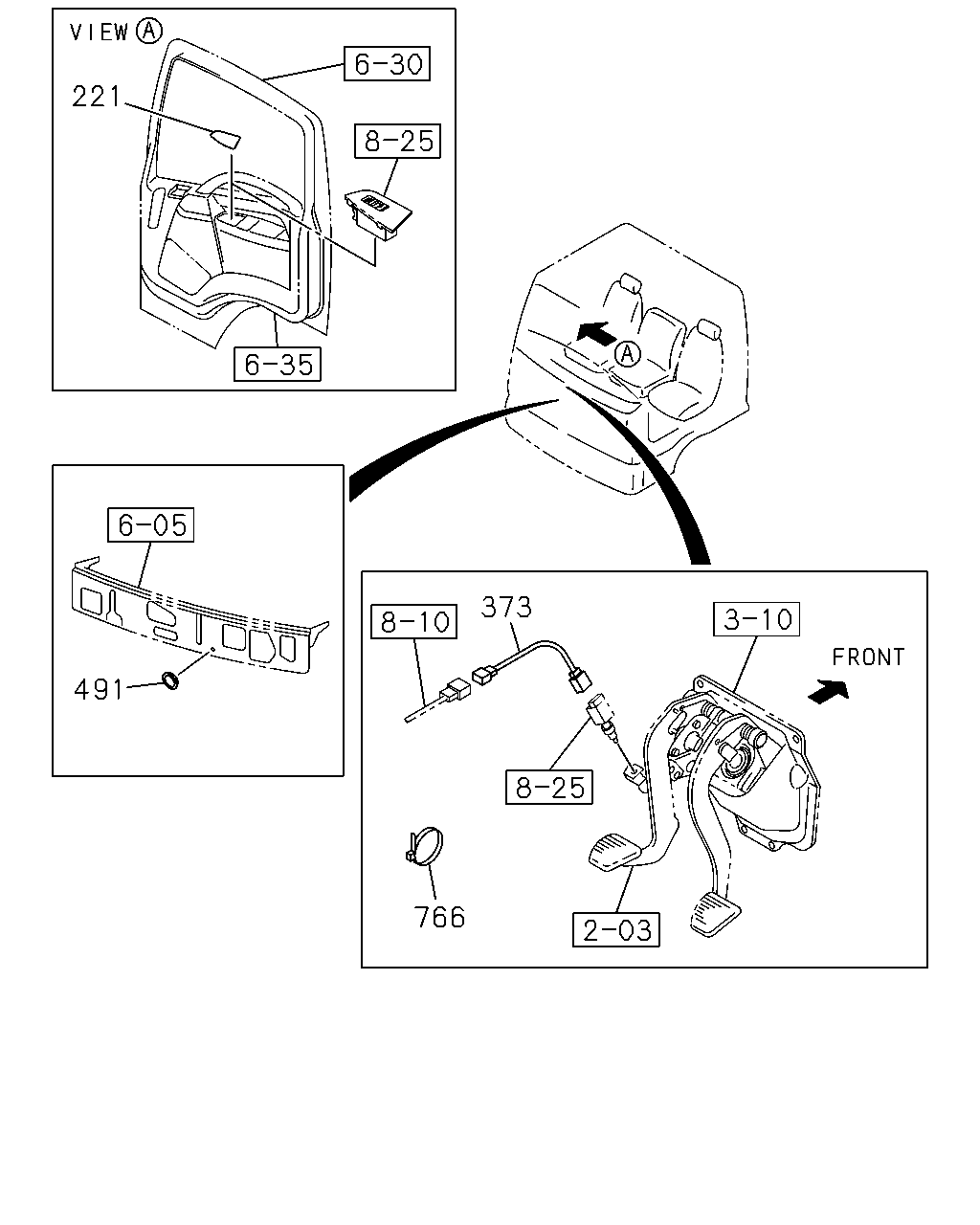

çizim 431753
221 491 373 766
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1407-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1407-
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98053-829-3 01 1 1505-
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ) 		8-98059-419-2 01 1 1407-1504
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ) 		8-98059-419-2 01 1 1505-
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98059-419-2 01 1 1505-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1407-
766 BAND; CLIP
L=140 MAL 		5-09707-031-1 01 1 1407-
çizim 431884
380 507
BalonParca AdiParca NoAdetTipApplied Date
380 SEAL
OD=25 BLACK MAL 		1-76798-019-0 01 1 1407-
507 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82690-666-0 01 1 1505-

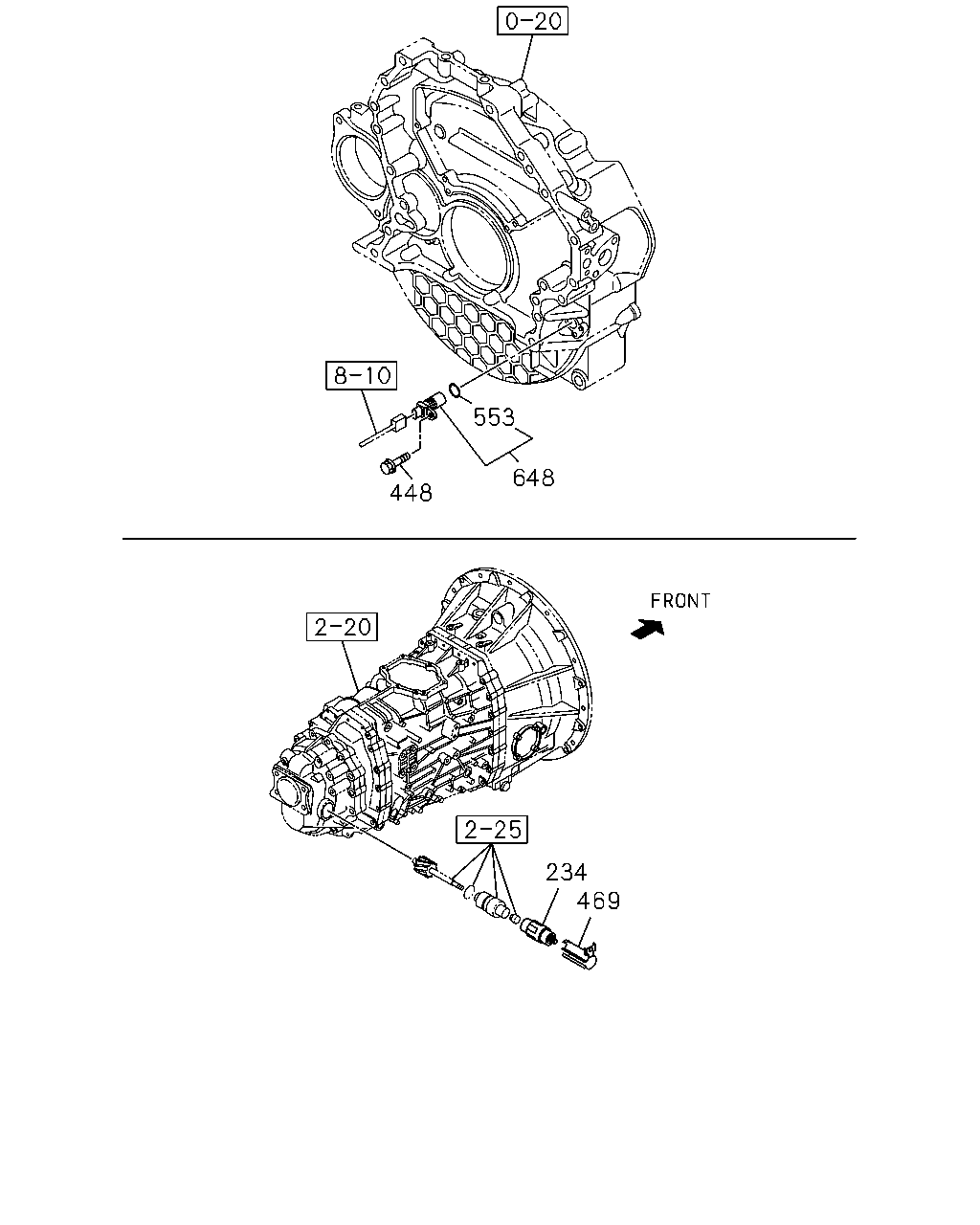

çizim 432319
648 553 448 234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
MZW6P M/T(RSZ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1408-
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) M6X16 FLANGE MAL 		0-28050-616-0 01 1 1407-
469 PROTECTOR; SPEED SENSOR
MZW6P M/T(RSZ) 		8-98119-901-0 01 1 1408-
553 GASKET
4HK1-TCS ENG(RJS) ID=14.2 OD=18.8 		8-97369-404-0 01 1 1407-
648 SENSOR; CRANK ANGLE
4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 1407-

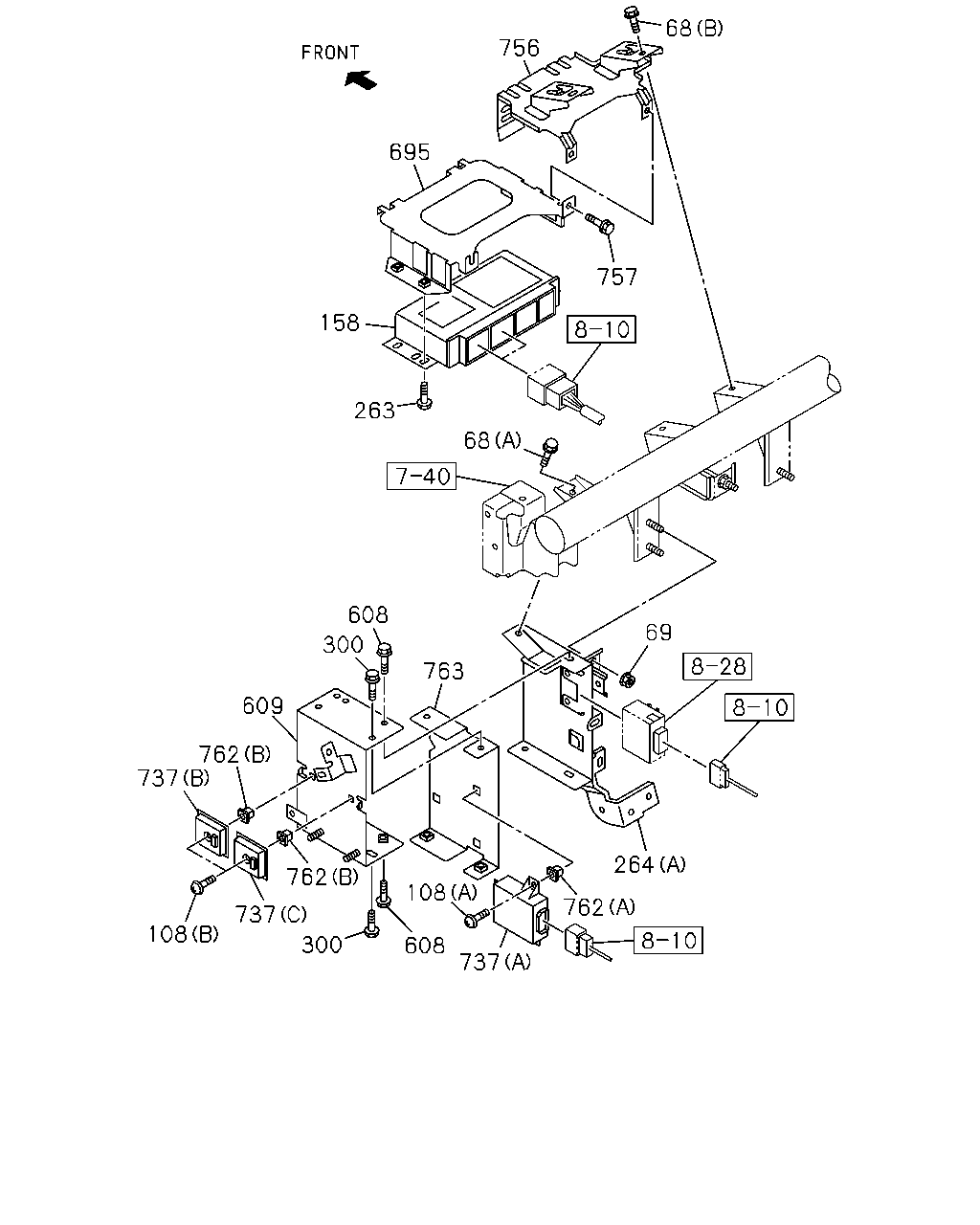

çizim 432771
756 68 695 757 158 263 68 69 608 300 763 264 762 737 108 608 300 762 737 609 762 737 108
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1505-
68 BOLT; BRKT
(A) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1407-
69 NUT; BRKT
M6 FLANGE MAL 		0-91180-106-0 01 1 1407-
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X20 TAPPING 		0-72180-620-0 03 1 1508-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1505-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) M4X25 TAPPING 		0-74160-425-0 02 1 1505-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9),TIRE 11.00R-22.5-16 RIB(55N) 		8-98222-314-0 01 1 1505-
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE MAL 		0-28650-616-0 01 1 1505-1506
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE MAL 		0-28650-616-0 04 1 1507-
264 BRACKET; CONT UNIT
ALLISON MD3060P A/T(Y4G) (B) 		8-98252-197-0 01 1 1508-
264 BRACKET; CONT UNIT
(A) 		8-97609-985-9 01 1 1407-
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE MAL 		0-28650-616-0 04 1 1505-
608 BOLT; CONT UNIT,AIR SUS
MZW6P M/T(RSZ) AUTO DOOR LOCK<AU4> M6X16 FLANGE MAL 		0-28650-616-0 05 1 1407-1504
608 BOLT; CONT UNIT,AIR SUS
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> M6X16 FLANGE MAL 		0-28650-616-0 05 1 1505-1507
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE MAL 		0-28650-616-0 05 1 1505-1507
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE MAL 		0-28650-616-0 05 1 1508-
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE MAL 		0-28650-616-0 05 1 1508-
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZW6P M/T(RSZ) AUTO DOOR LOCK<AU4> 		8-98169-737-1 01 1 1407-1504
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> 		8-98169-737-1 01 1 1505-1507
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4> 		8-98169-737-1 01 1 1505-1507
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98169-737-1 01 1 1508-
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4> 		8-98169-737-1 01 1 1508-
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 1505-
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3060P A/T(Y4G) (D) 		8-98308-361-0 01 1 1508-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 1505-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 1505-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 1505-
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> 		8-98056-411-3 01 1 1505-
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE MAL 		0-28650-616-0 02 1 1505-
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 03 1 1505-
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1505-
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-587-0 01 1 1505-

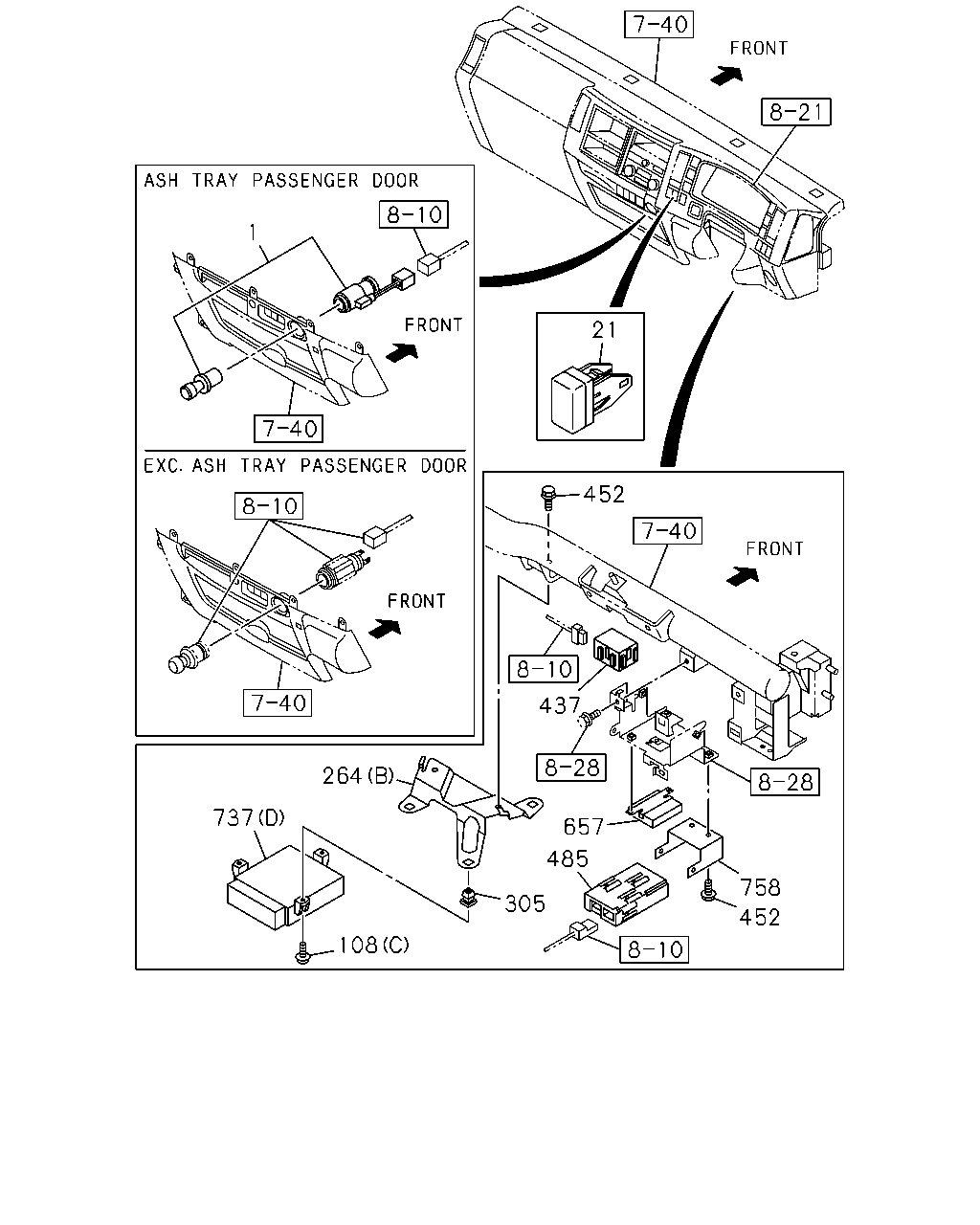

çizim 434487
1 21 452 437 657 485 305 758 452 264 737 108
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1407-
21 COVER; HOLE 8-98025-954-1 01 1 1407-
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X20 TAPPING 		0-72180-620-0 03 1 1508-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1505-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) M4X25 TAPPING 		0-74160-425-0 02 1 1505-
264 BRACKET; CONT UNIT
ALLISON MD3060P A/T(Y4G) (B) 		8-98252-197-0 01 1 1508-
264 BRACKET; CONT UNIT
(A) 		8-97609-985-9 01 1 1407-
305 NUT; CONT UNIT
ALLISON MD3060P A/T(Y4G) D=9.7X9.7 L=8 		8-94222-314-0 03 1 1508-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1407-
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE MAL 		0-28650-616-0 02 1 1505-1507
452 BOLT; BRKT
ALLISON MD3060P A/T(Y4G) M6X16 FLANGE MAL 		0-28650-616-0 02 1 1508-
452 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M6X16 FLANGE MAL 		0-28650-616-0 02 1 1508-
485 CONTROL UNIT; SPEED SENSOR
ALLISON MD3060P A/T(Y4G) 		1-80190-061-0 01 1 1508-
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 1505-
657 CONTROL UNIT; MIMAMORI 8-98260-912-1 01 1 1407-
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3060P A/T(Y4G) (D) 		8-98308-361-0 01 1 1508-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 1505-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 1505-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 1505-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 1505-1507
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 1508-
