◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#145077) — 120 parça
çizim 431984
164
BalonParca AdiParca NoAdetTipApplied Date
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1407-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC MAL 		8-97262-933-0 01 1 1407-

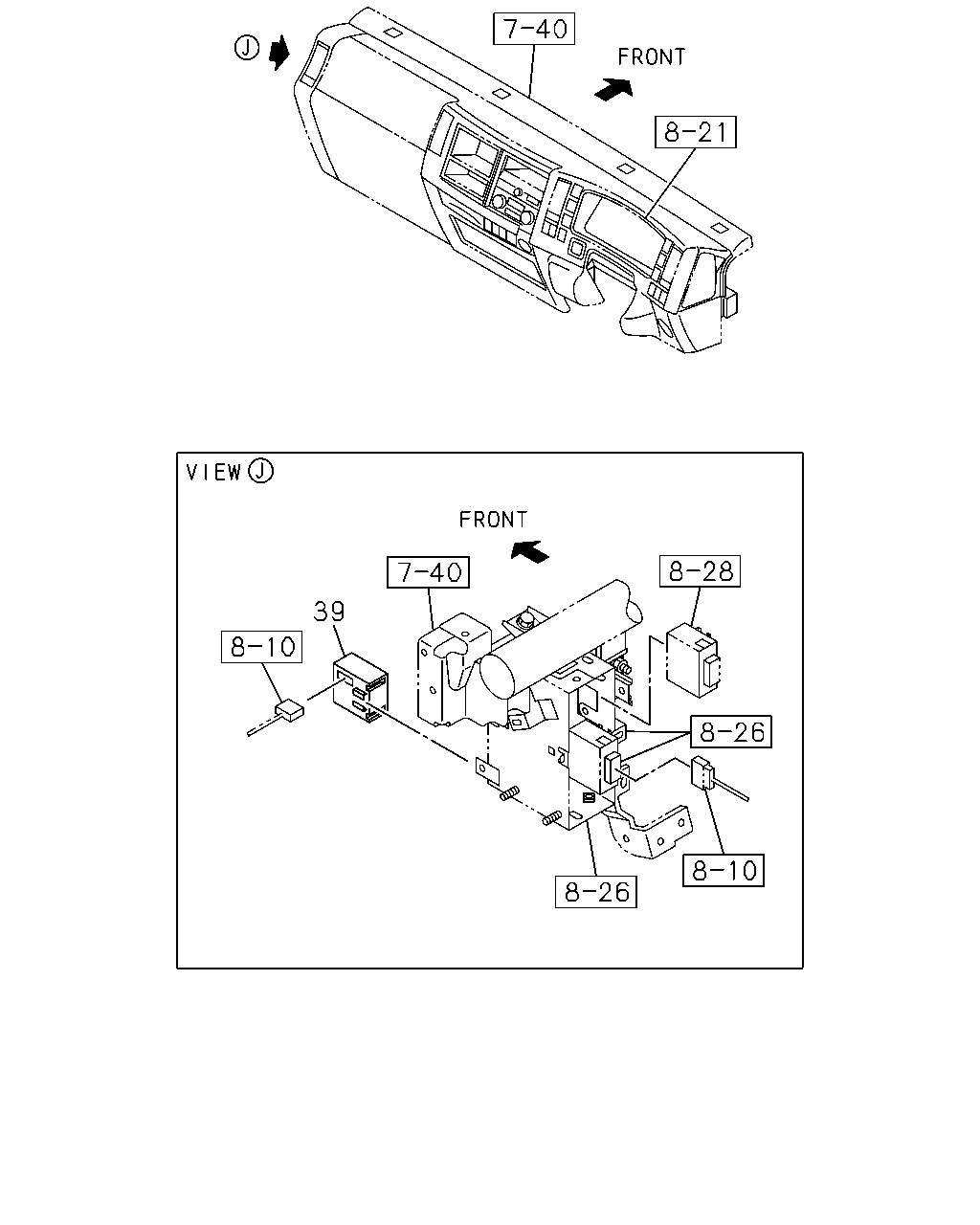

çizim 432565
39
BalonParca AdiParca NoAdetTipApplied Date
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1407-

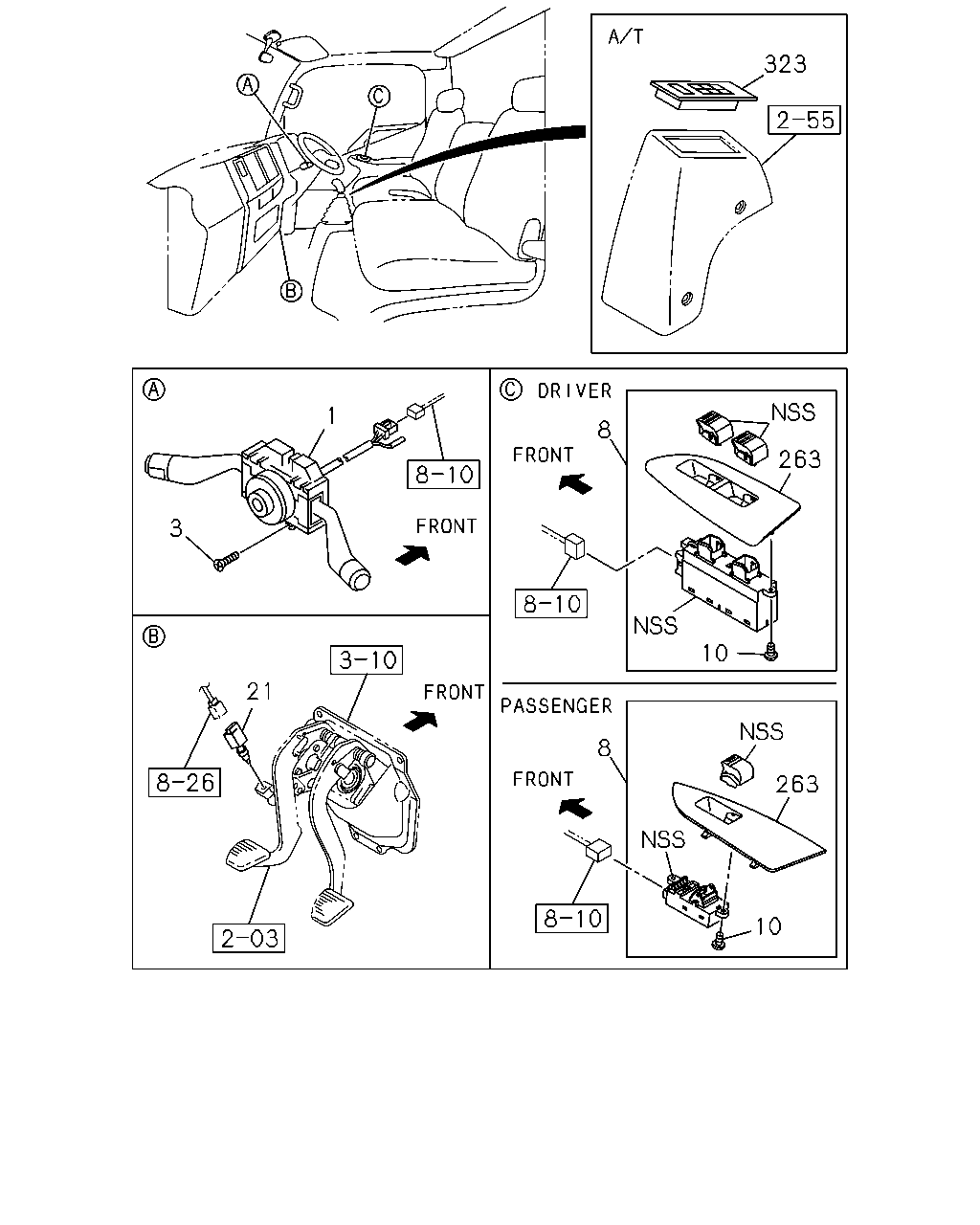

çizim 434168
323 1 3 21 8 263 10 10 263 8
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98243-704-0 01 1 1407-
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98243-706-0 01 1 1407-
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1407-
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-97387-034-2 01 1 1407-1509
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98298-750-0 01 1 1510-
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98159-543-0 01 1 1407-1509
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98316-415-0 01 1 1510-
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1407-
21 SWITCH; CLU
TRANSMISSION SIDE PTO GEAR=36/16(C5L) 		8-94337-761-0 01 1 1407-1409
21 SWITCH; CLU
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-94337-761-0 01 1 1410-1504
21 SWITCH; CLU
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-94337-761-0 01 1 1505-1507
21 SWITCH; CLU
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 1508-
21 SWITCH; CLU
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L) 		8-97358-248-0 01 1 1407-1409
21 SWITCH; CLU
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1410-1504
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1505-1507
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1508-
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98153-836-0 01 1 1407-
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98153-841-0 01 1 1407-
323 SWITCH ASM; SELECTOR
ALLISON MD3060P A/T(Y4G) 		8-98221-525-0 01 1 1508-

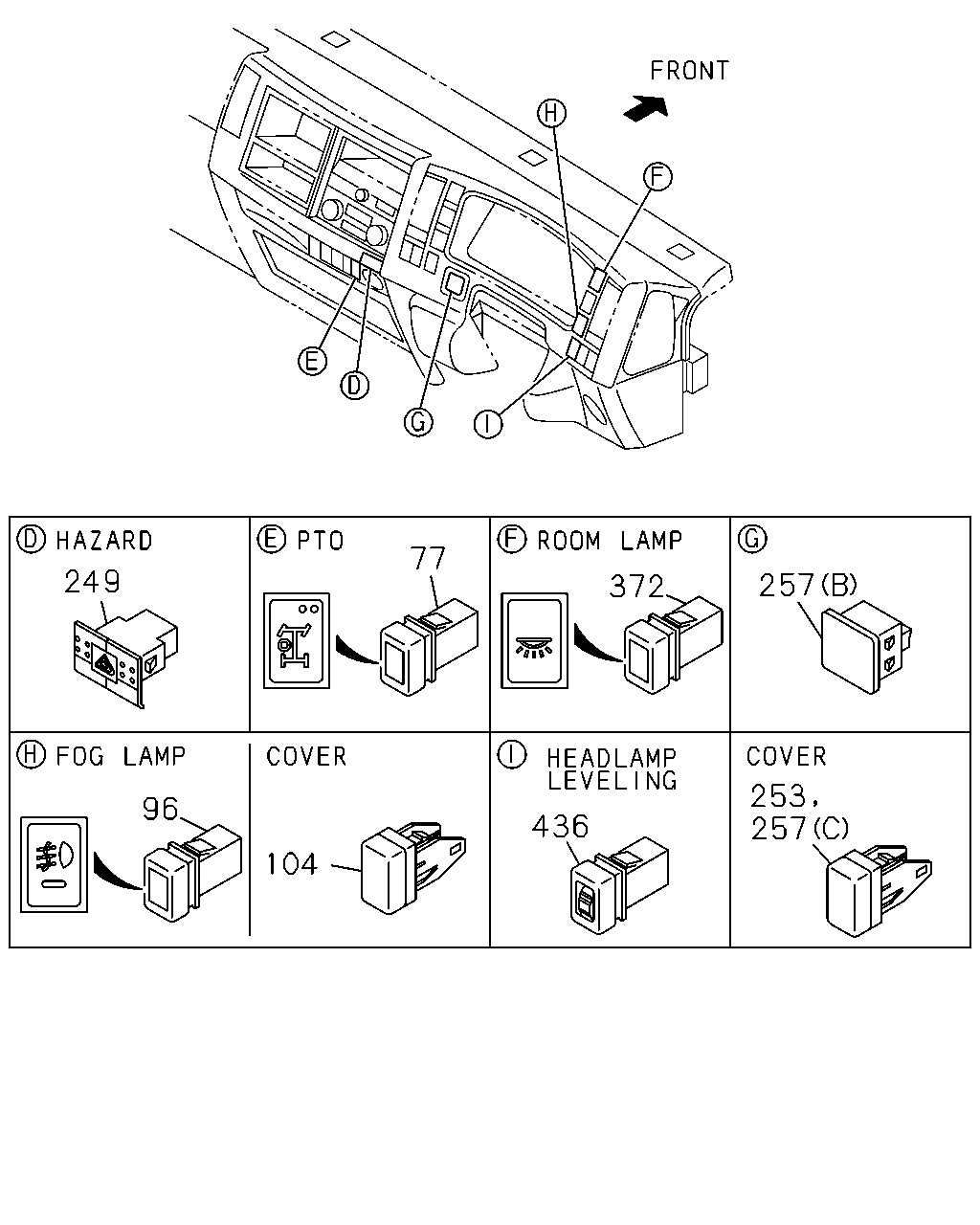

çizim 434238
249 77 372 257 96 104 436 253 257
BalonParca AdiParca NoAdetTipApplied Date
77 SWITCH; PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L) 		8-97615-488-2 01 1 1407-1409
77 SWITCH; PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-2 01 1 1410-1504
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-2 01 1 1505-1507
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 1508-
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1407-
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1407-
249 SWITCH; HAZARD 8-97386-922-1 01 1 1407-
253 COVER; SW HOLE 8-98025-954-1 01 1 1407-1408
253 COVER; SW HOLE 8-98025-954-1 01 1 1409-
253 COVER; SW HOLE 8-98025-954-1 01 1 1409-
253 COVER; SW HOLE 8-98025-954-1 01 1 1409-
253 COVER; SW HOLE 8-98025-954-1 01 1 1409-
253 COVER; SW HOLE 8-98025-954-1 03 1 1407-1408
257 COVER; HOLE,SW
(C) 		8-98025-954-1 06 1 1407-1408
257 COVER; HOLE,SW
(C) 		8-98025-954-1 05 1 1409-1501
257 COVER; HOLE,SW
(C) 		8-98025-954-1 06 1 1502-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1407-1408
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L) (C) 		8-98025-954-1 01 1 1407-1408
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1407-1408
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1407-1408
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1409-1409
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L) (C) 		8-98025-954-1 01 1 1409-1409
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1409-1409
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1409-1409
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1409-1409
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1410-1501
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1410-1501
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1410-1501
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1410-1501
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1410-1501
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1502-1504
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1502-1504
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1502-1504
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1502-1504
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1505-1507
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1505-1507
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1505-1507
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1505-1507
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1508-
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1508-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1508-
257 COVER; HOLE,SW
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1508-
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1508-
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1407-
257 COVER; HOLE,SW
(A) MAL 		8-98029-917-0 01 1 1407-
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 1407-
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1407-

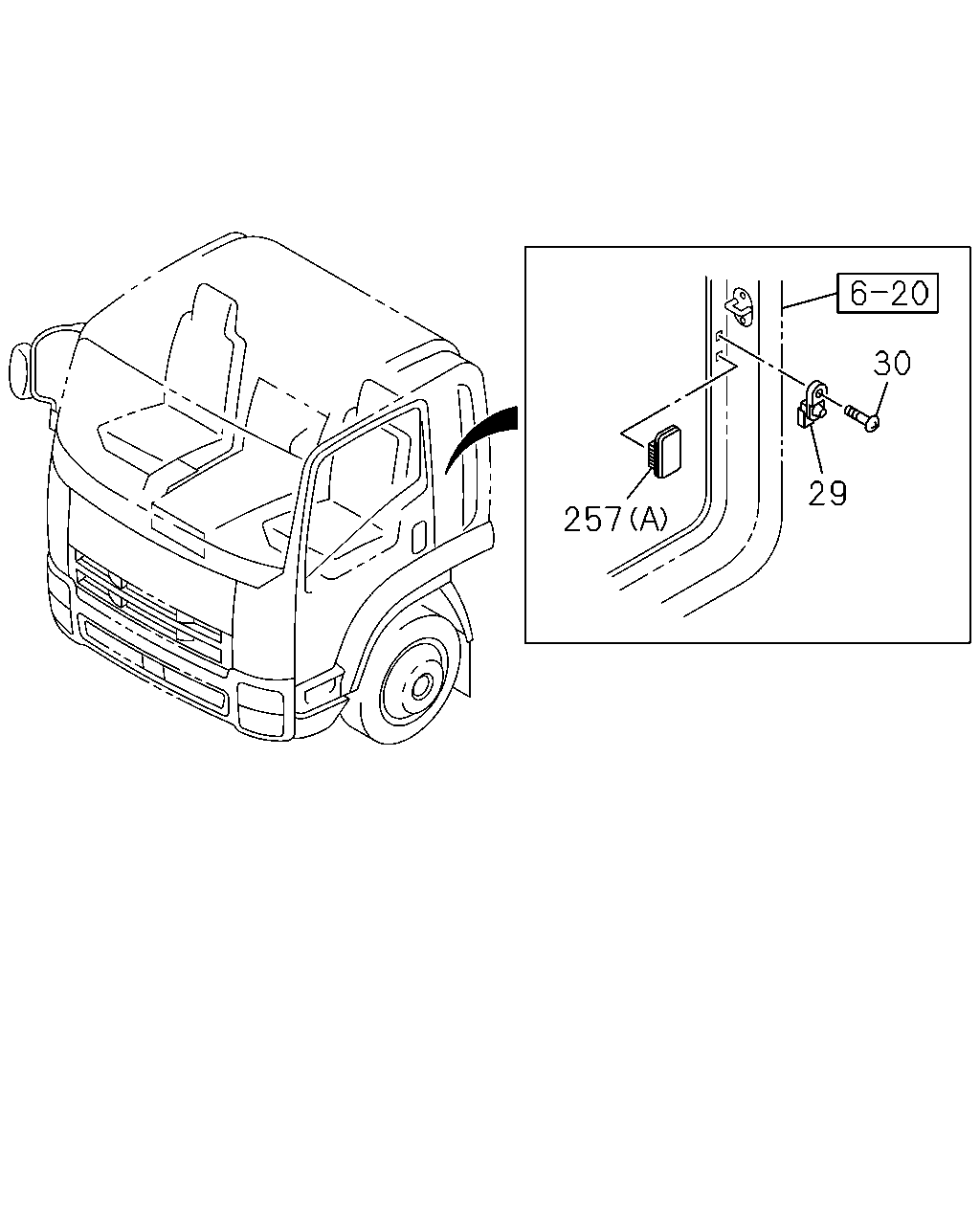

çizim 434311
30 29 257
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1407-
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1407-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 06 1 1407-1408
257 COVER; HOLE,SW
(C) 		8-98025-954-1 05 1 1409-1501
257 COVER; HOLE,SW
(C) 		8-98025-954-1 06 1 1502-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1407-1408
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L) (C) 		8-98025-954-1 01 1 1407-1408
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1407-1408
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1407-1408
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1409-1409
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L) (C) 		8-98025-954-1 01 1 1409-1409
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1409-1409
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1409-1409
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1409-1409
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1410-1501
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1410-1501
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1410-1501
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1410-1501
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1410-1501
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1502-1504
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1502-1504
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1502-1504
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1502-1504
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1505-1507
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1505-1507
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1505-1507
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1505-1507
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1508-
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1508-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1508-
257 COVER; HOLE,SW
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1508-
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1508-
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1407-
257 COVER; HOLE,SW
(A) MAL 		8-98029-917-0 01 1 1407-

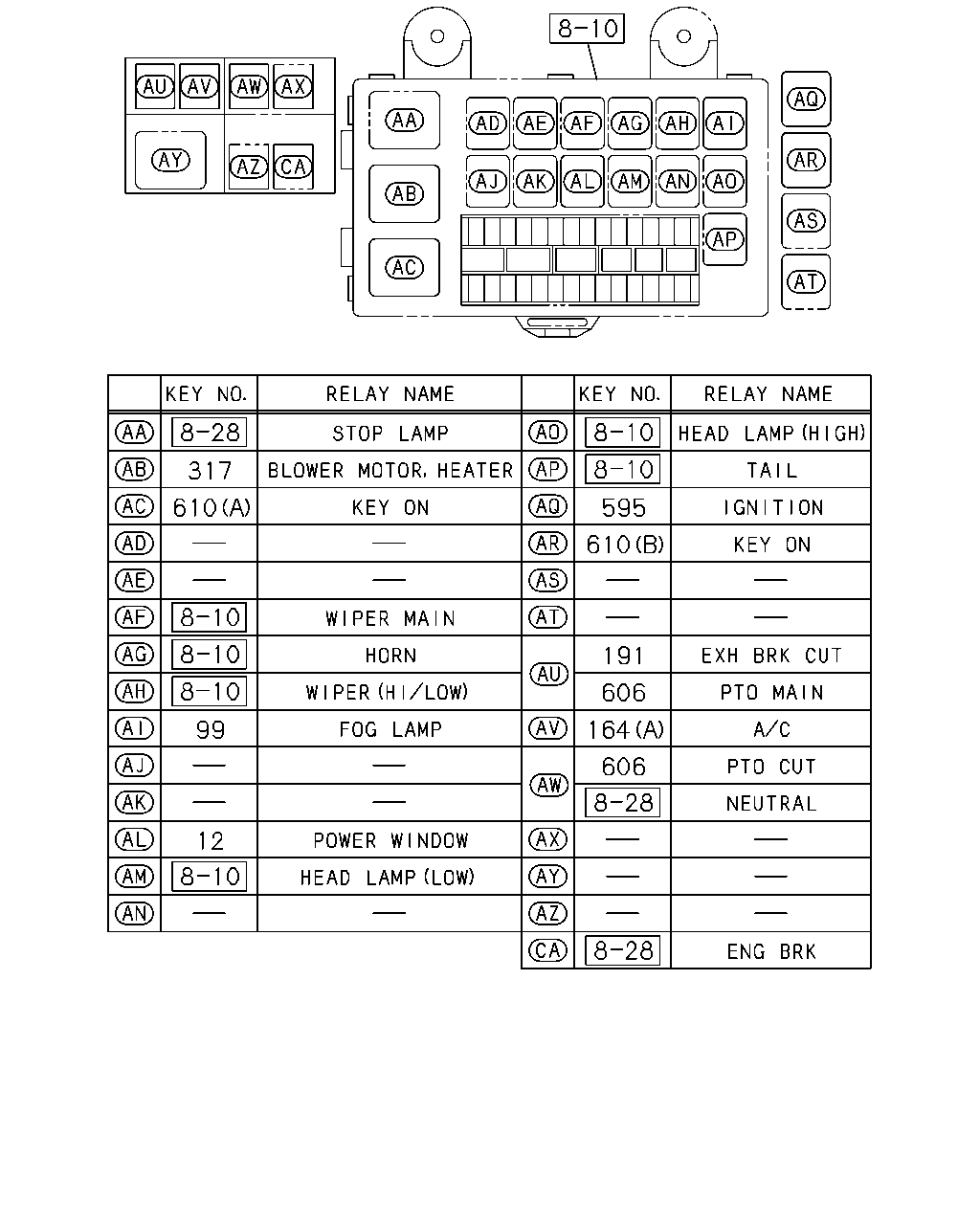

çizim 434371
317 610 99 12 595 610 191 606 164 606
BalonParca AdiParca NoAdetTipApplied Date
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1407-
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1407-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1407-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC MAL 		8-97262-933-0 01 1 1407-
191 RELAY; EXH BRK CUT
A/T<X9D> 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1508-
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC MAL 		8-97262-933-0 01 1 1407-
595 RELAY; IGNITION
24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1407-
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO GEAR=36/16(C5L) 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1407-1409
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO GEAR=36/16(C5L) 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1407-1409
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1410-1504
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1410-1504
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1505-1507
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1505-1507
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1508-
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1508-
610 RELAY; KEY ON
(B) 24V 10A PANASONIC MAL 		8-97173-035-1 01 1 1407-
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC MAL 		8-97262-933-0 01 1 1407-
