Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#145075) — 294 parça

16 483 305 305 306 16 171 483 305 305 49 483 171 483 48 48 48 483 305 503

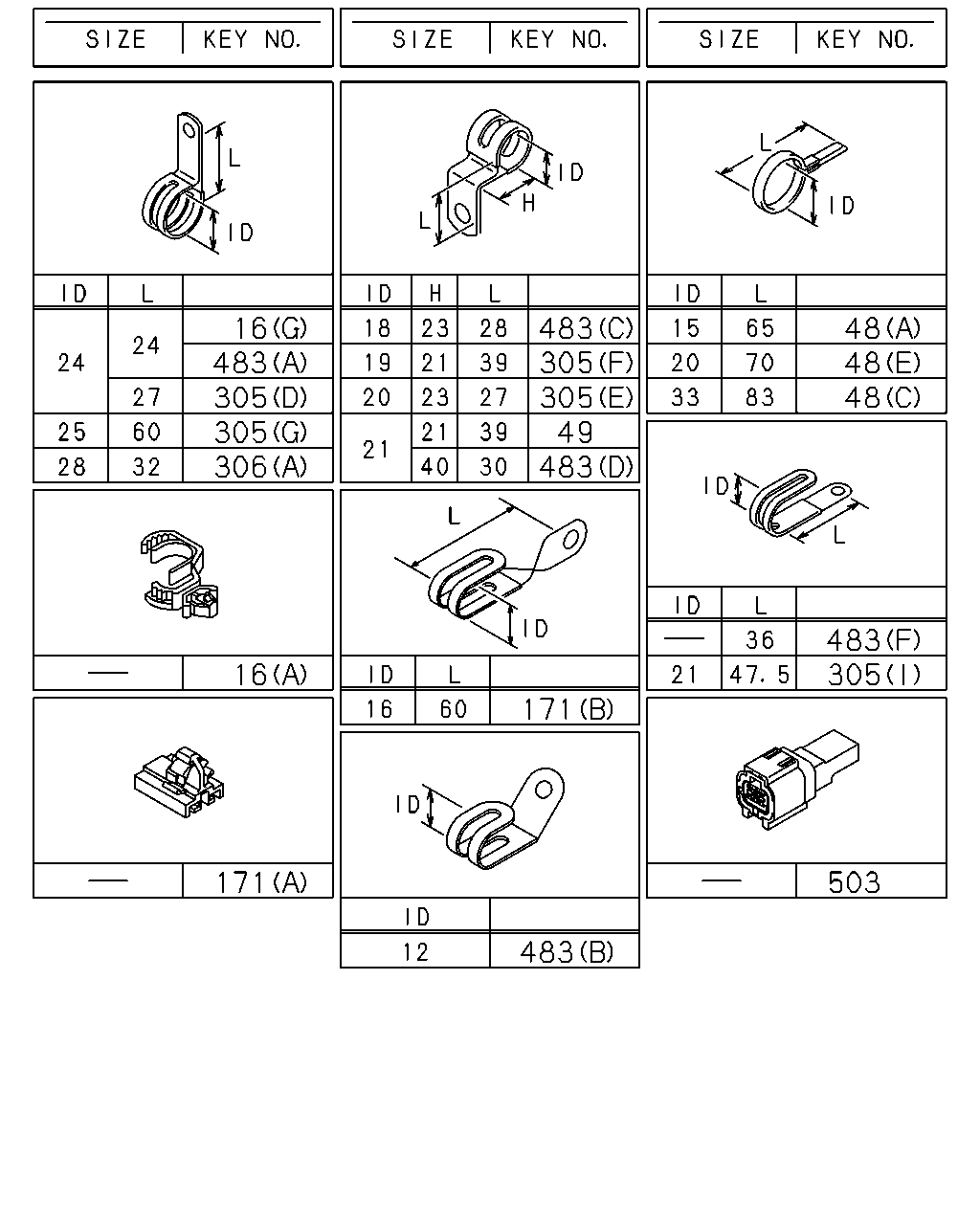

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ALLISON MD3060P A/T(Y4G) (P) ID=19 L=32	0-95235-866-0	02	1	1508-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11 L=16	0-95235-025-0	02	1	1505-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=16	0-95325-025-0	02	1	1505-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1505-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140 MAL	5-09707-031-1	01	1	1505-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (N) ID=16X2 L=50	0-95325-586-0	01	1	1505-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (O) ID=14.5 L=40	1-09701-014-0	01	1	1505-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=28	0-95235-556-0	02	1	1410-1504
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) ID=16 L=28	0-95235-556-0	02	1	1505-
16	CLIP; HARNESS (D) ID=15 H=30 L=30	1-09700-832-0	02	1	1407-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (G) ID=24 L=24	1-09701-001-1	01	1	1407-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (H) ID=15 L=28	1-09701-216-0	02	1	1407-
16	CLIP; HARNESS (A) ID=10 & 16 MAL	8-94413-325-0	01	1	1407-
16	CLIP; HARNESS (B) L=155 MAL	8-97173-307-0	18	1	1407-
16	CLIP; HARNESS (F) L=40.6 MAL	8-97229-357-0	02	1	1407-
16	CLIP; HARNESS (C) MAL	8-98052-679-0	02	1	1407-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (E) ID=17 L=21	8-98082-035-0	01	1	1407-
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (F) ID=9 L=20	0-95234-835-0	01	1	1508-
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (G) ID=9 H=20 L=25	1-09701-073-0	01	1	1508-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) ID=20 L=70	1-09700-485-0	01	1	1505-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (C) ID=33 L=83	1-09701-291-0	01	1	1410-1504
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=33 L=83	1-09701-291-0	01	1	1505-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (D) L=140 MAL	5-09707-031-1	02	1	1410-1504
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) L=140 MAL	5-09707-031-1	02	1	1505-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	02	1	1407-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	01	1	1407-1504
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15 L=65	1-09700-466-0	01	1	1505-
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) ID=21 H=21 L=39	8-98230-579-0	01	1	1407-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A) OD=8 H=3.8	1-09709-309-0	01	1	1407-1504
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) OD=8 H=3.8	1-09709-309-0	01	1	1505-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (B)	8-97101-436-0	01	1	1407-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=16 L=28	0-95235-556-0	02	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=16 L=28	0-95235-556-0	02	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=16 L=40	0-95235-576-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=16 L=40	0-95235-576-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) ID=24 L=32	1-09700-766-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=24 L=32	1-09700-766-1	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=27	1-09700-809-0	03	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=24 L=27	1-09700-809-0	03	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 L=39 H=21 MAL	1-09700-972-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F) ID=19 L=39 H=21 MAL	1-09700-972-1	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=25 L=60	1-09701-041-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (G) ID=25 L=60	1-09701-041-1	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) OD=9 H=6	1-09709-178-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (H) OD=9 H=6	1-09709-178-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=21 L=47.5	8-94178-108-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) ID=21 L=47.5	8-94178-108-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) L=100	8-94443-021-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (J) L=100	8-94443-021-1	01	1	1505-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) L=300	1-09707-001-1	01	1	1407-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=140 MAL	5-09707-031-1	02	1	1407-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=140 MAL	5-09707-031-1	01	1	1410-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1410-1504
306	CLIP; HARNESS,ELEC GOV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1505-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1410-1504
306	CLIP; HARNESS,ELEC GOV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1505-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=18 H=23 L=28	1-09700-860-0	01	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=21 L=30 H=40	1-09700-991-1	01	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=24 L=24	1-09701-001-1	01	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=16 L=50	1-09701-158-0	01	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=12 B=13 ID=6.5	5-09700-348-0	03	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=36	8-94224-891-1	02	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=24	8-98019-191-0	01	1	1407-
503	CONNECTOR 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1410-1504
503	CONNECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1505-

48 16 235 16 305 305 16 16 16 16 305 81 305 470 48 16 16 306 116 16 483 16 483 305 16 16 16

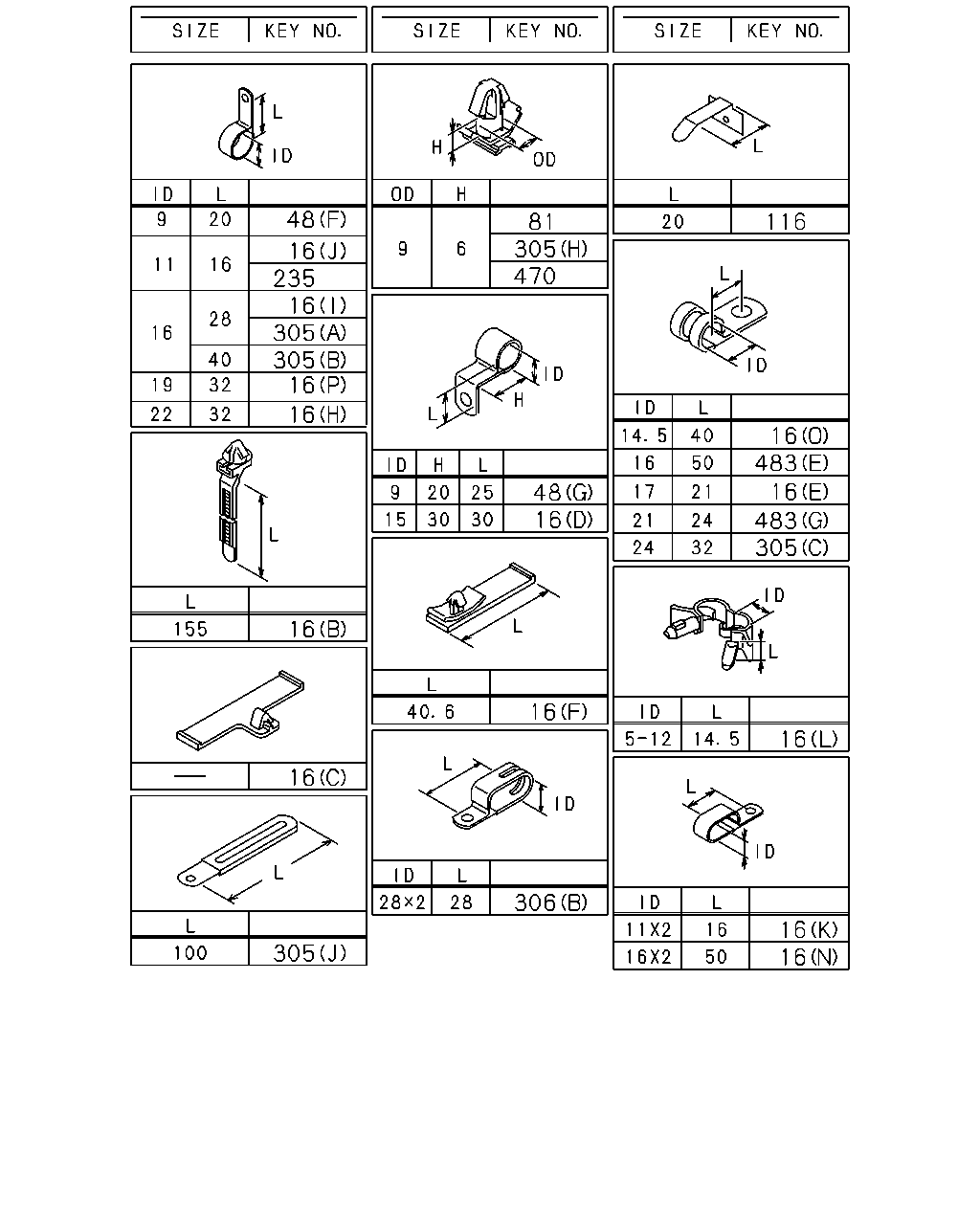

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ALLISON MD3060P A/T(Y4G) (P) ID=19 L=32	0-95235-866-0	02	1	1508-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11 L=16	0-95235-025-0	02	1	1505-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=16	0-95325-025-0	02	1	1505-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1505-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140 MAL	5-09707-031-1	01	1	1505-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (N) ID=16X2 L=50	0-95325-586-0	01	1	1505-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (O) ID=14.5 L=40	1-09701-014-0	01	1	1505-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=28	0-95235-556-0	02	1	1410-1504
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) ID=16 L=28	0-95235-556-0	02	1	1505-
16	CLIP; HARNESS (D) ID=15 H=30 L=30	1-09700-832-0	02	1	1407-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (G) ID=24 L=24	1-09701-001-1	01	1	1407-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (H) ID=15 L=28	1-09701-216-0	02	1	1407-
16	CLIP; HARNESS (A) ID=10 & 16 MAL	8-94413-325-0	01	1	1407-
16	CLIP; HARNESS (B) L=155 MAL	8-97173-307-0	18	1	1407-
16	CLIP; HARNESS (F) L=40.6 MAL	8-97229-357-0	02	1	1407-
16	CLIP; HARNESS (C) MAL	8-98052-679-0	02	1	1407-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (E) ID=17 L=21	8-98082-035-0	01	1	1407-
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (F) ID=9 L=20	0-95234-835-0	01	1	1508-
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (G) ID=9 H=20 L=25	1-09701-073-0	01	1	1508-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) ID=20 L=70	1-09700-485-0	01	1	1505-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (C) ID=33 L=83	1-09701-291-0	01	1	1410-1504
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=33 L=83	1-09701-291-0	01	1	1505-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (D) L=140 MAL	5-09707-031-1	02	1	1410-1504
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) L=140 MAL	5-09707-031-1	02	1	1505-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	02	1	1407-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	01	1	1407-1504
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15 L=65	1-09700-466-0	01	1	1505-
81	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=9 H=6	1-09709-178-0	01	1	1505-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1407-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	01	1	1407-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> ID=11 L=16	0-95235-025-0	02	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=16 L=28	0-95235-556-0	02	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=16 L=28	0-95235-556-0	02	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=16 L=40	0-95235-576-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=16 L=40	0-95235-576-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) ID=24 L=32	1-09700-766-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=24 L=32	1-09700-766-1	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=27	1-09700-809-0	03	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=24 L=27	1-09700-809-0	03	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 L=39 H=21 MAL	1-09700-972-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F) ID=19 L=39 H=21 MAL	1-09700-972-1	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=25 L=60	1-09701-041-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (G) ID=25 L=60	1-09701-041-1	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) OD=9 H=6	1-09709-178-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (H) OD=9 H=6	1-09709-178-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=21 L=47.5	8-94178-108-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) ID=21 L=47.5	8-94178-108-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) L=100	8-94443-021-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (J) L=100	8-94443-021-1	01	1	1505-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) L=300	1-09707-001-1	01	1	1407-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=140 MAL	5-09707-031-1	02	1	1407-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=140 MAL	5-09707-031-1	01	1	1410-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1410-1504
306	CLIP; HARNESS,ELEC GOV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1505-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1410-1504
306	CLIP; HARNESS,ELEC GOV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1505-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=18 H=23 L=28	1-09700-860-0	01	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=21 L=30 H=40	1-09700-991-1	01	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=24 L=24	1-09701-001-1	01	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=16 L=50	1-09701-158-0	01	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=12 B=13 ID=6.5	5-09700-348-0	03	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=36	8-94224-891-1	02	1	1407-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=24	8-98019-191-0	01	1	1407-

150 139 150 304 38 150 304 38 304 139 150 38 139 38 139 139 150 139 139 139 38 386 184 524 219 294 525 524 516 38 377 139 127 47

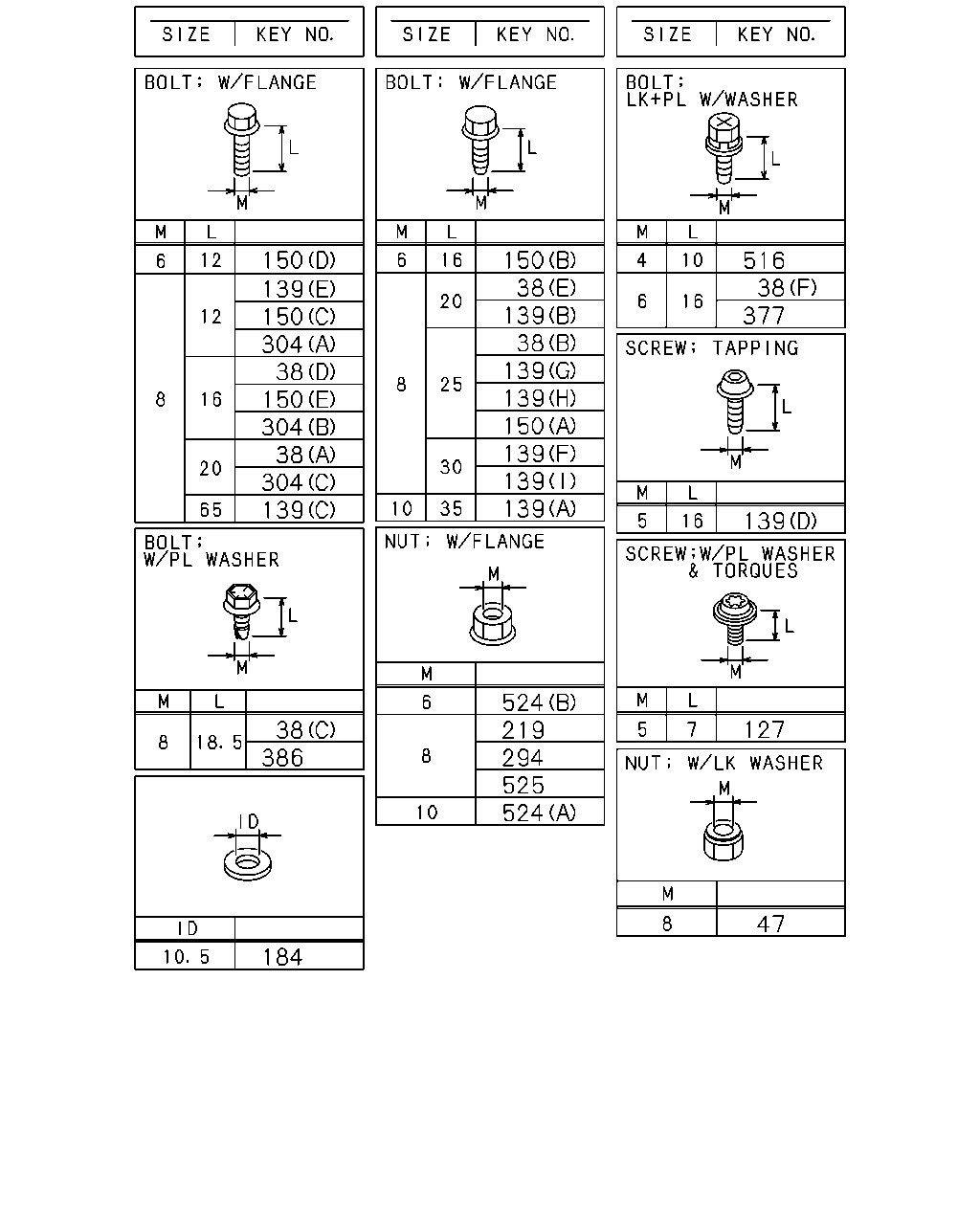

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS A/T<X9D> (F) M6X16 W/LK&PL WASHER MAL	8-97086-823-0	01	1	1508-
38	BOLT; CLIP,HARNESS ALLISON MD3060P A/T(Y4G) (E) M8X20 FLANGE MAL	0-28650-820-0	02	1	1508-
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28650-830-0	02	1	1505-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE	0-28650-830-0	02	1	1505-
38	BOLT; CLIP,HARNESS ZF9S1110 M/T(Y5E) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1505-1507
38	BOLT; CLIP,HARNESS ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1508-
38	BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS) (B) M8X25 FLANGE MAL	0-28650-825-0	03	1	1407-1409
38	BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (B) M8X25 FLANGE MAL	0-28650-825-0	03	1	1410-1504
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (E) M8X20 FLANGE MAL	0-28650-820-0	04	1	1505-
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28650-830-0	02	1	1407-1504
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE MAL	0-28650-825-0	03	1	1505-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER MAL	8-98141-255-0	03	1	1407-1507
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER MAL	8-98141-255-0	03	1	1508-
38	BOLT; CLIP,HARNESS ALLISON MD3060P A/T(Y4G) (C) M8X18.5 W/PL WASHER MAL	8-98141-255-0	03	1	1508-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1407-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (H) M8X25 FLANGE MAL	0-28650-825-0	02	1	1505-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (I) M8X30 FLANGE	0-28650-830-0	02	1	1505-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (I) M8X30 FLANGE	0-28650-830-0	04	1	1505-
139	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (H) M8X25 FLANGE MAL	0-28650-825-0	01	1	1505-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) M8X25 FLANGE MAL	0-28650-825-0	01	1	1505-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (G) M8X25 FLANGE MAL	0-28650-825-0	01	1	1410-1504
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	1505-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (F) M8X30 FLANGE	0-28650-830-0	01	1	1410-1504
139	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F) M8X30 FLANGE	0-28650-830-0	01	1	1505-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1407-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-
139	BOLT; BRKT (A) M10X35 FLANGE MAL	0-28651-035-0	01	1	1407-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X65 FLANGE	1-09044-072-1	01	1	1407-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1407-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M6X12 FLANGE MAL	0-28050-612-0	03	1	1407-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X12 FLANGE	0-28050-812-0	01	1	1407-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (E) M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M6X16 FLANGE MAL	0-28650-616-0	01	1	1407-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1407-
150	BOLT; CLIP (A) M8X25 FLANGE MAL	0-28650-825-0	02	1	1407-
184	WASHER; PL,STARTER EARTH 6HK1-TCN ENG(82L) ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1410-1504
184	WASHER; PL,STARTER EARTH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1505-
184	WASHER; PL,STARTER EARTH 4HK1-TCS ENG(RJS) ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1407-
219	NUT M8 FLANGE MAL	0-91180-108-0	02	1	1505-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE MAL	0-91180-108-0	02	1	1505-
219	NUT M8 FLANGE MAL	0-91180-108-0	02	1	1407-1504
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE MAL	0-91180-108-0	03	1	1505-
294	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE MAL	0-91180-108-0	04	1	1505-
294	NUT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	01	1	1505-
294	NUT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE MAL	0-91180-108-0	01	1	1505-
294	NUT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	01	1	1407-1504
294	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE MAL	0-91180-108-0	02	1	1505-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (A) M8X12 FLANGE	0-28050-812-0	06	1	1410-1504
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X12 FLANGE	0-28050-812-0	06	1	1505-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (B) M8X16 FLANGE MAL	0-28050-816-0	09	1	1410-1504
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X16 FLANGE MAL	0-28050-816-0	09	1	1505-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (C) M8X20 FLANGE MAL	0-28050-820-0	04	1	1410-1504
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M8X20 FLANGE MAL	0-28050-820-0	04	1	1505-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER MAL	8-97086-823-0	02	1	1407-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER MAL	8-98141-255-0	02	1	1407-
516	BOLT; HARNESS 6HK1-TCN ENG(82L) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1410-1504
516	BOLT; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1505-
524	NUT; HARNESS (A) M6 FLANGE MAL	0-91180-106-0	04	1	1407-
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE MAL	0-91180-110-0	01	1	1407-
525	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
525	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
525	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	01	1	1407-

14 16 22 48 305 14 48 491 530 14 305 14 538 1 1 178 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1410-1504
1	SLEEVE; RUBBER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1505-
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1410-1504
1	SLEEVE; RUBBER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1505-
14	CLIP; BAND,HARNESS ALLISON MD3060P A/T(Y4G) (E) L=250	8-98216-430-0	09	1	1508-
14	CLIP; BAND,HARNESS ANTI LOCK BRAKE<JE5> (F) L=250	1-09707-126-0	02	1	1505-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (D) L=350	1-09707-183-0	01	1	1410-1504
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) L=350	1-09707-183-0	01	1	1505-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (E) L=250	8-98216-430-0	08	1	1410-1504
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) L=250	8-98216-430-0	08	1	1505-1507
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (E) L=250	8-98216-430-0	08	1	1508-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (A) L=140 MAL	5-09707-031-1	02	1	1407-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (B) L=150	8-97355-273-0	01	1	1407-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (C) L=251	8-97619-917-0	01	1	1407-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (C) L=251	8-97619-917-0	02	1	1407-
16	CLIP; HARNESS ALLISON MD3060P A/T(Y4G) (P) ID=19 L=32	0-95235-866-0	02	1	1508-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11 L=16	0-95235-025-0	02	1	1505-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=16	0-95325-025-0	02	1	1505-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1505-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140 MAL	5-09707-031-1	01	1	1505-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (N) ID=16X2 L=50	0-95325-586-0	01	1	1505-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (O) ID=14.5 L=40	1-09701-014-0	01	1	1505-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=28	0-95235-556-0	02	1	1410-1504
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) ID=16 L=28	0-95235-556-0	02	1	1505-
16	CLIP; HARNESS (D) ID=15 H=30 L=30	1-09700-832-0	02	1	1407-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (G) ID=24 L=24	1-09701-001-1	01	1	1407-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (H) ID=15 L=28	1-09701-216-0	02	1	1407-
16	CLIP; HARNESS (A) ID=10 & 16 MAL	8-94413-325-0	01	1	1407-
16	CLIP; HARNESS (B) L=155 MAL	8-97173-307-0	18	1	1407-
16	CLIP; HARNESS (F) L=40.6 MAL	8-97229-357-0	02	1	1407-
16	CLIP; HARNESS (C) MAL	8-98052-679-0	02	1	1407-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (E) ID=17 L=21	8-98082-035-0	01	1	1407-
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140 MAL	5-09707-031-1	02	1	1407-
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (F) ID=9 L=20	0-95234-835-0	01	1	1508-
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (G) ID=9 H=20 L=25	1-09701-073-0	01	1	1508-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) ID=20 L=70	1-09700-485-0	01	1	1505-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (C) ID=33 L=83	1-09701-291-0	01	1	1410-1504
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=33 L=83	1-09701-291-0	01	1	1505-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (D) L=140 MAL	5-09707-031-1	02	1	1410-1504
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) L=140 MAL	5-09707-031-1	02	1	1505-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	02	1	1407-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	01	1	1407-1504
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15 L=65	1-09700-466-0	01	1	1505-
178	GROMMET; HARNESS ID=28 OD=35 T=25	1-09332-011-1	01	1	1407-
178	GROMMET; HARNESS ID=28 OD=35 T=25	1-09332-011-1	01	1	1407-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=16 L=28	0-95235-556-0	02	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=16 L=28	0-95235-556-0	02	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=16 L=40	0-95235-576-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=16 L=40	0-95235-576-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) ID=24 L=32	1-09700-766-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=24 L=32	1-09700-766-1	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=27	1-09700-809-0	03	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=24 L=27	1-09700-809-0	03	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 L=39 H=21 MAL	1-09700-972-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F) ID=19 L=39 H=21 MAL	1-09700-972-1	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=25 L=60	1-09701-041-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (G) ID=25 L=60	1-09701-041-1	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) OD=9 H=6	1-09709-178-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (H) OD=9 H=6	1-09709-178-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=21 L=47.5	8-94178-108-0	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) ID=21 L=47.5	8-94178-108-0	01	1	1505-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) L=100	8-94443-021-1	01	1	1410-1504
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (J) L=100	8-94443-021-1	01	1	1505-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) L=300	1-09707-001-1	01	1	1407-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=140 MAL	5-09707-031-1	02	1	1407-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=140 MAL	5-09707-031-1	01	1	1410-
491	CLIP; BAND,HTR HOSE & HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) A/T<X9D> L=250	5-09707-030-1	07	1	1508-
491	CLIP; BAND,HTR HOSE & HARNESS A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) L=250	5-09707-030-1	02	1	1508-
530	SEAL; HARNESS A/T<X9D> 180X40	1-72498-019-1	01	1	1508-
530	SEAL; HARNESS 180X40	1-72498-019-1	17	1	1407-
538	SEAL; HOLE OD=25 BLACK MAL	1-76798-019-0	01	1	1407-

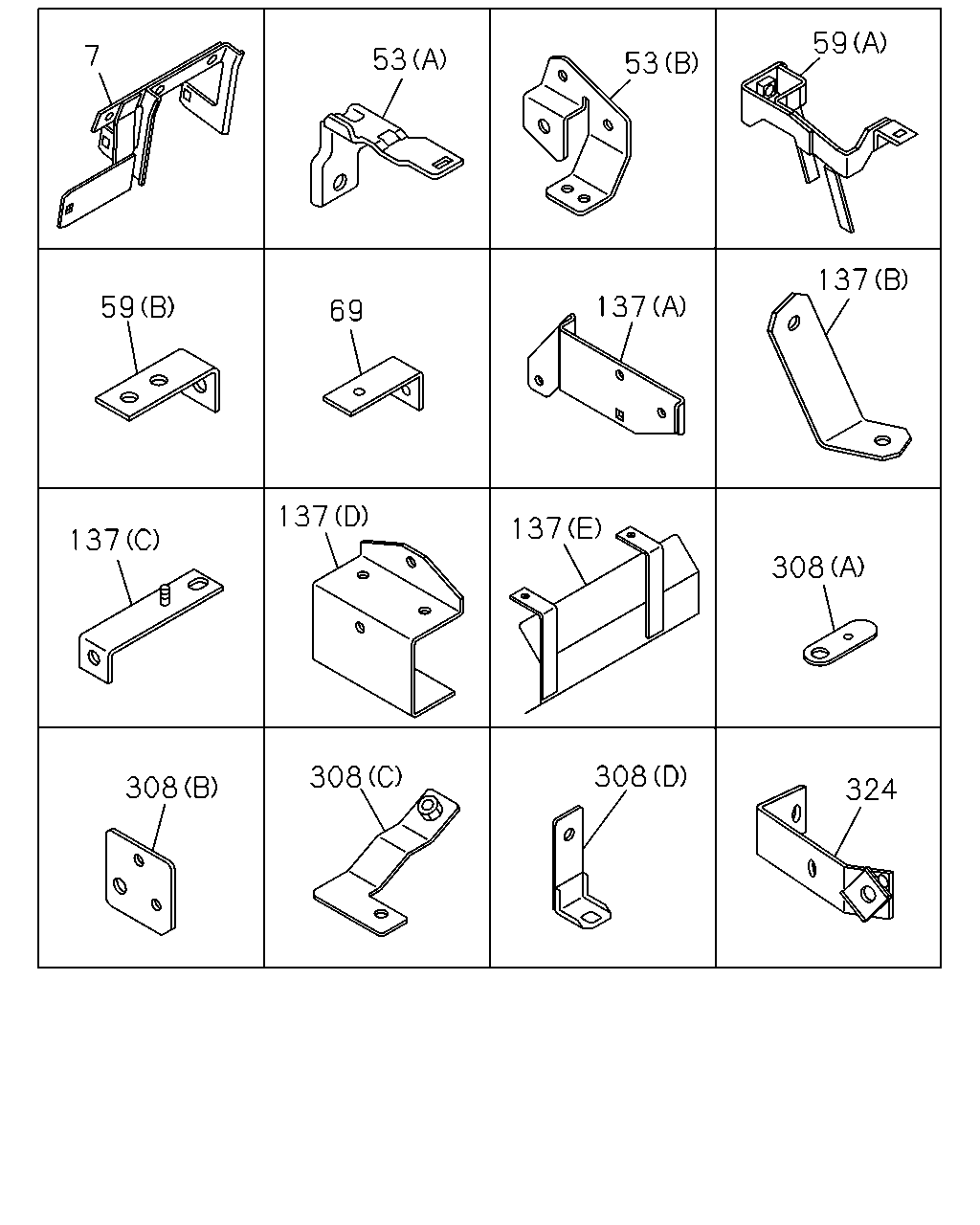

7 53 53 59 137 137 69 59 137 137 137 308 324 308 308 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1407-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1407-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98084-590-0	01	1	1407-
59	BRACKET; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=62	1-21464-170-2	01	1	1505-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (A)	8-97609-264-2	01	1	1410-1504
59	BRACKET; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-97609-264-2	01	1	1505-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A)	8-98099-963-0	01	1	1407-
69	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=55	1-47475-304-0	01	1	1505-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (D)	8-97609-797-1	02	1	1505-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (E)	8-98255-001-0	01	1	1505-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (B)	8-97614-728-1	01	1	1410-1504
137	BRACKET; HARNESS CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-97614-728-1	01	1	1505-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (C)	8-97624-013-0	01	1	1410-1504
137	BRACKET; HARNESS CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-97624-013-0	01	1	1505-
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (A)	8-98193-417-0	01	1	1407-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1410-1504
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1505-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (B)	8-98021-692-1	01	1	1410-1504
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98021-692-1	01	1	1505-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (C)	8-98032-178-0	01	1	1410-1504
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98032-178-0	01	1	1505-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98075-824-0	01	1	1410-1504
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D)	8-98075-824-0	01	1	1505-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98210-921-1	01	1	1505-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98210-922-1	01	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
