Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#145074) — 492 parça

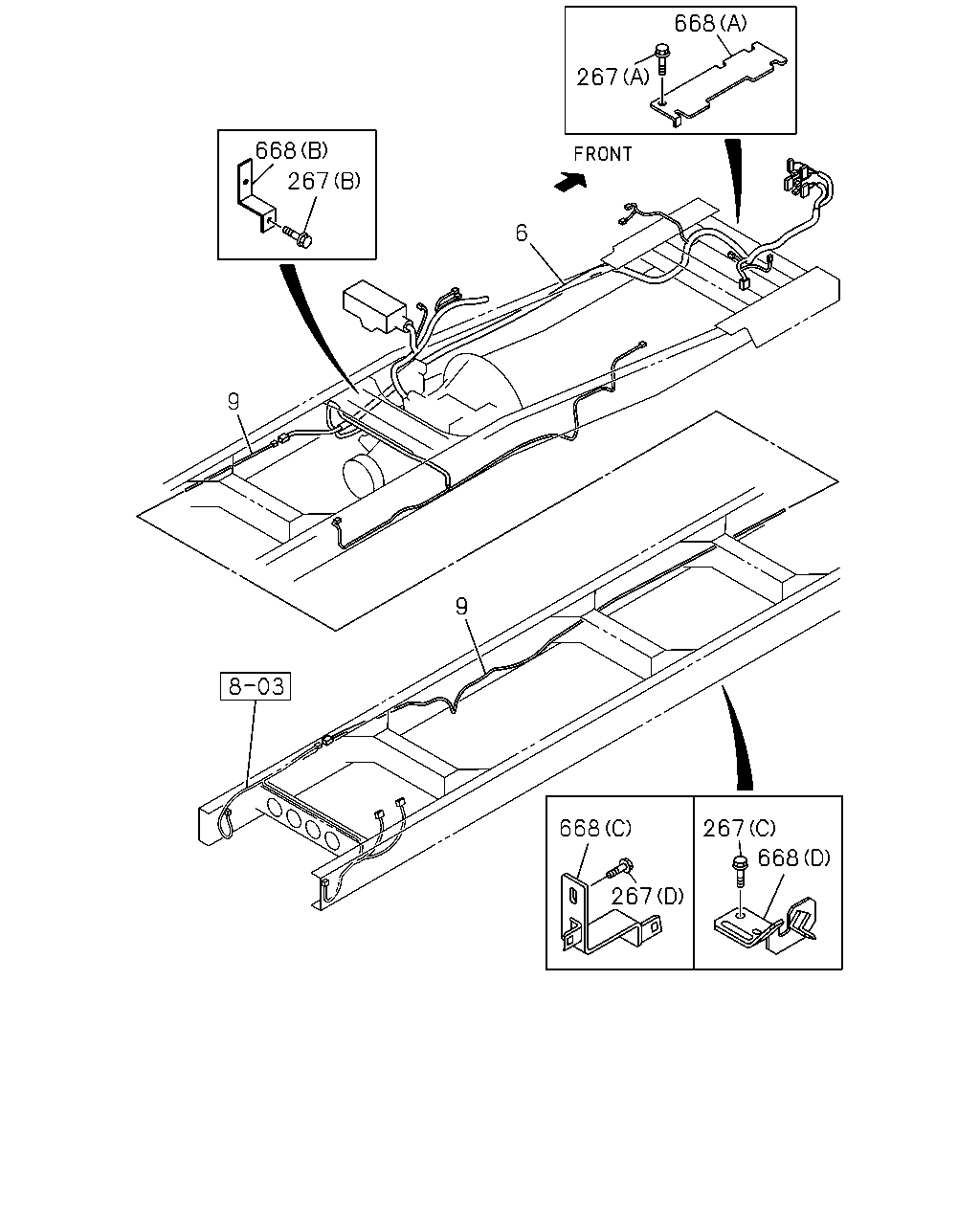

668 267 668 267 6 9 9 668 267 267 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98308-290-0	01	1	1508-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8>	8-98230-258-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-260-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8>	8-98283-471-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98283-470-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98230-259-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98230-261-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98283-473-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98283-472-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-570-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-570-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-196-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-196-0	01	1	1505-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-197-0	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-197-0	01	1	1505-
6	HARNESS; FRAME	8-98248-569-1	01	1	1407-1407
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-569-1	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-569-1	01	1	1505-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-640-0	01	1	1505-
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-645-0	01	1	1505-
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE<JE5>	8-98168-646-0	01	1	1505-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98168-655-0	01	1	1410-1504
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-655-0	01	1	1505-
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W)	8-98168-634-0	01	1	1407-1504
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-634-0	01	1	1505-
267	BOLT; BRKT 6HK1-TCN ENG(82L) (D) M8X35 FLANGE	0-28650-835-0	02	1	1410-1504
267	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) M8X35 FLANGE	0-28650-835-0	02	1	1505-
267	BOLT; BRKT (A) M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-
267	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	1407-
267	BOLT; BRKT 4HK1-TCS ENG(RJS) (D) M8X35 FLANGE	0-28650-835-0	01	1	1407-1504
267	BOLT; BRKT 4HK1-TCS ENG(RJS) (D) M8X35 FLANGE	0-28650-835-0	01	1	1505-
267	BOLT; BRKT ANTI LOCK BRAKE<JE5> (D) M8X35 FLANGE	0-28650-835-0	01	1	1505-
267	BOLT; BRKT (C) M10X25 FLANGE MAL	0-28651-025-0	02	1	1407-

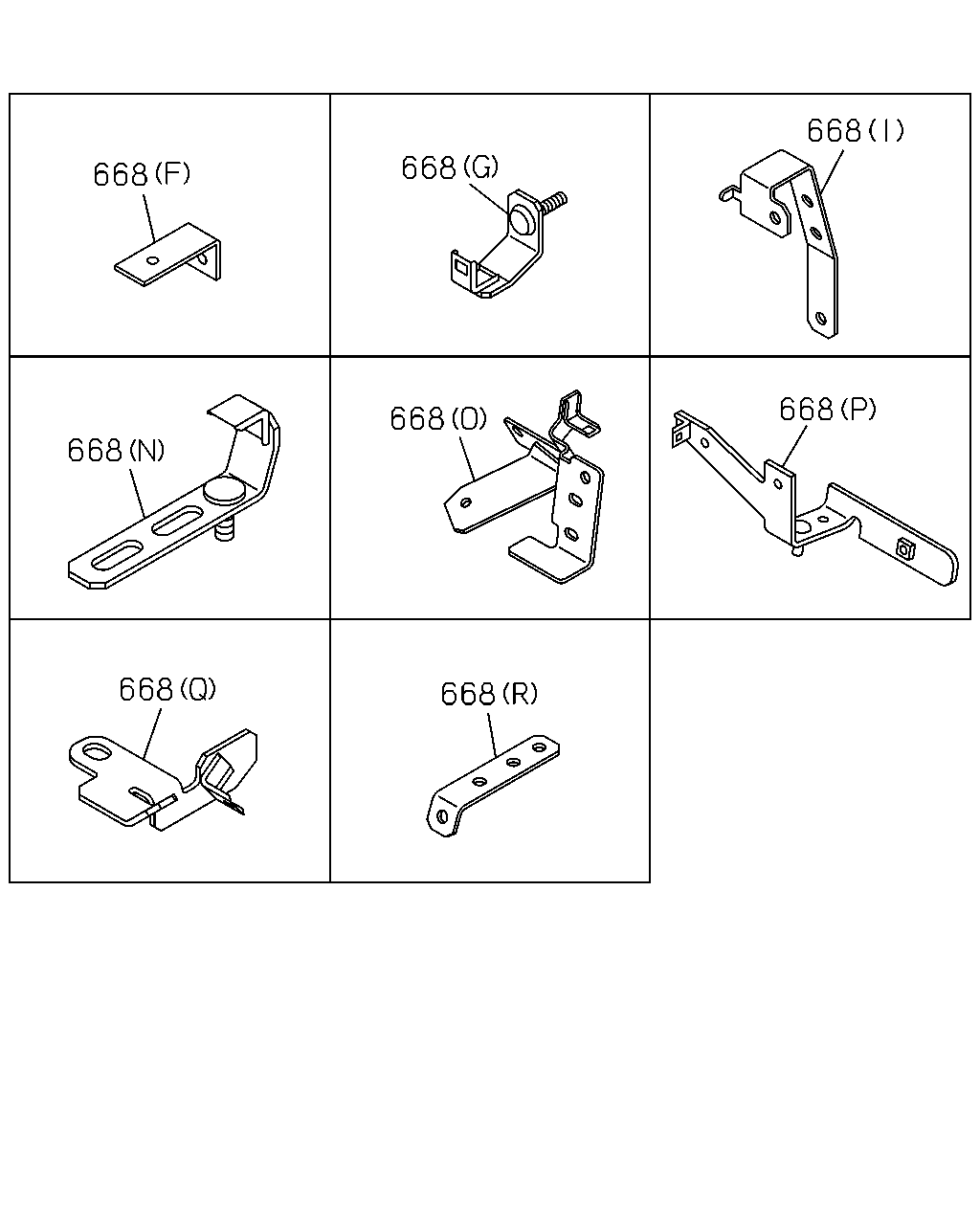

668	BRACKET; HARNESS ALLISON MD3060P A/T(Y4G) (H)	8-98032-360-0	01	1	1508-
668	BRACKET; HARNESS ANTI LOCK BRAKE<JE5> (R)	1-82698-167-0	01	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (N)	8-98047-730-0	02	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (N)	8-98047-730-0	02	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (O)	8-98107-611-0	01	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O)	8-98107-611-0	01	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (P)	8-98212-082-1	01	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (P)	8-98212-082-1	01	1	1505-
668	BRACKET; HARNESS (F) L=55	1-47475-304-0	01	1	1407-
668	BRACKET; HARNESS (B)	8-97609-110-1	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (G)	8-97612-957-1	02	1	1407-
668	BRACKET; HARNESS (D)	8-97616-305-0	01	1	1407-1502
668	BRACKET; HARNESS (Q)	8-98254-592-0	01	1	1503-
668	BRACKET; HARNESS (I)	8-97619-097-1	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (J)	8-98009-245-0	01	1	1407-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (J)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (K)	8-98011-484-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (L)	8-98024-765-0	01	1	1407-
668	BRACKET; HARNESS (E)	8-98095-653-2	01	1	1407-
668	BRACKET; HARNESS (A)	8-98127-093-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (C)	8-98203-354-2	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (M)	8-98205-089-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98211-162-0	01	1	1407-

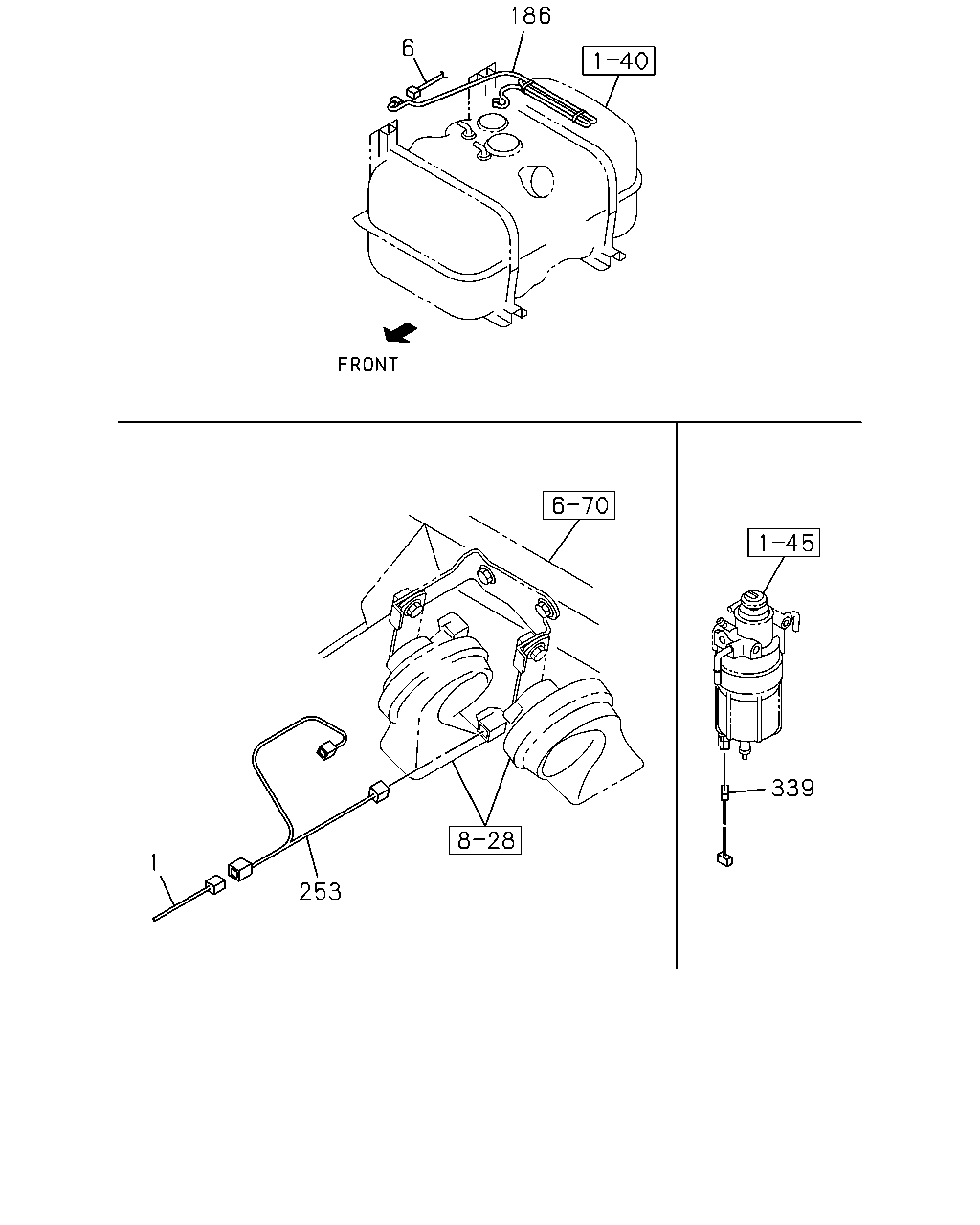

186 6 1 339 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

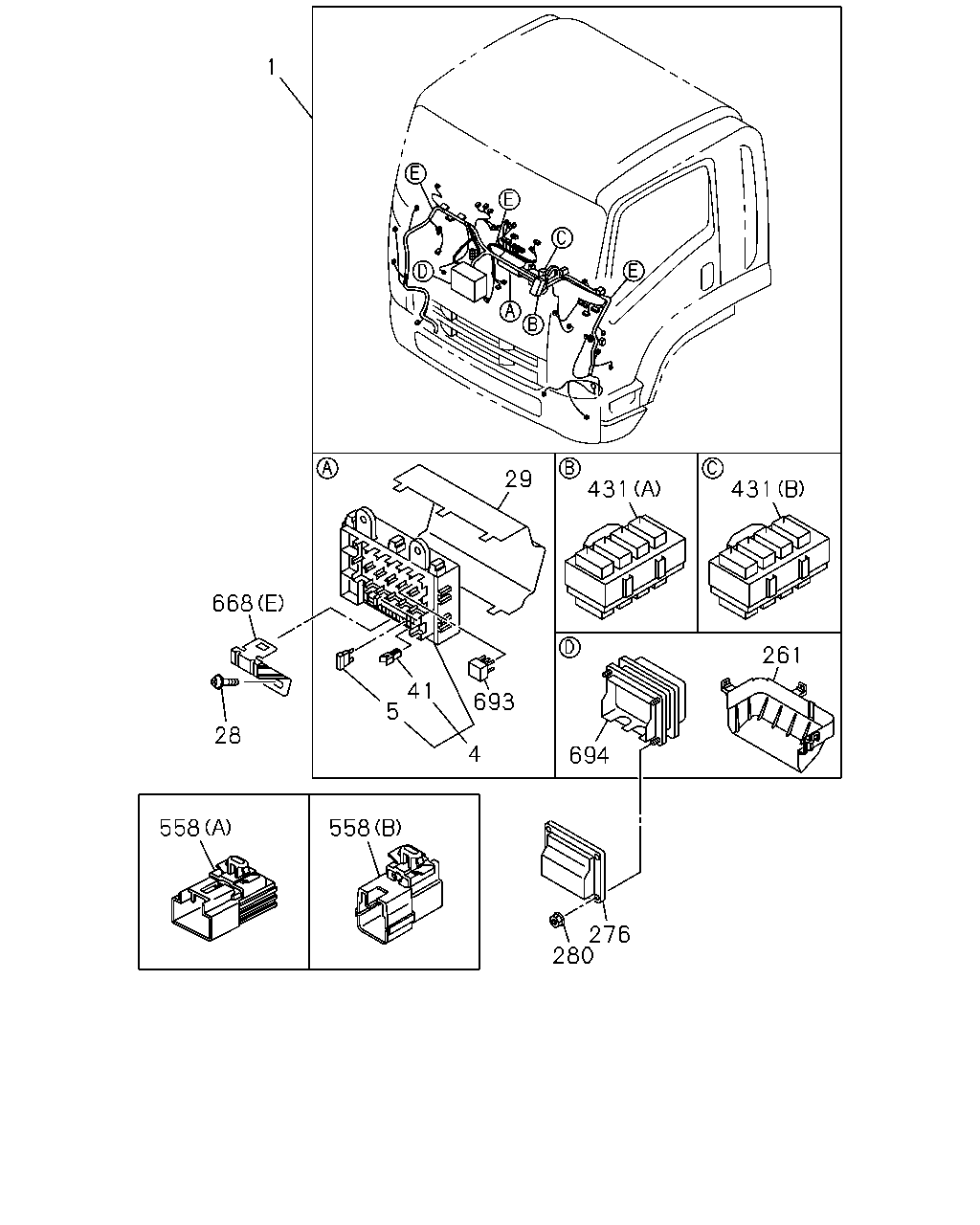

1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) EXC. ANTI LOCK BRAKE<JE5>	8-98306-874-1	01	1	1508-
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-228-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98248-180-0	01	1	1505-
1	HARNESS; CAB	8-98212-246-0	01	1	1407-1504
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-246-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98212-246-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98308-290-0	01	1	1508-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8>	8-98230-258-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-260-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8>	8-98283-471-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98283-470-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98230-259-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98230-261-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98283-473-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98283-472-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-570-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-570-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-196-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-196-0	01	1	1505-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-197-0	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-197-0	01	1	1505-
6	HARNESS; FRAME	8-98248-569-1	01	1	1407-1407
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-569-1	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-569-1	01	1	1505-
186	HARNESS; FUEL TANK FUEL TANK 400L<SDH>	8-98099-650-0	01	1	1412-
253	HARNESS; EXT,HORN	8-98074-080-3	01	1	1407-
339	HARNESS; EXT,FUEL FUEL TANK 200L FRAME SIDE<N20> A/T<X9D>	8-98227-392-1	01	1	1508-
339	HARNESS; EXT,FUEL FUEL TANK 400L<SDH>	8-98227-393-0	01	1	1408-

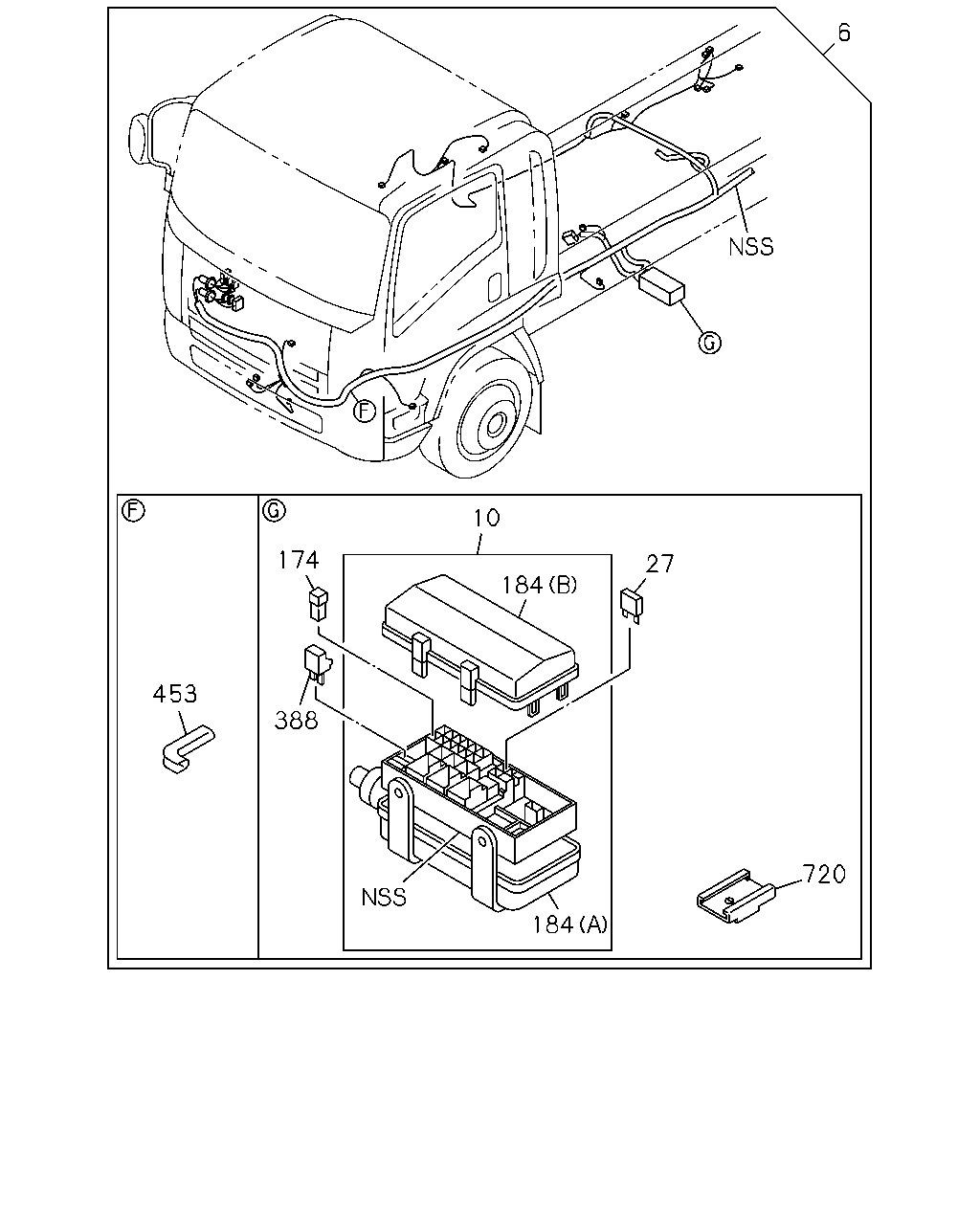

6 10 184 27 174 388 453 184 720

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98308-290-0	01	1	1508-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8>	8-98230-258-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-260-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8>	8-98283-471-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98283-470-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98230-259-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98230-261-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98283-473-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98283-472-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-570-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-570-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-196-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-196-0	01	1	1505-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-197-0	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-197-0	01	1	1505-
6	HARNESS; FRAME	8-98248-569-1	01	1	1407-1407
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-569-1	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-569-1	01	1	1505-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1407-
27	FUSE UNIT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 15A BLUE MAL	8-98054-258-0	03	1	1508-
27	FUSE UNIT 10A RED MAL	8-98054-257-0	01	1	1407-
27	FUSE UNIT 15A BLUE MAL	8-98054-258-0	02	1	1407-
174	FUSE; SLOW BLOW 60A YELLOW MAL	8-97219-407-0	AR	1	1410-
174	FUSE; SLOW BLOW 60A YELLOW MAL	8-97219-407-0	AR	1	1407-
174	FUSE; SLOW BLOW 30A PINK MAL	8-98079-191-0	AR	1	1407-
174	FUSE; SLOW BLOW 40A GREEN MAL	8-98079-192-0	AR	1	1407-
174	FUSE; SLOW BLOW 50A RED MAL	8-98079-193-0	AR	1	1407-
184	COVER; RELAY & FUSE BOX (A) MAL	8-98030-766-0	01	1	1407-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1407-
388	DIODE; RELAY BOX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> BLACK 2P-1.5A MAL	8-94422-639-1	02	1	1508-
388	DIODE; RELAY BOX BLACK 2P-1.5A MAL	8-94422-639-1	01	1	1407-
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	1407-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1407-

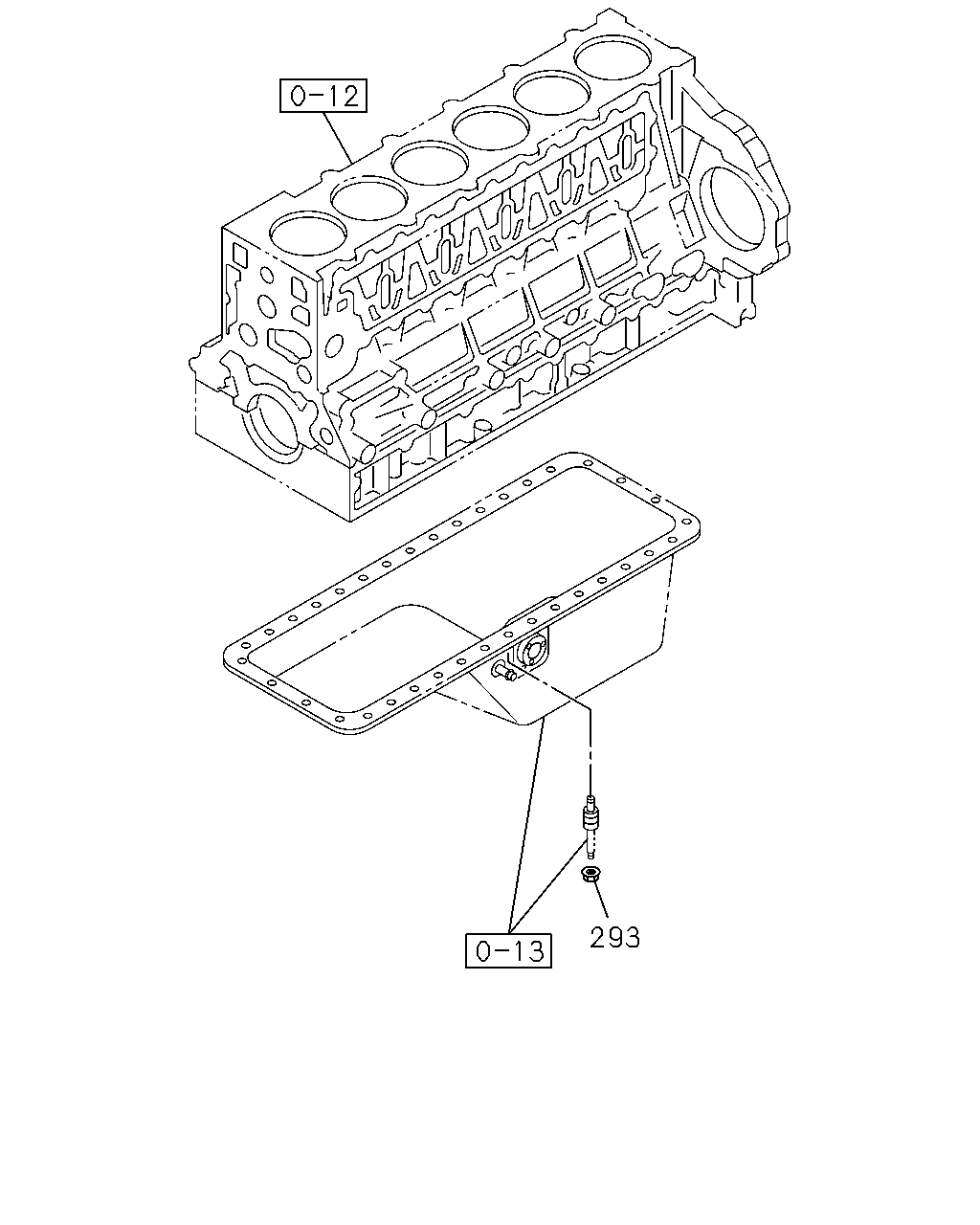

293

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	293	NUT M8 FLANGE MAL	0-91180-108-0	01	1	1407-

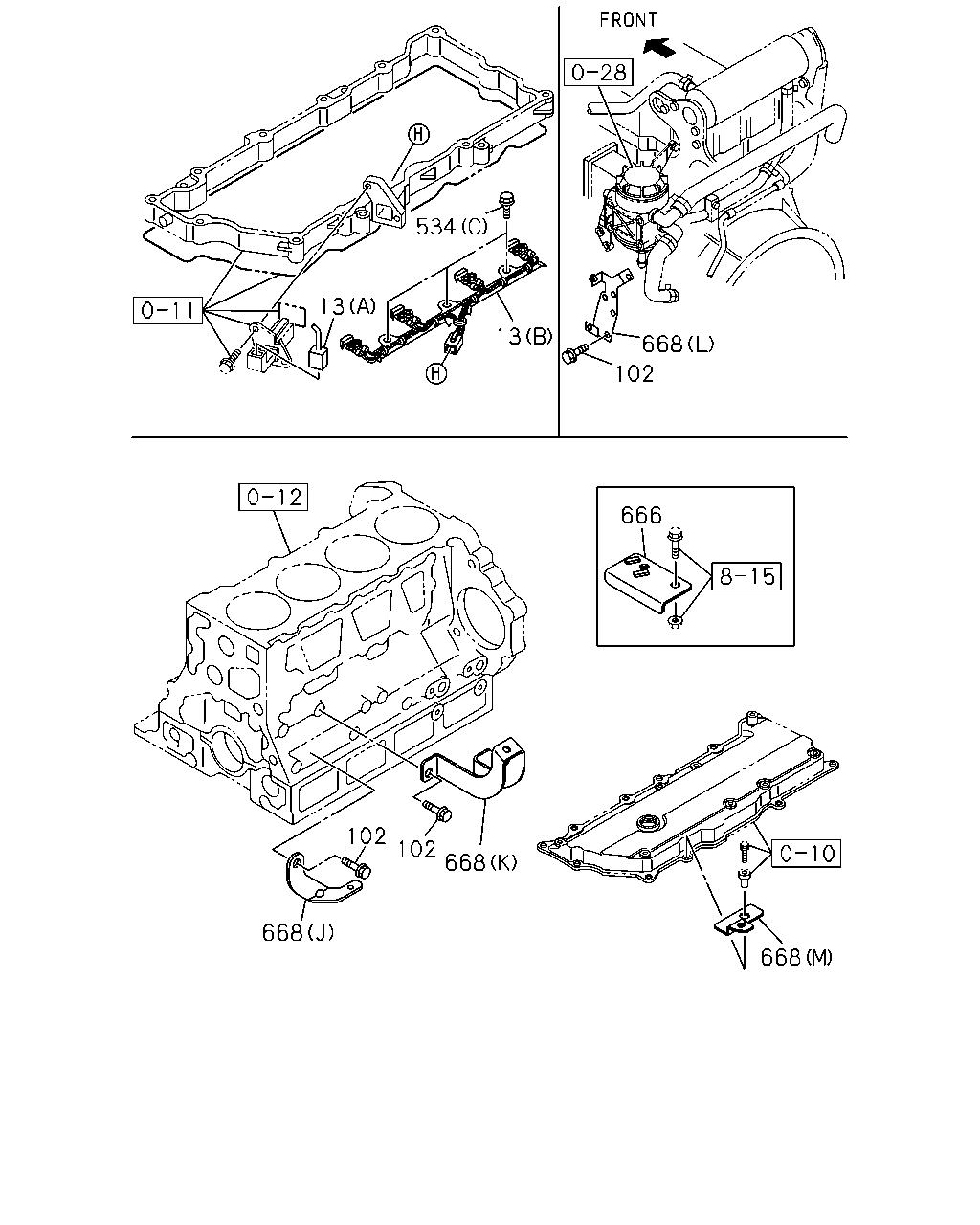

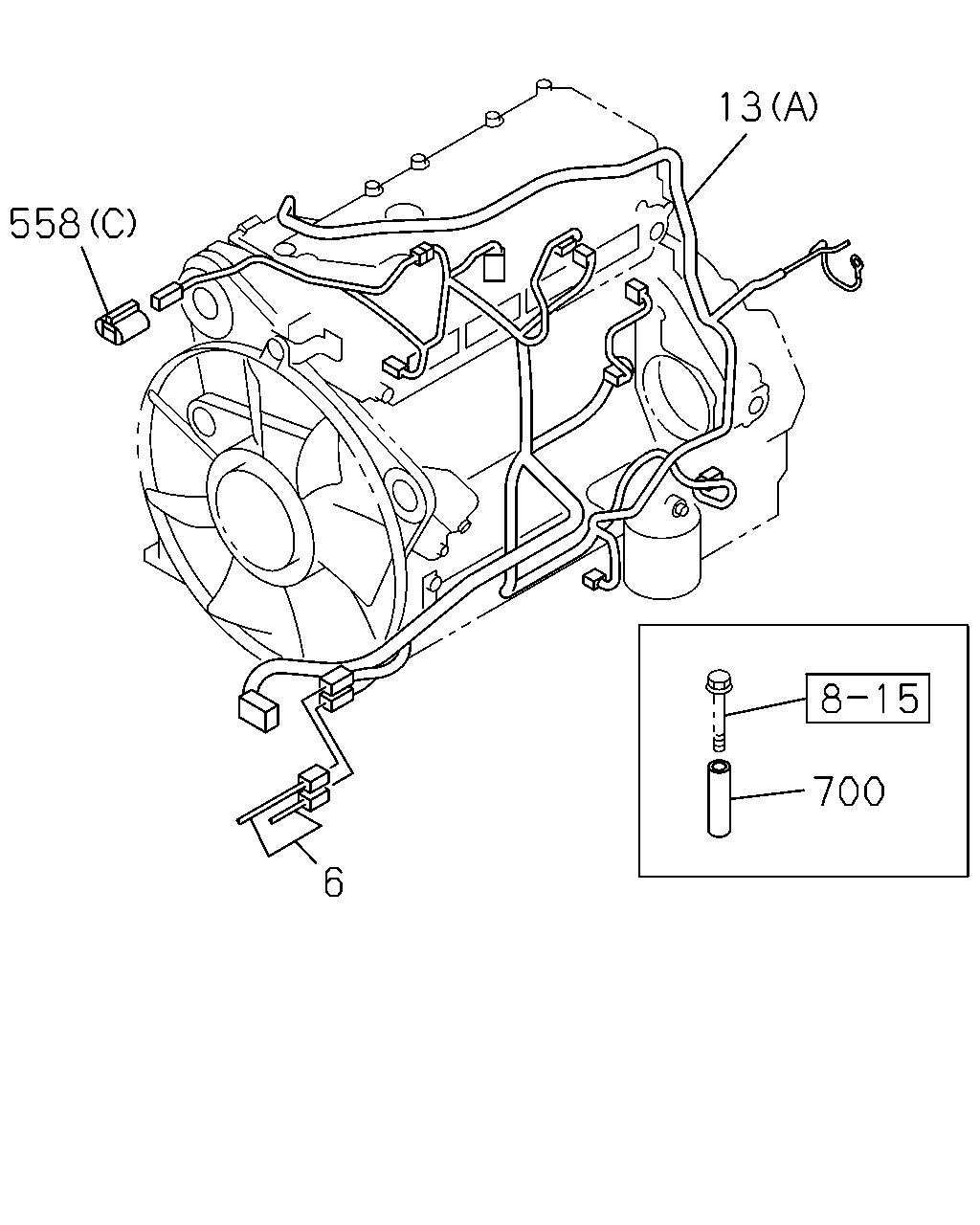

534 13 102 668 13 102 102 668 668 668 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG 6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) GENERATOR 24V60A(KG2) (A)	8-98190-068-1	01	1	1508-
13	HARNESS; ENG 6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) GENERATOR 24V50A(K89) (A)	8-98190-067-1	01	1	1508-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (A)	8-98075-775-5	01	1	1410-1504
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (A)	8-98075-775-5	01	1	1505-1507
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) GENERATOR 24V60A(KG2) (A)	8-98075-775-5	01	1	1508-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (A)	8-98075-774-5	01	1	1410-1504
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (A)	8-98075-774-5	01	1	1505-1507
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) GENERATOR 24V50A(K89) (A)	8-98075-774-5	01	1	1508-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (A)	8-98274-079-0	01	1	1407-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1407-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M8X16 FLANGE MAL	0-28050-816-0	03	1	1407-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M10X16 FLANGE	0-28151-016-0	03	1	1407-
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1407-
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1407-
534	BOLT 4HK1-TCS ENG(RJS) (C) M10X55 FLANGE	8-97365-449-0	03	1	1407-
666	BRACKET; CLIP 4HK1-TCS ENG(RJS)	8-98234-808-0	01	1	1407-
668	BRACKET; HARNESS ALLISON MD3060P A/T(Y4G) (H)	8-98032-360-0	01	1	1508-
668	BRACKET; HARNESS ANTI LOCK BRAKE<JE5> (R)	1-82698-167-0	01	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (N)	8-98047-730-0	02	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (N)	8-98047-730-0	02	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (O)	8-98107-611-0	01	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O)	8-98107-611-0	01	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (P)	8-98212-082-1	01	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (P)	8-98212-082-1	01	1	1505-
668	BRACKET; HARNESS (F) L=55	1-47475-304-0	01	1	1407-
668	BRACKET; HARNESS (B)	8-97609-110-1	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (G)	8-97612-957-1	02	1	1407-
668	BRACKET; HARNESS (D)	8-97616-305-0	01	1	1407-1502
668	BRACKET; HARNESS (Q)	8-98254-592-0	01	1	1503-
668	BRACKET; HARNESS (I)	8-97619-097-1	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (J)	8-98009-245-0	01	1	1407-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (J)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (K)	8-98011-484-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (L)	8-98024-765-0	01	1	1407-
668	BRACKET; HARNESS (E)	8-98095-653-2	01	1	1407-
668	BRACKET; HARNESS (A)	8-98127-093-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (C)	8-98203-354-2	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (M)	8-98205-089-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98211-162-0	01	1	1407-

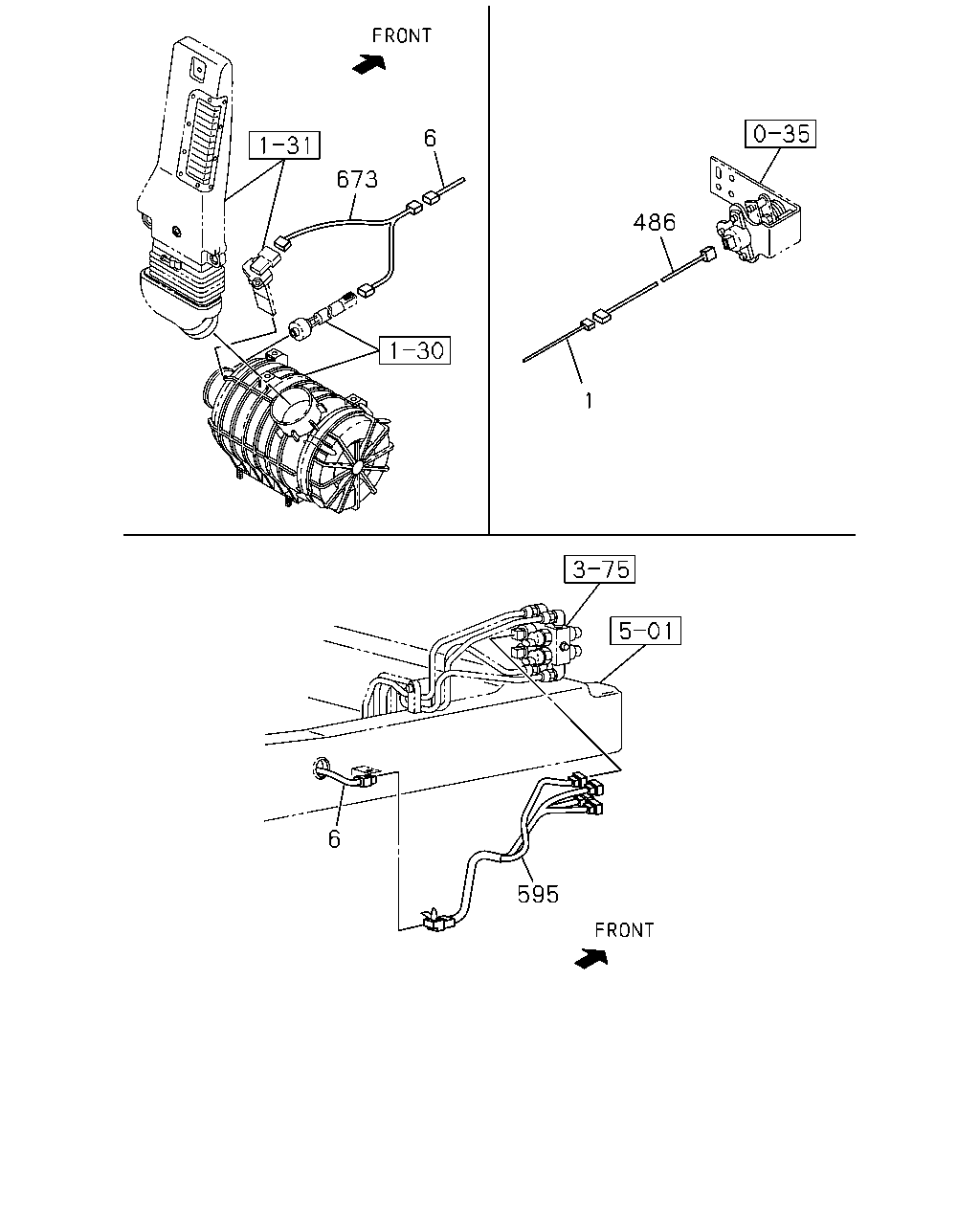

6 673 486 1 6 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) EXC. ANTI LOCK BRAKE<JE5>	8-98306-874-1	01	1	1508-
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-228-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98248-180-0	01	1	1505-
1	HARNESS; CAB	8-98212-246-0	01	1	1407-1504
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-246-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98212-246-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98308-290-0	01	1	1508-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8>	8-98230-258-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-260-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8>	8-98283-471-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98283-470-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98230-259-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98230-261-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98283-473-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98283-472-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-570-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-570-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-196-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-196-0	01	1	1505-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-197-0	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-197-0	01	1	1505-
6	HARNESS; FRAME	8-98248-569-1	01	1	1407-1407
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-569-1	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-569-1	01	1	1505-
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO GEAR=36/16(C5L)	1-82675-898-0	01	1	1409-1409
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1410-1504
486	HARNESS; ALL SPEED ACCEL PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1505-
595	HARNESS; WARNING,BRK	8-97620-487-1	01	1	1407-
673	HARNESS; EXT,SENSOR	8-98069-172-0	01	1	1407-

558 13 6 700

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98308-290-0	01	1	1508-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8>	8-98230-258-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-260-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8>	8-98283-471-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98283-470-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98230-259-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98230-261-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98283-473-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98283-472-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-570-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-570-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-196-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-196-0	01	1	1505-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-197-0	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-197-0	01	1	1505-
6	HARNESS; FRAME	8-98248-569-1	01	1	1407-1407
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-569-1	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-569-1	01	1	1505-
13	HARNESS; ENG 6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) GENERATOR 24V60A(KG2) (A)	8-98190-068-1	01	1	1508-
13	HARNESS; ENG 6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) GENERATOR 24V50A(K89) (A)	8-98190-067-1	01	1	1508-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (A)	8-98075-775-5	01	1	1410-1504
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (A)	8-98075-775-5	01	1	1505-1507
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) GENERATOR 24V60A(KG2) (A)	8-98075-775-5	01	1	1508-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (A)	8-98075-774-5	01	1	1410-1504
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (A)	8-98075-774-5	01	1	1505-1507
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) GENERATOR 24V50A(K89) (A)	8-98075-774-5	01	1	1508-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (A)	8-98274-079-0	01	1	1407-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1407-
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1407-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1407-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1407-
700	TUBE; DISTANCE 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	01	1	1407-

1 29 431 431 261 694 693 41 5 4 668 28 558 558 276 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) EXC. ANTI LOCK BRAKE<JE5>	8-98306-874-1	01	1	1508-
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-228-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98248-180-0	01	1	1505-
1	HARNESS; CAB	8-98212-246-0	01	1	1407-1504
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-246-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98212-246-0	01	1	1505-
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1407-
5	FUSE; FACIA HARNESS 10A RED MAL	8-98054-257-0	AR	1	1407-
5	FUSE; FACIA HARNESS 15A BLUE MAL	8-98054-258-0	AR	1	1407-
5	FUSE; FACIA HARNESS 20A YELLOW MAL	8-98054-259-0	AR	1	1407-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1407-
28	SCREW; FUSE BOX M6X16 FLANGE MAL	0-28650-616-0	01	1	1407-
29	COVER; FUSE BOX MAL	8-98056-968-0	01	1	1407-
41	PULLER; FUSE MAL	8-98054-260-0	01	1	1407-
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1407-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1407-
280	NUT; BOX ASM FIX M6 FLANGE MAL	0-91180-106-0	04	1	1407-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1407-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1407-
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1407-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1407-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1407-
668	BRACKET; HARNESS ALLISON MD3060P A/T(Y4G) (H)	8-98032-360-0	01	1	1508-
668	BRACKET; HARNESS ANTI LOCK BRAKE<JE5> (R)	1-82698-167-0	01	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (N)	8-98047-730-0	02	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (N)	8-98047-730-0	02	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (O)	8-98107-611-0	01	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O)	8-98107-611-0	01	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (P)	8-98212-082-1	01	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (P)	8-98212-082-1	01	1	1505-
668	BRACKET; HARNESS (F) L=55	1-47475-304-0	01	1	1407-
668	BRACKET; HARNESS (B)	8-97609-110-1	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (G)	8-97612-957-1	02	1	1407-
668	BRACKET; HARNESS (D)	8-97616-305-0	01	1	1407-1502
668	BRACKET; HARNESS (Q)	8-98254-592-0	01	1	1503-
668	BRACKET; HARNESS (I)	8-97619-097-1	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (J)	8-98009-245-0	01	1	1407-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (J)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (K)	8-98011-484-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (L)	8-98024-765-0	01	1	1407-
668	BRACKET; HARNESS (E)	8-98095-653-2	01	1	1407-
668	BRACKET; HARNESS (A)	8-98127-093-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (C)	8-98203-354-2	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (M)	8-98205-089-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98211-162-0	01	1	1407-
693	RELAY; FUSE BOX 24V 10A PANASONIC MAL	8-97173-035-1	AR	1	1407-
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1407-

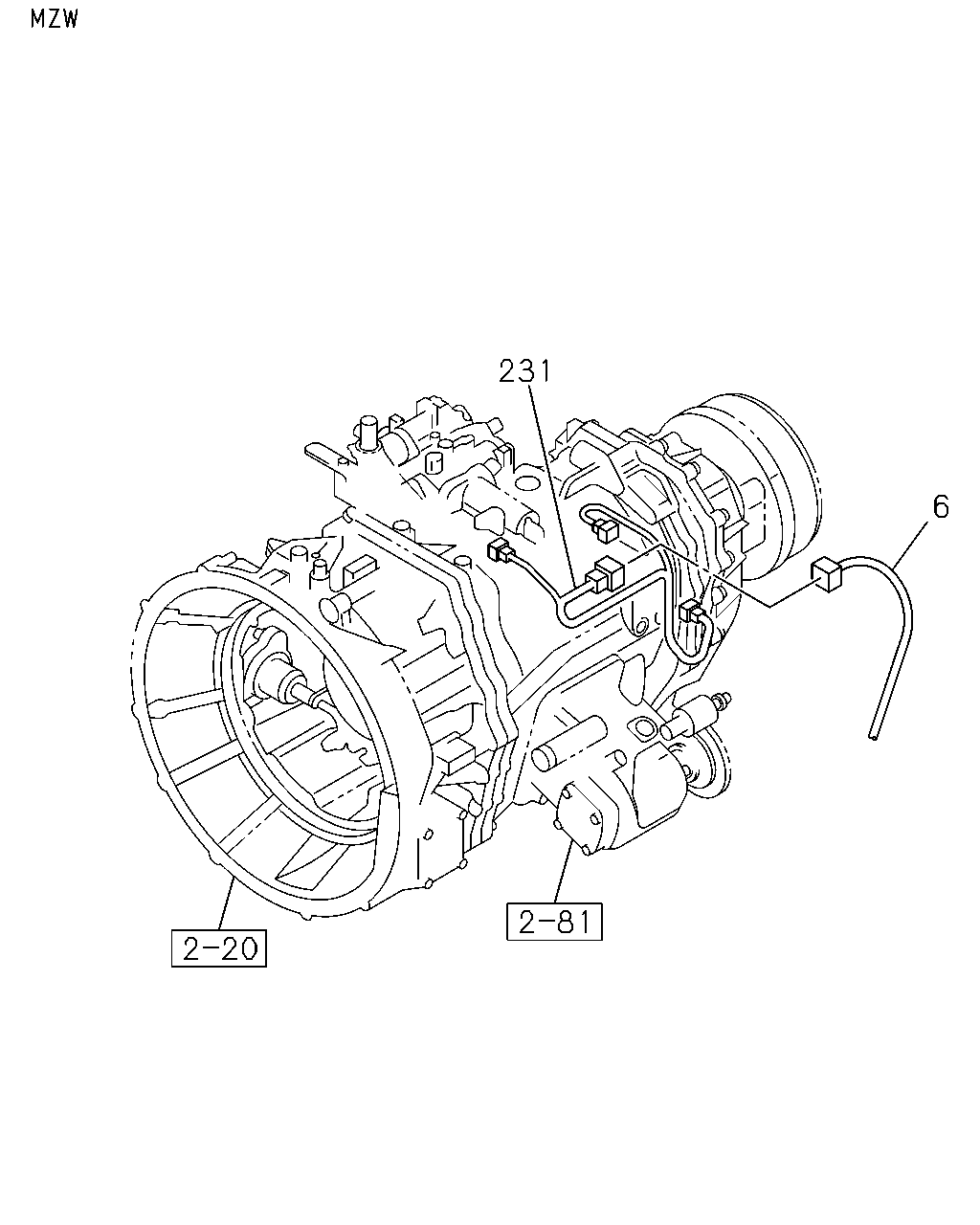

231 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98308-290-0	01	1	1508-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8>	8-98230-258-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-260-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8>	8-98283-471-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98283-470-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98230-259-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98230-261-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98283-473-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98283-472-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-570-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-570-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-196-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-196-0	01	1	1505-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-197-0	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-197-0	01	1	1505-
6	HARNESS; FRAME	8-98248-569-1	01	1	1407-1407
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-569-1	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-569-1	01	1	1505-
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-97618-932-2	01	1	1410-
231	HARNESS; TRANS 4HK1-TCS ENG(RJS)	8-97618-933-2	01	1	1407-1504
231	HARNESS; TRANS 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ)	8-97618-933-2	01	1	1505-

462 689 570 463 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> RED	8-98145-854-0	01	1	1505-
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> RED	8-98145-855-0	01	1	1505-
462	HARNESS; SW,RANGE ZF9S1110 M/T(Y5E) BLUE	8-98145-857-0	01	1	1505-
463	HARNESS; SW,BACK UP ZF9S1110 M/T(Y5E) BLACK	8-98145-856-0	01	1	1505-
570	HARNESS; SPEED SENSOR ALLISON MD3060P A/T(Y4G) (A)	8-98091-562-0	01	1	1508-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1505-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1505-
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98148-603-0	01	1	1505-

1 2 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) EXC. ANTI LOCK BRAKE<JE5>	8-98306-874-1	01	1	1508-
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-228-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98248-180-0	01	1	1505-
1	HARNESS; CAB	8-98212-246-0	01	1	1407-1504
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-246-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98212-246-0	01	1	1505-
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	1407-
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94416-438-1	AR	1	1407-1504
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (D) BLACK 3P-1.5A	8-94416-438-1	AR	1	1505-
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A MAL	8-94422-639-1	AR	1	1407-1504
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (C) BLACK 2P-1.5A MAL	8-94422-639-1	AR	1	1505-
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A MAL	8-94422-640-1	AR	1	1407-1504
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (B) BLACK 3P-1.5A MAL	8-94422-640-1	AR	1	1505-

541 668 6 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98308-290-0	01	1	1508-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8>	8-98230-258-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-260-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8>	8-98283-471-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98283-470-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98230-259-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98230-261-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98283-473-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98283-472-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-570-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-570-0	01	1	1505-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-196-0	01	1	1410-1504
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-196-0	01	1	1505-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 400L<SDH>	8-98283-197-0	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 400L<SDH> EXC. ANTI LOCK BRAKE<JE5>	8-98283-197-0	01	1	1505-
6	HARNESS; FRAME	8-98248-569-1	01	1	1407-1407
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) FUEL TANK 200L FRAME SIDE<N20>	8-98248-569-1	01	1	1408-1504
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI LOCK BRAKE<JE5>	8-98248-569-1	01	1	1505-
195	HARNESS; EXT ALLISON MD3060P A/T(Y4G)	1-82671-045-1	01	1	1508-
541	CLIP ALLISON MD3060P A/T(Y4G) OD=9 H=6	1-09709-178-0	01	1	1508-
668	BRACKET; HARNESS ALLISON MD3060P A/T(Y4G) (H)	8-98032-360-0	01	1	1508-
668	BRACKET; HARNESS ANTI LOCK BRAKE<JE5> (R)	1-82698-167-0	01	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (N)	8-98047-730-0	02	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (N)	8-98047-730-0	02	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (O)	8-98107-611-0	01	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O)	8-98107-611-0	01	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (P)	8-98212-082-1	01	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (P)	8-98212-082-1	01	1	1505-
668	BRACKET; HARNESS (F) L=55	1-47475-304-0	01	1	1407-
668	BRACKET; HARNESS (B)	8-97609-110-1	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (G)	8-97612-957-1	02	1	1407-
668	BRACKET; HARNESS (D)	8-97616-305-0	01	1	1407-1502
668	BRACKET; HARNESS (Q)	8-98254-592-0	01	1	1503-
668	BRACKET; HARNESS (I)	8-97619-097-1	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (J)	8-98009-245-0	01	1	1407-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (J)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (K)	8-98011-484-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (L)	8-98024-765-0	01	1	1407-
668	BRACKET; HARNESS (E)	8-98095-653-2	01	1	1407-
668	BRACKET; HARNESS (A)	8-98127-093-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (C)	8-98203-354-2	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (M)	8-98205-089-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98211-162-0	01	1	1407-

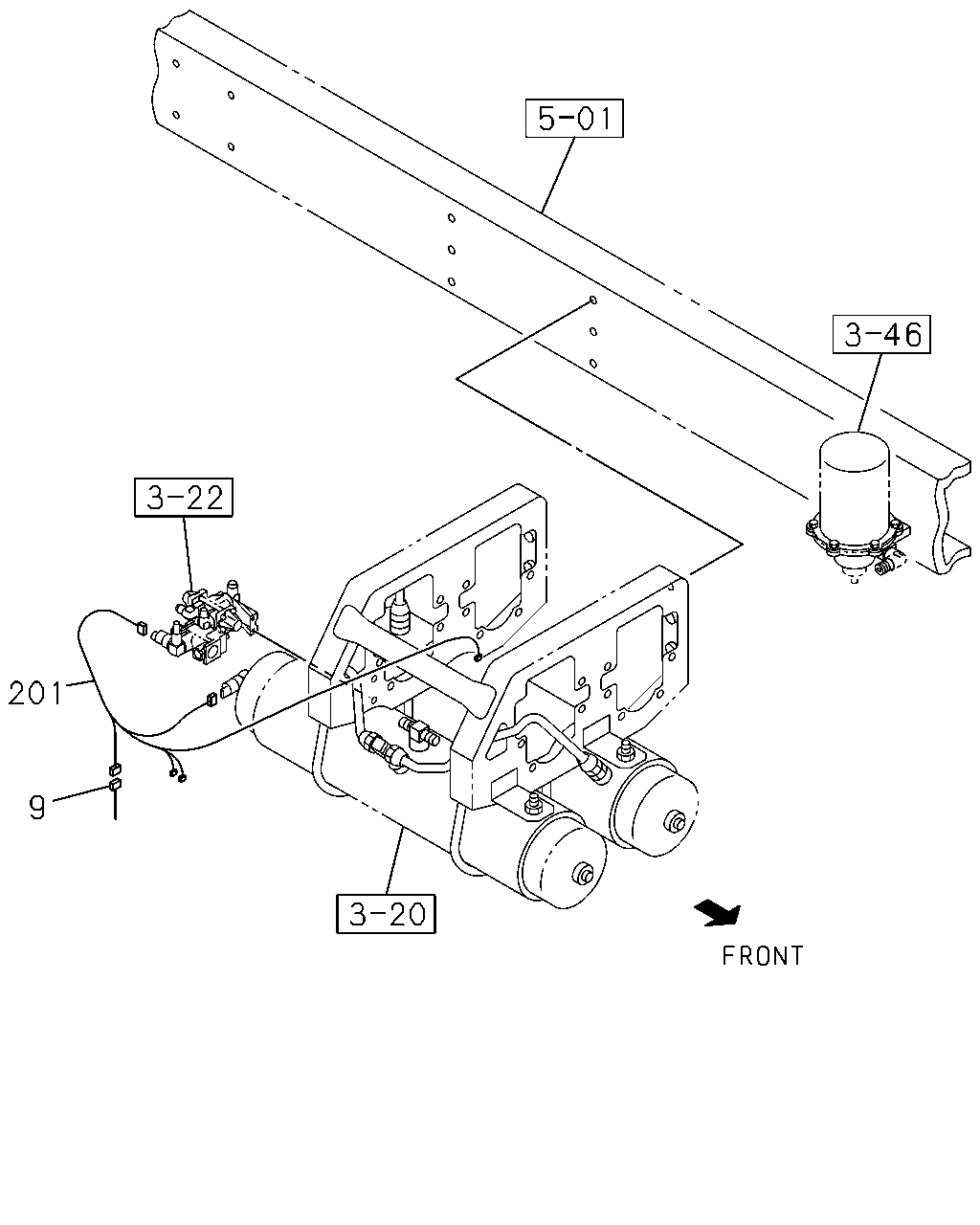

201 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-640-0	01	1	1505-
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-645-0	01	1	1505-
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE<JE5>	8-98168-646-0	01	1	1505-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98168-655-0	01	1	1410-1504
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-655-0	01	1	1505-
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W)	8-98168-634-0	01	1	1407-1504
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-634-0	01	1	1505-
201	HARNESS; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98184-703-0	01	1	1505-
201	HARNESS; AIR TANK	8-98248-572-0	01	1	1407-1504
201	HARNESS; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98248-572-0	01	1	1505-

1 408 1 409

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) EXC. ANTI LOCK BRAKE<JE5>	8-98306-874-1	01	1	1508-
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-228-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98248-180-0	01	1	1505-
1	HARNESS; CAB	8-98212-246-0	01	1	1407-1504
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-246-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98212-246-0	01	1	1505-
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1407-
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1407-

533 533 533 533 533 533 533 533 533 533 533 533 542 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
533	CLIP ANTI LOCK BRAKE<JE5> (L) ID=11 L=41	1-09700-403-0	01	1	1505-
533	CLIP WHEEL BASE 4600MM(46W) (E) ID=15 L=65	1-09700-466-0	05	1	1410-
533	CLIP WHEEL BASE 4600MM(46W) (F) ID=20 L=70	1-09700-485-0	08	1	1410-
533	CLIP WHEEL BASE 4600MM(46W) (J) OD=9 H=9.5	1-09709-179-0	01	1	1410-1504
533	CLIP WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) OD=9 H=9.5	1-09709-179-0	01	1	1505-
533	CLIP 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (K) L=180	1-09707-162-1	01	1	1410-1504
533	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (K) L=180	1-09707-162-1	01	1	1505-
533	CLIP (E) ID=15 L=65	1-09700-466-0	02	1	1407-
533	CLIP WHEEL BASE 6000MM(60W) (E) ID=15 L=65	1-09700-466-0	07	1	1407-
533	CLIP WHEEL BASE 6000MM(60W) (F) ID=20 L=70	1-09700-485-0	12	1	1407-
533	CLIP (G) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1407-1409
533	CLIP (G) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1410-1504
533	CLIP 6HK1-TCN ENG(82L) (G) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1410-1504
533	CLIP (G) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1505-
533	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (G) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1505-
533	CLIP (H) ID=35 L=50	1-09701-214-0	01	1	1407-
533	CLIP (A) L=600	1-09707-107-1	01	1	1407-
533	CLIP (A) L=600	1-09707-107-1	01	1	1407-
533	CLIP (B) L=350	1-09707-183-0	01	1	1407-
533	CLIP (B) L=350	1-09707-183-0	02	1	1407-
533	CLIP WHEEL BASE 6000MM(60W) (I) OD=9 H=13.5	1-09709-180-0	01	1	1407-1504
533	CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) OD=9 H=13.5	1-09709-180-0	01	1	1505-
533	CLIP WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) OD=9 H=13.5	1-09709-180-0	01	1	1505-
533	CLIP (C) L=250	5-09707-030-1	02	1	1407-
533	CLIP (C) L=250	5-09707-030-1	02	1	1407-
533	CLIP (C) L=250	5-09707-030-1	05	1	1407-
533	CLIP EXC. INTERMITTENT WIPER<C13> (D) L=100	5-09707-036-1	01	1	1407-
542	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> ID=28 OD=35 T=17	9-09956-256-2	02	1	1505-
542	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1407-
548	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1407-

18 204 12 18 14 14 1 691 1 570

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) EXC. ANTI LOCK BRAKE<JE5>	8-98306-874-1	01	1	1508-
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-227-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8>	8-98230-228-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98248-180-0	01	1	1505-
1	HARNESS; CAB	8-98212-246-0	01	1	1407-1504
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-246-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98212-246-0	01	1	1505-
12	HARNESS; ROOF FLUORESCENT LAMP<6UC> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98048-931-2	01	1	1407-
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> FLUORESCENT LAMP<6UC>	8-98079-072-1	01	1	1407-
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> EXC. FLUORESCENT LAMP<6UC>	8-98085-333-0	01	1	1407-
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>,FLUORESCENT LAMP<6UC>	8-98041-949-2	01	1	1407-
14	HARNESS; HEADLAMP EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-94270-986-0	02	1	1407-
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98069-166-1	02	1	1407-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-439-1	01	1	1407-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-440-1	01	1	1407-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98076-304-3	01	1	1407-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98076-305-3	01	1	1407-
204	HARNESS; CABLE,FLOOR A/T<X9D>	8-98281-406-0	01	1	1508-
204	HARNESS; CABLE,FLOOR	8-98085-274-0	01	1	1407-1504
204	HARNESS; CABLE,FLOOR MANUAL TRANSMISSION<X9C>	8-98085-274-0	01	1	1505-
570	HARNESS; SPEED SENSOR ALLISON MD3060P A/T(Y4G) (A)	8-98091-562-0	01	1	1508-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1505-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1505-
691	HARNESS; IDLE CONT MAL	8-98049-014-2	01	1	1407-

668 668 668 668 668 668 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
668	BRACKET; HARNESS ALLISON MD3060P A/T(Y4G) (H)	8-98032-360-0	01	1	1508-
668	BRACKET; HARNESS ANTI LOCK BRAKE<JE5> (R)	1-82698-167-0	01	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (N)	8-98047-730-0	02	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (N)	8-98047-730-0	02	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (O)	8-98107-611-0	01	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O)	8-98107-611-0	01	1	1505-
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (P)	8-98212-082-1	01	1	1410-1504
668	BRACKET; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (P)	8-98212-082-1	01	1	1505-
668	BRACKET; HARNESS (F) L=55	1-47475-304-0	01	1	1407-
668	BRACKET; HARNESS (B)	8-97609-110-1	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (G)	8-97612-957-1	02	1	1407-
668	BRACKET; HARNESS (D)	8-97616-305-0	01	1	1407-1502
668	BRACKET; HARNESS (Q)	8-98254-592-0	01	1	1503-
668	BRACKET; HARNESS (I)	8-97619-097-1	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (J)	8-98009-245-0	01	1	1407-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (J)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (K)	8-98011-484-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (L)	8-98024-765-0	01	1	1407-
668	BRACKET; HARNESS (E)	8-98095-653-2	01	1	1407-
668	BRACKET; HARNESS (A)	8-98127-093-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (C)	8-98203-354-2	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (M)	8-98205-089-0	01	1	1407-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98211-162-0	01	1	1407-

534 534 290 295 525 640 290 639 639 534 267 535

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
267	BOLT; BRKT 6HK1-TCN ENG(82L) (D) M8X35 FLANGE	0-28650-835-0	02	1	1410-1504
267	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) M8X35 FLANGE	0-28650-835-0	02	1	1505-
267	BOLT; BRKT (A) M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-
267	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	1407-
267	BOLT; BRKT 4HK1-TCS ENG(RJS) (D) M8X35 FLANGE	0-28650-835-0	01	1	1407-1504
267	BOLT; BRKT 4HK1-TCS ENG(RJS) (D) M8X35 FLANGE	0-28650-835-0	01	1	1505-
267	BOLT; BRKT ANTI LOCK BRAKE<JE5> (D) M8X35 FLANGE	0-28650-835-0	01	1	1505-
267	BOLT; BRKT (C) M10X25 FLANGE MAL	0-28651-025-0	02	1	1407-
290	NUT; BRKT (A) M8 FLANGE MAL	0-91180-108-0	02	1	1407-1409
290	NUT; BRKT (A) M8 FLANGE MAL	0-91180-108-0	02	1	1407-1409
290	NUT; BRKT (A) M8 FLANGE MAL	0-91180-108-0	02	1	1407-1409
290	NUT; BRKT (A) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
290	NUT; BRKT (A) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
290	NUT; BRKT (A) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
290	NUT; BRKT 6HK1-TCN ENG(82L) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
290	NUT; BRKT (A) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
290	NUT; BRKT (A) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
290	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
290	NUT; BRKT (A) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
290	NUT; BRKT (B) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
295	NUT; BRKT ANTI LOCK BRAKE<JE5> M8 FLANGE MAL	0-91180-108-0	01	1	1505-
525	NUT; CLIP M8 FLANGE MAL	0-91180-108-0	02	1	1407-
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1407-
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1407-
534	BOLT 4HK1-TCS ENG(RJS) (C) M10X55 FLANGE	8-97365-449-0	03	1	1407-
535	BOLT; BRKT FIX M10X35 FLANGE MAL	0-28651-035-0	01	1	1407-
639	BOLT; CLIP (A) M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-1409
639	BOLT; CLIP (A) M8X20 FLANGE MAL	0-28650-820-0	01	1	1410-1504
639	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	01	1	1410-1504
639	BOLT; CLIP (A) M8X20 FLANGE MAL	0-28650-820-0	01	1	1505-
639	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	01	1	1505-
639	BOLT; CLIP (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	1407-
640	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	01	1	1410-1504
640	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	01	1	1505-

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1407-
	693	RELAY; FUSE BOX 24V 10A PANASONIC MAL	8-97173-035-1	AR	1	1407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
