◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#145064) — 117 parça

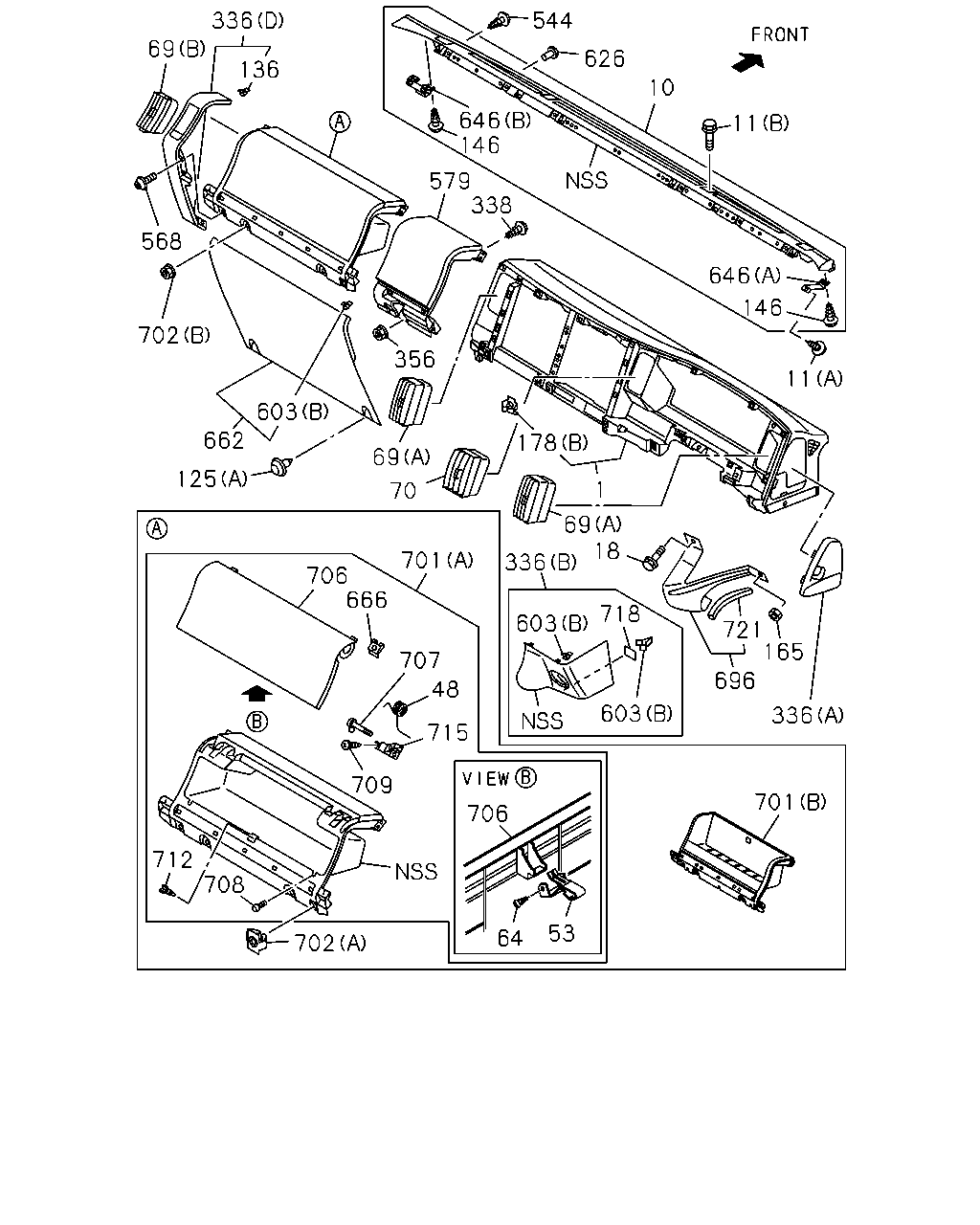

çizim 432086
336 136 69 544 10 626 11 646 338 146 646 11 146 579 568 702 662 603 69 356 70 125 178 69 1 18 336 721 165 336 603 696 718 603 701 53 64 706 715 707 48 666 706 701 709 702 708 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97423-015-0 01 1 1407-
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1407-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 08 1 1407-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1407-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1407-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1407-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1407-
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-765-0 01 1 1407-
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M4X85 		8-97926-404-0 02 1 1407-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1407-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1407-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1407-
136 CLIP; INST COVER 8-98076-254-0 02 1 1407-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1407-
165 NUT; BRKT KNEE PAD
M6 FLANGE MAL 		0-91180-106-0 01 1 1407-
178 NUT; INST PANEL
(A) M6 FLANGE MAL 		0-91180-106-0 01 1 1407-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1407-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1407-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1407-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1407-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1407-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1407-
356 NUT; COVER
M6 FLANGE MAL 		0-91180-106-0 01 1 1407-
544 SCREW; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN>, COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1407-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1407-
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1407-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1407-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1407-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1407-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1407-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1407-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1407-
696 BRACKET; KNEE 8-98066-085-1 01 1 1407-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1407-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1407-
702 NUT; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN>, COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) M6 FLANGE MAL 		0-91180-106-0 02 1 1407-
702 NUT; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN>, COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (A) 		8-98037-629-0 01 1 1407-
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1407-
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1407-
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1407-
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1407-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1407-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1407-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1407-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1407-
721 FINISHER; BRKT,KNEE
L=140 MAL 		8-97892-742-0 01 1 1407-

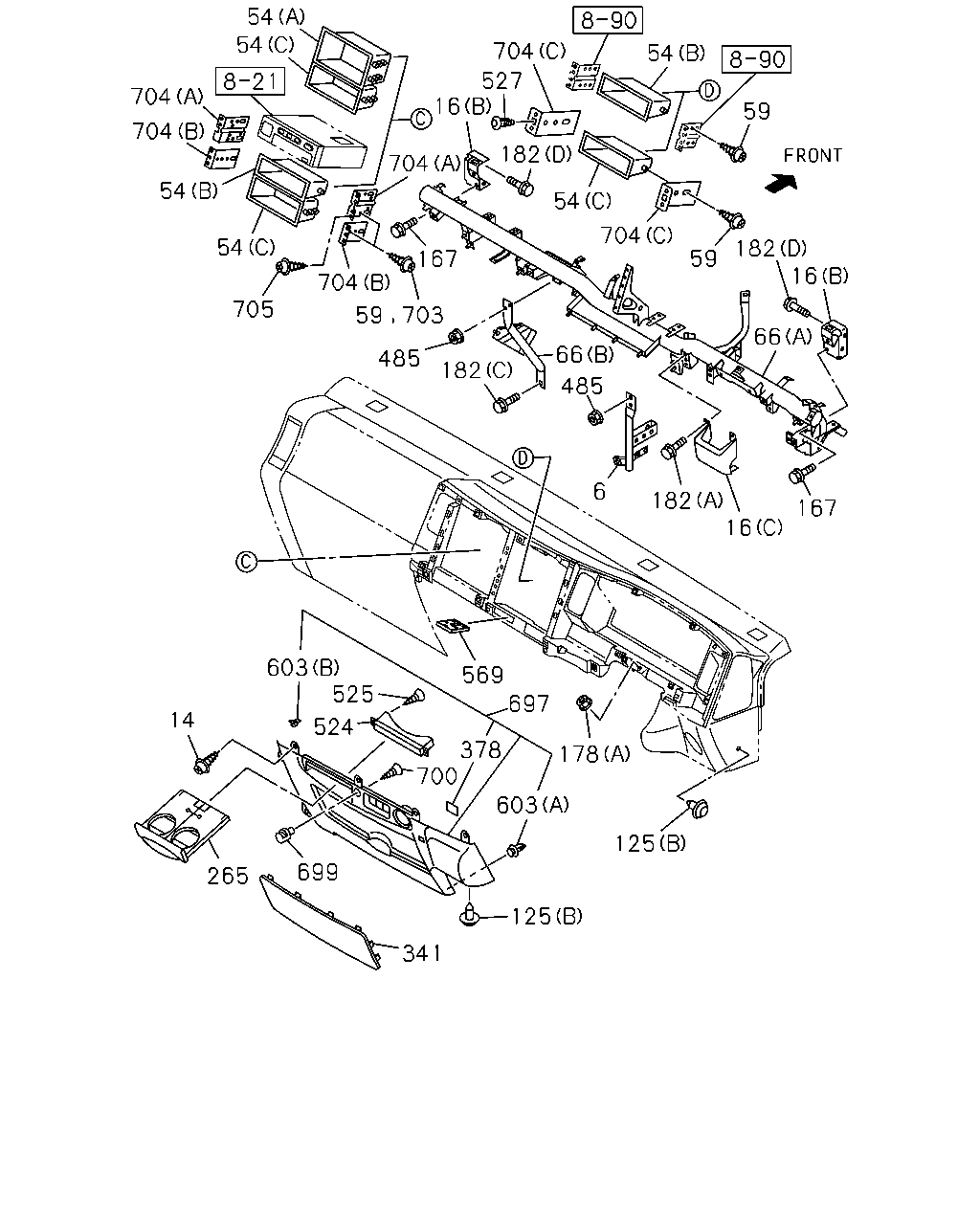

çizim 432494
341 125 125 603 700 378 697 178 525 524 603 699 265 14 16 167 182 6 485 66 182 485 703 59 704 705 54 54 704 704 54 54 704 16 527 704 54 59 182 16 66 59 704 54 182 167 569
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1407-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1407-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1407-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1407-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1407-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1407-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1407-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1407-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1407-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1407-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1407-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1407-
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1407-
167 BOLT; REINF TO INST
M8X23 FLANGE MAL 		8-97264-766-0 04 1 1407-
178 NUT; INST PANEL
(A) M6 FLANGE MAL 		0-91180-106-0 01 1 1407-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1407-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1407-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1407-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1407-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1407-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1407-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1407-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1407-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE MAL 		0-91180-106-0 04 1 1407-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1407-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1407-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY MAL 		8-97098-326-0 01 1 1407-
569 HOLDER; CARD 8-97410-276-1 01 1 1407-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1407-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1407-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1407-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1407-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1407-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1407-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1407-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1407-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 08 1 1407-1408
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1409-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1409-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1407-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1407-

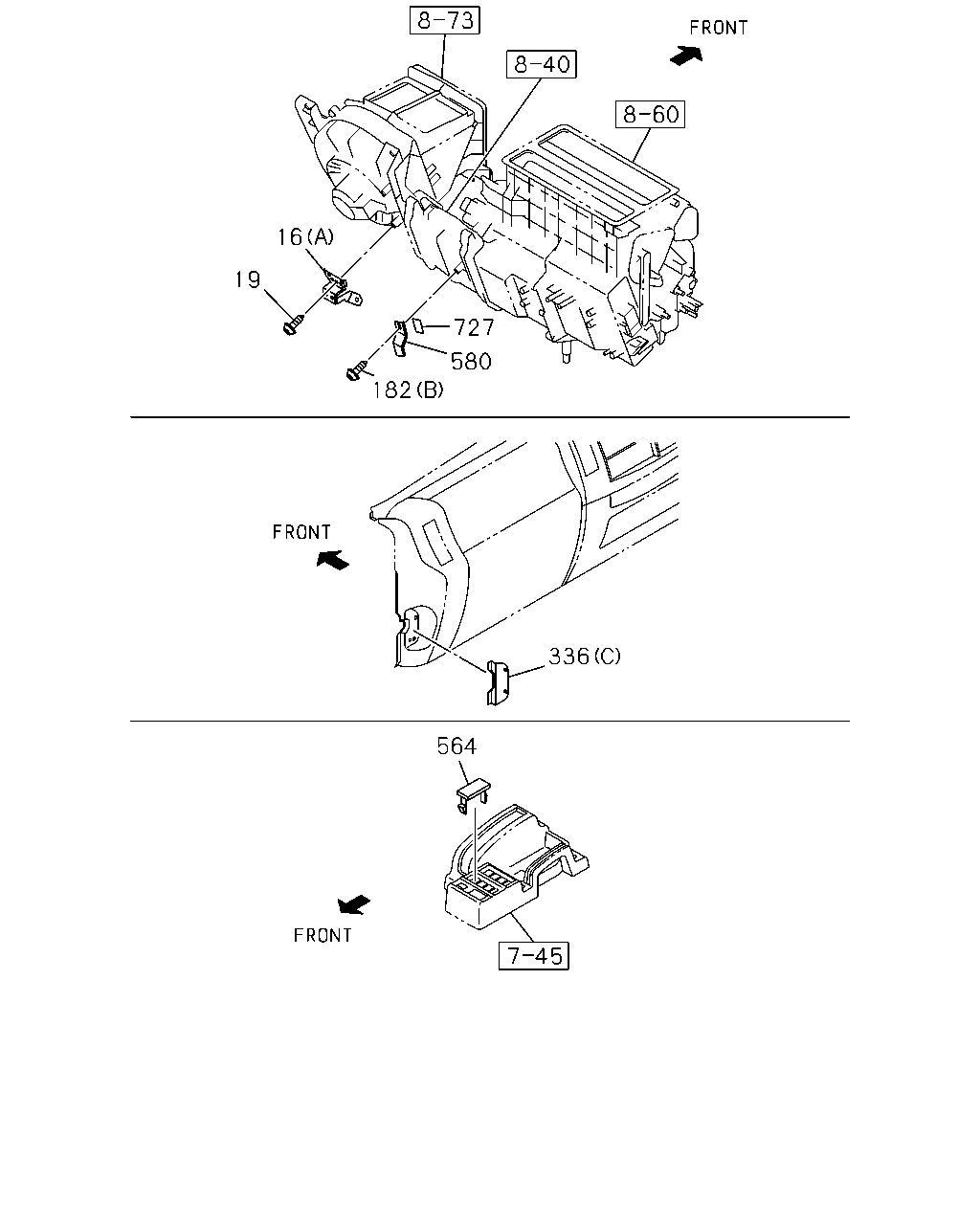

çizim 433516
564 336 182 580 727 16 19
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1407-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1407-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1407-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1407-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1407-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1407-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1407-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1407-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1407-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1407-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1407-
564 COVER; SW 8-97043-732-1 06 1 1407-
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-528-1 01 1 1407-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1407-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1407-
