◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#145053) — 17 parça

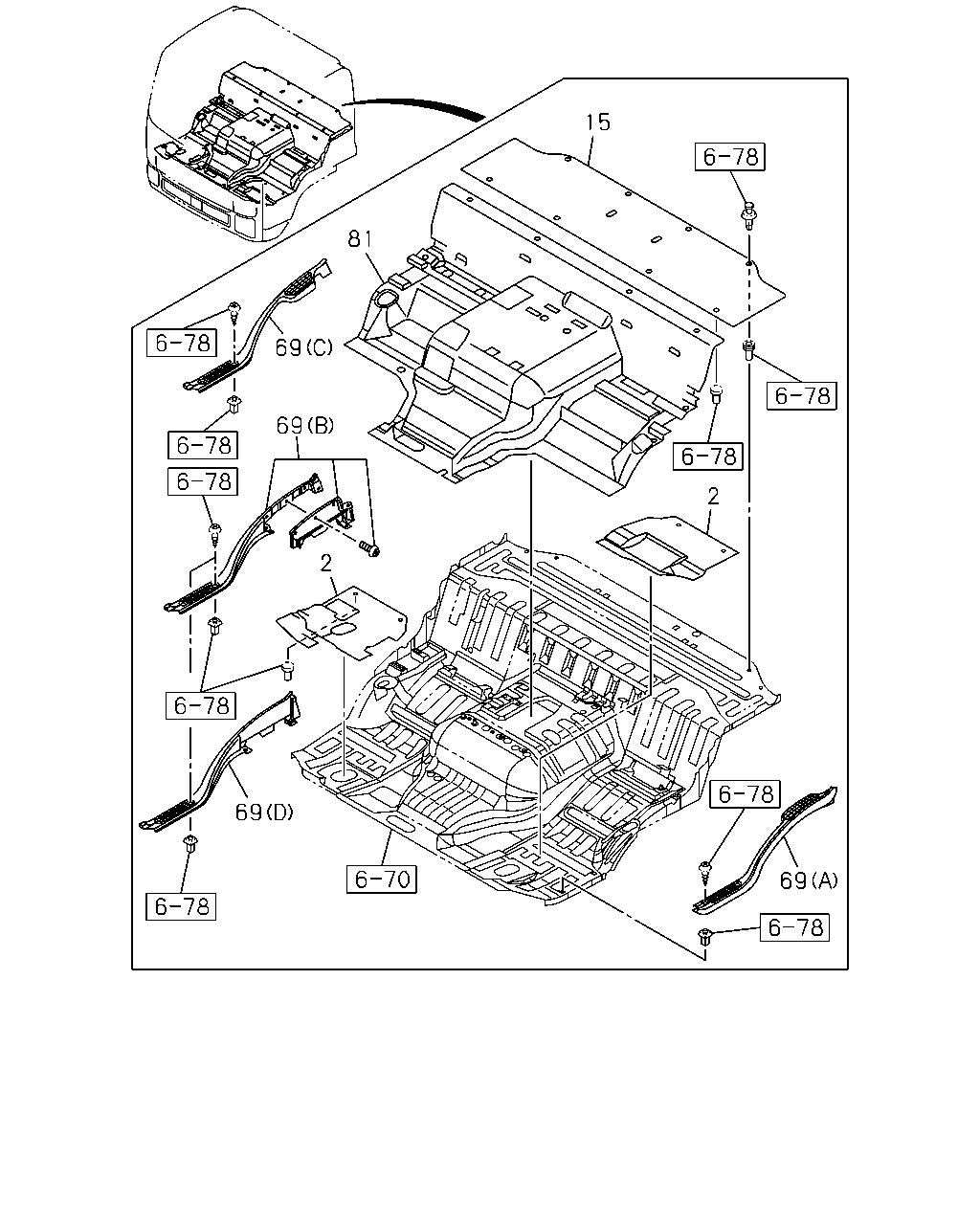

çizim 433587
15 81 69 69 2 2 69 69
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-746-5 01 1 1407-
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 1407-
2 MAT; FLOOR
VINYL CARPET<B30> DARK GRAY 		8-97418-947-0 01 1 1407-
2 MAT; FLOOR
VINYL CARPET<B30> DARK GRAY 		8-97418-949-0 01 1 1407-
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 1407-
15 MAT; FLOOR REAR
VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1407-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-413-1 01 1 1407-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 1407-1503
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (D) GRAY 		8-97465-138-0 01 1 1504-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97407-412-1 01 1 1407-
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> A/T<X9D> GRAY 		8-97423-213-0 01 1 1508-
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> VINYL CARPET<B30> MANUAL TRANSMISSION<X9C> DARK GRAY 		8-97418-941-0 01 1 1505-
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> MANUAL TRANSMISSION<X9C> GRAY 		8-97407-410-3 01 1 1505-
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-406-3 01 1 1407-1504
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> GRAY 		8-97407-406-3 01 1 1505-
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> DARK GRAY 		8-97418-940-0 01 1 1407-1504
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> DARK GRAY 		8-97418-940-0 01 1 1505-
