6-70 — FLOOR PANEL (#145052) — 68 parça

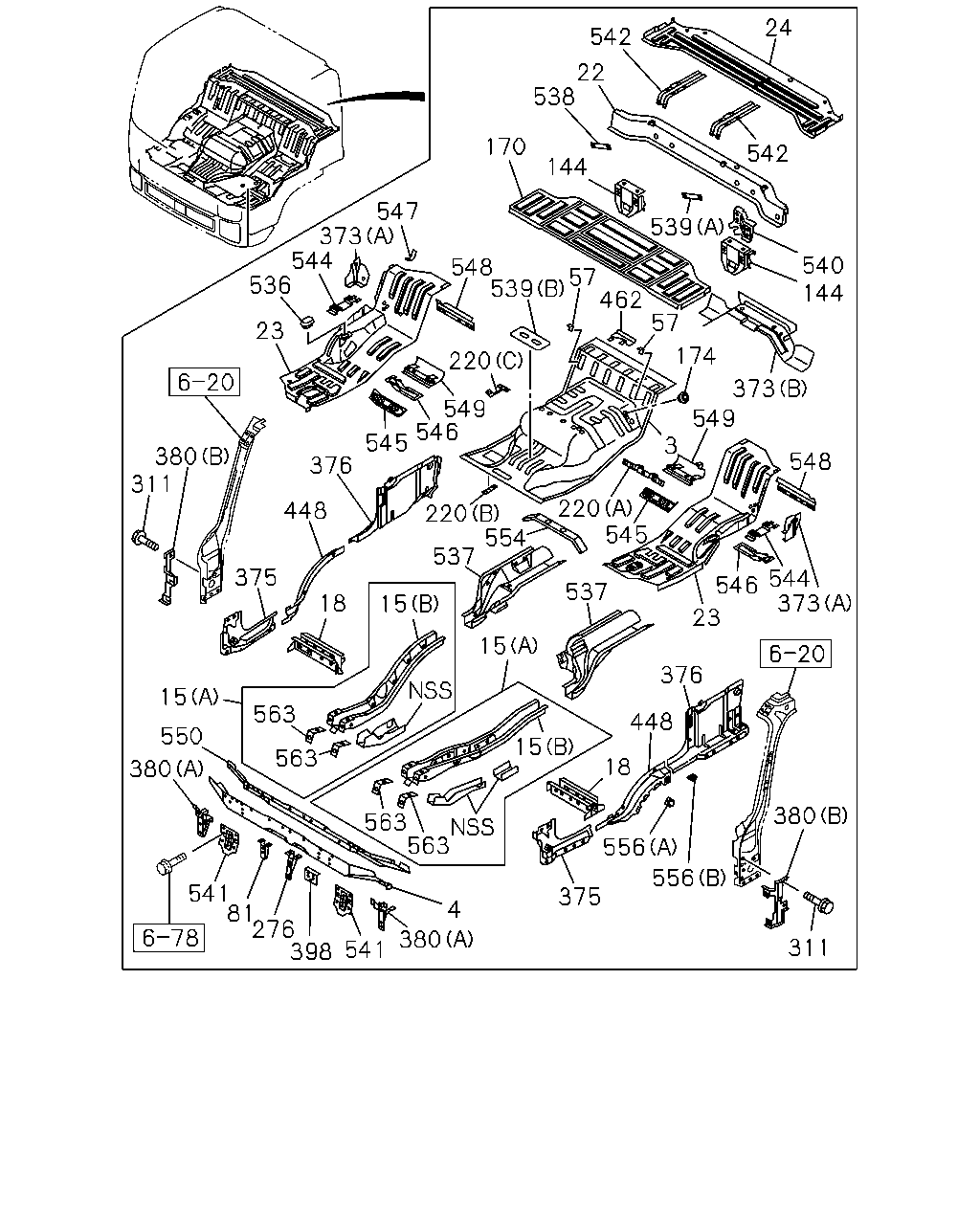

çizim 431887
24 542 539 462 57 174 373 540 144 549 3 548 546 544 373 23 376 448 18 556 556 380 311 375 380 4 541 398 276 81 541 380 550 15 563 563 563 563 15 15 15 18 375 448 537 537 545 220 554 220 376 545 546 549 220 539 57 548 547 373 544 536 23 380 311 144 170 538 22 542
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
ALLISON MD3060P A/T(Y4G) 		8-98066-084-6 01 1 1508-
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98053-677-9 01 1 1505-
3 HOOD ASM; ENG 8-98167-036-0 01 1 1407-1504
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98167-036-0 01 1 1505-
3 HOOD ASM; ENG
MZW6P M/T(RSZ) 		8-98167-036-0 01 1 1505-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1407-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1407-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1407-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1407-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1407-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1407-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1407-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1407-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1407-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1407-
24 PANEL; BED PAN 8-97584-378-6 01 1 1407-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1407-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1407-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1407-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1407-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1407-
174 GROMMET; AIR PIPE
OD=35 MAL 		8-94122-971-0 01 1 1407-
220 PATCH
(A) 		8-97588-840-4 01 1 1407-
220 PATCH
(B) 		8-97589-603-3 01 1 1407-
220 PATCH
(C) 		8-97589-627-2 01 1 1407-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1407-
311 BOLT; BRKT
M6X16 FLANGE MAL 		0-28650-616-0 04 1 1407-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1407-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1407-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1407-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1407-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1407-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1407-
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1407-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1407-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1407-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1407-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1407-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1407-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1407-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1407-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1407-1504
462 BRACKET; EXTINGUISHER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-97585-688-1 01 1 1505-
462 BRACKET; EXTINGUISHER
MZW6P M/T(RSZ) 		8-97585-688-1 01 1 1505-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1407-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1407-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1407-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1407-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1407-
539 PATCH ASM; SAFTY HOOK
(B) 		8-98131-661-0 01 1 1407-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1407-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1407-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1407-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1407-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1407-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1407-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1407-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1407-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1407-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1407-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1407-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1407-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1407-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1407-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1407-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1407-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1407-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1407-
