◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#145033) — 248 parça

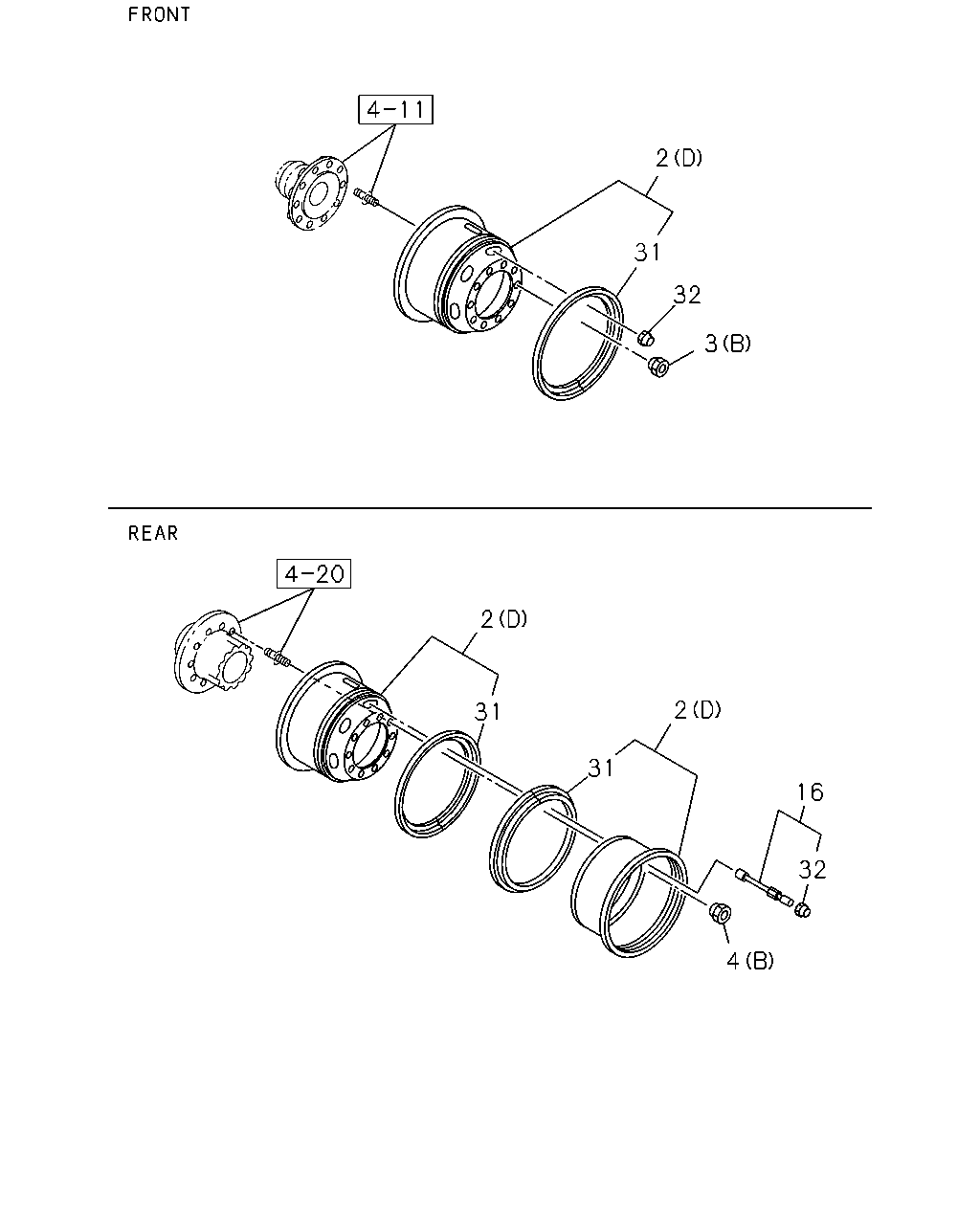

çizim 432786
2 31 32 3 2 31 31 2 16 32 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) FRONT,REAR 		1-42350-447-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) FRONT 		1-42350-447-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) REAR 		1-42350-447-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (D) SPARE 		1-42350-447-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (D) SPARE 		1-42350-447-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) FRONT,REAR 		1-42350-448-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) FRONT 		1-42350-448-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) REAR 		1-42350-448-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20(Q64) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (D) SPARE 		1-42350-448-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (D) SPARE 		1-42350-448-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT,REAR 		1-42350-745-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT 		1-42350-745-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR 		1-42350-745-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-745-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-745-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98217-247-0 06 1 1407-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98281-497-0 06 1 1408-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1407-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1407-1407
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) FRONT,REAR MAL 		1-42350-478-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) FRONT MAL 		1-42350-478-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) REAR MAL 		1-42350-478-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE MAL 		1-42350-478-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (C) SPARE MAL 		1-42350-478-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REAR 		1-42350-758-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT 		1-42350-758-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REAR 		1-42350-758-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-758-0 01 1 1407-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-758-0 01 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 MAL 		1-42333-055-0 20 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 LH THREAD MAL 		1-42334-022-3 08 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 MAL 		1-42333-022-3 08 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 MAL 		1-42333-055-0 20 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 LH THREAD MAL 		8-97359-810-0 08 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 RH THREAD MAL 		8-97359-809-0 08 1 1407-
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) L=170 MAL 		8-98167-052-0 02 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-012-1 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-012-1 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20(Q64) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-014-0 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20(Q64) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-014-0 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE MAL 		1-42355-003-1 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE MAL 		1-42355-003-1 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.00TX20(Q58) FRONT,REAR 		1-42355-012-1 06 1 1407-1408
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.00TX20(Q58) FRONT 		1-42355-012-1 02 1 1409-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.00TX20(Q58) REAR 		1-42355-012-1 04 1 1409-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20(Q64) FRONT,REAR 		1-42355-014-0 06 1 1407-1408
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20(Q64) FRONT 		1-42355-014-0 02 1 1409-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20(Q64) REAR 		1-42355-014-0 04 1 1409-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) FRONT,REAR MAL 		1-42355-003-1 06 1 1407-1408
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) FRONT MAL 		1-42355-003-1 02 1 1409-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) REAR MAL 		1-42355-003-1 04 1 1409-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 04 1 1407-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2> MAL 		1-42374-001-0 04 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 05 1 1407-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> MAL 		1-42374-001-0 05 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 06 1 1407-
32 CAP; VALVE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2> MAL 		1-42374-001-0 06 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 07 1 1407-
32 CAP; VALVE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> MAL 		1-42374-001-0 07 1 1407-

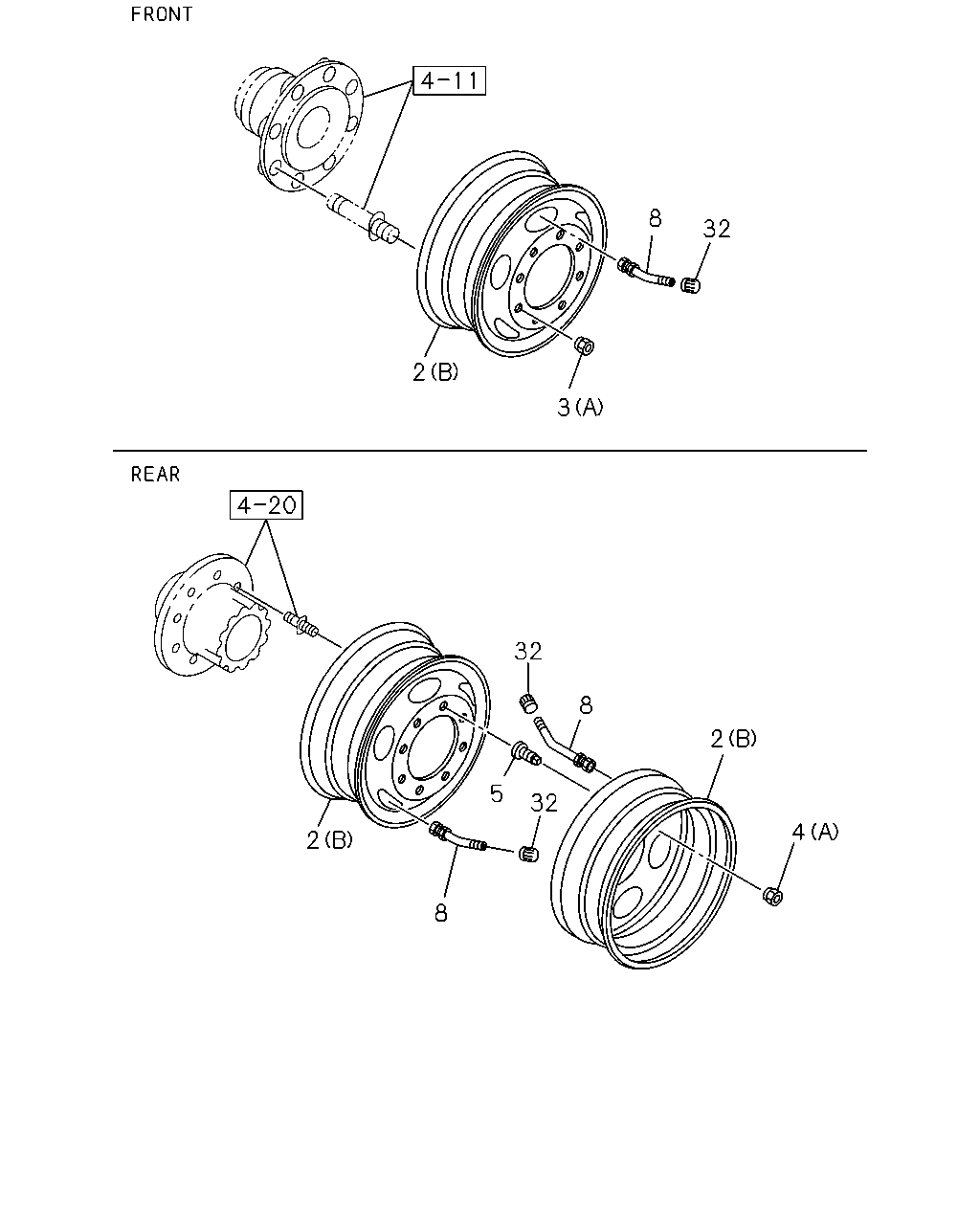

çizim 432983
8 32 3 2 32 8 2 4 32 5 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) FRONT,REAR 		1-42350-447-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) FRONT 		1-42350-447-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) REAR 		1-42350-447-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (D) SPARE 		1-42350-447-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (D) SPARE 		1-42350-447-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) FRONT,REAR 		1-42350-448-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) FRONT 		1-42350-448-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) REAR 		1-42350-448-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20(Q64) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (D) SPARE 		1-42350-448-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (D) SPARE 		1-42350-448-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT,REAR 		1-42350-745-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT 		1-42350-745-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR 		1-42350-745-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-745-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-745-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98217-247-0 06 1 1407-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98281-497-0 06 1 1408-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1407-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1407-1407
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) FRONT,REAR MAL 		1-42350-478-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) FRONT MAL 		1-42350-478-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) REAR MAL 		1-42350-478-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE MAL 		1-42350-478-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (C) SPARE MAL 		1-42350-478-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REAR 		1-42350-758-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT 		1-42350-758-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REAR 		1-42350-758-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-758-0 01 1 1407-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-758-0 01 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 MAL 		1-42333-055-0 20 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 LH THREAD MAL 		1-42334-022-3 08 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 MAL 		1-42333-022-3 08 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 MAL 		1-42333-055-0 20 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 LH THREAD MAL 		8-97359-810-0 08 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 RH THREAD MAL 		8-97359-809-0 08 1 1407-
5 NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) OUTER M30,INNER M20 LH THREAD MAL 		8-97359-806-0 08 1 1407-
5 NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) OUTER M30,INNER M20 RH THREAD MAL 		8-97359-805-0 08 1 1407-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 1407-
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 1407-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-048-0 01 1 1407-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-048-0 01 1 1407-1407
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT 		1-42370-020-3 02 1 1407-
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR 		1-42370-020-3 04 1 1407-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-048-0 02 1 1407-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-019-3 02 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-048-0 04 1 1407-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-019-3 04 1 1408-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 04 1 1407-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2> MAL 		1-42374-001-0 04 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 05 1 1407-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> MAL 		1-42374-001-0 05 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 06 1 1407-
32 CAP; VALVE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2> MAL 		1-42374-001-0 06 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 07 1 1407-
32 CAP; VALVE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> MAL 		1-42374-001-0 07 1 1407-

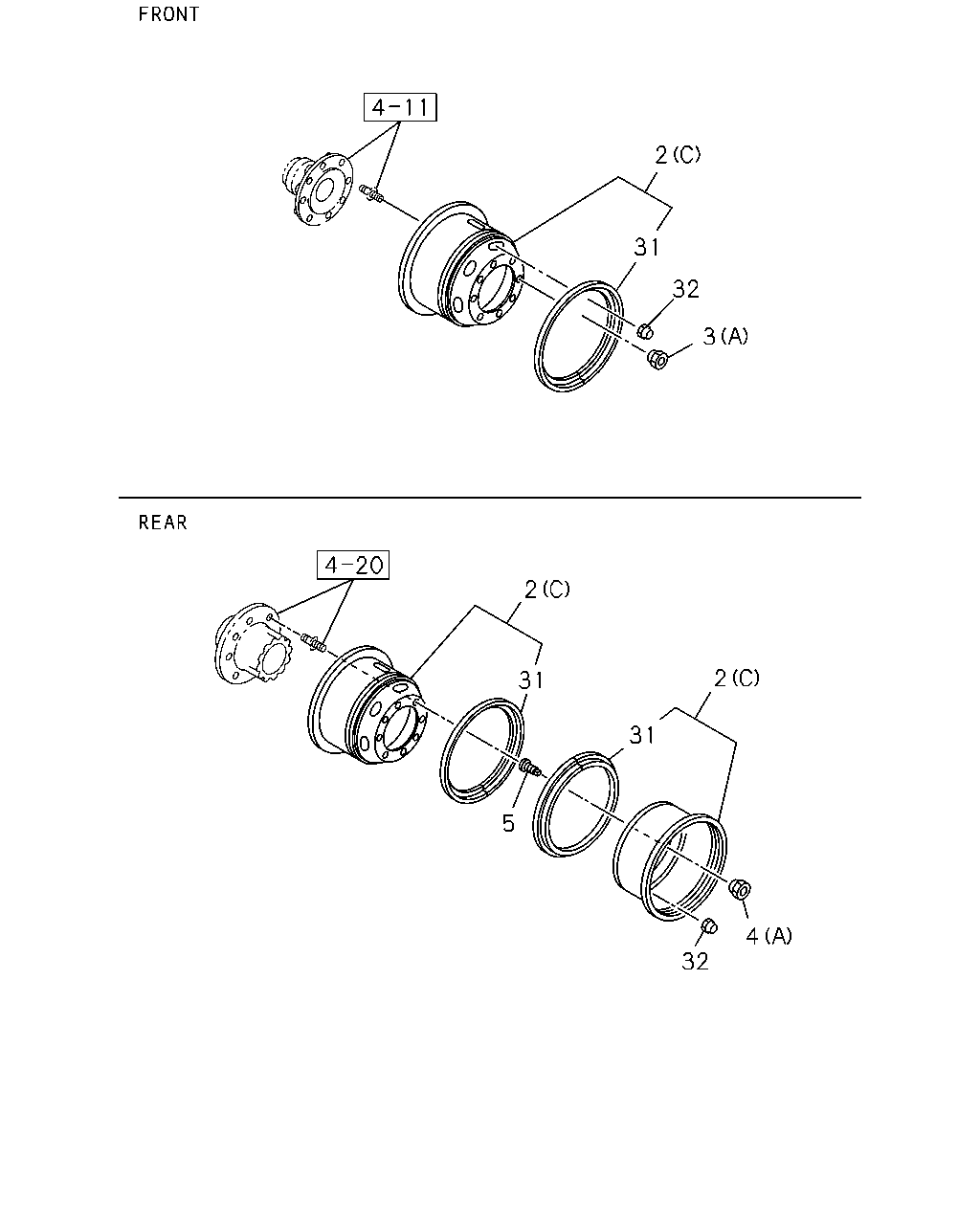

çizim 433218
2 31 32 3 2 31 31 2 5 32 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) FRONT,REAR 		1-42350-447-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) FRONT 		1-42350-447-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) REAR 		1-42350-447-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (D) SPARE 		1-42350-447-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (D) SPARE 		1-42350-447-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) FRONT,REAR 		1-42350-448-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) FRONT 		1-42350-448-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) REAR 		1-42350-448-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20(Q64) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (D) SPARE 		1-42350-448-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (D) SPARE 		1-42350-448-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT,REAR 		1-42350-745-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT 		1-42350-745-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR 		1-42350-745-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-745-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-745-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98217-247-0 06 1 1407-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98281-497-0 06 1 1408-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1407-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1407-1407
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) FRONT,REAR MAL 		1-42350-478-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) FRONT MAL 		1-42350-478-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) REAR MAL 		1-42350-478-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE MAL 		1-42350-478-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (C) SPARE MAL 		1-42350-478-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REAR 		1-42350-758-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT 		1-42350-758-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REAR 		1-42350-758-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-758-0 01 1 1407-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-758-0 01 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 MAL 		1-42333-055-0 20 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 LH THREAD MAL 		1-42334-022-3 08 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 MAL 		1-42333-022-3 08 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 MAL 		1-42333-055-0 20 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 LH THREAD MAL 		8-97359-810-0 08 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 RH THREAD MAL 		8-97359-809-0 08 1 1407-
5 NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) OUTER M30,INNER M20 LH THREAD MAL 		8-97359-806-0 08 1 1407-
5 NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) OUTER M30,INNER M20 RH THREAD MAL 		8-97359-805-0 08 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-012-1 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-012-1 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20(Q64) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-014-0 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20(Q64) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-014-0 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE MAL 		1-42355-003-1 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE MAL 		1-42355-003-1 01 1 1407-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.00TX20(Q58) FRONT,REAR 		1-42355-012-1 06 1 1407-1408
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.00TX20(Q58) FRONT 		1-42355-012-1 02 1 1409-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.00TX20(Q58) REAR 		1-42355-012-1 04 1 1409-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20(Q64) FRONT,REAR 		1-42355-014-0 06 1 1407-1408
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20(Q64) FRONT 		1-42355-014-0 02 1 1409-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20(Q64) REAR 		1-42355-014-0 04 1 1409-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) FRONT,REAR MAL 		1-42355-003-1 06 1 1407-1408
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) FRONT MAL 		1-42355-003-1 02 1 1409-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) REAR MAL 		1-42355-003-1 04 1 1409-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 04 1 1407-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2> MAL 		1-42374-001-0 04 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 05 1 1407-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> MAL 		1-42374-001-0 05 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 06 1 1407-
32 CAP; VALVE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2> MAL 		1-42374-001-0 06 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 07 1 1407-
32 CAP; VALVE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> MAL 		1-42374-001-0 07 1 1407-

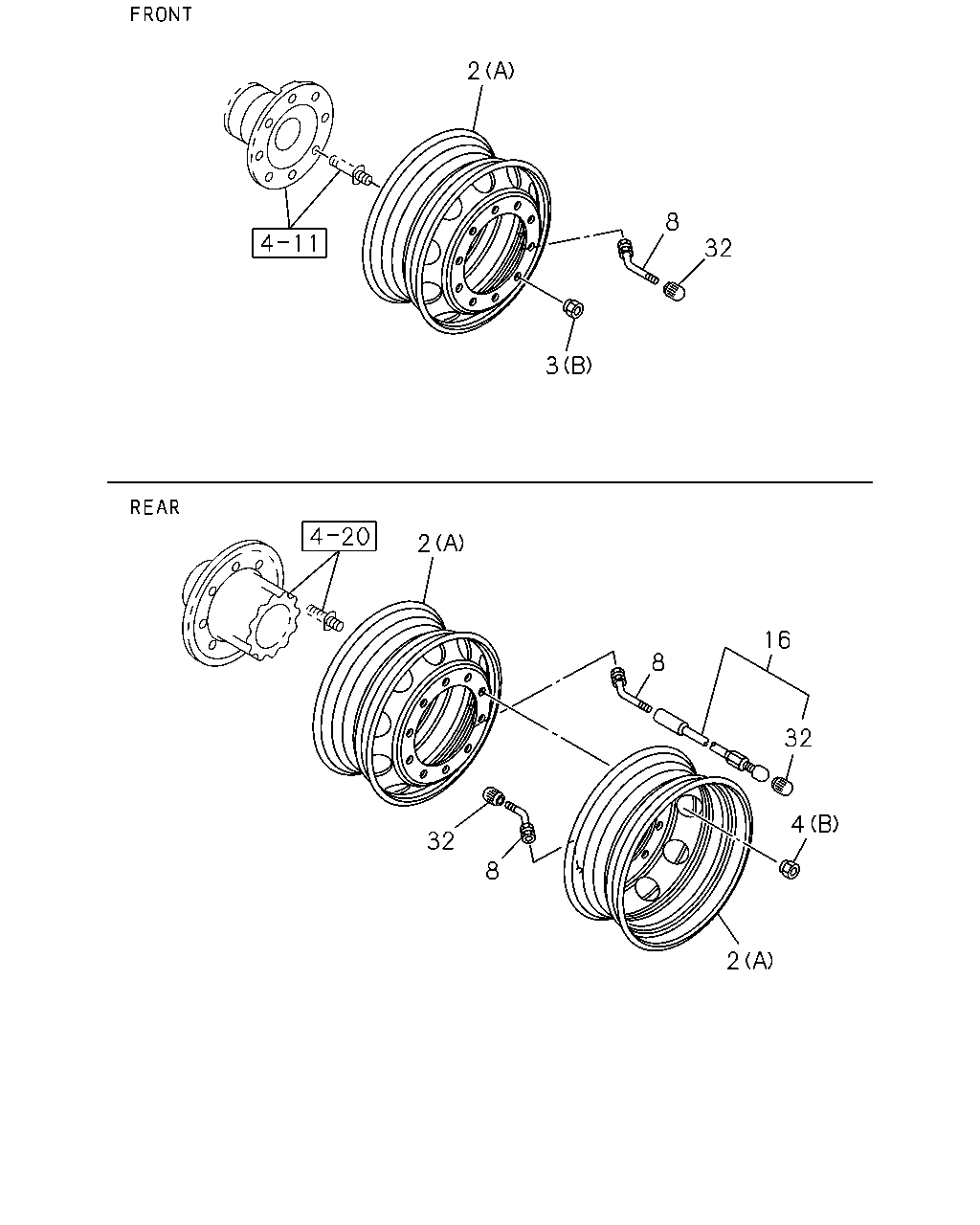

çizim 433247
2 8 32 3 2 32 8 8 16 32 4 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) FRONT,REAR 		1-42350-447-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) FRONT 		1-42350-447-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) (D) REAR 		1-42350-447-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (D) SPARE 		1-42350-447-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (D) SPARE 		1-42350-447-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) FRONT,REAR 		1-42350-448-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) FRONT 		1-42350-448-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) (D) REAR 		1-42350-448-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20(Q64) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (D) SPARE 		1-42350-448-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20(Q64) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (D) SPARE 		1-42350-448-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT,REAR 		1-42350-745-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT 		1-42350-745-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR 		1-42350-745-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-745-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-745-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98217-247-0 06 1 1407-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98281-497-0 06 1 1408-1408
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1407-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1407-1407
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) FRONT,REAR MAL 		1-42350-478-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) FRONT MAL 		1-42350-478-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (C) REAR MAL 		1-42350-478-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE MAL 		1-42350-478-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (C) SPARE MAL 		1-42350-478-0 01 1 1407-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REAR 		1-42350-758-0 06 1 1407-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT 		1-42350-758-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REAR 		1-42350-758-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-758-0 01 1 1407-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-758-0 01 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 MAL 		1-42333-055-0 20 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 LH THREAD MAL 		1-42334-022-3 08 1 1407-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 MAL 		1-42333-022-3 08 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 MAL 		1-42333-055-0 20 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 LH THREAD MAL 		8-97359-810-0 08 1 1407-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 RH THREAD MAL 		8-97359-809-0 08 1 1407-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 1407-
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 1407-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-048-0 01 1 1407-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-048-0 01 1 1407-1407
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT 		1-42370-020-3 02 1 1407-
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR 		1-42370-020-3 04 1 1407-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-048-0 02 1 1407-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-019-3 02 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-048-0 04 1 1407-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-019-3 04 1 1408-
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) L=170 MAL 		8-98167-052-0 02 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 04 1 1407-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2> MAL 		1-42374-001-0 04 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 05 1 1407-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> MAL 		1-42374-001-0 05 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 06 1 1407-
32 CAP; VALVE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2> MAL 		1-42374-001-0 06 1 1407-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 07 1 1407-
32 CAP; VALVE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> MAL 		1-42374-001-0 07 1 1407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
