4-60 — REAR SUSPENSION (#145031) — 36 parça

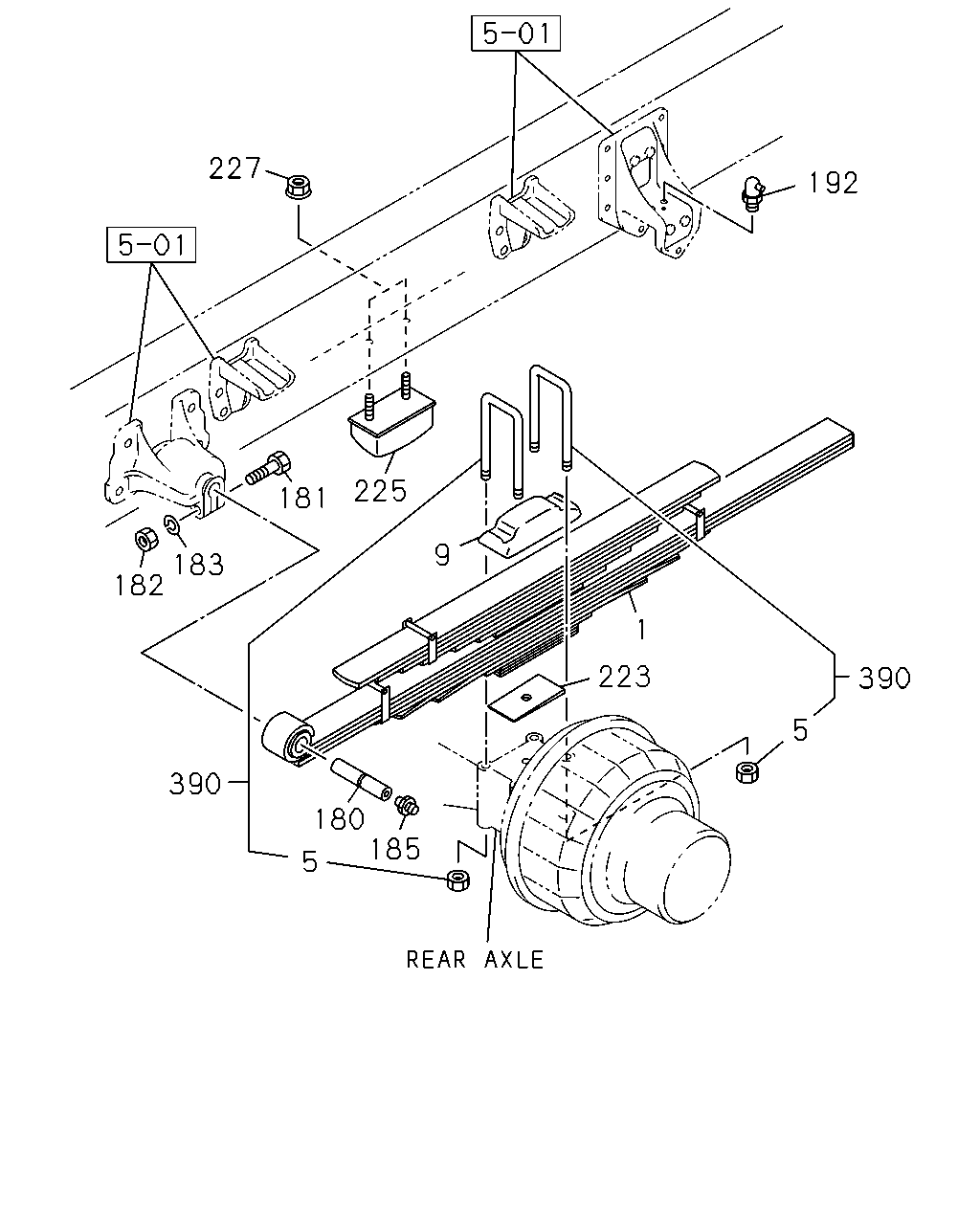

225 181 183 182 227 192 390 223 1 9 390 180 185 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98017-566-1	02	1	1505-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-98017-565-0	02	1	1407-1504
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98017-565-0	02	1	1505-
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	1407-
9	PAD; U BOLT,RR SPR	1-51372-030-0	02	1	1407-
180	PIN; RR SPR MAL	1-51361-020-0	02	1	1407-
181	BOLT; SPR & SHACKLE M14X80 MAL	0-10856-480-0	02	1	1407-
182	NUT; PIN,RR SPR M14 MAL	0-91110-514-0	02	1	1407-
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	1407-
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	1407-
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1407-
223	SPACER; U BOLT,RR SPR	1-51377-371-1	02	1	1407-
225	RUBBER; CUSHION,RR SPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-53366-045-1	02	1	1505-
225	RUBBER; CUSHION,RR SPR	1-53366-081-1	02	1	1407-1504
225	RUBBER; CUSHION,RR SPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-53366-081-1	02	1	1505-
227	NUT; CUSHION RUBBER M12 FLANGE MAL	0-91180-212-0	04	1	1407-
390	U-BOLT SET; RR SPRING L=490	1-87870-036-4	04	1	1407-

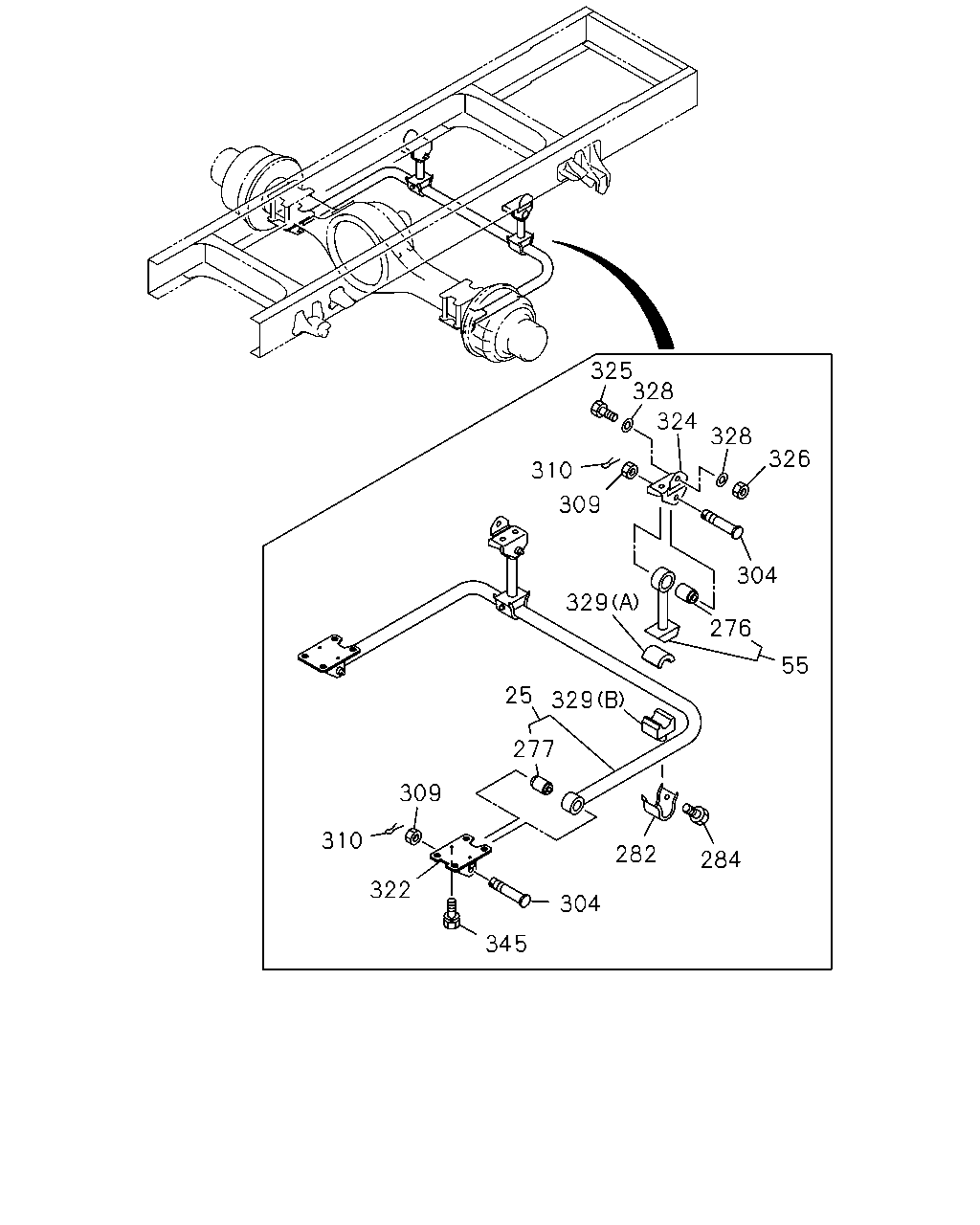

310 309 324 328 325 328 326 304 55 276 329 329 25 277 282 284 309 310 322 345 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BAR ASM; STAB,RR SUSP STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-51770-030-2	01	1	1505-
55	ROD; STAB STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-51770-035-1	02	1	1505-
276	BUSHING; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-51779-019-0	02	1	1505-
277	BUSHING; STAB,RR UPR STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-51779-067-0	02	1	1505-
282	RETAINER; STAB BAR STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-51789-015-2	02	1	1505-
284	BOLT; RET TO RET STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25	8-94463-351-0	08	1	1505-
304	PIN; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-51789-020-2	04	1	1505-
309	NUT; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M24	9-99116-424-0	04	1	1505-
310	PIN; SPLIT,STAB ROD STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=4.6 L=45	0-81125-045-0	04	1	1505-
322	BRACKET; STAB BAR TO RR AXLE STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-51781-048-4	01	1	1505-
322	BRACKET; STAB BAR TO RR AXLE STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-51781-127-0	01	1	1505-
324	BRACKET; STAB BAR TO FRAME STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-51781-059-0	02	1	1505-
325	BOLT; BRKT TO FRAME STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X40	0-20951-440-0	02	1	1505-
325	BOLT; BRKT TO FRAME STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X45	0-20951-445-0	04	1	1505-
326	NUT; BRKT TO FRAME STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 MAL	0-91110-514-0	06	1	1505-
328	WASHER; PL,BRKT STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15	8-98010-627-1	12	1	1505-
329	BUSHING; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51789-051-1	02	1	1505-
329	BUSHING; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51789-052-0	02	1	1505-
345	BOLT; BRKT STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X16 FLANGE	0-28051-016-0	04	1	1505-
