◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#145029) — 59 parça

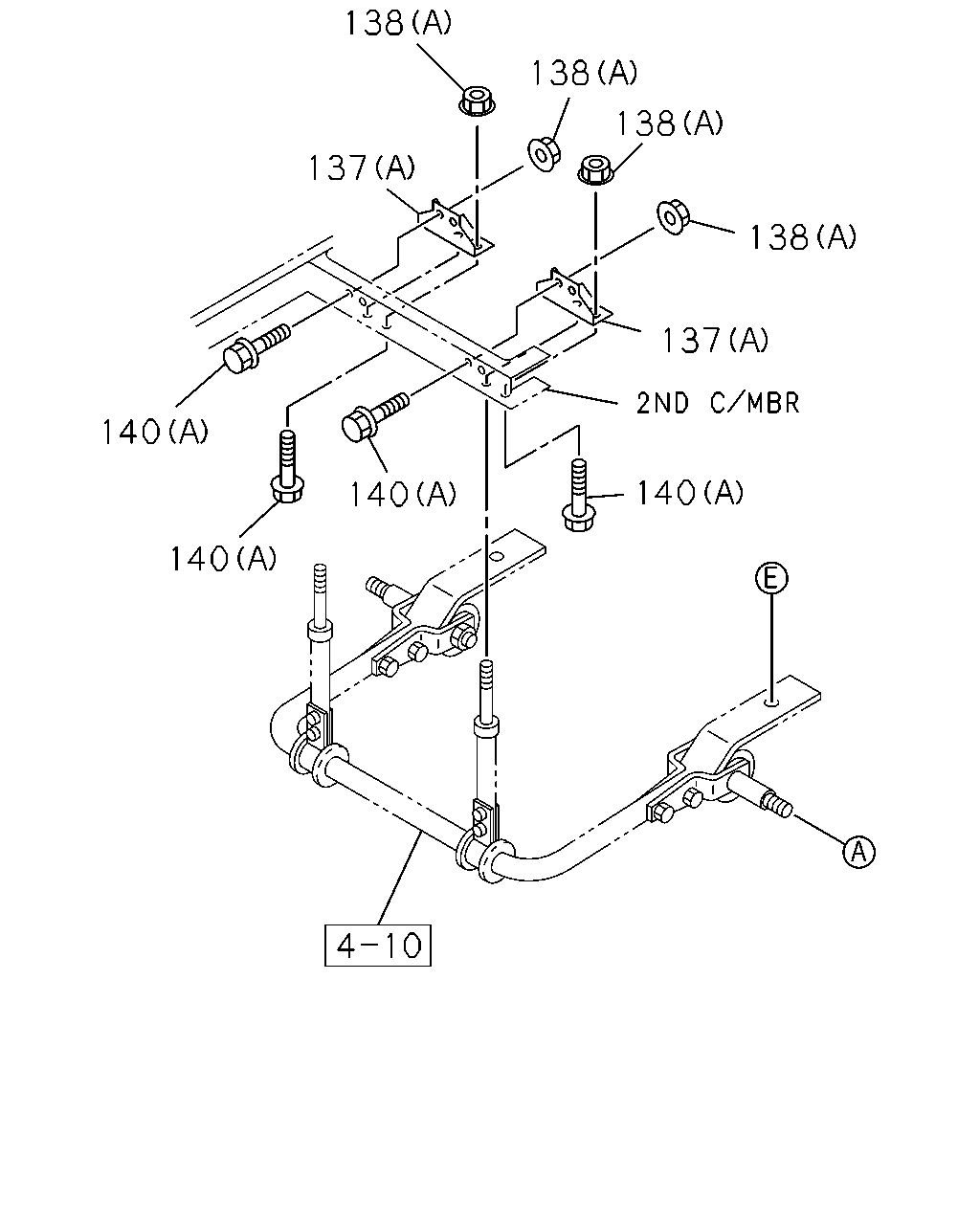

çizim 432596
138 138 138 138 137 140 140 140 140 137
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) 		8-98128-356-1 02 1 1410-1504
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) 		8-98128-356-1 02 1 1505-
137 BRACKET; STAB BAR TO FRAME
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (A) 		1-51781-046-3 02 1 1407-
138 NUT; BRKT
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) M14 MAL 		0-91110-514-0 06 1 1410-1504
138 NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) M14 MAL 		0-91110-514-0 06 1 1505-
138 NUT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (A) M10 FLANGE MAL 		0-91180-210-0 08 1 1407-
140 BOLT; BRKT
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) M14X45 		0-20951-445-0 06 1 1410-1504
140 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) M14X45 		0-20951-445-0 06 1 1505-
140 BOLT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (A) M10X30 FLANGE 		0-28651-030-0 08 1 1407-

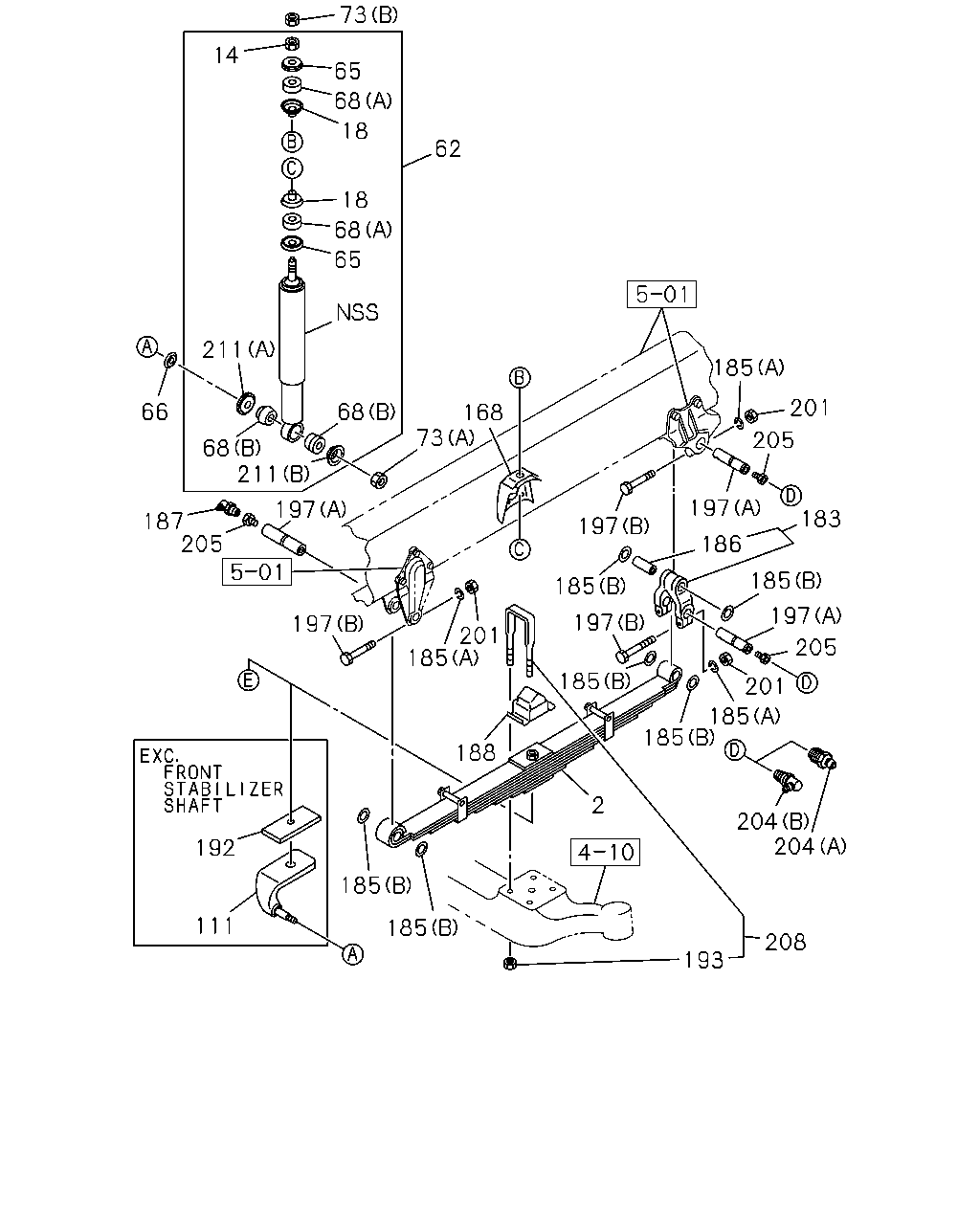

çizim 432622
73 65 68 18 18 68 65 62 14 66 211 211 68 187 205 197 197 185 201 197 185 197 185 185 185 201 205 197 185 186 197 183 205 201 185 204 204 2 188 185 192 111 185 68 73 168 193 208
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98010-512-0 02 1 1410-1504
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98010-512-0 02 1 1505-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98029-096-0 02 1 1410-1504
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 1505-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98029-096-0 02 1 1505-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) 8-LEAF 		8-98228-700-0 02 1 1407-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1407-
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 1407-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98029-372-0 02 1 1407-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 1407-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS 		1-87610-155-0 02 1 1407-
65 WASHER; S/ABS
ID=16.5 		9-51631-040-0 04 1 1407-
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1407-
68 BUSHING; S/ABS
(B) MAL 		9-51631-026-0 04 1 1407-
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 1407-
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1407-
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1407-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1407-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1407-
168 BRACKET; S/ABS,FRT SUSP
MAL 		1-51681-616-0 02 1 1407-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1407-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1407-
185 WASHER; LK,PIN
(A) ID=12.2 		8-98179-315-0 12 1 1407-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1407-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1407-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-125-1 02 1 1505-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1407-1504
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-096-2 02 1 1505-
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 1407-
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1407-
197 PIN; FRT SPR,FRT
(B) M12X80 MAL 		0-10856-280-0 12 1 1407-
197 PIN; FRT SPR,FRT
(A) MAL 		1-51161-031-0 06 1 1407-
201 NUT; PIN LK
M12 MAL 		0-91110-512-0 12 1 1407-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1407-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1407-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1407-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1407-
211 WASHER; BRKT,SHOCK
(A) ID=27 MAL 		9-51631-027-0 02 1 1407-
211 WASHER; BRKT,SHOCK
(B) ID=21 MAL 		9-51631-028-0 02 1 1407-
çizim 459687
138 377 140 377 137 377 140 138 377 137
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) 		8-98128-356-1 02 1 1410-1504
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) 		8-98128-356-1 02 1 1505-
137 BRACKET; STAB BAR TO FRAME
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (A) 		1-51781-046-3 02 1 1407-
138 NUT; BRKT
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) M14 MAL 		0-91110-514-0 06 1 1410-1504
138 NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) M14 MAL 		0-91110-514-0 06 1 1505-
138 NUT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (A) M10 FLANGE MAL 		0-91180-210-0 08 1 1407-
140 BOLT; BRKT
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) M14X45 		0-20951-445-0 06 1 1410-1504
140 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) M14X45 		0-20951-445-0 06 1 1505-
140 BOLT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (A) M10X30 FLANGE 		0-28651-030-0 08 1 1407-
377 WASHER; LK,BRKT
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 1410-1504
377 WASHER; LK,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 1505-
